Concrete Recess Disc — EOFY Deal
Concrete Recess DiscPuddle flange recessing tool
Disc size
Configuration
200mm Ø recess — fits 100mm puddle flanges (≤200mm top)
EOFY pricing ends June 30 — 00d 00h 00m 00s
Cut it once, cut it flush
The 100mm wheel bearing fits perfectly inside a 100mm drainage pipe, so the disc self-centres over the drain and guides a precise recess every time. The puddle flange drops straight in and sits flush with the concrete.
No high spots, no lips, no pooling — the kind of finish that keeps membranes intact and inspectors happy. It's a best-seller for a reason: fast, clean and compliant.
How to use it
A flush, compliant recess in 7 steps- Mark your centre
Locate the drainage pipe and mark the centre point of the recess.
- Fit the disc
Mount the recess disc onto a standard angle grinder.
- Drop in the pilot
Lower the 100mm wheel bearing into the drainage pipe so the cut self-centres.
- Plunge and rotate
Cut a clean 200mm recess into the slab — typically in under two minutes.
- Keep it dustless
Run a vacuum or dust extraction alongside for a clean, safe cut.
- Test-fit the flange
Drop in the Puddle Pro 100mm flange — it should sit flush with the slab.
- Bed and waterproof
Bond the flange and waterproof the recess to AS 3740 & AS 4654.
Watch the disc cut a flush 200mm recess in a single plunge.
Pro tip: dust extraction
Always pair the disc with a vacuum or on-tool dust extraction. It keeps the cut dustless, protects your lungs and leaves a cleaner recess to bed the flange into — no chipping or grinding back required.
Tech specs

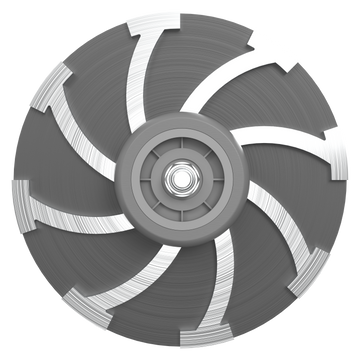

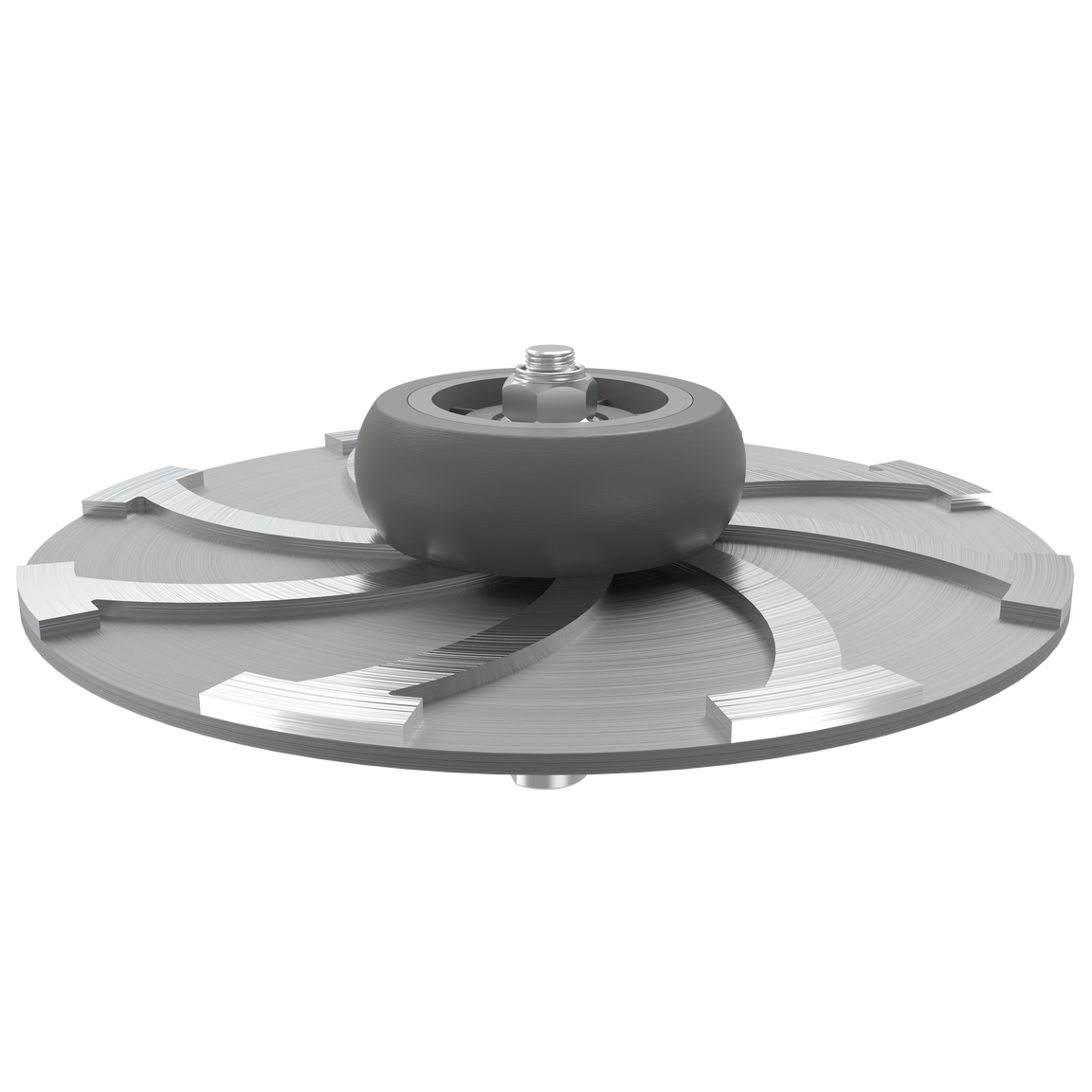

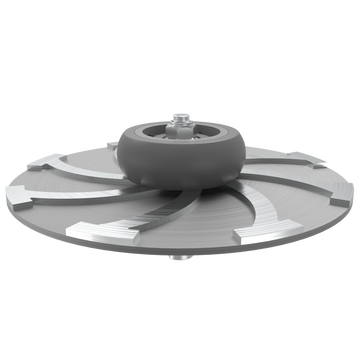

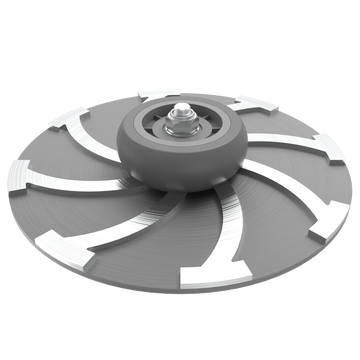

Innovative Tools — Concrete Recess Disc- Recess diameter
- 150mm, 200mm or 230mm
- Pilot guide
- 100mm wheel bearing, fits inside 100mm drain pipe
- Suits flange
- Puddle flanges with ≤200mm top diameter
- Substrate
- Concrete floors and slabs
- Tool fitment
- Standard angle grinders
- Cut time
- Under 2 minutes per recess
- Dust control
- Dustless when used with extraction
- Finish
- Flush, lip-free recess
- Compliance
- AS 3740:2021 & AS 4654.2:2012
- Best for
- Plumbers & waterproofers
Three concrete sizes: the 150mm for compact flanges and tight spaces, the 200mm best-seller for 100mm puddle flanges, and the 230mm for larger 150mm flanges. See the full recessing tool range →
Docs & instructions
Everything you need to cut with confidenceRated 4.3 by the trade
4 verified reviews"Self-centres on the pipe and cuts a perfect recess every time. The flange drops in dead flush — saves me a heap of grinding back."
Verified review — Waterproofer"Hooked it up to the vac and the cut was basically dustless. Two minutes a recess on site, no marking out. Brilliant tool."
Verified review — Plumber"Does exactly what it says and keeps the inspector happy on compliance. Pricey, but pays for itself in labour on the first job."
Verified review — Tiler
Buy it in a kit
The 200mm Puddle Flange Recess Kit pairs the disc with a full box of flanges — the biggest deal of the EOFY sale.
- 1 × Innovative Tools 200mm Concrete Recess Disc
- 1 box (60 units) Puddle Pro 100mm Puddle Flanges
- Everything to recess & flange a full run of jobs
- One box, one trade price
