200mm Puddle Flange Recess Kit Promo
The 200mm concrete recess disc and a run of Puddle Pro 100mm flanges in one order.

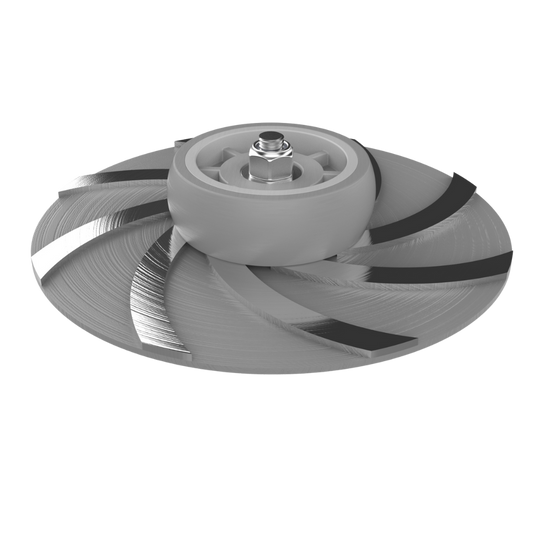

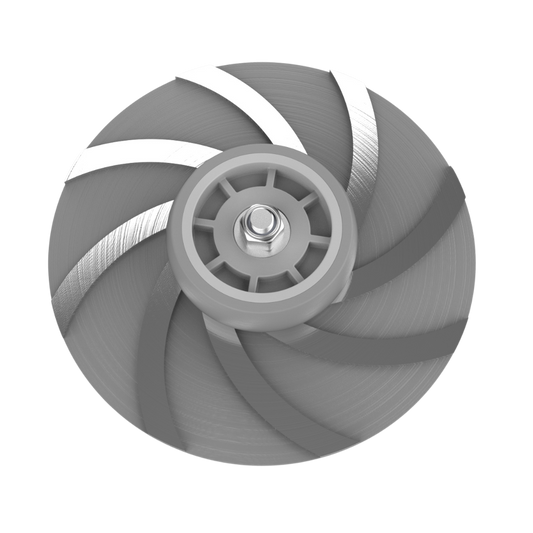

This bundle pairs the Innovative Tools 200mm Concrete Recess Disc with Puddle Pro 100mm Puddle Flanges. The disc recesses puddle flanges into concrete fast, clean and at the correct depth. Pick the package that suits the job.
What's in the kit
- Disc Only + 20 Flanges: 1 x Innovative Tools 200mm Concrete Recess Disc and 20 x Puddle Pro 100mm Puddle Flanges

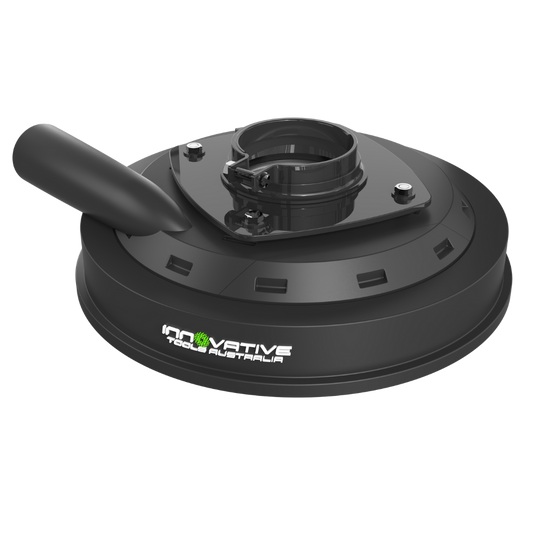

- Full Kit + 60 Flanges: 1 x 200mm Concrete Recess Disc, 1 x Innovative Tools 180mm Turbo Dust Shroud and 1 x box of 60 Puddle Pro 100mm Puddle Flanges
- Grinder not included. Fits any standard 230mm / 9-inch angle grinder (M14 spindle)
Where to use it
- Concrete slabs, new and cured or existing floors
- Showers, hobs and floor wastes in domestic and commercial bathrooms
- Exposed decks and door thresholds, plant rooms, lift pits and basements
Why buy the kit
- A 100mm wheel bearing sits in the drainage pipe and guides the cut, so the flange sits flush with the concrete
- Recess a PVC puddle flange into concrete in under 3 minutes
- Roughly 7 to 15 recessed holes per disc, and replacement discs are available
- Dry, dust-controlled cutting with a construction dust extractor on the shroud
- Puddle Pro flanges are ABS, WaterMark certified to AS 2887:1993, with a scored lid for flood testing
- Own a shroud? Take Disc Only. Doing volume work? The Full Kit adds dust control and a full box of flanges
Not for
FC (fibre cement) sheeting, 100mm or 125mm grinders, wet cutting, flanges larger than 200mm, or non-concrete and unknown substrates.
Pickup available at The Waterproofing Shop
Usually ready in 24 hours

200mm Puddle Flange Recess Kit Promo
Disc Only + 20 Flanges
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Technical Specifications
What's Included?
Product Files
No documentation available for this product.

Technical Specifications
| Bundle Type | Concrete puddle flange recessing kit plus Puddle Pro flanges |
| Recess Diameter | Full 200mm in one pass |
| Centring Guide | 100mm wheel bearing that sits inside the 100mm drainage pipe |
| Pipe Size | 100mm PVC drainage outlet |
| Flange Fit | Standard PVC puddle flanges under 200mm, including the Puddle Pro 100mm flange |
| Grinder Fit | Any standard 230mm / 9-inch angle grinder (M14 spindle), not included |
| Substrate | Concrete slabs, new and cured or existing floors |
| Cutting Method | Dry, dust-controlled, run with a construction dust extractor connected to the shroud |
| Disc Life | Roughly 7 to 15 recessed holes per disc |
| Cycle Time | A recess in under 3 minutes |
| Flange Material | ABS plastic |
| Flange Compliance | WaterMark certified to AS 2887:1993 (licence 080080) |
| Flange Detail | Scored detachable lid for flood testing, retrofits onto existing pipework |
| Package Options | Disc Only + 20 Flanges; Full Kit + 60 Flanges |
