Pool System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX HYDROPLUG
- 5 ACTFLEX AT MESH
- 6 ACTFLEX 988 CWP (2 Coats)
- 7 Tile Adhesive
- 8 Pool Finish
ACTFLEX 500 NP Water-Based Primer
or 4 interest-free payments with
The primer for surfaces nothing sticks to: metal, glass, tiles, burnished concrete. Solvent free, no acid etch.
ACTFLEX 500 NP PRIMER is a solvent-free primer that grips metals, glazed surfaces, glass, rigid plastics, existing tiles and burnished concrete. No acid etching, no solvents. One coat, dry in 30 to 45 minutes, then straight on with your Forspec membrane, adhesive or mortar.
Where to use it
- Under Forspec membrane coatings, adhesives and mortars on non-porous substrates
- Metals: galvanised iron, zincalume, aluminium, stainless steel, copper and coated steel
- Existing tiles and natural stone, precast, tilt-up and glass-reinforced concrete
- Compressed cement sheet, plasterboard, fibre cement flooring, hardwood, marine ply, glass and rigid plastics
Why waterproofers buy it
- Solvent free, low odour. Safer than solvent-based non-porous primers
- Viscous paste holds on vertical and overhead work
- Non-tacky when cured, low dirt retention
- Directly overcoatable with Forspec membranes, adhesives and mortars
- Interior and exterior. Brush or long-nap roller
- 10 year Forspec product warranty
Coverage
One coat at 6 to 10 m² per litre neat. 15 L pack: approx. 90 to 150 m². Diluted 1:1 with water for levelling compounds and absorbent substrates: 12 to 20 m² per litre of concentrate.
Not for
Use as a membrane or moisture barrier, rising moisture or negative pressure, a trafficable or exposed finish, or under solvent-based adhesives, coatings or paints (use ACTFLEX SUPERBOND 007 or 700 PU PRIMER). Sand PVC and aluminium and do a trial area. Over tiles in wet areas, overcoat with an under-tile membrane. Dry substrates only.
Drying time at 23°C and 50% RH.
Solvent-free, so high adhesion on metal, glass and glazed surfaces without acid etching
Viscous paste holds on vertical and overhead surfaces
Dry in 30-45 minutes at 23C and directly overcoatable with FORSPEC membranes
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
ACTFLEX 500 NP Water-Based Primer
5 Litre
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
How to Use
Technical Specifications
ACTFLEX 500 NP Water-Based Primer
Sale price$110.00
Frequently bought together
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Technical overview
Key applications
- Priming beneath FORSPEC membrane coatings, adhesives and mortars on non-porous substrates
- Metals - galvanised iron, zincalume, aluminium, stainless steel, copper, brass-treated steel and pre-finished coated steel sheeting
- Precast and tilt-up concrete, and glass-reinforced concrete
- Existing ceramic tiles, tiles and natural stone
- Compressed cement sheeting and plasterboard surfaces
- Hardwood, dense timber, marine plywood and timber sheet surfaces
- Glass and rigid plastic surfaces
- Polymer mortars, synthetic mortars and smooth self-levelling compounds
- Existing water-based paintwork and acrylic membrane coatings
- General surfaces where absorbing primers are unsuitable or enhanced adhesion is required
Surface suitability
- Metals - galvanised iron, zincalume, aluminium, stainless steel, copper, brass-treated steel and pre-finished coated steel sheeting (sanded or abraded first; mandatory on aluminium)
- Precast and tilt-up concrete, and glass-reinforced concrete
- Existing ceramic tiles, tiles and natural stone (every tile sound and firmly bonded, drummy or loose tiles replaced first)
- Brickwork, clay and concrete
- Compressed cement sheeting and plasterboard surfaces
- Fibre cement external and internal flooring sheet
- Hardwood, dense timber, marine plywood and timber sheet surfaces
- Glass and rigid plastic surfaces (sanded or abraded first; mandatory on PVC, trial area required)
- Polymer mortars, synthetic mortars and smooth self-levelling compounds
- Existing water-based paintwork and acrylic membrane coatings
Not a waterproofing membrane and not a moisture barrier. Not suitable for areas subject to rising moisture or negative hydrostatic pressure, and not designed for use as a trafficable or exposed surface finish. Not appropriate where solvent-based adhesives, coatings or paints will be applied directly over the primed surface - specify ACTFLEX SUPERBOND 007 or ACTFLEX 700 PU PRIMER for solvent-based systems. Adhesion to PVC and aluminium may be limited; sanding may be required and a trial area is mandatory. Do not dilute other than the approved 1:1 water dilution for floor levelling compounds and highly absorbent substrates. When tiling over existing tiles in internal or external wet areas it must be overcoated with a suitable under-tile membrane system. Do not apply over damp substrates, water residue or persistent dampness, and ensure the primer is fully dry before applying subsequent membranes, coatings or adhesives.
Calculate your coverage
You will need:
ACTFLEX 500 NP Water-Based Primer
5Lr kit
0 Kits
Total coverage: 0 m²
This is an estimate only. Add 10% for wastage.
Technical Specifications
| Product Type | Solvent-free, high-adhesion non-porous primer |
| Membrane Classification | Not applicable - the primer is a system component, not a membrane |
| Appearance | Viscous paste |
| Density | 1.35* |
| Viscosity | 5,000 mPa.s* |
| Non-volatile Content | 99%* |
| Number of Coats | One coat |
| Coverage | 6-10 m2/L |
| Consumption | Approx. 0.10-0.17 L/m2* |
| Drying Time | 30-45 minutes at 23C and 50% RH |
| Overcoating | Once completely dry |
| Approved Dilution | 1:1 by volume with water, for floor levelling compounds and highly absorbent substrates only |
| Service Temperature | -10C to +65C |
| Packaging | To current pack schedule; the TDS coverage table gives figures for 4 L and 15 L packs* |
| Shelf Life | 12 months, unopened, stored frost-free* |
| VOC Certification | Not currently held - solvent-free formulation |
| Hazard Classification | Non-hazardous chemical, non-dangerous goods under the WHS Regulations and the ADG Code (SDS) |
| * Typical Forspec R&D characteristic values - no accredited test reports exist for this product | |
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD

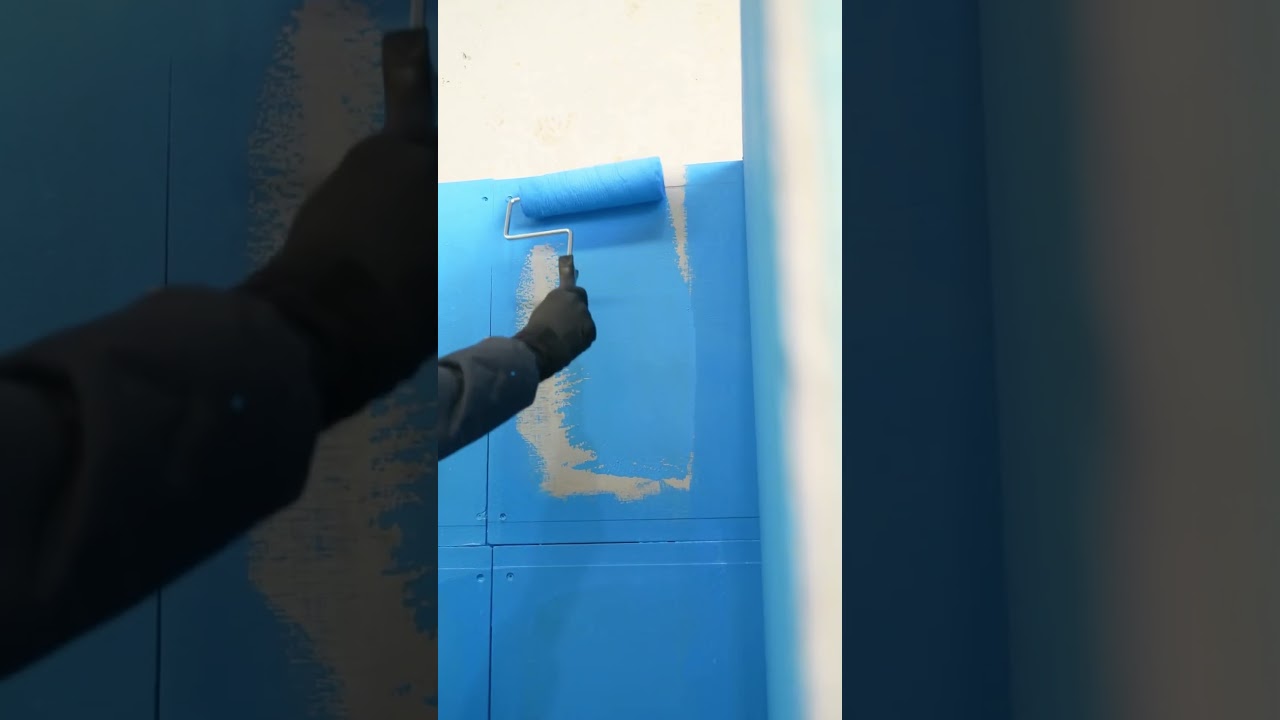

Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
Where is ACTFLEX 500 NP used?
Compatibility500 NP is the adhesion-promoting primer for dense, smooth, and non-porous substrates - metals, glass, glazed tiles, PVC, and existing coatings. Used where standard primers can't bite into the substrate surface.
-
Coverage and cure?
PerformanceCoverage is 6-10 m² per litre depending on substrate porosity. Touch-dry and ready for membrane in 30-45 minutes at 23°C/50% RH. The fast cure makes it productive for retrofit work over existing surfaces.
-
What's the application thickness?
InstallationApply at 0.2mm DFT in a single thin coat. Ready-to-use - no mixing required. The blue colour provides visual verification that all surfaces have been primed before membrane application.
-
Service temperature range?
CompatibilityService temperature -10°C to +65°C once cured. Suitable for most building applications including external balconies and roof areas where temperature cycling is normal.
-
Is it solvent-free?
ComplianceYes. 500 NP is solvent-free water-based - safe for indoor use without ventilation requirements. 10-month shelf life when stored sealed.
