Where is WPM 3000X Shelterseal used?

WPM 3000X is a below-ground HDPE sheet waterproofing membrane designed for foundations, retaining walls, basements, lift shafts, and tunnels.

What temperature range can WPM 3000X handle?

WPM 3000X has a wide service temperature range from -40°C to +80°C, making it suitable for buried applications across all Australian climates.

How is WPM 3000X installed?

WPM 3000X is loose-laid against the substrate with overlapped seams that are mechanically locked or heat-welded for a continuous waterproof barrier. Concrete is then poured against the membrane.

Does WPM 3000X resist groundwater pressure?

Yes. WPM 3000X is designed to resist hydrostatic pressure from groundwater in below-ground structures and is tested to high static water-head pressures.

Is WPM 3000X chemically resistant?

Yes. The HDPE construction resists most soil-borne chemicals, salts, and aggressive groundwater conditions encountered in below-ground installations.

Be the first to review

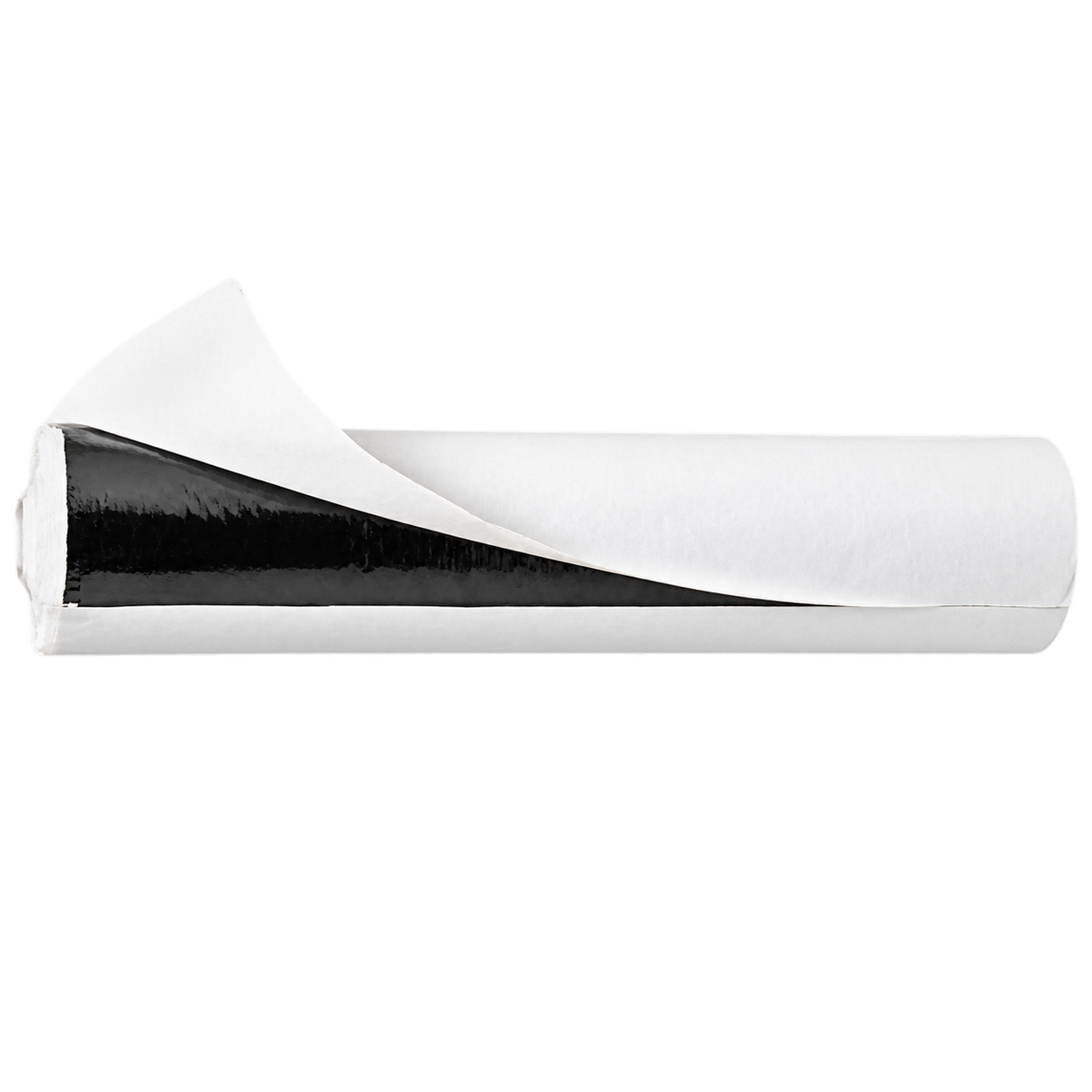

Ardex WPM 3000X Shelterseal

Name: Ardex WPM 3000X Shelterseal
Brand: Ardex
SKU: AARA134
Price: 604.95 AUD
Availability: OutOfStock

$604.95

Sold out

or 4 interest-free payments with

ARDEX WPM 3000X Shelterseal is a cutting-edge self-adhesive bituminous waterproofing membrane designed to provide exceptional protection against water ingress. Its unique construction incorporates a cross-laminated high-density polyethylene (HDPE) film, which not only enhances the membrane's self-adhesive properties but also imparts remarkable dimensional stability and elongation characteristics, making it perfect for below-ground applications. The addition of a bituminous compound further enhances its mechanical strength, durability, and resistance to heat, shape deformation, and chemicals.

Installed without the use of open flames, ideal for restricted spaces

Can be used as a Radon and Methane gas barrier

High chemical resistance to acids, alkalis and other pollutants

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup currently unavailable at The Waterproofing Shop

Ardex WPM 3000X Shelterseal

The Waterproofing Shop

Pickup currently unavailable

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

Advantages:

Superior waterproofing performance, effectively preventing water penetration

Self-adhesive feature simplifies installation, ensuring secure bonding to various substrates

High dimensional stability and elongation properties ideal for below-ground stresses

Excellent heat stability, maintaining integrity even under extreme temperatures

Exceptional shape retention, ensuring long-term performance

Resistant to various chemicals, offering reliable protection in diverse environments

Typical Uses:

Damp-proofing membrane for planter boxes

Waterproofing foundations and below-ground applications

Protection for retaining walls against water infiltration

Waterproofing balconies for added longevity

Underlayment for decks beneath cement screeds, preventing water damage

Reliable barrier for block walls, safeguarding against moisture ingress

ARDEX WPM 3000X Shelterseal is the go-to solution when you require a robust, self-adhesive bituminous waterproofing membrane that offers superior protection against water ingress. Its exceptional dimensional stability, elongation properties, and chemical resistance make it an ideal choice for a wide range of applications, including planter boxes, foundations, retaining walls, balconies, decks under cement screeds, and block walls. Trust ARDEX WPM 3000X Shelterseal to keep your structures dry and protected, even in demanding environments.

How to Use

Peel and stick from the lowest point so laps shed water, overlap side edge laps 60mm and top edge laps 150mm, then pressure roll the membrane, overlaps, corners, connections and edgesMechanically prepare and vacuum clean the substrate to remove all dirt, dust, curing compounds, oils, grease, surface sealers and any other contaminants
Leave the surface smooth, sound, clean and free from sharp edges, loose or other materials which may damage the membrane
Treat damaged concrete between 2mm and 30mm with ARDEX A46, and spalling concrete with the ARDEX Concrete Repair range such as ARDEX BR 345
Check substrate moisture; above 80% relative humidity (ASTM F2170) or 15gm/m2/24hrs (ASTM F1869) apply two coats of ARDEX WPM 300 (HydrEpoxy) at 3m2 per litre and allow a minimum of 3 days drying before ARDEX WPM 240
Prime all prepared surfaces except polystyrene blocks with ARDEX WPM 240 at 5m2 to 6m2 per litre and allow to dry
Prime polystyrene blocks with ARDEX WPM 300 (HydrEpoxy)
Pre-plan the application so laps do not occur within corners or penetrations
Start the membrane from the lowest point to enable laps to shed water
Lay the sheet without incorporating air bubbles under the membrane or wrinkles in the membrane
Overlap all side edge laps by 60mm minimum to the 60mm line marked on the roll
Overlap all top edge laps by 150mm minimum
Firmly roll the membrane onto the prepared substrate with a suitable pressure roller, paying close attention to all overlaps, corners, connections and edges
Finish around penetrations with ARDEX Bituminous Roof Sealant
Apply a second layer with laps staggered to the first layer where a specification requires it in critical environments
Terminate in accordance with AS4654.2, fixing an ARDEX Pressure Seal Strip at maximum 150mm centres and sealing the top edge with an approved ARDEX sealant
Place protection material between the membrane and granular backfill, with a suitable protection board and drainage system, before backfilling

Technical Specifications

Membrane Classification: SBS modified bitumen self-adhesive sheet membrane
Chemical Base: Bitumen and asphalt compound modified with SBS and high tack resins
Reinforcement: Cross laminated high-density polyethylene film, hot-laminated
Colour: Black roll finished with a polyethylene film on the top surface and an interleaving paper on the bottom surface
Relative Density: Approx. 1.1
Flash Point: Greater than 250C
Membrane Gauge: 1.5mm (EN 1849-1)*
Service Temperature: -40C to +80C*
Application Temperature: 5C to +40C*
Tensile Strength Longitudinal: 215N/50mm (EN 12311-1)*
Tensile Strength Transverse: 220N/50mm (EN 12311-1)*
Elongation Longitudinal: 310% (EN 12311-1)*
Elongation Transverse: 240% (EN 12311-1)*
Impact Resistance: Method A 500mm, Method B 1000mm (EN 12691)*
Static Load Resistance: Method A 10kg, Method B 15kg (EN 12730)*
Tear Resistance Longitudinal: 135 N (EN 12310-1)*
Tear Resistance Transverse: 135 N (EN 12310-1)*
Peel Adhesion (primed concrete): 3 N/mm (ASTM D 1000)*
Peel Resistance of Joints: 100N/30mm (EN 12316-1)*
Shear Resistance of Joints Longitudinal: 350N/50mm (EN 12317-1)*
Shear Resistance of Joints Transverse: 350N/50mm (EN 12317-1)*
Probe Tack: 7 N (ASTM D 2979)*
Watertightness at 24hrs: Pass at 60kPa (Method A), Pass at 6 bar (Method B) (EN 1928)*
Vapour Transmission Rate: 9000 u (EN 1931)*
Water Absorption: 0.09% (ASTM D 570)*
Permeability to Radon Gas: 5.7 x 10-12 m2/s (SP Swedish Institute)*
Permeability to Methane Gas: Less than 5 cc/m2 x 24h x atm (CSI Method)*
Total VOC Emission: 8 ug/m3 (ISO 16000-6)*
Side Edge Lap: 60mm minimum, marked on the roll
Top Edge Lap: 150mm minimum
Substrate Primer: ARDEX WPM 240 at 5m2 to 6m2 per litre, or ARDEX WPM 300 (HydrEpoxy) on polystyrene blocks
Roll Size: 1m wide x 20m long
Roll Weight: Approximately 32kg
Storage: Covered area protected against sunlight and UV exposure, rolls vertical on a smooth floor
Hazard Classification: Hazardous Chemical, Non-Dangerous Goods; Carcinogenicity Category 2
* Nominal values published by ARDEX against the test methods shown

Product Files

Frequently bought together

This item

Ardex WPM 3000X Shelterseal $604.95

Technical overview

ARDEX WPM 3000X is a peel and stick bituminous and asphalt membrane protected by a cross laminated high-density polyethylene film, made from a bitumen and asphalt compound modified with SBS and high tack resins. It is installed without the use of open flames, self seals on contact with the substrate and can be used as a Radon and Methane gas barrier. Typical applications are foundations, retaining walls and below-ground work over concrete, blockwork, polystyrene blocks, structural or marine plywood and compressed fibre cement sheets, primed with ARDEX WPM 240. Membrane termination detail is to be in accordance with AS4654.2. The published figures are nominal values against the EN and ASTM test methods listed on the data sheet. No accredited test certificate and no Australian Standard classification is claimed for the membrane itself.

View full technical data sheet

Key applications

Foundations
Retaining walls
Below-ground applications
Radon gas barrier
Methane gas barrier
Installation in restricted spaces where open flames cannot be used
Second staggered layer where a specification requires it in critical environments

Surface suitability

Concrete (primed with ARDEX WPM 240 at 5m2 to 6m2 per litre and allowed to dry)
Blockwork (primed with ARDEX WPM 240 at 5m2 to 6m2 per litre and allowed to dry)
Polystyrene blocks (primed with ARDEX WPM 300 HydrEpoxy, not ARDEX WPM 240)
Structural or marine plywood (primed with ARDEX WPM 240 at 5m2 to 6m2 per litre and allowed to dry)
Compressed fibre cement sheet (installed as per manufacturer's instructions and primed with ARDEX WPM 240)
Damp or green concrete (two coats of ARDEX WPM 300 HydrEpoxy at 3m2 per litre, dried a minimum of 3 days before ARDEX WPM 240)

ARDEX WPM 3000X must not be left UV exposed for extended periods and care must be taken not to damage the membrane prior to backfill. Application temperature is 5C to 40C. Pre-plan the application so laps do not occur within corners or penetrations. The membrane must be protected against potential damage by the placement of protection material between the membrane and granular backfill, with a suitable protection board and drainage system. Store in a covered area protected against sunlight and UV exposure, with rolls vertical on a smooth floor so the edges are not damaged. The SDS classifies the product as a HAZARDOUS CHEMICAL, Carcinogenicity Category 2, suspected of causing cancer, so obtain special instructions before use and use appropriate PPE.

Calculate your coverage

Enter area to cover (m²) m²

You will need:

Ardex WPM 3000X Shelterseal

1.4m x 20m roll

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Membrane Classification	SBS modified bitumen self-adhesive sheet membrane
Chemical Base	Bitumen and asphalt compound modified with SBS and high tack resins
Reinforcement	Cross laminated high-density polyethylene film, hot-laminated
Colour	Black roll finished with a polyethylene film on the top surface and an interleaving paper on the bottom surface
Relative Density	Approx. 1.1
Flash Point	Greater than 250C
Membrane Gauge	1.5mm (EN 1849-1)*
Service Temperature	-40C to +80C*
Application Temperature	5C to +40C*
Tensile Strength Longitudinal	215N/50mm (EN 12311-1)*
Tensile Strength Transverse	220N/50mm (EN 12311-1)*
Elongation Longitudinal	310% (EN 12311-1)*
Elongation Transverse	240% (EN 12311-1)*
Impact Resistance	Method A 500mm, Method B 1000mm (EN 12691)*
Static Load Resistance	Method A 10kg, Method B 15kg (EN 12730)*
Tear Resistance Longitudinal	135 N (EN 12310-1)*
Tear Resistance Transverse	135 N (EN 12310-1)*
Peel Adhesion (primed concrete)	3 N/mm (ASTM D 1000)*
Peel Resistance of Joints	100N/30mm (EN 12316-1)*
Shear Resistance of Joints Longitudinal	350N/50mm (EN 12317-1)*
Shear Resistance of Joints Transverse	350N/50mm (EN 12317-1)*
Probe Tack	7 N (ASTM D 2979)*
Watertightness at 24hrs	Pass at 60kPa (Method A), Pass at 6 bar (Method B) (EN 1928)*
Vapour Transmission Rate	9000 u (EN 1931)*
Water Absorption	0.09% (ASTM D 570)*
Permeability to Radon Gas	5.7 x 10-12 m2/s (SP Swedish Institute)*
Permeability to Methane Gas	Less than 5 cc/m2 x 24h x atm (CSI Method)*
Total VOC Emission	8 ug/m3 (ISO 16000-6)*
Side Edge Lap	60mm minimum, marked on the roll
Top Edge Lap	150mm minimum
Substrate Primer	ARDEX WPM 240 at 5m2 to 6m2 per litre, or ARDEX WPM 300 (HydrEpoxy) on polystyrene blocks
Roll Size	1m wide x 20m long
Roll Weight	Approximately 32kg
Storage	Covered area protected against sunlight and UV exposure, rolls vertical on a smooth floor
Hazard Classification	Hazardous Chemical, Non-Dangerous Goods; Carcinogenicity Category 2
* Nominal values published by ARDEX against the test methods shown

Downloads

Frequently asked questions

View all FAQs

Where is WPM 3000X Shelterseal used?

Compatibility
WPM 3000X is a below-ground HDPE sheet waterproofing membrane designed for foundations, retaining walls, basements, lift shafts, and tunnels.
What temperature range can WPM 3000X handle?

Performance
WPM 3000X has a wide service temperature range from -40°C to +80°C, making it suitable for buried applications across all Australian climates.
How is WPM 3000X installed?

Installation
WPM 3000X is loose-laid against the substrate with overlapped seams that are mechanically locked or heat-welded for a continuous waterproof barrier. Concrete is then poured against the membrane.
Does WPM 3000X resist groundwater pressure?

Compliance
Yes. WPM 3000X is designed to resist hydrostatic pressure from groundwater in below-ground structures and is tested to high static water-head pressures.
Is WPM 3000X chemically resistant?

Performance
Yes. The HDPE construction resists most soil-borne chemicals, salts, and aggressive groundwater conditions encountered in below-ground installations.
