Where is BR10 ZP used?

BR10 ZP is a single-component zinc-rich primer used to protect exposed reinforcing steel during concrete repair operations, providing active corrosion protection.

How does the zinc-rich primer work?

BR10 ZP delivers high-purity zinc particles that protect steel through sacrificial cathodic action - the zinc corrodes preferentially, preserving the underlying steel.

How is BR10 ZP applied?

Apply BR10 ZP by brush directly to cleaned, abraded reinforcing steel in two coats. The steel must be clean, rust-free, and free of contaminants for maximum protection.

How fast does BR10 ZP cure?

BR10 ZP has fast touch-dry and cure times, allowing rapid follow-on application of repair mortars (refer to TDS for specific overcoat windows).

Which ARDEX repair mortars use BR10 ZP?

BR10 ZP is the recommended steel primer for the ARDEX BR concrete repair range including BR 345 and BR 460 Flow.

Be the first to review

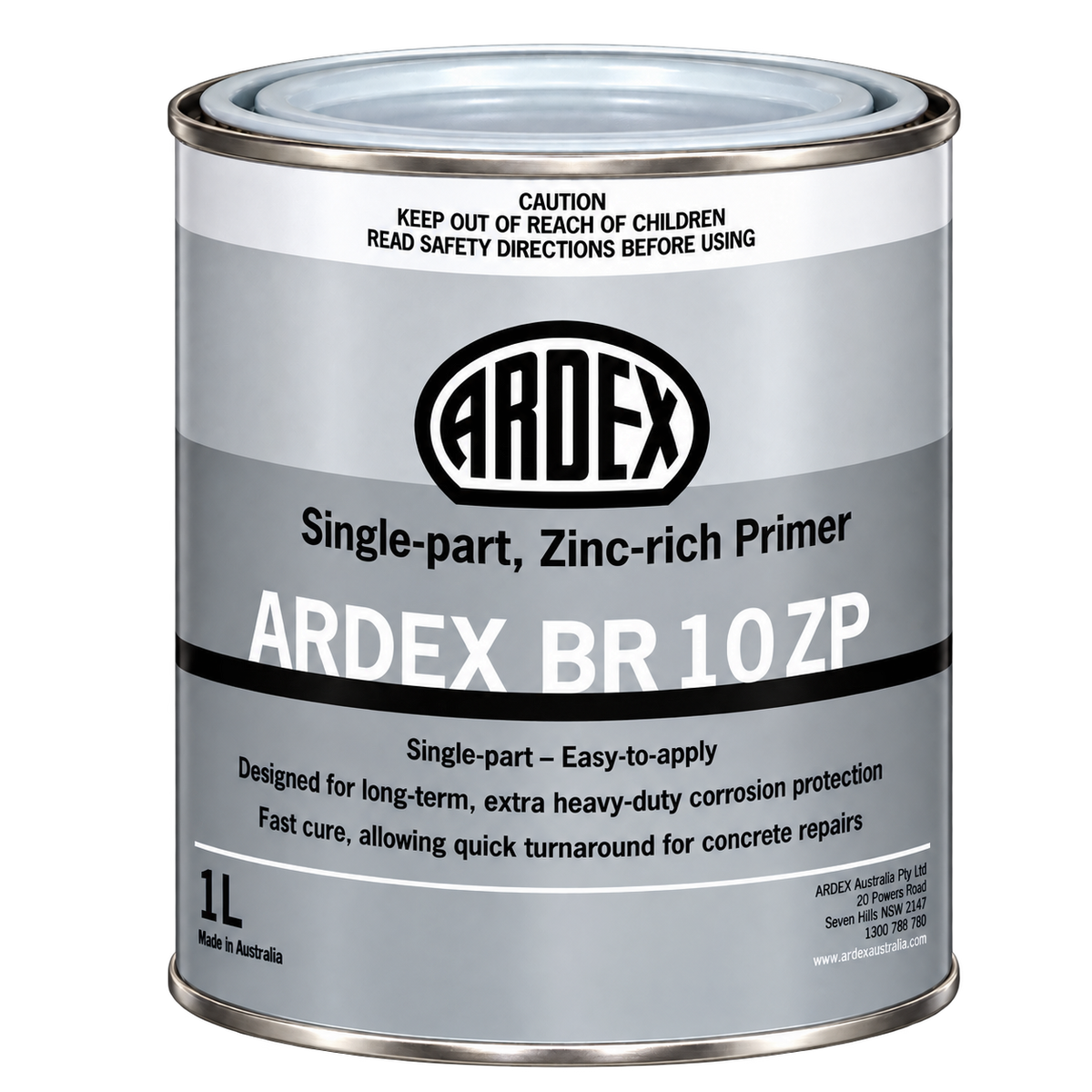

Ardex BR10 ZP Zinc Rich Primer 1L

Name: Ardex BR10 ZP Zinc Rich Primer 1L
Brand: Ardex
SKU: AARA314
Price: 123.95 AUD
Availability: InStock

$123.95

or 4 interest-free payments with

Zinc-rich primer for exposed rebar. Brush on one coat, fully dry in about an hour, then straight into the repair mortar.

ARDEX BR 10 ZP is a single component zinc-rich primer for reinforcing steel. It gives long-term corrosion protection by galvanic action, forming a barrier over the steel. It is compatible with the entire ARDEX Concrete Repair range. 1 litre tin, grey.

Where to use it

Exposed reinforcing steel in concrete repair areas, before the ARDEX repair mortar goes on
Corroded rebar cleaned to a bright condition by grit blasting or abrasive power tools
Marine, industrial and coastal structures, where ARDEX highly recommends it

Why waterproofers buy it

Single component. Stir it and brush it on
One continuous coat at 120 microns wet gives 50 microns dry film thickness
Touch dry in 45 minutes at 20°C or 15 minutes at 35°C
Fully dry and recoatable in 50 minutes to 1 hour at 20°C
Galvanic protection barrier over the steel
Compatible with the entire ARDEX Concrete Repair range
ARDEX 10 year product guarantee

Coverage

1 litre tin: approximately 8 to 9 m² per litre at one coat.

Not for

Ambient or substrate temperatures at 5°C and falling or in extreme heat (work between 5°C and 35°C), thinning with any additive, or leaving primed steel exposed for an extended period. Flammable liquid and vapour, keep it away from ignition sources. Clean up with solvent based cleaners.

Single component - ease of application

Fast touch dry and curing performance

Provides an excellent protective barrier to steel

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Ardex BR10 ZP Zinc Rich Primer 1L

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

How to Use

Thoroughly stir the contents and apply one continuous and uniform coat by brush; apply a second coat once the first has fully dried only where a continuous and uniform coat has not been achievedCompletely expose any corroded steel in the repair area
Break out at least 20mm minimum behind all exposed reinforcing steel
Remove all loose scale and corrosion deposits
Clean all reinforcing steel to a bright condition by grit blasting or abrasive power tools, with particular attention to the back of exposed steel bars
High pressure wash immediately after the scale and corrosion is removed
Allow the prepared reinforcing steel to become completely dry before priming
Confirm ambient and substrate temperatures are between 5C and 35C, and never apply at 5C and falling
Thoroughly stir the contents of the tin, and do not thin with any additive
Apply one continuous and uniform coat by brush at 120 microns wet, giving 50 microns dry film thickness
Where a continuous and uniform coat has not been achieved, allow the first coat to fully dry and apply a second coat
Allow the coat to become fully dry, 50 minutes to 1 hour at 20C or 20 to 45 minutes at 35C
Apply the ARDEX Concrete Repair product once the primer is fully dry and do not leave the primed steel exposed for an extended period
Clean all tools and equipment with solvent based cleaners immediately after use

Technical Specifications

Product Type: Single component zinc-rich primer for reinforcing steel
Composition: Zinc powder 30-60% w/w with xylene 10-30% w/w
Colour: Grey
Wet Application Thickness (per coat): 120 microns
Dry Film Thickness (per coat): 50 microns
Touch Dry: 45 minutes at 20C; 15 minutes at 35C
Fully Dry (recoatable): 50 mins to 1 hour at 20C; 20 to 45 minutes at 35C
Coverage: 8m2 - 9m2 per litre (approx)
Number of Coats: One continuous and uniform coat; a second coat only where the first is not continuous and uniform
Application Temperature: 5C to 35C ambient and substrate
Steel Preparation: Cleaned to a bright condition by grit blasting or abrasive power tools, broken out at least 20mm behind exposed bars
Thinning: Do not thin with any additive
Clean Up: Solvent based cleaners immediately after use
Packaging: 1 litre tin
Shelf Life: 12 months in the original unopened packaging in a dry place at 23C and 50% relative humidity
Flash Point: Greater than 23C
Hazard Classification: Hazardous chemical; dangerous goods; Poisons Schedule S5; Flammable Liquids Category 3
* ARDEX publishes these as typical results with no test standard or accredited test report quoted

Product Files

Ardex BR10 ZP Zinc Rich Primer 1L

$123.95

Frequently bought together

This item

Ardex BR10 ZP Zinc Rich Primer 1L $123.95

Technical overview

ARDEX BR 10 ZP is a single component, zinc-rich primer for reinforcing steel that provides long-term corrosion protection. It prevents corrosion through galvanic protection by forming a protection barrier over the steel surface, and it is compatible with the entire ARDEX Concrete Repair range. It is brush applied as one continuous and uniform coat at 120 microns wet, which gives 50 microns dry film thickness, and covers approximately 8m2 to 9m2 per litre. Touch dry in 45 minutes at 20C and fully dry, ready to recoat, in 50 minutes to 1 hour. ARDEX publishes these figures as typical results with no test standard, test report number or accredited certification quoted.

View full technical data sheet

Key applications

Priming exposed reinforcing steel in concrete repair areas
Long-term corrosion protection of reinforcing steel by galvanic protection
Priming reinforcing steel ahead of the ARDEX Concrete Repair range
Protecting reinforcing steel in marine structures
Protecting reinforcing steel in industrial and coastal structures

Surface suitability

Exposed reinforcing steel (cleaned to a bright condition by grit blasting or abrasive power tools)
Corroded reinforcing steel (completely exposed, broken out at least 20mm minimum behind the bar, all loose scale and corrosion deposits removed)
Reinforcing steel that is completely dry after high pressure washing
Reinforcing steel in aggressive environments such as marine, industrial or coastal structures

Do not apply in ambient or substrate temperatures 5C and falling, or extreme hot temperatures. Application ambient or substrate temperatures between 5C and 35C. Do not thin product with any additive. The product must be thoroughly stirred before each use. The prepared reinforcing steel must be completely dry prior to application, and once dry the primer must be applied immediately to eliminate possible surface contamination. The primed reinforcing steel should not be left exposed for an extended period; apply the ARDEX Concrete Repair product once the primer is fully dry. Hazardous chemical and dangerous goods, Poisons Schedule S5, flammable liquid with a flash point above 23C. May cause irritation and an allergic reaction to the skin, serious eye injury and irritation to the respiratory system. Wear protective gloves, clothing, eye and face protection and ensure adequate ventilation during application.

Calculate your coverage

Enter area to cover (m²) m² Number of coats

You will need:

Ardex BR10 ZP Zinc Rich Primer 1L

1L tin

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Product Type	Single component zinc-rich primer for reinforcing steel
Composition	Zinc powder 30-60% w/w with xylene 10-30% w/w
Colour	Grey
Wet Application Thickness (per coat)	120 microns
Dry Film Thickness (per coat)	50 microns
Touch Dry	45 minutes at 20C; 15 minutes at 35C
Fully Dry (recoatable)	50 mins to 1 hour at 20C; 20 to 45 minutes at 35C
Coverage	8m2 - 9m2 per litre (approx)
Number of Coats	One continuous and uniform coat; a second coat only where the first is not continuous and uniform
Application Temperature	5C to 35C ambient and substrate
Steel Preparation	Cleaned to a bright condition by grit blasting or abrasive power tools, broken out at least 20mm behind exposed bars
Thinning	Do not thin with any additive
Clean Up	Solvent based cleaners immediately after use
Packaging	1 litre tin
Shelf Life	12 months in the original unopened packaging in a dry place at 23C and 50% relative humidity
Flash Point	Greater than 23C
Hazard Classification	Hazardous chemical; dangerous goods; Poisons Schedule S5; Flammable Liquids Category 3
* ARDEX publishes these as typical results with no test standard or accredited test report quoted

Downloads

Frequently asked questions

View all FAQs

Where is BR10 ZP used?

Compatibility
BR10 ZP is a single-component zinc-rich primer used to protect exposed reinforcing steel during concrete repair operations, providing active corrosion protection.
How does the zinc-rich primer work?

Performance
BR10 ZP delivers high-purity zinc particles that protect steel through sacrificial cathodic action - the zinc corrodes preferentially, preserving the underlying steel.
How is BR10 ZP applied?

Installation
Apply BR10 ZP by brush directly to cleaned, abraded reinforcing steel in two coats. The steel must be clean, rust-free, and free of contaminants for maximum protection.
How fast does BR10 ZP cure?

Performance
BR10 ZP has fast touch-dry and cure times, allowing rapid follow-on application of repair mortars (refer to TDS for specific overcoat windows).
Which ARDEX repair mortars use BR10 ZP?

Compatibility
BR10 ZP is the recommended steel primer for the ARDEX BR concrete repair range including BR 345 and BR 460 Flow.
