Pool System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX HYDROPLUG
- 5 ACTFLEX AT MESH
- 6 ACTFLEX 988 CWP (2 Coats)
- 7 Tile Adhesive
- 8 Pool Finish

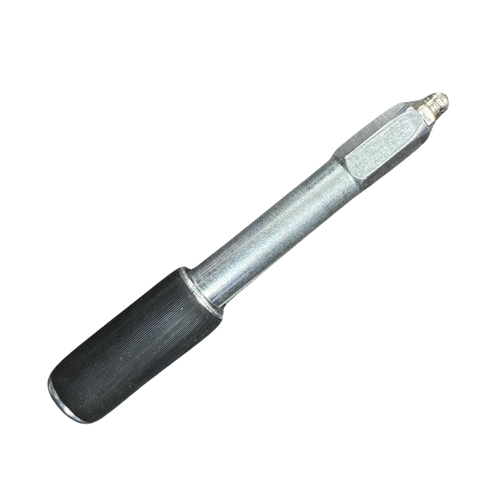

Crack Injection 13mm Packers - 50 Pack
or 4 interest-free payments with
13 mm steel injection packers, threaded to seat tight and stop resin leaking back. 50 per pack.
Crack Injection 13mm Steel Packers are the ports for pumping resin or sealant into cracks and voids in concrete. The threaded body seats into the drilled hole and holds against leakage during injection. Sold 50 to a pack.
What it's for
- Concrete repair and waterproofing
- Injecting resins and sealants into cracks and voids in concrete
- Construction and renovation projects
Why waterproofers buy it
- 13 mm diameter, suits a range of crack sizes and depths
- Steel construction
- Threaded design seats securely and prevents leakage during injection
Specs
13 mm diameter, steel, threaded. 50 per pack.
13mm diameter, for a range of crack sizes and depths
Threaded design seats into the concrete and prevents leakage during injection
Steel construction
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup currently unavailable at The Waterproofing Shop
Crack Injection 13mm Packers - 50 Pack
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Product Details
Technical Specifications
What's Included?
Product Files
No documentation available for this product.
Crack Injection 13mm Packers - 50 Pack
Sale price$110.00
Frequently bought together
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Key applications
- Concrete repair
- Waterproofing
- Injecting resins into cracks in concrete
- Injecting sealants into voids in concrete
- Renovation projects
Technical Specifications
| Tool Type | Crack injection packer |
| Diameter | 13mm |
| Body Material | Steel |
| Design | Threaded, for secure installation into concrete |
| Pack Quantity | 50 |
What's Included
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
When do I use 13mm packers instead of 10mm?
Compatibility13mm Packers are used for high-volume injection where larger flow rates are required, for deep cracks where extra grip is needed, and for some heavier-duty injection machine systems. Most standard crack work uses 10mm packers.
-
How are they installed?
InstallationDrill 13mm angled holes at 45 degrees across the crack at 100-150mm spacing, insert the packer, tighten the bolt to expand the rubber sleeve, attach the injection gun fitting, then inject resin under pressure until refusal.
-
What pressure rating?
Performance13mm packers handle higher injection pressures and flow rates than 10mm packers, making them suitable for INJEXA SWM 1300/1500 pump applications and large-volume polyurethane foam injection (Crack Swell PU1100).
-
Which Forspec injection products work with these?
CompatibilityCompatible with PU200, PU300, PU500, Injectswell, ER300, Crack Pro 1200, ProBond 1100, and Crack Lock E400L. Match the gun/pump coupler to the 13mm packer thread.
-
Are they reusable?
PerformanceNo. Like 10mm packers, these are single-use - the expanded rubber sleeve cannot be removed cleanly. Cut flush after injection and patch with epoxy paste.
