Works with every leading Australian membrane brand
The bonding collar is built for the products you already use, and the range is suited to work carried out under AS 3740 and AS 4654.2. No hunting for a flange that plays nicely with your system.
Allproof Leak Control Flanges
WaterMark certifiedAS 3740:2021AS 4654.2:2012
Durable PVC flanges that connect your waterproof membrane to the drainage system. Compatible with every leading Australian membrane brand, with a large bonding surface, locating lugs for DWV drainage and a construction cap in the box.
1Choose your flange
Leak Control 50mmBond-down, fits 50, 65, 80 and 100mm risers$9.00
Leak Control 100mmBond-down, the standard 100mm riser flange$10.00
PREMIUM SPEC
TILERITE 100mm Clamp DownClamp-down, for sheet and vinyl membranes$59.00
The TILERITE clamp down flange is sold individually. Call (02) 8021 3517 for project quantities.
$59.00each
or 4 interest-free payments of $14.75 with AfterPay ex GST $53.63
1
7-Day ReturnsMoney back
Fast DispatchNext business day
Expert Advice(02) 8021 3517
Secure CheckoutSSL encrypted
Accessories you might need
Product details
Allproof leak control flanges connect the waterproof membrane system to the plumbing drainage system. Made from durable PVC with a large surface area for applying membrane, they are compatible with all leading Australian brands and the Australian building standards. A construction cap is supplied to protect the outlet during the build.
Installation
Clean the riser, apply plumbers primer then solvent glue, and seat the flange squarely on the pipe. Bond the membrane across the collar. On the TILERITE, lay the membrane over the body, fit the clamp ring and tighten the three stainless screws, then set the grate height on the threaded spigot.
Compliance
WaterMark certified and suited to waterproofing work carried out under AS 3740:2021 (internal wet areas) and AS 4654.2:2012 (external above-ground membranes). Compatible with all leading Australian membrane brands.
Shipping and returns
Dispatched same or next business day from Roselands NSW, with fast delivery Australia wide. Trade boxes ship on their own consignment. 7-day returns on unused stock in original packaging.
Technical documents
One flange, four riser sizes
The Leak Control 50mm connects to 50, 65, 80 and 100mm PVC pipe, so a single part covers most of what you meet on site instead of carrying four.
4pipe sizes covered
Large bonding surface for a proper key
A wide, flat collar gives the membrane real surface area to grab, which is exactly where cheap flanges let go. More bonding area, fewer callbacks at the waste.
Locating lugs drain moisture through the DWV
The lugs let trapped moisture escape into the drainage system rather than sitting under the tile bed. It is a small detail that keeps the subfloor dry long after handover.

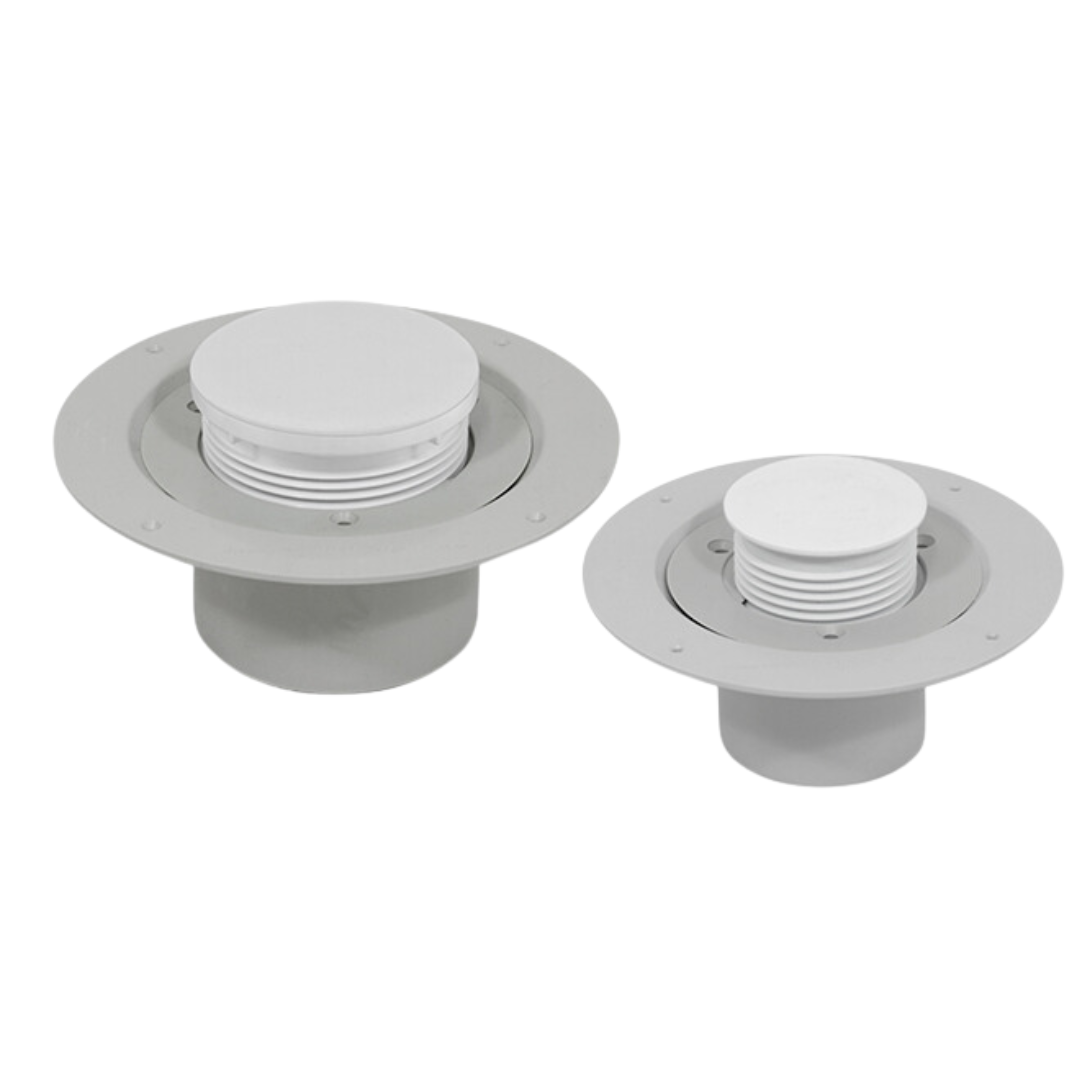

TILERITE clamps sheet and vinyl membranes down hard
Threaded clamp ring and three stainless screws mechanically fix the membrane, with a height-adjustable grate on a cyclone spigot and a construction cap in the box. The spec answer for clamp-down systems.
Flange finder
Which flange do I need?
Three questions and we will point you at the right flange and pack for the job.
1. What membrane are you using?
2. What size is the riser?
3. How many do you need?
Recommended for your job
Leak Control 100mm
Single flange
$10.00
View full product details
Why this one
The standard bond-down flange for a 100mm riser. Large collar for the membrane to key into, locating lugs for DWV drainage, construction cap included.
The detail
Compare the range
All three flanges side by side, so you can check the fit before you order.
Property
Leak Control 50mm
Leak Control 100mm
TILERITE 100mm
Fixing method
Leak Control 50mmBond-down
Leak Control 100mmBond-down
TILERITE 100mmClamp-down
Membrane type
Leak Control 50mmLiquid applied
Leak Control 100mmLiquid applied
TILERITE 100mmSheet / vinyl
Connects to
Leak Control 50mm50, 65, 80, 100mm
Leak Control 100mm100mm
TILERITE 100mm80 and 100mm riser
Material
Leak Control 50mmPVC
Leak Control 100mmPVC
TILERITE 100mmInjection moulded PVC
Construction cap
Leak Control 50mmIncluded
Leak Control 100mmIncluded
TILERITE 100mmIncluded
Locating lugs
Leak Control 50mmYes
Leak Control 100mmYes
TILERITE 100mmn/a
Clamp ring
Leak Control 50mmNo
Leak Control 100mmNo
TILERITE 100mmThreaded, 3 stainless screws
Grate
Leak Control 50mmNot supplied
Leak Control 100mmNot supplied
TILERITE 100mmHeight adjustable
Subtile drainage
Leak Control 50mmVia locating lugs
Leak Control 100mmVia locating lugs
TILERITE 100mmDedicated drainage path
Trade box
Leak Control 50mmSingle only
Leak Control 100mm36 per box
TILERITE 100mmSingle only
Data sheet
Leak Control 50mmLC50IDC
Leak Control 100mmLC100C
TILERITE 100mmTR100SCP
Documentation
Documentation
Specifications and certification for the Allproof flange range.
Reviews
Customer reviews
Common questions
-
Which flange suits my membrane?
If you are using a liquid applied membrane, use a Leak Control flange - the membrane bonds straight onto the collar. If you are using a sheet or vinyl membrane, use the TILERITE, which mechanically clamps the membrane with a threaded ring and three stainless screws. The flange finder above will confirm it in three taps.
-
Does the 50mm flange only fit 50mm pipe?
No. The Leak Control 50mm connects to 50, 65, 80 and 100mm PVC pipe sizes, so one part covers most risers you will meet on site.
-
What is the construction cap for?
It protects the outlet during the build so screed, debris and site rubbish do not end up in the drainage system. Leave it in until you are ready to fit the grate or waste.
-
What do the locating lugs do?
They create a path for trapped moisture to escape into the DWV drainage system rather than sitting under the tile bed. It keeps the subfloor drier over the life of the building.
-
Is it compatible with my membrane brand?
Yes - the range is designed to be compatible with all leading Australian membrane brands and the Australian building standards. If you are running something unusual, call us on (02) 8021 3517 and we will confirm it.
-
How many come in a trade box?
The Leak Control 100mm ships 36 per box, which works out cheaper per flange than buying singles. The 50mm and the TILERITE are sold individually.
-
Can I adjust the TILERITE grate height?
Yes. The grate sits on a threaded cyclone spigot so you can set it to the finished floor level, which is what makes it suit vinyl and sheet installs where the build-up varies.
-
Is it certified?
Yes - WaterMark certified and suited to work under AS 3740:2021 and AS 4654.2:2012. Data sheets for every product are in the documentation section above.
