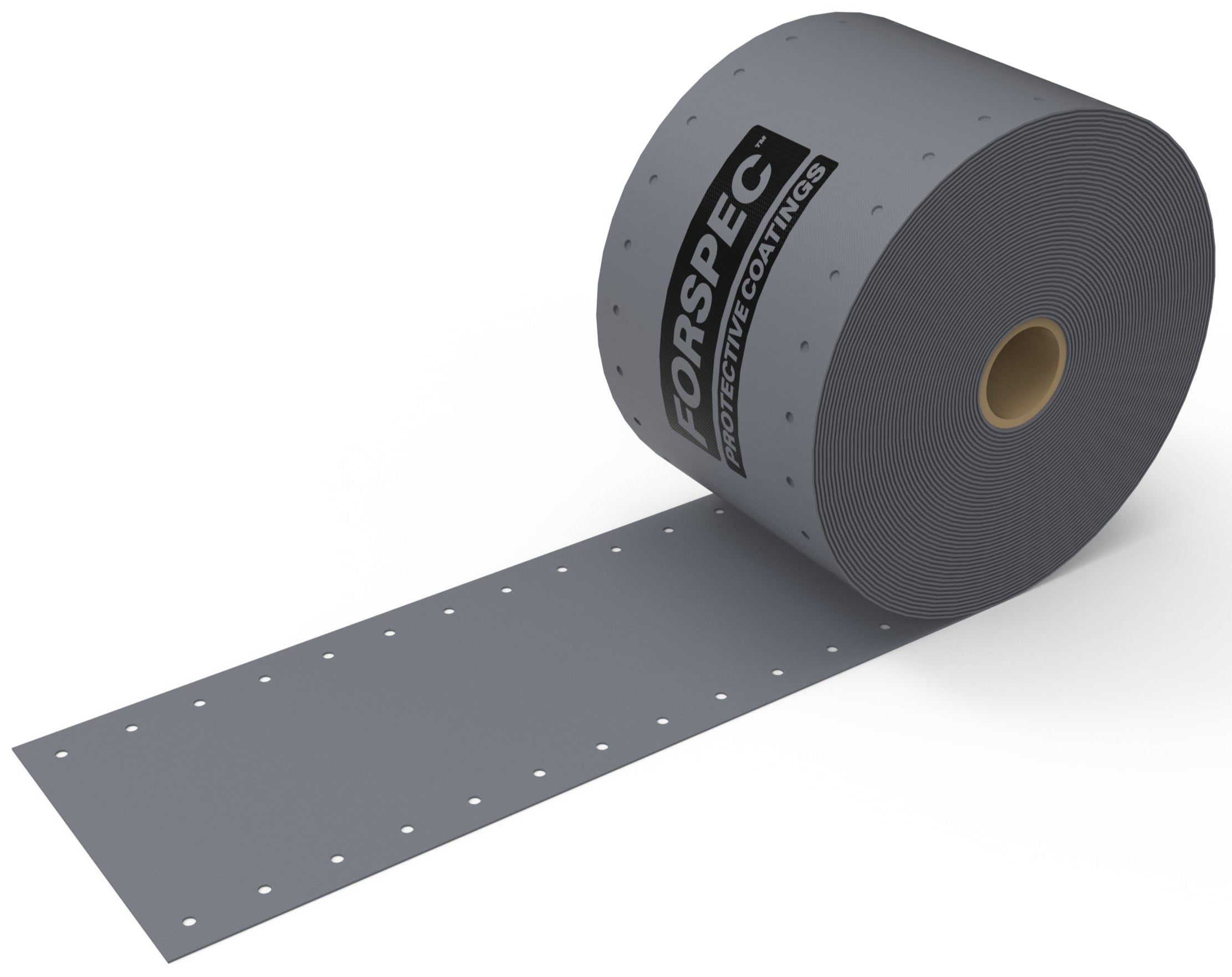

EXPANDOFLEX Expansion Tape 250mm x 25m

$495.00

or 4 interest-free payments with

TPE expansion joint tape. Over 530% elongation, over 5 bar.

FORSPEC EXPANDOFLEX JOINT TAPE is a thermoplastic elastomer tape for structural movement joints above and below ground. The corrugated centre spans the joint unbonded and flexes with it; the flanks are epoxy anchored with PROBOND 1100.

What it's for

Expansion joints, primary and secondary movement joints
Tunnel, retaining wall and podium slab joints
Water tanks, swimming pools and wastewater tanks

Why waterproofers buy it

Water pressure resistance greater than 5 bar to EN 1928
Elongation above 530% in both axes
No cracking at minus 30°C, serviceable to plus 80°C
Resists UV, sea water and roots

Specs

Grey RAL 7040, 25 m rolls, widths 150 to 400 mm, 1.0 to 2.0 mm thick, 70 Shore A. Bed in PROBOND 1100 at 1.0 to 1.5 mm.

Not for

Load transfer or replacing joint design. Never epoxy the centre zone. Not below 5°C or above 35°C, or on weak, dusty or damp concrete.

Corrugated central movement zone deflects freely inside the joint void

Water pressure resistance greater than 5 bar to EN 1928

Root resistant and UV stable, so it suits exposed joints, green roofs and planters

Size: 250mm X 25m

250mm X 25m$495.00150MM X 25M$330.00

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

EXPANDOFLEX Expansion Tape 250mm x 25m

250mm X 25m

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

How to Use

Trowel PROBOND 1100 to both joint faces at 1.0 to 1.5mm over a minimum 40mm bonding width, centre the tape leaving the corrugated zone unbonded, roll the flanges, then cap with a second 1.0 to 1.5mm epoxy layerConfirm concrete strength and soundness across the full bonding width on both faces
Clean the joint flanks thoroughly; the surface must be dry, sound and free from laitance, grease, oil, dust and curing agents
Mechanically prepare both bonding faces by grinding or shot blasting to expose a clean, open, sound surface
Reinstate defects, voids and blowholes in the bonding zones with FORBUILD 100 or FORCRETE 100, finished flush and cured
Where a recessed installation is specified, saw-cut the chase 5mm wide and 15mm deep over the full joint line at tape width
Vacuum the prepared faces and the joint void immediately before adhesive application
Measure the joint lengths accurately and pre-cut the required sections of EXPANDOFLEX before installation begins
Heat-weld sections together with a hot air gun where longer spans are required, aligning the tapes edge to edge
Mix PROBOND 1100 Part A and Part B at 300 to 400 rpm for 2 to 3 minutes until smooth, consistent and streak free
Apply PROBOND 1100 to both sides of the joint with a steel trowel at 1.0 to 1.5mm, matching the application width to the tape size
Do not apply epoxy in the centre of the joint where the tape must flex
Centre the tape over the joint, ensuring the corrugated middle zone remains completely unbonded
Press the flanges into the epoxy firmly, working from the centre outwards to expel air
Roll the tape with a pressure roller to ensure full contact and even adhesive spread across the bonding width
Apply a second capping layer of PROBOND 1100 at 1.0 to 1.5mm over the embedded flanges, extending beyond the tape edge
Do not cap the central movement zone
Inspect for air entrapment, adhesive starvation at the flange edges and any adhesive that has encroached onto the movement zone, and rectify before the epoxy gels
Protect from rain, moisture, load and vibration for approximately 24 to 48 hours, using warning tape, cones or temporary barriers

Technical Specifications

Product Type: Thermoplastic elastomer expansion joint tape with corrugated central movement zone
Colour: RAL 7040
Thickness: 1.0mm, 1.25mm, 1.5mm and 2.0mm
Widths: 150, 200, 250, 300, 350 and 400mm, custom widths to order
Roll Length: 25m
Weight: Approx. 1050 g/m2 plus or minus 5%*
Tensile Strength, Longitudinal: 4.8 MPa (EN ISO 527-3)*
Tensile Strength, Transverse: 4.7 MPa (EN ISO 527-3)*
Elongation at Maximum Load, Longitudinal: 532% (EN ISO 527-3)*
Elongation at Maximum Load, Transverse: 580% (EN ISO 527-3)*
Tear Propagation Strength, Longitudinal: 42 N/mm2 (EN ISO 12310-2)*
Tear Propagation Strength, Transverse: 48 N/mm2 (EN ISO 12310-2)*
Hardness: 70 Shore A (ISO 868)*
Peel Resistance from Epoxy: Greater than 20 N per 10mm (DIN 16860)*
Water Pressure Resistance: Greater than 5 bar (EN 1928)*
Cold Flexibility: No cracking at -30C (SIA 280/3)*
Service Temperature: -30C to +80C (SIA V280/3+4)*
Chemical Resistance: Water-based and bitumen-based foundation insulations, sea water, wastewater, UV, hydrolysis and microorganisms*
Bonding Adhesive: PROBOND 1100 two-part epoxy
Epoxy Bonding Width, 200mm Tape: 40mm per side
Epoxy Layer Thickness: 1.0 to 1.5mm bed plus 1.0 to 1.5mm capping
Application Temperature: +5C to +35C
Shelf Life: 24 months, unopened, stored as specified
* Typical Forspec R&D characteristic values

Product Files

Technical Data Sheet (TDS) PDF Download

EXPANDOFLEX Expansion Tape 250mm x 25m250mm X 25m

$495.00

Frequently bought together

This item

EXPANDOFLEX Expansion Tape 250mm x 25m $495.00
Add

125mm Arrow Cup Grinding Disc $100.00
Add

600mm True Blue Digital Level - Empire $175.00
Add

ACTFLEX 101 UV Stable Trafficable Membrane $250.00

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX HYDROPLUG
5 ACTFLEX AT MESH
6 ACTFLEX 988 CWP (2 Coats)
7 Tile Adhesive
8 Pool Finish

Retaining Wall System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX MS PRO
4 ACTFLEX AT MESH
5 ACTFLEX 988 CWP (2 Coats)
6 Protection Board (Optional)
7 Drainage System
8 Backfill

Tank System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX AT MESH
5 ACTFLEX 988 WMP (2 Coats)
6 Protective Coating (Optional)
7 Water

Technical overview

FORSPEC EXPANDOFLEX JOINT TAPE is a heavy-duty thermoplastic elastomer expansion joint waterproofing system for structural movement joints and critical transitions in above and below ground construction. The corrugated central movement zone spans the joint unbonded and deflects freely, while the flanking bonding zones are epoxy anchored to the concrete with PROBOND 1100 so no stress is transferred to the moving centre. It is a structural joint waterproofing component and is not certified to a liquid membrane standard. No accredited certificate is currently held on file for the published properties; they are published as manufacturer data. Joint movement class and expected displacement remain the design responsibility of the project engineer.

Key applications

Horizontal and vertical expansion joints, including primary and secondary movement joints
Structural movement joints and seismic joints, subject to engineer design
Base-to-wall transitions and parapet waterproofing
Tunnel, retaining wall and podium slab joints
Concrete-to-steel and dissimilar-material transitions
Wide and irregular crack bridging
Water tanks, swimming pools and wastewater tanks
Below-grade construction, including areas exposed to root penetration
Green roofs, planters and landscaped podiums

Surface suitability

Concrete (mechanically prepared by grinding or shot blasting to expose a clean, open, sound surface)
Concrete (dry, sound and free from laitance, grease, oil, dust and curing agents)
Concrete (defects, voids and blowholes in the bonding zones reinstated with FORBUILD 100 or FORCRETE 100 and cured)
Steel and dissimilar-material transitions (concrete-to-steel joints)

Not designed for load transfer - the tape seals the joint, it does not carry structural load, and it is not a substitute for movement joint design. Joint width, movement class and expected displacement must be determined by the project engineer and the installation must satisfy the engineer's deflection criteria. Never apply epoxy to the central flexible zone of the tape: an adhered centre cannot deflect and the tape will tear. Do not install below 5C or above 35C ambient and substrate temperature. Must not be installed on weak, friable, dusty or contaminated concrete. Do not install over damp or frosted substrates, or where condensation is present. Do not force, kink or crease the tape at vertical transitions, form a gradual radius instead. Recessed saw-cut installation must be specified where the joint is subject to mechanical wear, heavy-duty service or traffic, or where a flush finish is required. PROBOND 1100 must not be re-tempered, extended or thinned with solvent. Where an alternative adhesive is proposed, confirm suitability in writing with a FORSPEC technical representative before use.

Technical Specifications

Product Type	Thermoplastic elastomer expansion joint tape with corrugated central movement zone
Colour	RAL 7040
Thickness	1.0mm, 1.25mm, 1.5mm and 2.0mm
Widths	150, 200, 250, 300, 350 and 400mm, custom widths to order
Roll Length	25m
Weight	Approx. 1050 g/m2 plus or minus 5%*
Tensile Strength, Longitudinal	4.8 MPa (EN ISO 527-3)*
Tensile Strength, Transverse	4.7 MPa (EN ISO 527-3)*
Elongation at Maximum Load, Longitudinal	532% (EN ISO 527-3)*
Elongation at Maximum Load, Transverse	580% (EN ISO 527-3)*
Tear Propagation Strength, Longitudinal	42 N/mm2 (EN ISO 12310-2)*
Tear Propagation Strength, Transverse	48 N/mm2 (EN ISO 12310-2)*
Hardness	70 Shore A (ISO 868)*
Peel Resistance from Epoxy	Greater than 20 N per 10mm (DIN 16860)*
Water Pressure Resistance	Greater than 5 bar (EN 1928)*
Cold Flexibility	No cracking at -30C (SIA 280/3)*
Service Temperature	-30C to +80C (SIA V280/3+4)*
Chemical Resistance	Water-based and bitumen-based foundation insulations, sea water, wastewater, UV, hydrolysis and microorganisms*
Bonding Adhesive	PROBOND 1100 two-part epoxy
Epoxy Bonding Width, 200mm Tape	40mm per side
Epoxy Layer Thickness	1.0 to 1.5mm bed plus 1.0 to 1.5mm capping
Application Temperature	+5C to +35C
Shelf Life	24 months, unopened, stored as specified
* Typical Forspec R&D characteristic values
