Injection Handle SWM - Heavy Duty with Turn Valve
or 4 interest-free payments with
Injection wand with a Rotelmann ball valve stamped Made in Germany. One lever opens and shuts the flow.

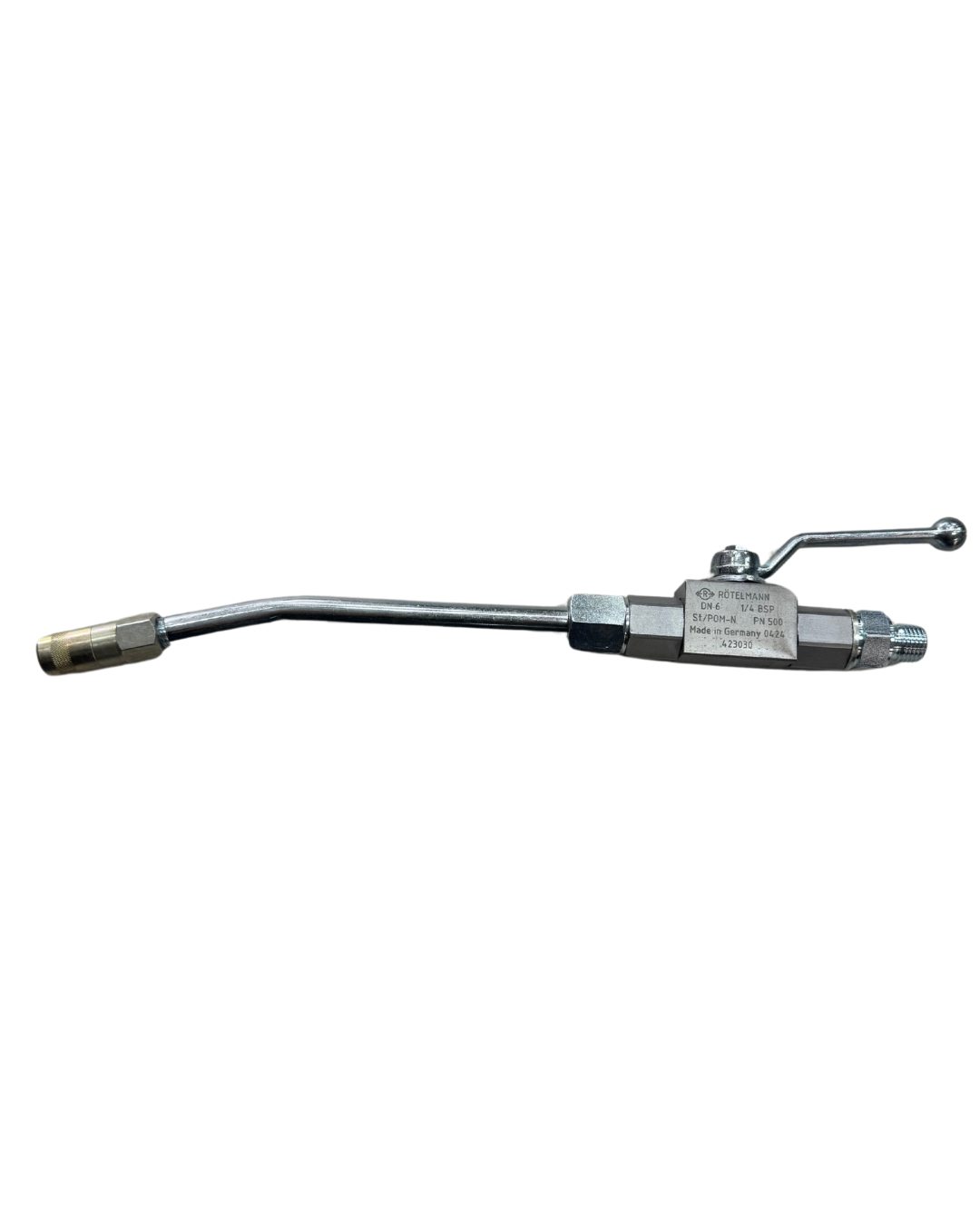

The Injection Handle SWM is an injection handle with a turn valve. It is an inline two-piece ball valve on a bent steel injection wand, with a single lever on top of the valve body. The valve is stamped ROTELMANN, DN 6, 1/4 BSP, PN 500 and Made in Germany.
What it's for
- Opening and shutting flow at the wand with one lever
Why waterproofers buy it
- Rotelmann ball valve, stamped Made in Germany
- DN 6 bore with a 1/4 BSP connection
- Single straight lever handle with a ball end
Specs

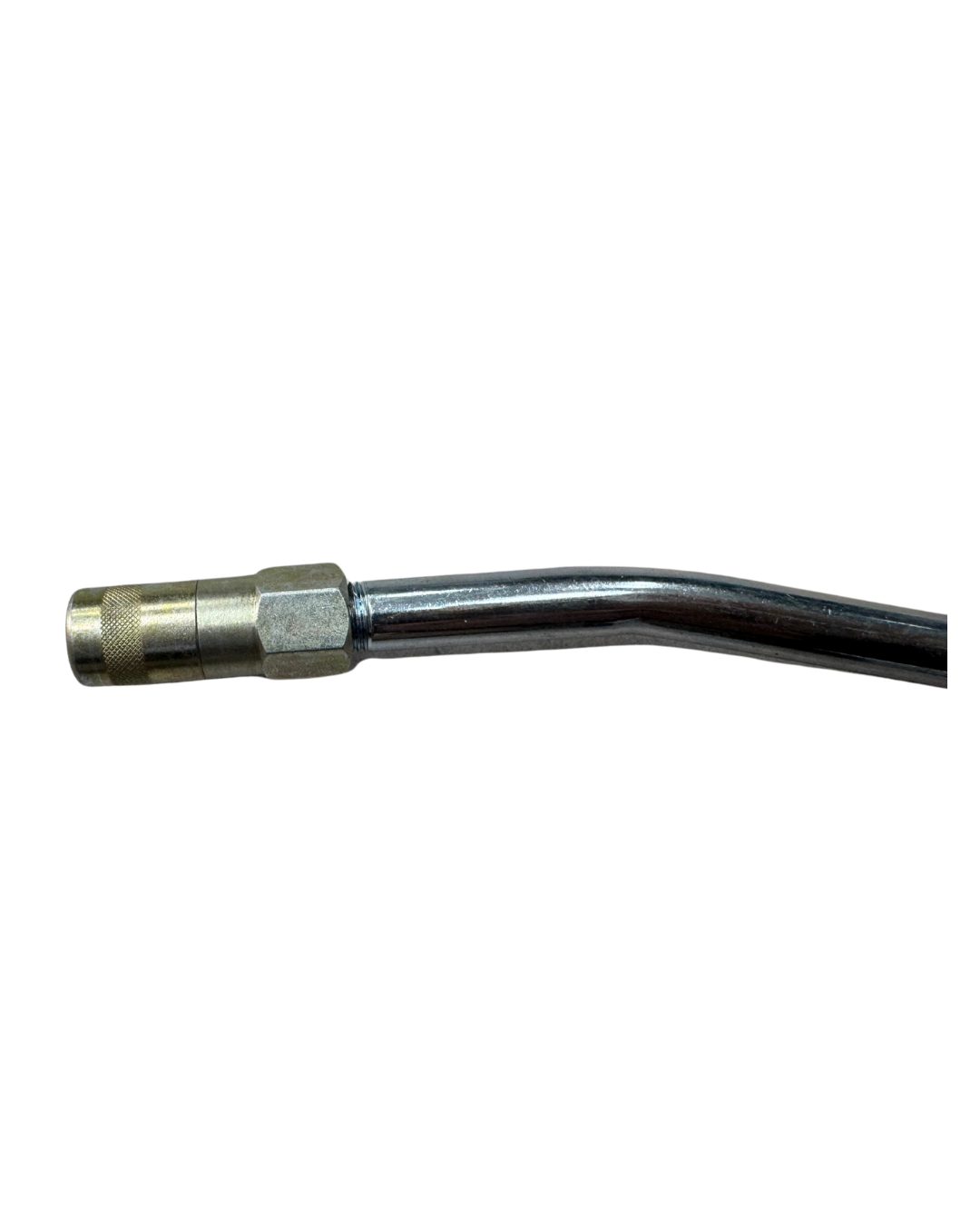

Inline two-piece ball valve with a hex nut at each end. Valve markings: ROTELMANN, DN 6, 1/4 BSP, St/POM-N, PN 500, Made in Germany, 423030. Bent steel injection wand from the valve inlet to a brass coupling nut at the tip.
No manufacturer documentation is published for this handle. Working pressure, resin compatibility and pump fit are not on record, so confirm them with us before you buy.
Rotelmann ball valve, made in Germany
DN 6 bore with a 1/4 BSP connection
Single lever turn valve opens and shuts flow in one movement
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
Injection Handle SWM - Heavy Duty with Turn Valve
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Technical Specifications
Product Files
No documentation available for this product.
Injection Handle SWM - Heavy Duty with Turn Valve
Sale price$165.00
Frequently bought together
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Technical Specifications
| Tool Type | Injection handle with turn valve |
| Valve Manufacturer | ROTELMANN (marked on the valve body) |
| Valve Nominal Size | DN 6 |
| Valve Connection | 1/4 BSP |
| Valve Material Code | St/POM-N |
| Valve Pressure Marking | PN 500 |
| Valve Part Marking | 423030 |
| Country of Manufacture | Germany |
| Valve Body | Inline two-piece ball valve with a hex nut at each end |
| Actuation | Single straight lever handle with a ball end, mounted on top of the valve body |
| Outlet | Male threaded stud at the outlet end of the valve |
| Wand | Bent steel injection wand from the inlet end of the valve to a brass coupling nut at the tip |
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What is the Injection Handle SWM?
CompatibilityThe Injection Handle SWM is a heavy-duty injection wand with a turn-valve flow control, used with the INJEXA SWM 1300/1500 pumps for precise resin delivery into individual crack injection packers.
-
Why use a turn-valve handle?
PerformanceThe turn-valve lets you start and stop resin flow at the packer without releasing pump pressure, preventing back-flow and wasted material. Critical for sequential packer work where you move from packer to packer.
-
How does it connect?
InstallationThreads onto the SWM injection hose at one end and the gun coupler (quick release) at the packer end. Open the valve to inject, close to stop, move to next packer.
-
Which system does it suit?
CompatibilityDesigned for the Forspec INJEXA SWM 1300 and SWM 1500 systems. Other injection pump brands may use different thread specs - confirm compatibility before mixing systems.
-
Maintenance?
PerformanceFlush with solvent after every job to prevent the valve seizing from cured resin. Replace internal seals if leakage develops at the valve or hose connection.
