Pool System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX HYDROPLUG
- 5 ACTFLEX AT MESH
- 6 ACTFLEX 988 CWP (2 Coats)
- 7 Tile Adhesive
- 8 Pool Finish
SWM Crack Injection Hose
or 4 interest-free payments with
Injection Hose SWM High-Pressure Injection Hose is engineered for demanding crack injection and structural repair applications using polyurethane, epoxy, or acrylic resins. Designed to handle working pressures up to 800 bar (11,600 psi), it features a chemical-resistant polyamide inner core, a durable braided steel or thermoplastic reinforcement, and a protective polyurethane outer layer for superior abrasion resistance. With an internal diameter of 4–6mm, it ensures precise resin delivery even in high-pressure environments. The hose performs reliably across a wide temperature range from -40°C to +100°C, and is available in 10m, 20m, or 50m coils with customizable connection types, including zerk and button-head fittings. Ideal for crack injection, curtain grouting, and other concrete repair systems.
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
SWM Crack Injection Hose
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Technical Specifications
Product Files
No documentation available for this product.
SWM Crack Injection Hose
Sale price$165.00
Frequently bought together
-
SWM Crack Injection Hose $165.00
-
125mm Arrow Cup Grinding Disc $100.00 -
-
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Technical Specifications

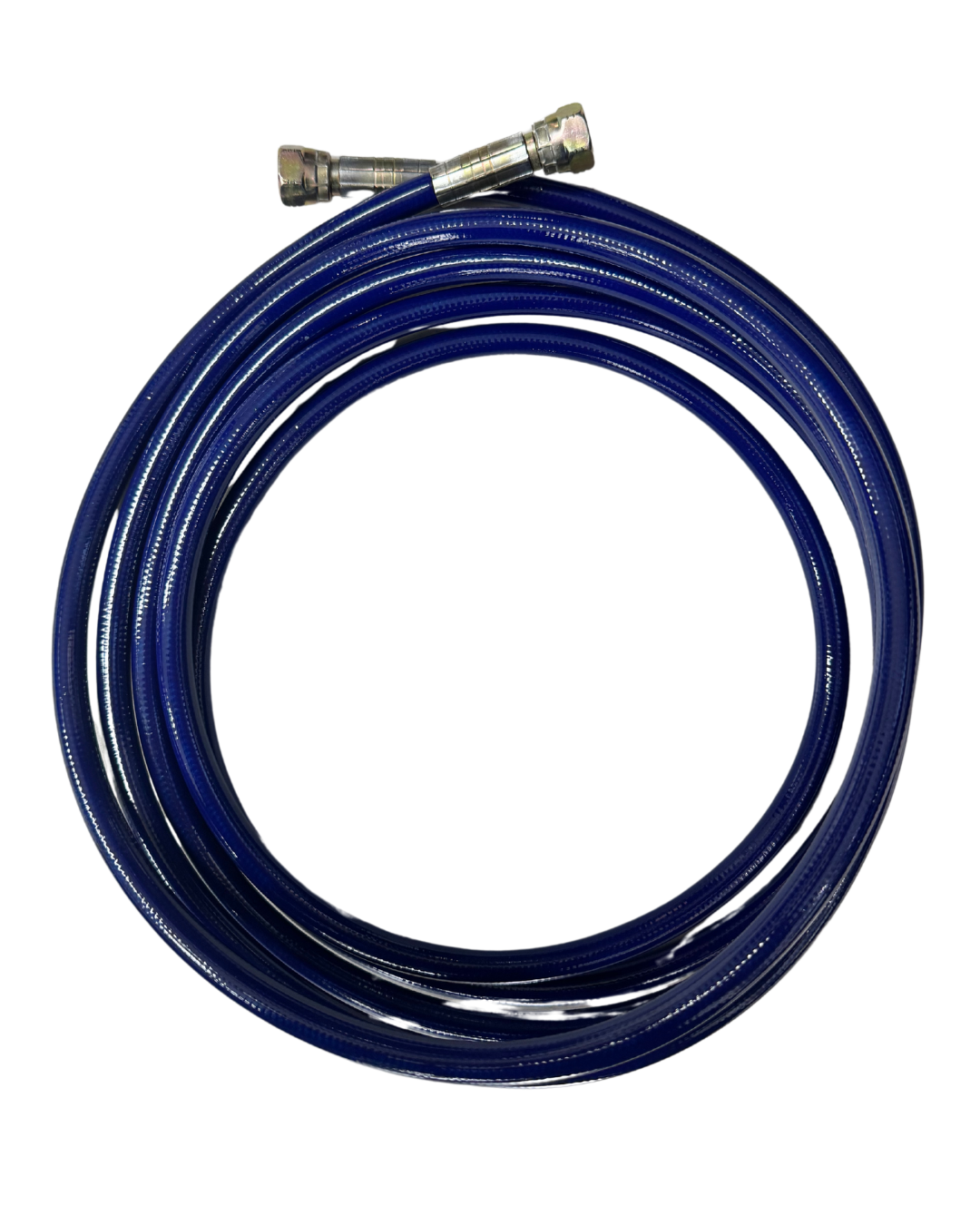

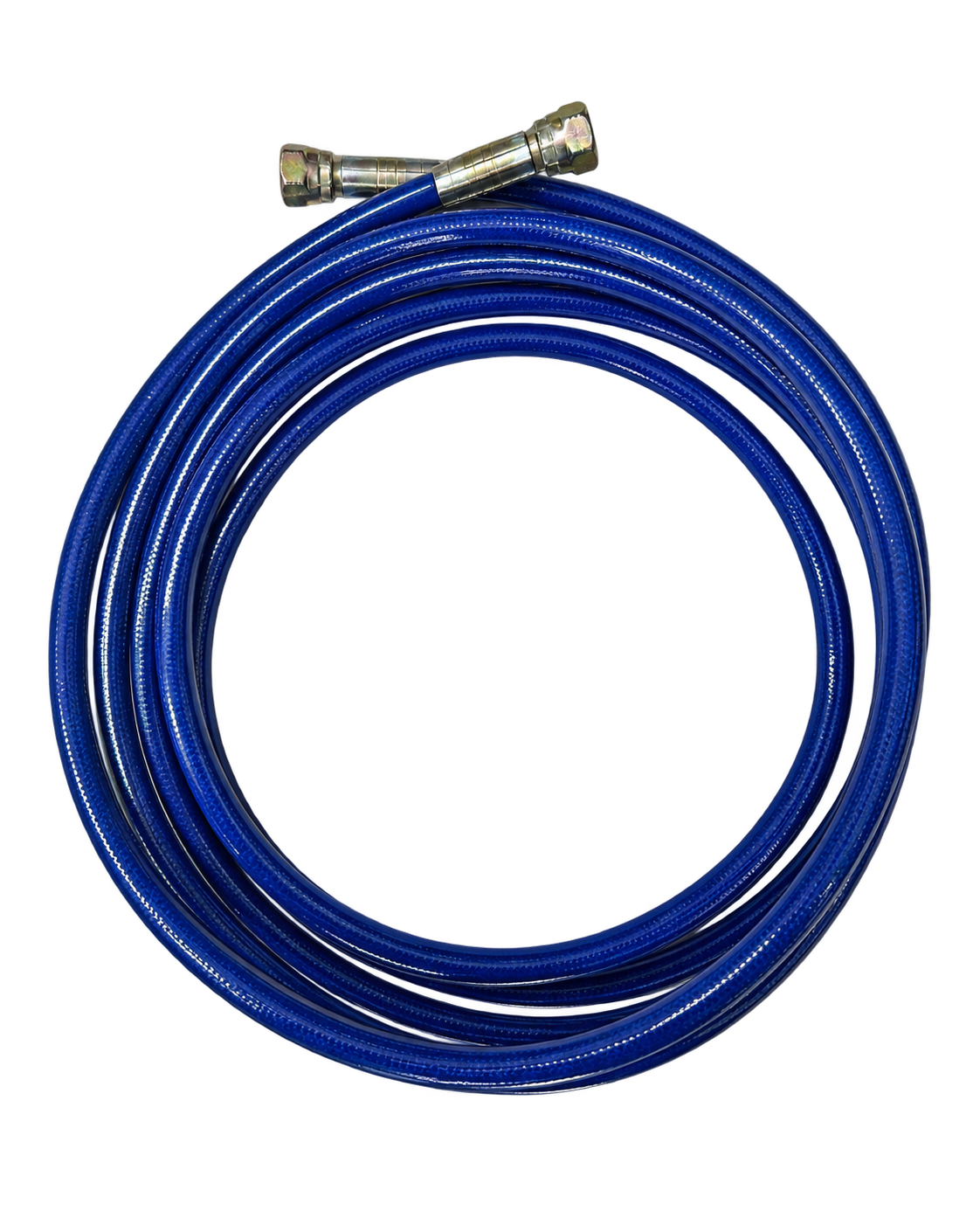

| Item Type | Crack injection hose |
| Supplied As | A single coil of about eight turns |
| Cover | Blue and smooth, with fine longitudinal ribbing in the surface |
| End Fittings | A crimped metal end fitting on each end |
| Fitting Form | Hex nut over a crimped ferrule |
| Fitting Finish | Zinc plated with a yellow passivated finish |
| Markings | No lay line, branding or marking legible on the cover or on either fitting |
| Every line above is read off the product photograph. No manufacturer data sheet is published for this hose, so the coil length, the internal bore, the fitting thread size and the working pressure rating are not stated. | |
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What is the SWM Crack Injection Hose?
CompatibilityThe SWM Crack Injection Hose is the primary high-pressure hose connecting the INJEXA SWM 1300/1500 pump to the injection handle, rated for the full operating pressure range of the system.
-
What's special about a crack injection hose?
PerformanceStandard hydraulic hoses cannot tolerate the chemical attack of polyurethane and epoxy injection resins. The SWM hose has a chemically resistant inner liner rated for PU200, PU500, Injectswell, ER300, and other Forspec injection products.
-
How is it connected?
InstallationThreads onto the pump outlet at one end and the Injection Handle SWM at the other. Hand-tighten the fittings then snug with a wrench - do not overtighten the threads.
-
Which pumps does it fit?
CompatibilityDesigned for INJEXA SWM 1300 and SWM 1500 pumps. Other pump systems use different fittings - verify before ordering replacements.
-
When should I replace it?
PerformanceReplace immediately if you see swelling, blistering, abrasion, or fluid weeping at the fittings. A failed high-pressure hose is a serious safety hazard - never use a damaged hose.
