High-Pressure Injection Packers 600mm
or 4 interest-free payments with
600mm steel injection packer with a brass grease nipple head and a rubber sleeve.

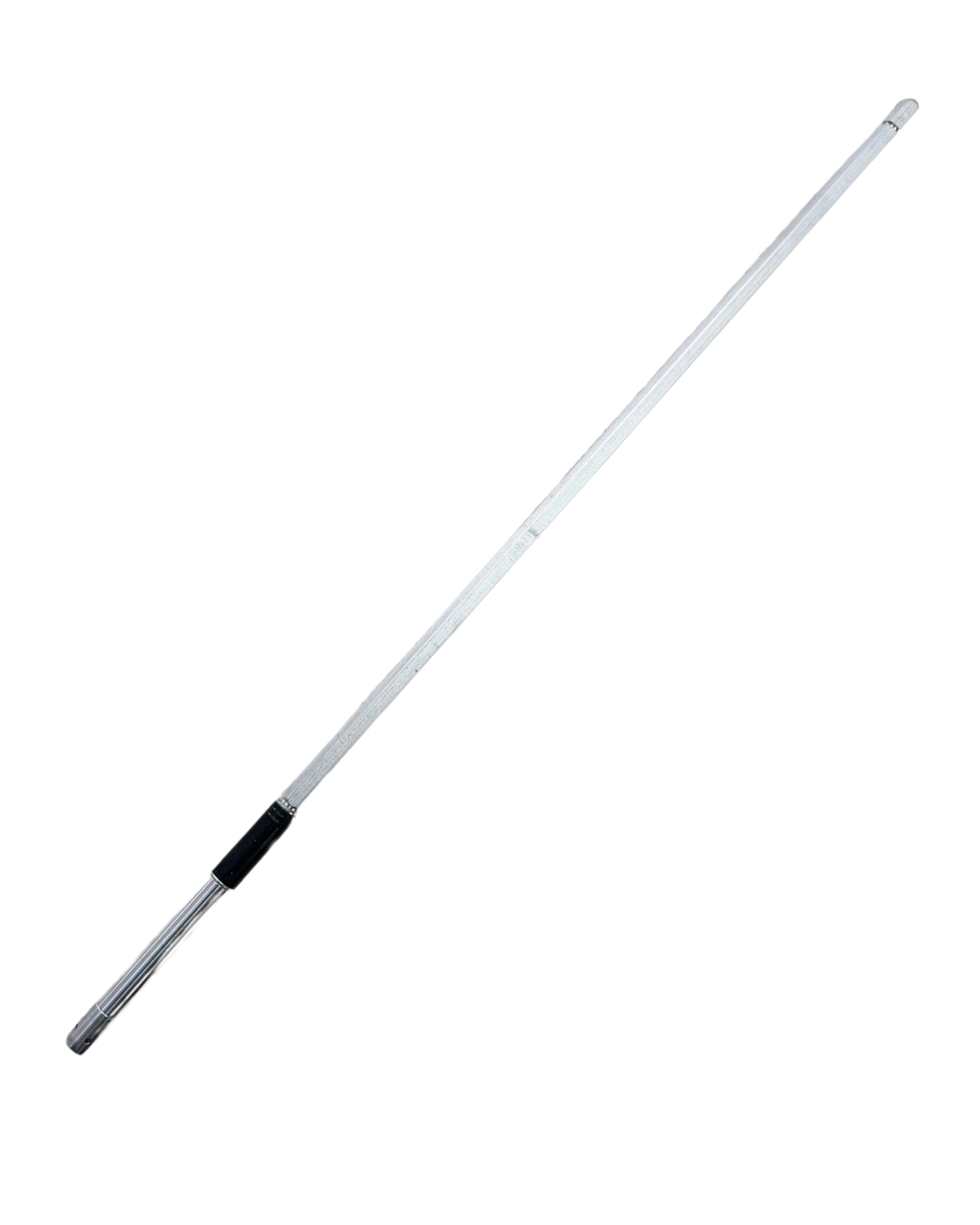

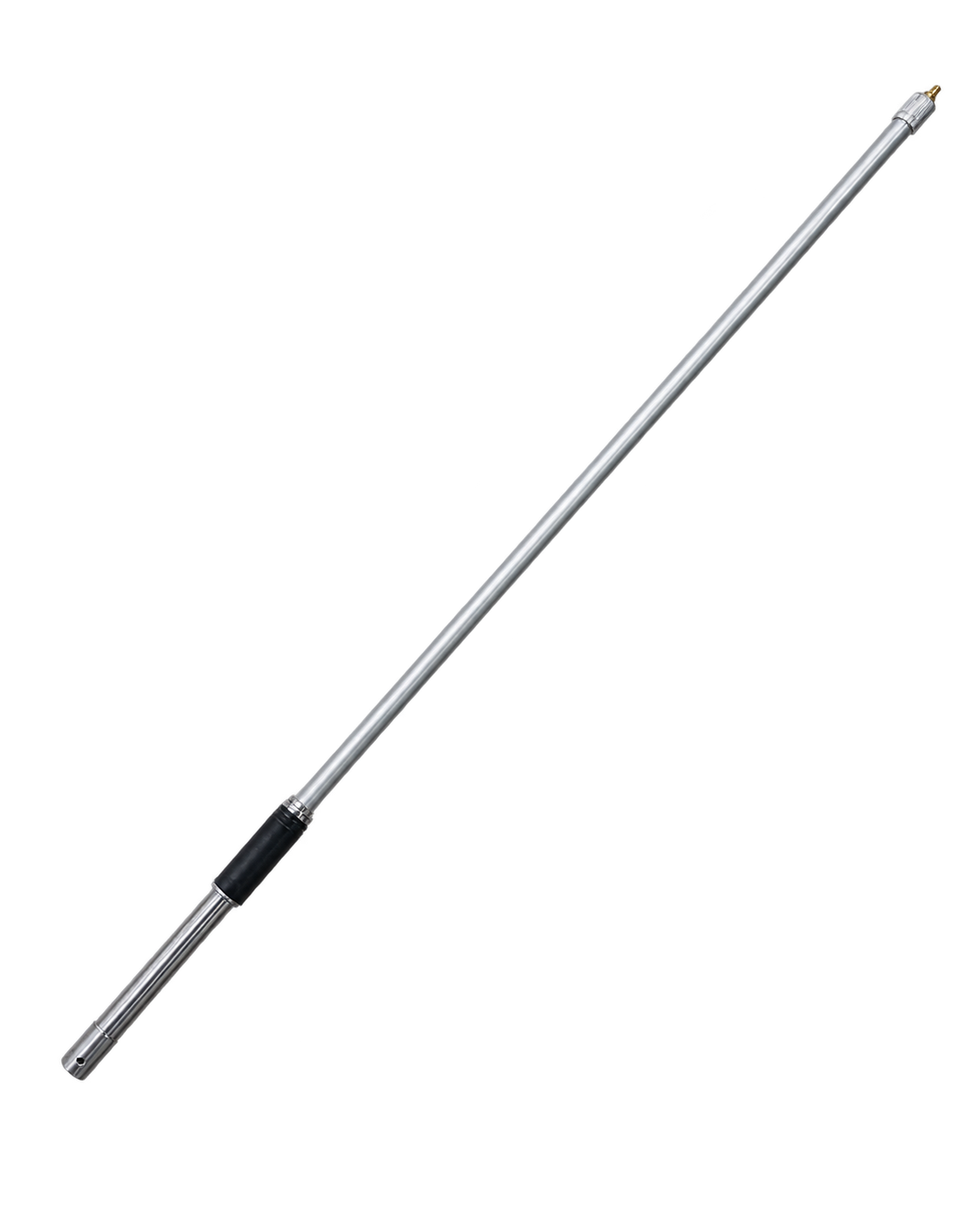

A long, slender steel packer, 600mm nominal. The head is zinc plated hex with a brass grease nipple screwed into the top. Near the far end a black rubber sleeve sits between two ferrule rings, then a closed rounded nose with a single side outlet hole.
Specs
- Length: 600mm nominal, from the product name
- Head: zinc plated hexagonal steel, brass grease nipple in the flat top, plain collar band below
- Sleeve: black rubber sleeve between two metal ferrule rings
- Nose: closed rounded nose with one outlet hole through the side wall just behind it
- No branding or stamping on the packer
Before you order
No supplier data sheet is published. Body diameter, drill hole size, rated injection pressure and resin compatibility are not stated. Call (02) 8021 3517 and we will confirm them before you buy.

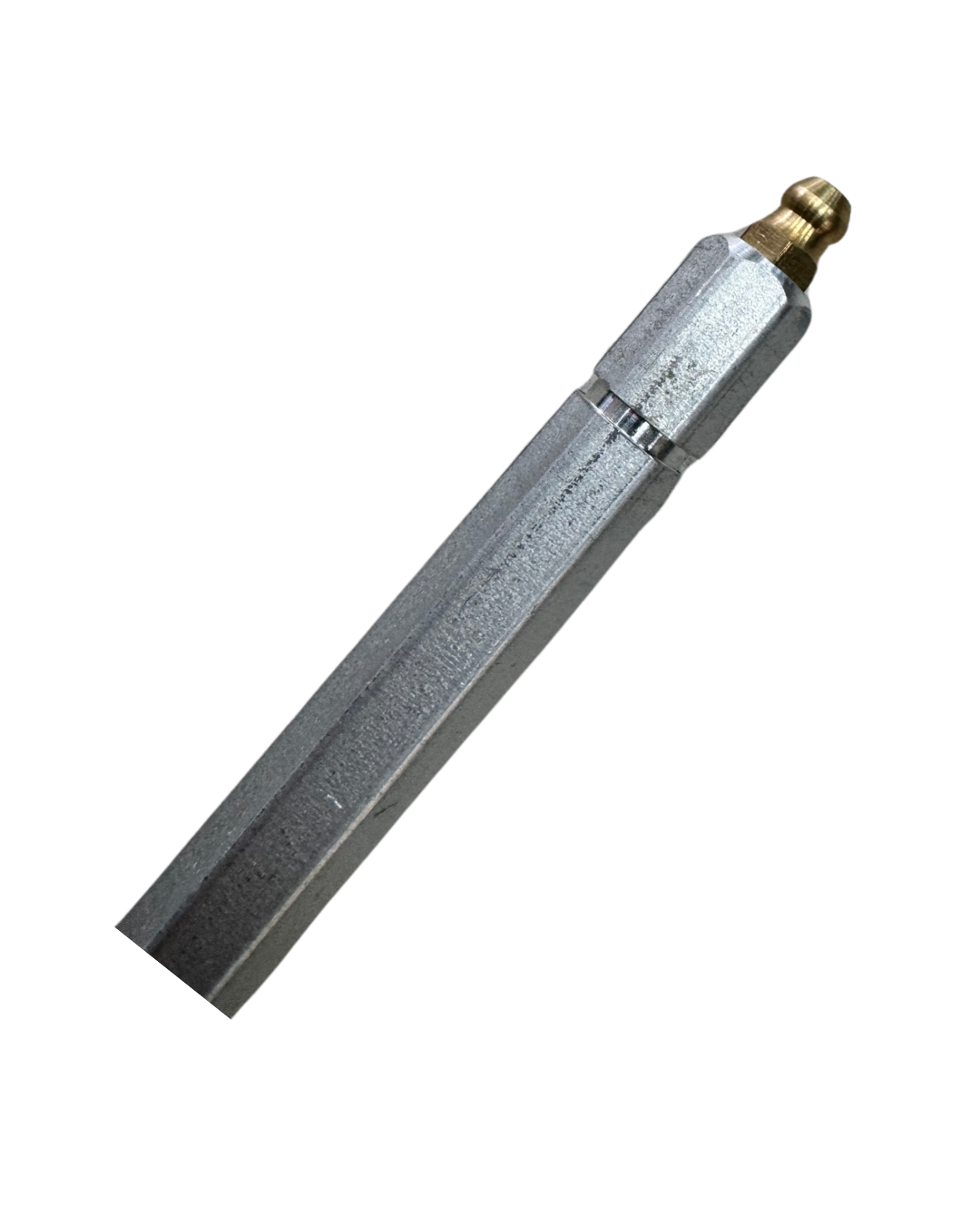

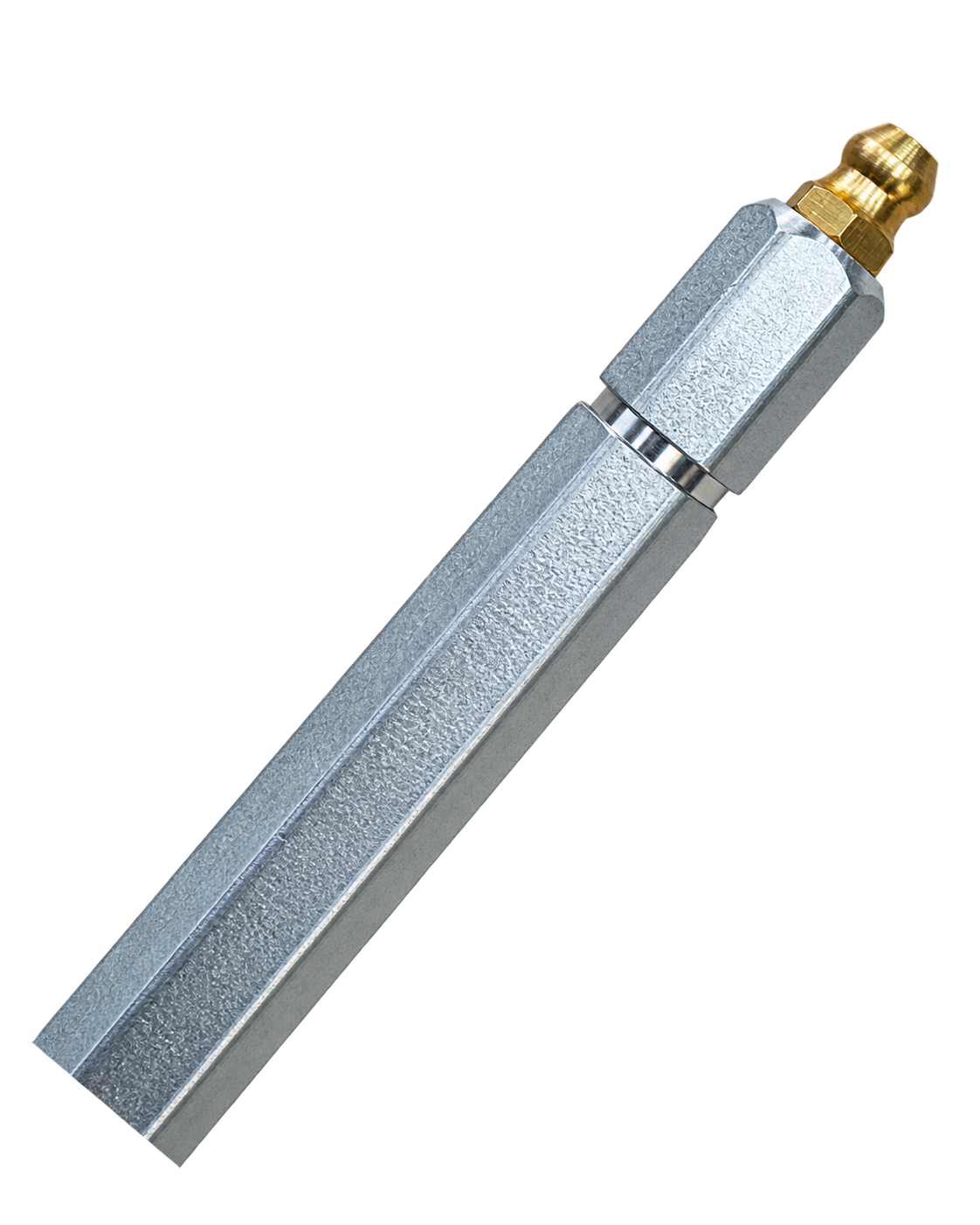

Brass grease nipple head, screwed into the flat top of the hexagonal head
Rubber sleeve for secure sealing
600mm long body for deep crack injection
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
High-Pressure Injection Packers 600mm
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Technical Specifications
Product Files
No documentation available for this product.
High-Pressure Injection Packers 600mm
Sale price$42.95
Frequently bought together
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Key applications
- Deep crack injection
- Concrete repair
- Waterproofing
- Structural repairs requiring deep penetration
Technical Specifications
| Item Type | Injection packer |
| Nominal Length | 600mm* |
| Head | Zinc plated hexagonal steel body |
| Injection Fitting | Brass grease nipple screwed into the flat top of the hexagonal head |
| Collar | Plain metal collar band a short distance below the head |
| Body | Long and slender, uniform in diameter over most of its length |
| Sleeve | Black rubber sleeve between two metal ferrule rings |
| Shank | Flat cut steel shank behind the sleeve |
| Nose | Closed rounded nose at the far end |
| Outlet | One round outlet hole through the side wall of the tube just behind the nose |
| Markings | No text, stamping or branding visible on the head or the body |
| * The 600mm is taken from the product name and the store description. No manufacturer data sheet is published for this packer, so the body diameter, the drill hole size, the rated injection pressure and the resin compatibility are not stated. | |
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What are the 600mm injection packers used for?
CompatibilityHigh-Pressure Injection Packers 600mm are long-shank packers used for deep-set crack injection in thick concrete elements (slabs >300mm, deep retaining walls, dam structures) where standard short packers don't reach the crack at full depth.
-
How are they installed?
InstallationDrill a deep angled hole intersecting the crack at depth, insert the 600mm packer to the correct depth, tighten the expansion bolt to grip the concrete walls, then inject through the standard gun coupler at the exposed end.
-
Why use 600mm instead of standard packers?
PerformanceStandard 100-150mm packers only reach the crack near the surface. For thick concrete, the resin needs to be injected directly into the crack at full depth to achieve proper penetration and bond - the 600mm packers deliver resin to that depth.
-
Which resins do these work with?
CompatibilityCompatible with the full Forspec injection range: PU200, PU500, Injectswell, ER300, Crack Pro 1200, ProBond 1100PS. Match the gun coupler to the packer thread.
-
Are they reusable?
PerformanceNo. Like all expansion packers, the rubber sleeve grips permanently once tightened. Cut flush after injection and patch the exposed thread with epoxy paste.
