Innovative Tools Australia - Concrete Puddle Flange Recess Disc

Be the first to review

35+ bought this month

Innovative Tools Australia Concrete Puddle Flange Recess Disc

$162.00

BEST SELLER

or 4 interest-free payments with

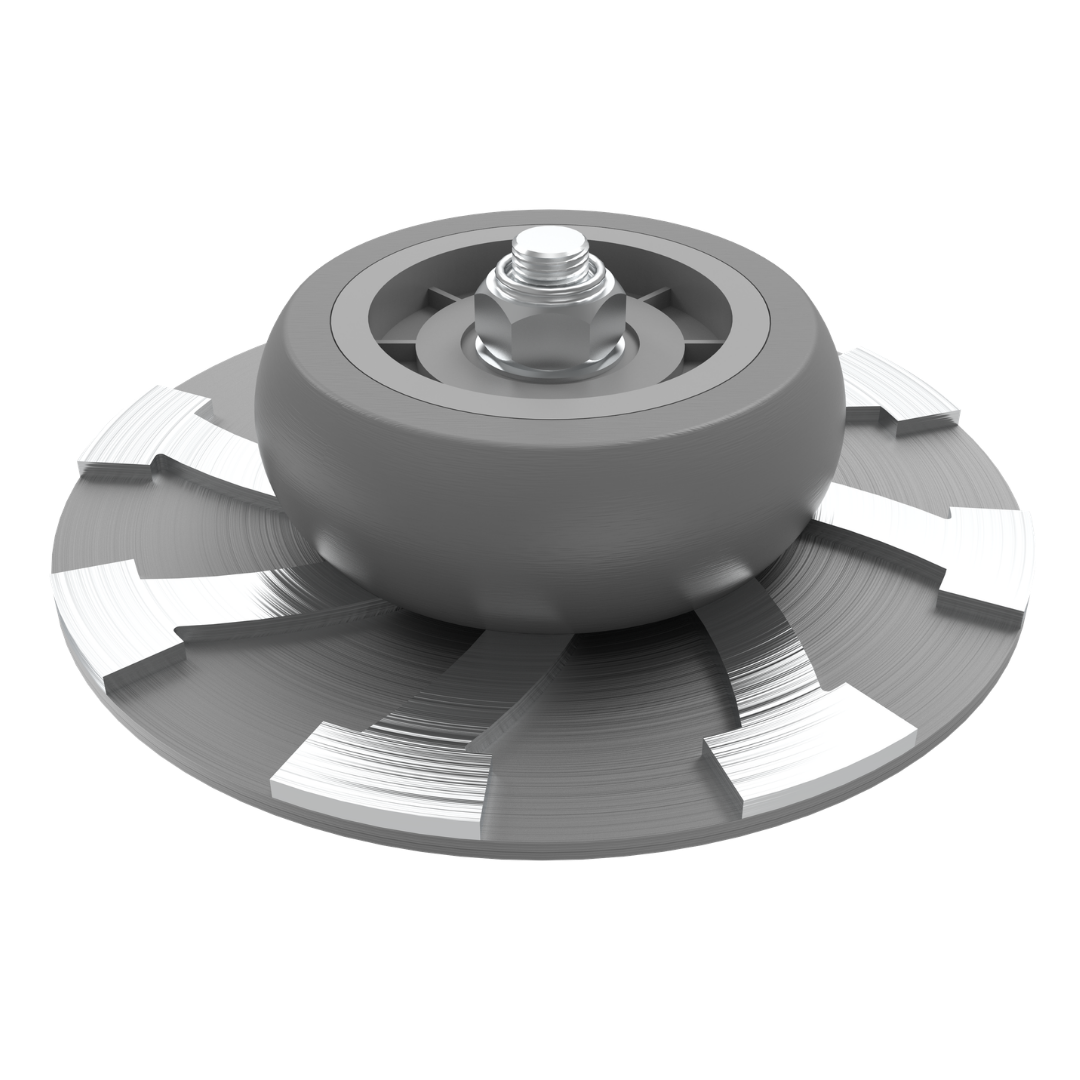

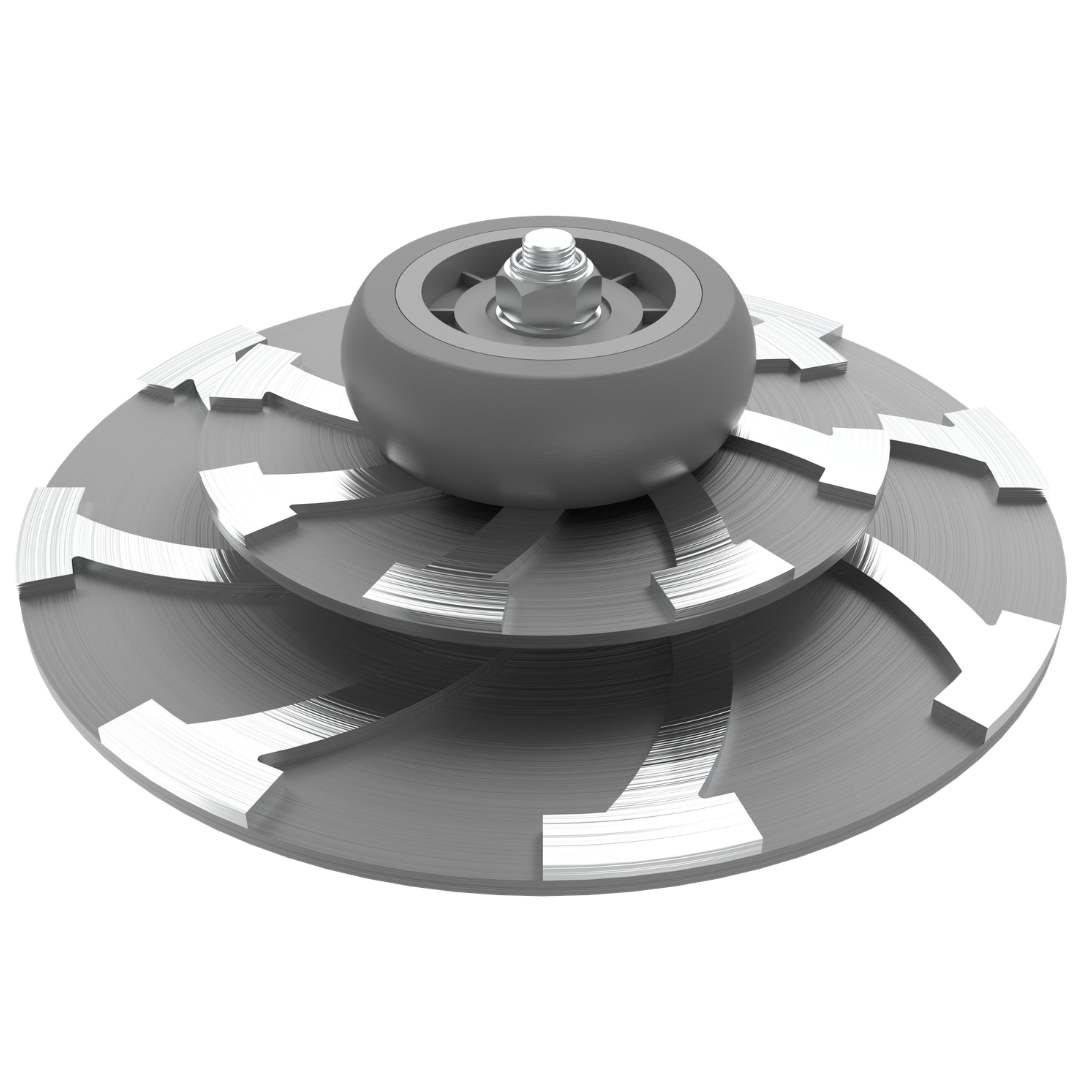

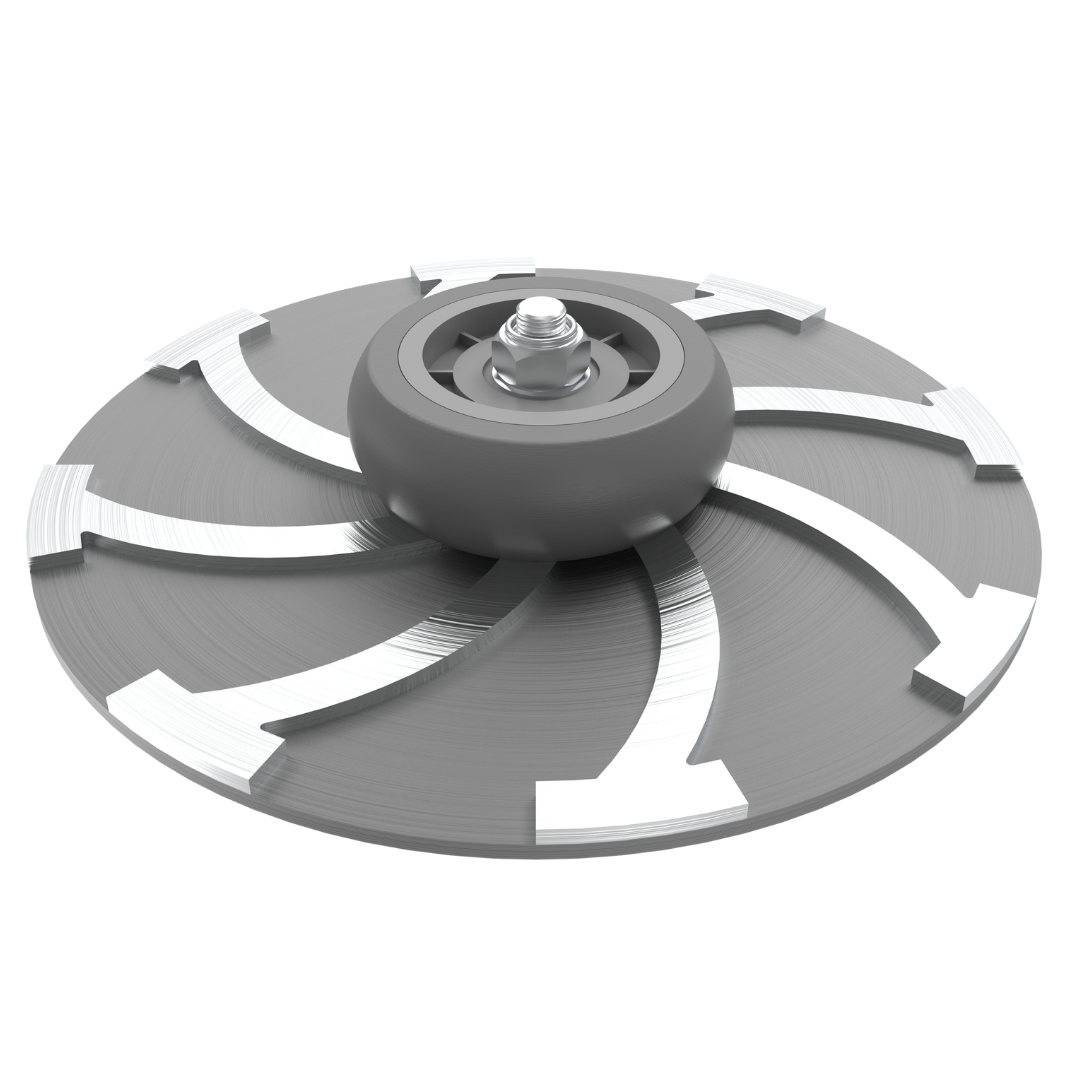

A turbo diamond disc that cuts the puddle flange recess in concrete. Three sizes, one for each 100mm flange.

The Innovative Tools Australia Concrete Puddle Flange Recess Disc cuts a precise recess in concrete for 100mm puddle flanges. A 100mm wheel bearing on the disc sits in the PVC drainage outlet and centres the cut. Each size suits a different flange.

What it's for

150mm disc: Actnow 100mm Rubber Puddle Flange
200mm disc: Puddle Pro 100mm Puddle Flange
230mm disc: Allproof 100mm Leak Control Flange

Why waterproofers buy it

Innovative Tools rate the 150mm disc at 0-8mm of recess in under 1 minute and over 60 recess holes
The 150mm disc fits 5 inch (130 mm) or 9 inch (230 mm) grinders
Turbo design diamond blade
Sold as a spare disc, a complete kit, or a kit with grinder

Specs

150mm, 200mm or 230mm turbo diamond disc with a 100mm wheel bearing. Grinder not included with Disc Only or Disc Kit.

Not for

Anything but concrete. Never run the disc without the dust collecting guard, and attach an auto-clean vacuum to the shroud.

100mm wheel bearing centres the disc in the PVC drainage outlet

Recesses 0-8mm in under 1 minute so the flange sits flush

Turbo diamond disc rated for over 60 recess holes

Disc Size: 150mm

150mm200MM230MM

Configuration: Disc only

Disc only$162.00Disc kit$330.00Disc kit with Grinder$610.00

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Innovative Tools Australia Concrete Puddle Flange Recess Disc

150mm / Disc only

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

This advanced tool is created with precise detail to produce recesses that perfectly fit the Actnow 100mm Rubber Puddle Flange. For use in concrete substrates, this disc is ideal for 100mm drainage outlets or floor waste. This concrete puddle flange recess disc is constructed with a turbo design diamond blade for superior cutting power and resilience, resulting in dependable outcomes each time.

Advantages:

150mm Turbo Diamond disc with a 100mm wheel bearing
Turbo design diamond blade for superior cutting performance
Precisely recesses the perfect depth for the Actnow 100mm Rubber Puddle Flange
Exceptional durability for long-lasting use
Ensures even and flawless installations.
Boosts efficiency and saves time on concrete projects.

Where it can be used:

Construction sites
Residential and commercial buildings
Infrastructure projects
Road and pavement installations
Concrete flooring and landscaping projects

Note: This disc is design for flanges with a lip width of 150mm. Such as Actnow 100mm Rubber Puddle Flange

Technical Specifications

Tool Type: Concrete puddle flange recess disc
Disc Diameter: 150mm (also sold in 200mm and 230mm)
Blade: Turbo design diamond blade
Centring Guide: 100mm wheel bearing, seated in the 100mm PVC drainage outlet
Pipe Size: 100mm PVC drainage outlet or floor waste
Flange Suited (150mm disc): Actnow 100mm Rubber Puddle Flange, flanges with a 150mm lip width
Flange Suited (200mm disc): Puddle Pro 100mm Puddle Flange
Flange Suited (230mm disc): Allproof 100mm Leak Control Flange
Grinder Fit: 5 inch (130 mm) or 9 inch (230 mm) grinders
Recess Depth: 0-8mm in under 1 minute
Disc Life: Over 60 recess holes
Substrate: Concrete applications only
Dust Control: Auto-clean vacuum attached to the dust shroud
Dust Guard: Makita 180mm Dust Shroud / Guard
Configurations: Disc Only, Disc Kit, Disc Kit with Grinder
Grinder: Not included with Disc Only or Disc Kit

What's Included?

Disc Only - replacement or spare recess disc
Disc Kit - complete recessing kit
Disc Kit with Grinder - complete kit supplied with grinder
Grinder is not included with the Disc Only or Disc Kit options

Product Files

Brochure PDF Download

Innovative Tools Australia Concrete Puddle Flange Recess Disc150mm / Disc only

$162.00

Technical Specifications

Tool Type	Concrete puddle flange recess disc
Disc Diameter	150mm (also sold in 200mm and 230mm)
Blade	Turbo design diamond blade
Centring Guide	100mm wheel bearing, seated in the 100mm PVC drainage outlet
Pipe Size	100mm PVC drainage outlet or floor waste
Flange Suited (150mm disc)	Actnow 100mm Rubber Puddle Flange, flanges with a 150mm lip width
Flange Suited (200mm disc)	Puddle Pro 100mm Puddle Flange
Flange Suited (230mm disc)	Allproof 100mm Leak Control Flange
Grinder Fit	5 inch (130 mm) or 9 inch (230 mm) grinders
Recess Depth	0-8mm in under 1 minute
Disc Life	Over 60 recess holes
Substrate	Concrete applications only
Dust Control	Auto-clean vacuum attached to the dust shroud
Dust Guard	Makita 180mm Dust Shroud / Guard
Configurations	Disc Only, Disc Kit, Disc Kit with Grinder
Grinder	Not included with Disc Only or Disc Kit
