What is the 7 mm x 25 mm Hydrotite strip used for?

This profile (RSS/CJ size suited to standard construction joints) is bonded along the centre line of cast in-situ concrete joints to provide a self-expanding hydrophilic seal.

Do I need site welding or intersection pieces?

No. Lengths join with simple butt joints, and the strip can be bonded to traditional PVC waterstops where details transition. This removes the labour and risk of hot-knife welding.

How much joint does one 10 m roll cover?

One 10 m roll covers 10 linear metres of joint. Order spare length to allow for overlaps and detail returns.

Can it bond to rough or uneven concrete?

Yes. Where the substrate is too rough for the self-adhesive backing alone, bed the strip in Leakmaster LV-Z gun-grade waterstop to maintain continuous contact.

Does it work through repeated wet/dry cycles?

Yes. The co-extruded design is unaffected by repeated wet and dry cycles, making it suitable for tanks and below-ground structures that experience fluctuating water tables.

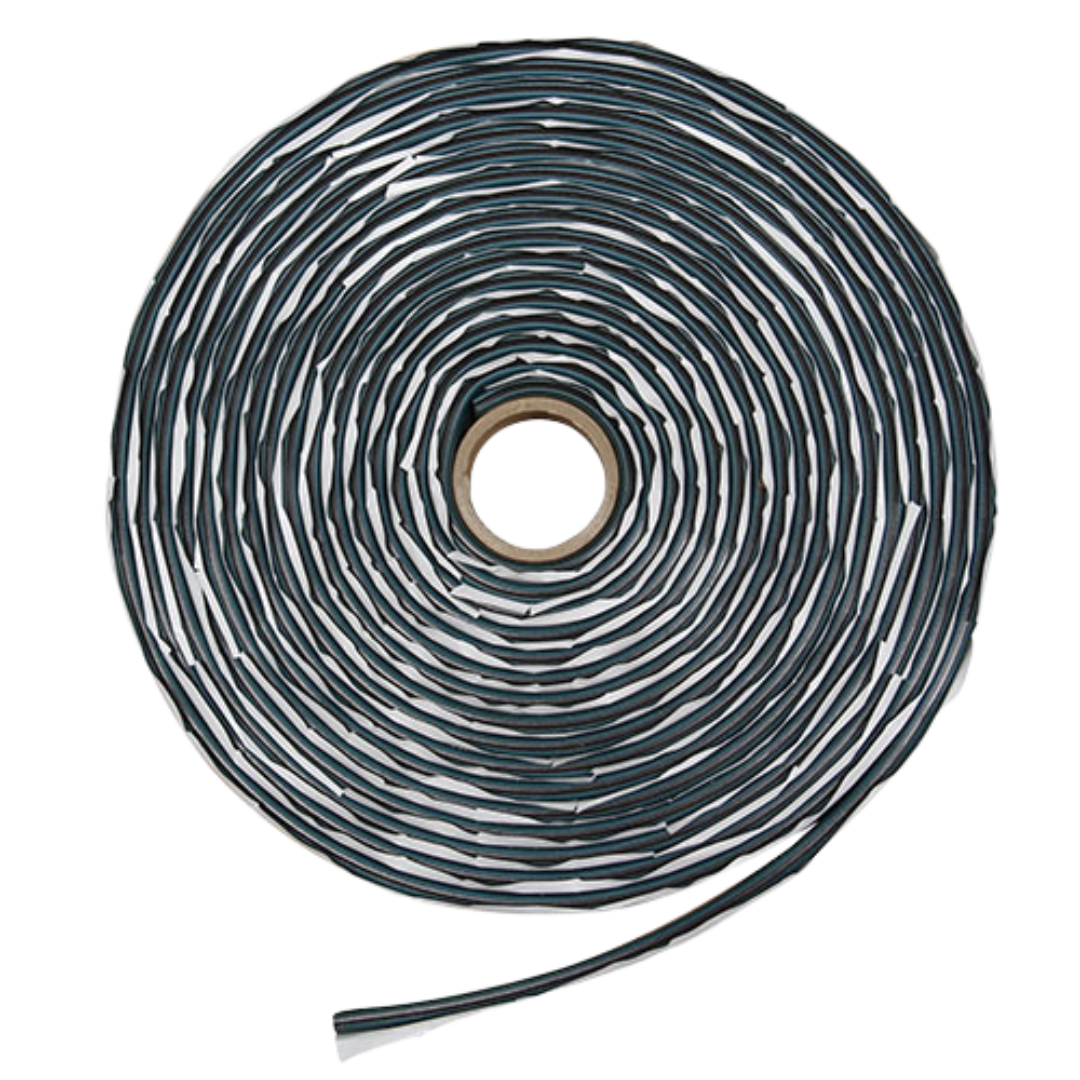

Parchem Hydrotite 7mm x 25mm x 10m hydrophilic waterstop strip for sealing concrete construction joints and preventing water ingress in below-ground and water-retaining structures.

Be the first to review

Parchem Hydrotite 7mm x 25mm x 10m Roll

Name: Parchem Hydrotite 7mm x 25mm x 10m Roll
Brand: The Waterproofing Shop
SKU: PPAF497
Price: 360.00 AUD
Availability: OutOfStock

$360.00

Sold out

or 4 interest-free payments with

Hydrotite is hydrophilic waterstop which expands in a controlled fashion in the presence of moisture to create a pressure seal within construction joints in concrete structures.

Expands up to 500% in volume and resists heads of water up to 50 metres

Self-adhesive backing, no site welding and no special intersections

Complies with AS/NZS 4020:2018 for contact with drinking water (AWQC Report 308541)

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup currently unavailable at The Waterproofing Shop

Parchem Hydrotite 7mm x 25mm x 10m Roll

The Waterproofing Shop

Pickup currently unavailable

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

Advantages

Self-adhesive makes installation easier and reduces construction costs
Co-extruded design means expansion is directed across the joint for maximum seal
Delay coating to help prevent premature expansion
Unaffected by repeated wet and dry cycles
No site welding as is required for traditional PVC waterstops
No need for special intersections, joining is by simple butt joins
Can be applied to rough surfaces using Leakmaster gungrade waterstop
Can be joined to traditional PVC waterstop
No compaction or displacement problems
Non toxic and non hazardous

How to Use

Peel the backing paper off a section at a time and press the strip firmly onto the prepared concrete, with a bead of Leakmaster across every butt joinPrepare a clean, dry, smooth surface, not scabbled, free from oils, grease, dust and debris, similar to a wood float or off-form finish
Repair air holes 4-5mm in diameter or depth with a suitable repair mortar
Set the waterstop out so a minimum of 100 mm cover of concrete is present over the Hydrotite
Cut the ends square with a sharp knife or scissors at every join
Lay the Hydrotite along the clean dry concrete surface next to where it is to be installed
Peel the protective backing paper off a section at a time, turn the Hydrotite over and press firmly down onto the prepared concrete surface
Check the Hydrotite is fully bonded to the concrete
On rough concrete, apply Leakmaster gun grade waterstop to the clean dry surface with a standard caulking gun to build the surface up smooth
Press the Hydrotite into the Leakmaster with moderate hand pressure until the Leakmaster oozes out and there are no visible gaps
Butt join every length firmly up to the next section, and cut and butt join at 90 degree angles rather than pulling the strip around the corner
Place a bead of Leakmaster across every butt join
Leave a 100mm tail of Hydrotite to allow butt joining to the next pour
Protect the Hydrotite from moisture or ponding of water prior to placement of concrete
Check for pre-expansion before the pour, dark blue turning light blue shows the strip has started to expand
Remove and replace any strip that has already expanded too much
Do not place concrete until the Leakmaster has cured sufficiently to avoid displacement during the pour

Technical Specifications

Waterstop Type: Hydrophilic (water swellable) waterstop for cast in-situ concrete
Profile: CJ0725-3K
Dimensions: 7mm x 25mm
Roll Length: 10m
Material Code: FC000550-UNIT
Composition: Chloroprene rubber and hydrophilic resin
Construction: Expanding hydrophilic section co-extruded to a non-expanding chloroprene rubber section
Colour: Expanding section blue, non-expanding section black
Backing: Self-adhesive
Delay Coating: Yes, to limit premature expansion before the second pour
Volume Expansion: Up to 500%
Hydrostatic Resistance: Heads of water up to 50m
Hardness (JIS-A): 50 +/- 5 hydrophilic rubber, 50 +/- 5 non-hydrophilic rubber (JIS K 6253)
Tensile Strength: Min. 2.00 N/mm2 hydrophilic rubber, Min. 8.8 N/mm2 non-hydrophilic rubber (JIS K 6251)
Elongation: Min. 550% hydrophilic rubber, Min. 400% non-hydrophilic rubber (JIS K 6251)
Expansion: Min. 500 Vol.% (in house test)
Minimum Concrete Cover: 100mm
Standards Compliance: AS 4020-2018 (AWQC Report 308541)
Hazard Classification: Not classified as hazardous, not classified as Dangerous Goods
Shelf Life: 3 years from date of manufacture
Manufacturer: C.I. Takiron Corp.

Product Files

Technical Specifications

Waterstop Type	Hydrophilic (water swellable) waterstop for cast in-situ concrete
Profile	CJ0725-3K
Dimensions	7mm x 25mm
Roll Length	10m
Material Code	FC000550-UNIT
Composition	Chloroprene rubber and hydrophilic resin
Construction	Expanding hydrophilic section co-extruded to a non-expanding chloroprene rubber section
Colour	Expanding section blue, non-expanding section black
Backing	Self-adhesive
Delay Coating	Yes, to limit premature expansion before the second pour
Volume Expansion	Up to 500%
Hydrostatic Resistance	Heads of water up to 50m
Hardness (JIS-A)	50 +/- 5 hydrophilic rubber, 50 +/- 5 non-hydrophilic rubber (JIS K 6253)
Tensile Strength	Min. 2.00 N/mm2 hydrophilic rubber, Min. 8.8 N/mm2 non-hydrophilic rubber (JIS K 6251)
Elongation	Min. 550% hydrophilic rubber, Min. 400% non-hydrophilic rubber (JIS K 6251)
Expansion	Min. 500 Vol.% (in house test)
Minimum Concrete Cover	100mm
Standards Compliance	AS 4020-2018 (AWQC Report 308541)
Hazard Classification	Not classified as hazardous, not classified as Dangerous Goods
Shelf Life	3 years from date of manufacture
Manufacturer	C.I. Takiron Corp.

The Waterproofing Shop?

We supply premium waterproofing products backed by expert advice, fast service and real-world experience.

100% Australian
Owned & Operated

30+ Years in the
Waterproofing Industry

Thousands of Products
in Stock

Fast Shipping
Australia Wide

Expert Technical
Support

Frequently asked questions

What is the 7 mm x 25 mm Hydrotite strip used for?

Application
This profile (RSS/CJ size suited to standard construction joints) is bonded along the centre line of cast in-situ concrete joints to provide a self-expanding hydrophilic seal.
Do I need site welding or intersection pieces?

Application
No. Lengths join with simple butt joints, and the strip can be bonded to traditional PVC waterstops where details transition. This removes the labour and risk of hot-knife welding.
How much joint does one 10 m roll cover?

Coverage & Coats
One 10 m roll covers 10 linear metres of joint. Order spare length to allow for overlaps and detail returns.
Can it bond to rough or uneven concrete?

Compatibility
Yes. Where the substrate is too rough for the self-adhesive backing alone, bed the strip in Leakmaster LV-Z gun-grade waterstop to maintain continuous contact.
Does it work through repeated wet/dry cycles?

Performance
Yes. The co-extruded design is unaffected by repeated wet and dry cycles, making it suitable for tanks and below-ground structures that experience fluctuating water tables.
