FORSPEC External Cross Piece 150mm PVC waterstop intersection fitting for external cross joints in concrete structures.

Be the first to review

PREBAR Cross Piece Flat

$53.00

or 4 interest-free payments with

Flat internal corner profile. Stiffens corners and aids grout adhesion under tiles.

Prebar Cross Piece Flat Internal 150 is a flat ribbed corner profile for internal corners. Install it before laying tiles to reinforce the corner, reduce grout loss and prevent cracks at sharp angles.

What it's for

Internal corners on walls and floors before tiling in wet areas
Strengthens the corner joint and prevents grout loss
Reduces crack potential at 90 degree internal angles

Why waterproofers buy it

Stiffens corners so grout adheres properly
Reduces grout wash-out during or after installation
Ensures consistent grout depth at corners
Fits standard tile widths. Easy to use

Specs

Flat profile, 150mm length. Stainless steel.

Not for

External corners (use external corner profile), or corners that will bear structural loads.

Factory-formed four-way cross, so the junction is not fabricated on site

Heat welds directly to PREBAR PVC Waterstop rolls at 190C to 200C

Available in 150mm and 250mm to match the PREBAR profile on site

Size: External 150

External 150$53.00External 250$57.00Internal 150$48.00Internal 250$57.00

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

PREBAR Cross Piece Flat

External 150

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

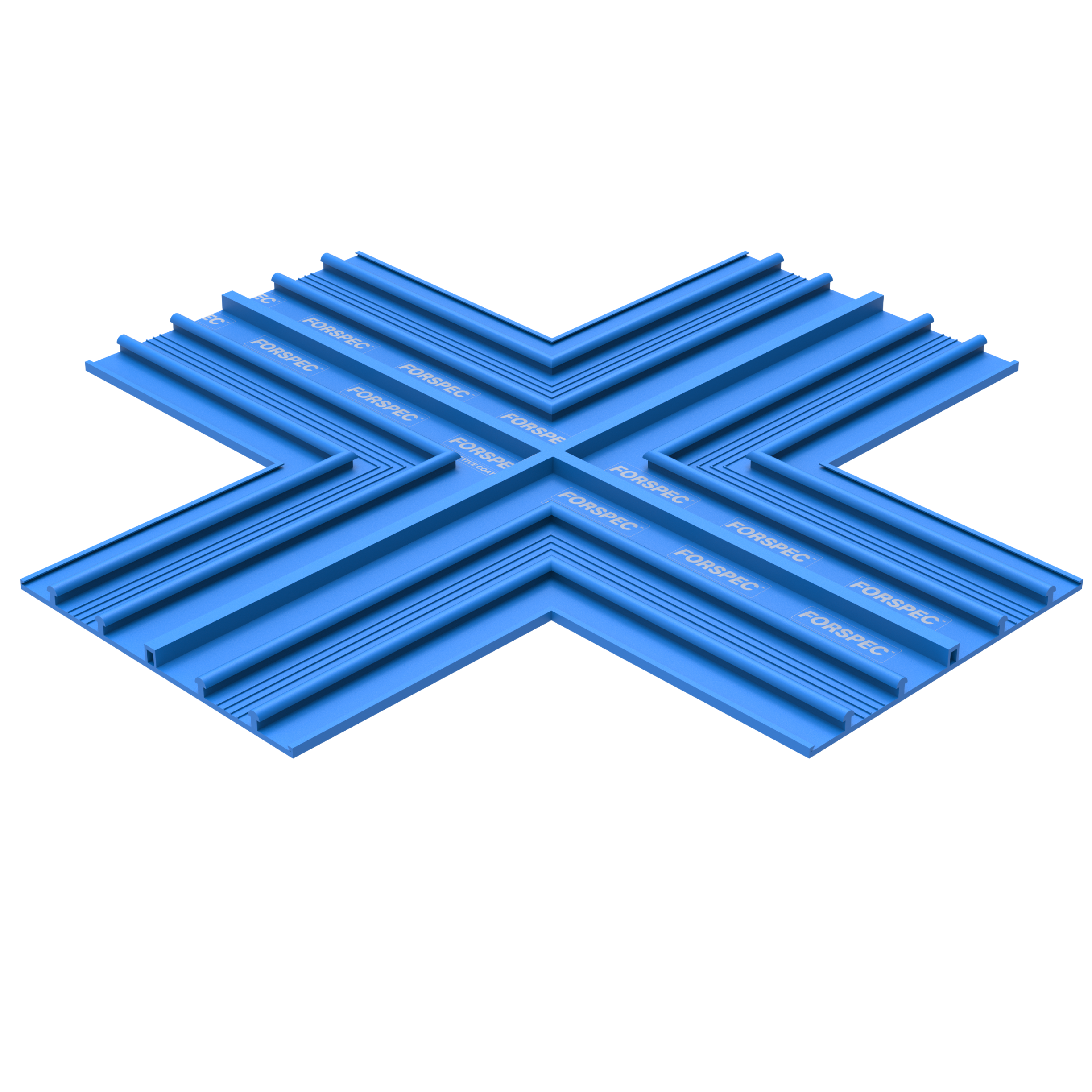

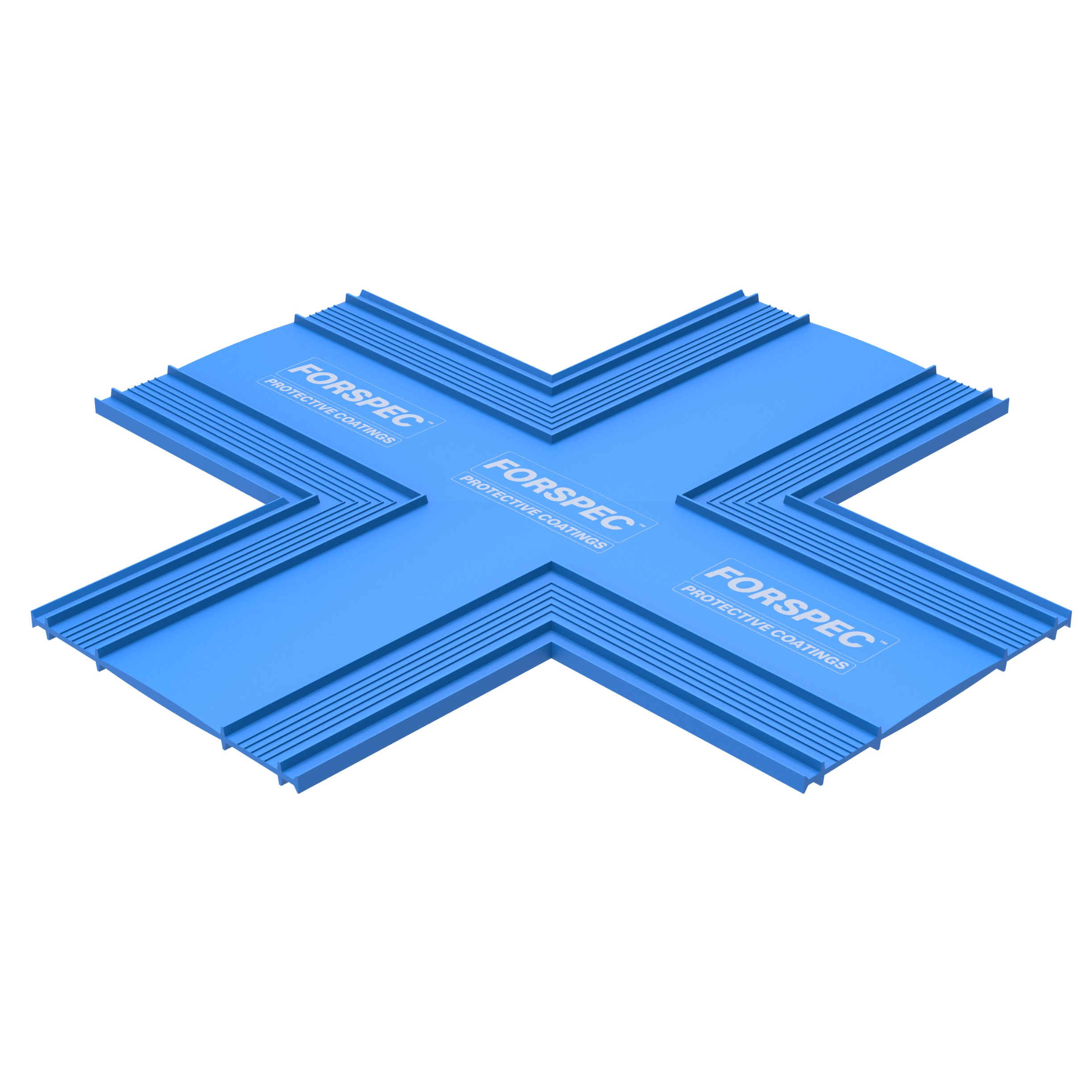

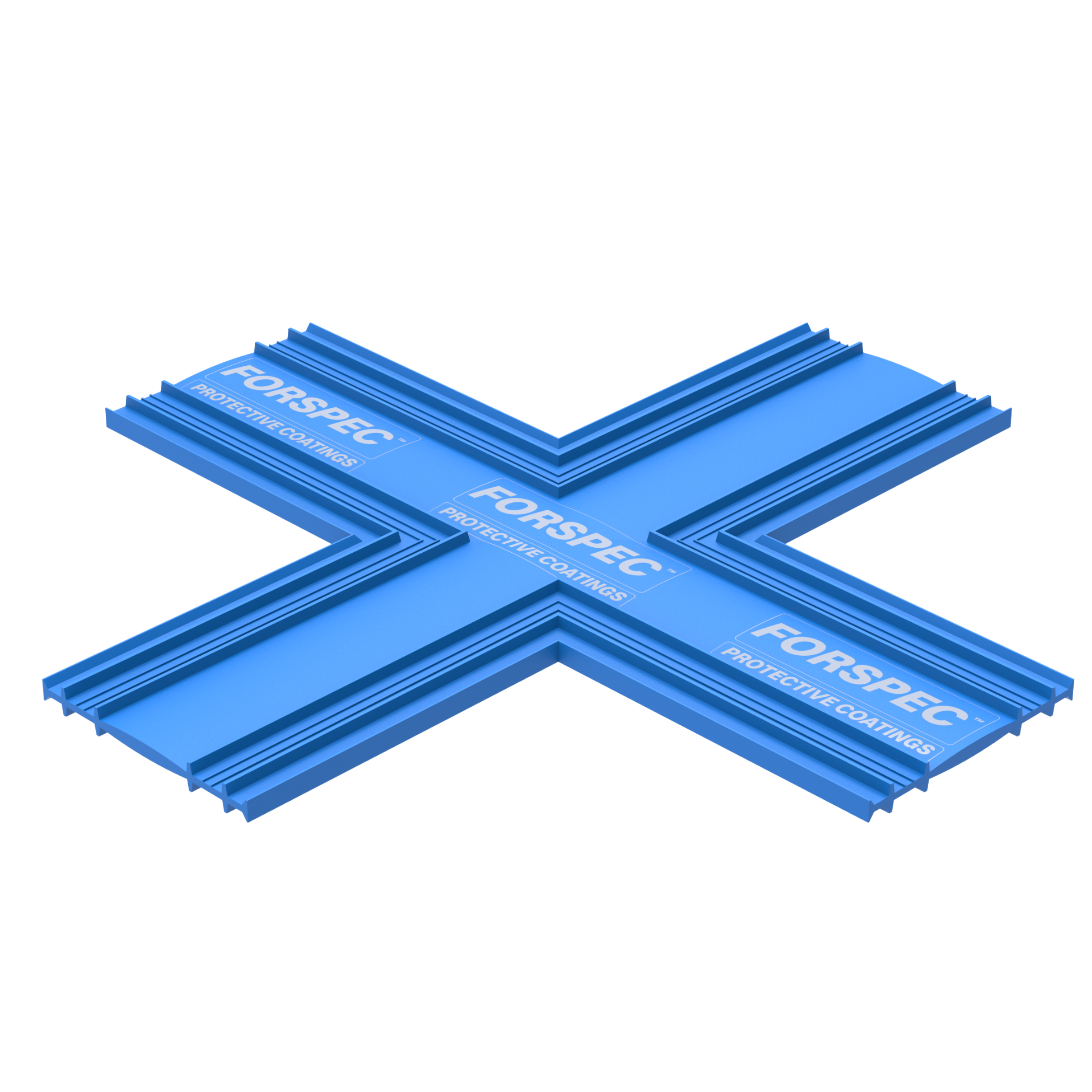

FORSPEC PREBAR CROSS PIECE FLAT is a prefabricated thermoplastic PVC fitting designed to connect four PREBAR PVC Waterstop profiles at a flat cross-junction within cast-in-situ concrete joints. Manufactured under controlled factory conditions, it provides a secure and watertight solution for maintaining continuous waterproofing across complex joint layouts.

Key Features & Benefits

Factory-Welded Construction: Manufactured for consistent quality, precise dimensions, and dependable watertight performance.

Maintains Waterproofing Continuity: Creates a secure four-way flat intersection that preserves the integrity of the waterstop system.

Reduces Installation Time: Eliminates the need for complex on-site fabrication, helping to improve efficiency and reduce installation errors.

Durable PVC Material: Resistant to water, moisture, and common environmental conditions encountered in concrete structures.

Compatible with PREBAR PVC Waterstop Systems: Designed for seamless integration with corresponding PREBAR PVC Waterstop profiles.

Ideal for Flat Joint Intersections: Specifically designed for applications where four concrete joints intersect on the same plane.

Suitable for Critical Structures: Ideal for basements, tunnels, water tanks, retaining walls, wastewater treatment facilities, reservoirs, and other concrete structures requiring reliable joint waterproofing.

How to Use

Heat weld directly to the PREBAR PVC Waterstop runs at approximately 190C to 200C with hot air welding equipment, then inspect every weld for full fusion before the pourConfirm the surfaces where the waterstop will be installed are clean, dry and free from debris and contaminants
Confirm the formwork is set out to receive the waterstop centrally within the joint, with the design concrete cover achievable on both sides
Confirm the correct profile, internal or external and construction or expansion joint, has been selected against the project design
Confirm prefabricated intersection pieces are on site for every tee, cross and corner
Confirm the reinforcement layout allows full concrete encasement and compaction around the profile
Cut the waterstop to the required lengths with a clean blade, allowing adequate overlap at joints and intersections
Position the waterstop within the construction joint, centred and correctly aligned, securing vertical joints with appropriate anchors or fixing methods
Install the cross piece at the four-way junction and align all four PREBAR PVC Waterstop runs into it
Heat weld all sections at approximately 190C to 200C to form continuous, leak-proof joints, welded through the full section
Inspect every weld for full fusion, alignment and freedom from voids before the pour
Confirm the waterstop is secured, centred and undamaged immediately before concrete is placed
Place and compact the concrete carefully around the profile to achieve full encasement with no voids
Protect the exposed half of the waterstop from damage, contamination and concrete splatter until the second pour
Clean the exposed half thoroughly before the second pour so that the concrete bonds to a clean profile

Technical Specifications

Product Type: Factory-fabricated four-way cross junction for PREBAR PVC Waterstop
Material: Polyvinyl chloride (PVC)
Colour: Blue
Sizes Available: 150mm and 250mm
Orientation: Horizontal
Corner Type: Internal and external
Connects: Four PREBAR PVC Waterstop runs at a central intersection
Installation: Heat weld directly to PREBAR PVC Waterstop rolls using hot air welding equipment
Welding Temperature: Approximately 190C to 200C
Service Temperature Range: -25C to +70C
Manufacturing Standard: BS 2782, with batch certificates of analysis on the raw material
Tensile Strength: 15.49 MPa (BS 2782.320A)
Elongation at Break: 330% (BS 2782.320A)
Hardness: 75 Shore A (BS 2782:365B)
Specific Gravity: 1.41 g/cm3 (BS 2782:620B)
Water Absorption at 23C: 0.19% (ISO 62)
Thermal Stability, Congo Red at 180C: Minimum 50 minutes (BS 2782:130A)
Storage Temperature: +10C to +40C
Shelf Life: 5 years from the date of production, correctly stored
Take-off: One unit per tee, cross or corner
* Typical Forspec R&D characteristic values where no test method is cited

Product Files

PREBAR Cross Piece FlatExternal 150

$53.00

Frequently bought together

This item

PREBAR Cross Piece Flat $53.00
Add

125mm Arrow Cup Grinding Disc $100.00
Add

600mm True Blue Digital Level - Empire $175.00
Add

ACTFLEX 101 UV Stable Trafficable Membrane $250.00

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX HYDROPLUG
5 ACTFLEX AT MESH
6 ACTFLEX 988 CWP (2 Coats)
7 Tile Adhesive
8 Pool Finish

Retaining Wall System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX MS PRO
4 ACTFLEX AT MESH
5 ACTFLEX 988 CWP (2 Coats)
6 Protection Board (Optional)
7 Drainage System
8 Backfill

Tank System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX AT MESH
5 ACTFLEX 988 WMP (2 Coats)
6 Protective Coating (Optional)
7 Water

Technical overview

PREBAR Cross Piece Flat is a factory-fabricated four-way cross junction that connects four PREBAR PVC Waterstop runs at a central intersection in the horizontal plane. It is heat welded directly to PREBAR PVC Waterstop rolls on site, so the crosses where site-fabricated waterstops usually fail arrive as factory-formed units. PREBAR PVC WATERSTOP is manufactured and tested to BS 2782, with batch certificates of analysis conducted on the raw material used in production and independent laboratory test results available on request. No Australian Standard certification and no accredited certificate is held for the fittings themselves.

Key applications

Basements
Retaining walls
Lift pits
Water tanks
Reservoirs
Tunnels
Culverts
Wastewater treatment plants
All concrete structures

Surface suitability

Cast-in-situ concrete construction and expansion joints, horizontal and vertical
Concrete (clean, dry and free from debris and contaminants at the surfaces where the waterstop is installed)
Concrete (fully encased on both sides with the design cover maintained)
PREBAR PVC Waterstop rolls (heat welded directly using hot air welding equipment)

Not a waterproofing membrane. PREBAR PVC WATERSTOP seals a joint within the structure, it does not waterproof a surface. The fitting must be fully encased in concrete on both sides with the design cover maintained, and must be centred and correctly aligned in the joint. Do not install over dirty, wet or contaminated surfaces. Do not fold, kink or crease the profile, because a folded waterstop creates a permanent water path. All joins must be fully heat welded; taped, glued or overlapped joins are not acceptable. Do not overheat during welding, because PVC degrades above the stated welding range of approximately 190C to 200C. The waterstop must remain in position throughout the pour. Do not store above 40C or in direct sunlight. Joint design, profile selection and hydrostatic duty are the design responsibility of the project engineer.

Technical Specifications

Product Type	Factory-fabricated four-way cross junction for PREBAR PVC Waterstop
Material	Polyvinyl chloride (PVC)
Colour	Blue
Sizes Available	150mm and 250mm
Orientation	Horizontal
Corner Type	Internal and external
Connects	Four PREBAR PVC Waterstop runs at a central intersection
Installation	Heat weld directly to PREBAR PVC Waterstop rolls using hot air welding equipment
Welding Temperature	Approximately 190C to 200C
Service Temperature Range	-25C to +70C
Manufacturing Standard	BS 2782, with batch certificates of analysis on the raw material
Tensile Strength	15.49 MPa (BS 2782.320A)
Elongation at Break	330% (BS 2782.320A)
Hardness	75 Shore A (BS 2782:365B)
Specific Gravity	1.41 g/cm3 (BS 2782:620B)
Water Absorption at 23C	0.19% (ISO 62)
Thermal Stability, Congo Red at 180C	Minimum 50 minutes (BS 2782:130A)
Storage Temperature	+10C to +40C
Shelf Life	5 years from the date of production, correctly stored
Take-off	One unit per tee, cross or corner
* Typical Forspec R&D characteristic values where no test method is cited
