PREBAR PVC Waterstop Cross Piece External 150mm factory-fabricated four-way PVC junction for external concrete intersections, designed for reliable watertight waterproof detailing.

PREBAR PVC Waterstop Cross Piece External 250mm factory-fabricated four-way PVC junction for external concrete intersections, designed for reliable watertight waterproof detailing.

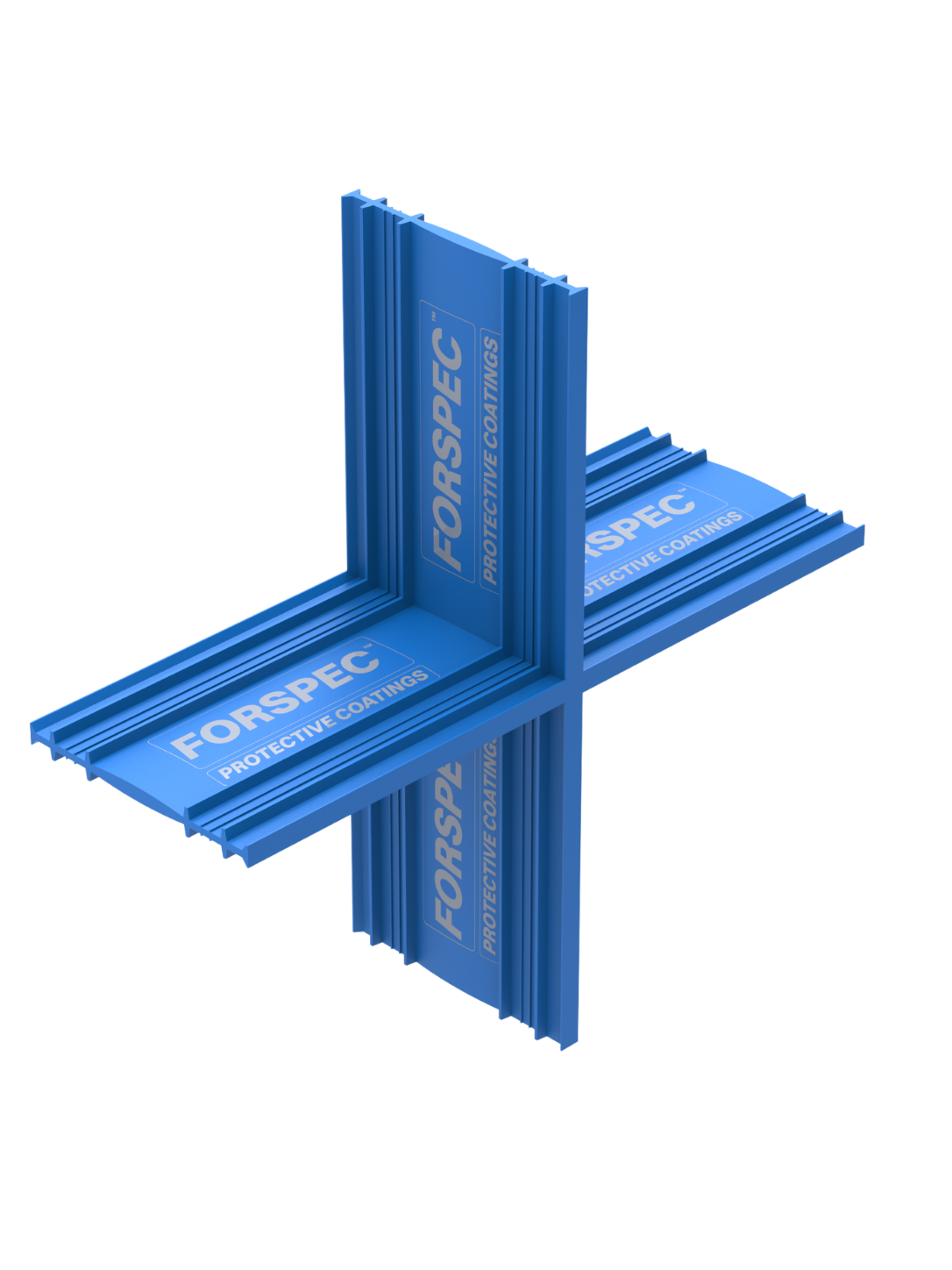

PREBAR PVC Waterstop Cross Piece Internal 150mm factory-fabricated four-way PVC junction for internal concrete intersections, designed for reliable watertight waterproof detailing.

Be the first to review

PREBAR PVC Waterstop - Cross Piece

$53.00

or 4 interest-free payments with

Vertical external corner profile for edge protection and grout control. Stainless steel.

Prebar Cross Piece Vertical External is an external corner profile for protecting tile edges and controlling grout depth on external walls and corners.

What it's for

External corners on balconies, rooftops and facades before tiling
Protects exposed tile edges from impact and moisture
Controls grout depth and prevents water ingress at corners

Why waterproofers buy it

Protects tile edges. No chipping or edge breaking
Controls grout depth at corners
Stainless steel prevents rust and staining
Works with all standard tile widths

Specs

Vertical profile, 15mm height. Stainless steel.

Not for

Internal corners (use internal corner profile), or areas requiring thermal movement accommodation.

Factory-fabricated to eliminate difficult on-site fabrication and welding

Heat weld ready - welds directly to PREBAR PVC Waterstop rolls

Precise factory manufacturing for consistent quality

Size: External 15

External 15$53.00External 25$57.00Internal 15$53.00Internal 250$57.00

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

PREBAR PVC Waterstop - Cross Piece

External 15

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

FORSPEC PREBAR PVC WATERSTOP – Cross Piece is a prefabricated thermoplastic PVC fitting designed to connect four PREBAR PVC Waterstop profiles at a cross-junction within cast-in-situ concrete joints. Factory fabricated to ensure accurate dimensions and dependable performance, it provides a secure and watertight solution for complex concrete joint layouts.

Key Features & Benefits

Factory-Fabricated Precision: Manufactured under controlled conditions to ensure consistent quality and reliable waterproofing performance.

Maintains Waterproofing Integrity: Creates a secure four-way intersection that preserves continuous waterstop protection throughout the concrete structure.

Reduces On-Site Fabrication: Minimises installation time and labour by eliminating the need for complex field welding and joint fabrication.

Durable Thermoplastic PVC: Resistant to water ingress, moisture, and common environmental conditions encountered in concrete construction.

Compatible with PREBAR PVC Waterstop Systems: Designed for seamless integration with corresponding PREBAR PVC Waterstop profiles.

Ideal for Complex Joint Configurations: Suitable for intersecting construction and expansion joints in water-retaining and below-ground structures.

Suitable for Critical Structures: Commonly used in basements, tunnels, water tanks, reservoirs, retaining walls, wastewater treatment facilities, and civil infrastructure projects requiring reliable joint waterproofing.

How to Use

Heat weld directly to PREBAR PVC Waterstop rolls.

Technical Specifications

Product Type: Factory-prefabricated four-way PVC waterstop cross junction
Configuration: External or internal
Orientation: Horizontal
Material: PVC
Colour: Blue
Sizes Available: 150mm and 250mm
Jointing: Heat weld directly to PREBAR PVC Waterstop rolls
Take-off: One fitting per four-way external waterstop intersection
Take-off: One fitting per four-way internal waterstop intersection
Note: Forspec publishes no product-specific Technical Data Sheet, test report or certificate for the prefabricated fittings. Every value above comes from the Forspec product pages and the PREBAR Prefabricated Fittings brochure

Product Files

PREBAR PVC Waterstop - Cross PieceExternal 15

$53.00

Frequently bought together

This item

PREBAR PVC Waterstop - Cross Piece $53.00
Add

125mm Arrow Cup Grinding Disc $100.00
Add

600mm True Blue Digital Level - Empire $175.00
Add

ACTFLEX 101 UV Stable Trafficable Membrane $250.00

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX HYDROPLUG
5 ACTFLEX AT MESH
6 ACTFLEX 988 CWP (2 Coats)
7 Tile Adhesive
8 Pool Finish

Retaining Wall System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX MS PRO
4 ACTFLEX AT MESH
5 ACTFLEX 988 CWP (2 Coats)
6 Protection Board (Optional)
7 Drainage System
8 Backfill

Tank System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX AT MESH
5 ACTFLEX 988 WMP (2 Coats)
6 Protective Coating (Optional)
7 Water

Technical overview

PREBAR PVC Waterstop Cross Piece is a factory-manufactured four-way PVC junction that connects four PREBAR PVC Waterstop runs at a central intersection in cast-in-situ concrete, in an external or an internal configuration. It is heat welded directly to PREBAR PVC Waterstop rolls and is available in 150mm and 250mm to match the profile width. Forspec publishes no product-specific Technical Data Sheet, test report or certificate for the PREBAR prefabricated fittings: the Technical Data Sheet link on the Forspec product page returns the 4-page PREBAR Prefabricated Fittings range brochure. No performance figure, standard or classification is claimed for this fitting. The BS 2782 test results published for PREBAR PVC WATERSTOP belong to the waterstop roll and have not been carried across.

Key applications

Basements
Tunnels
Retaining walls
Water tanks
Foundations
Lift pits
Reservoirs
Four-way waterstop intersections in cast-in-situ concrete construction joints

Forspec publishes no limitations, safety data or handling instructions for the prefabricated fittings themselves. Install as part of a PREBAR PVC Waterstop system and apply the limitations in the PREBAR PVC WATERSTOP Technical Data Sheet: the fitting must be fully encased in concrete on both sides with the design cover maintained, centred and correctly aligned in the joint, and must not be installed over dirty, wet or contaminated surfaces. Do not fold, kink or crease it. All joins must be fully heat welded; taped, glued or overlapped joins are not acceptable. Do not overheat during welding, as PVC degrades above the stated welding range. Do not store above 40C or in direct sunlight. Joint design, profile selection and hydrostatic duty are the design responsibility of the project engineer.

Technical Specifications

Product Type	Factory-prefabricated four-way PVC waterstop cross junction
Configuration	External or internal
Orientation	Horizontal
Material	PVC
Colour	Blue
Sizes Available	150mm and 250mm
Jointing	Heat weld directly to PREBAR PVC Waterstop rolls
Take-off	One fitting per four-way external waterstop intersection
Take-off	One fitting per four-way internal waterstop intersection
Note	Forspec publishes no product-specific Technical Data Sheet, test report or certificate for the prefabricated fittings. Every value above comes from the Forspec product pages and the PREBAR Prefabricated Fittings brochure
