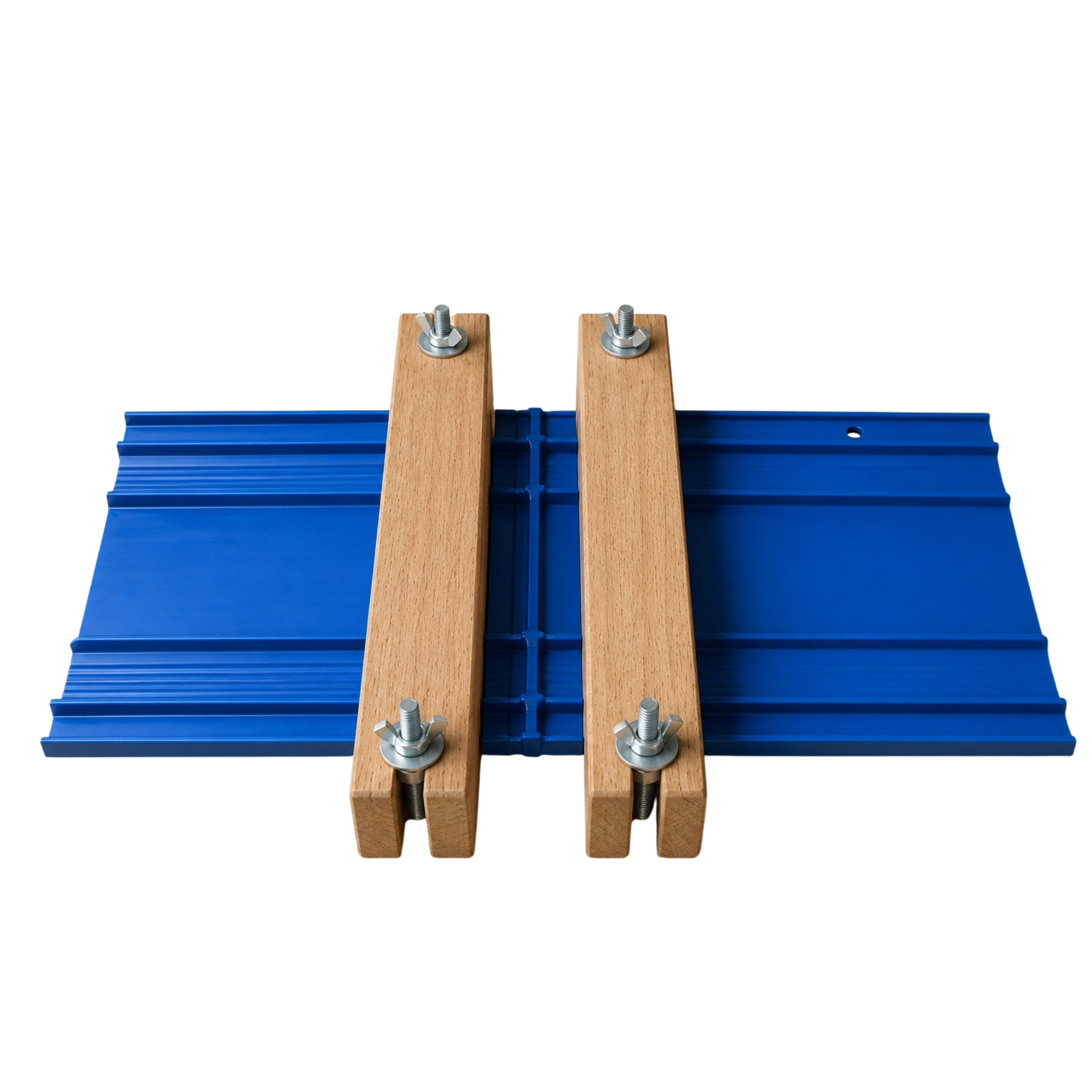

PREBAR JIG

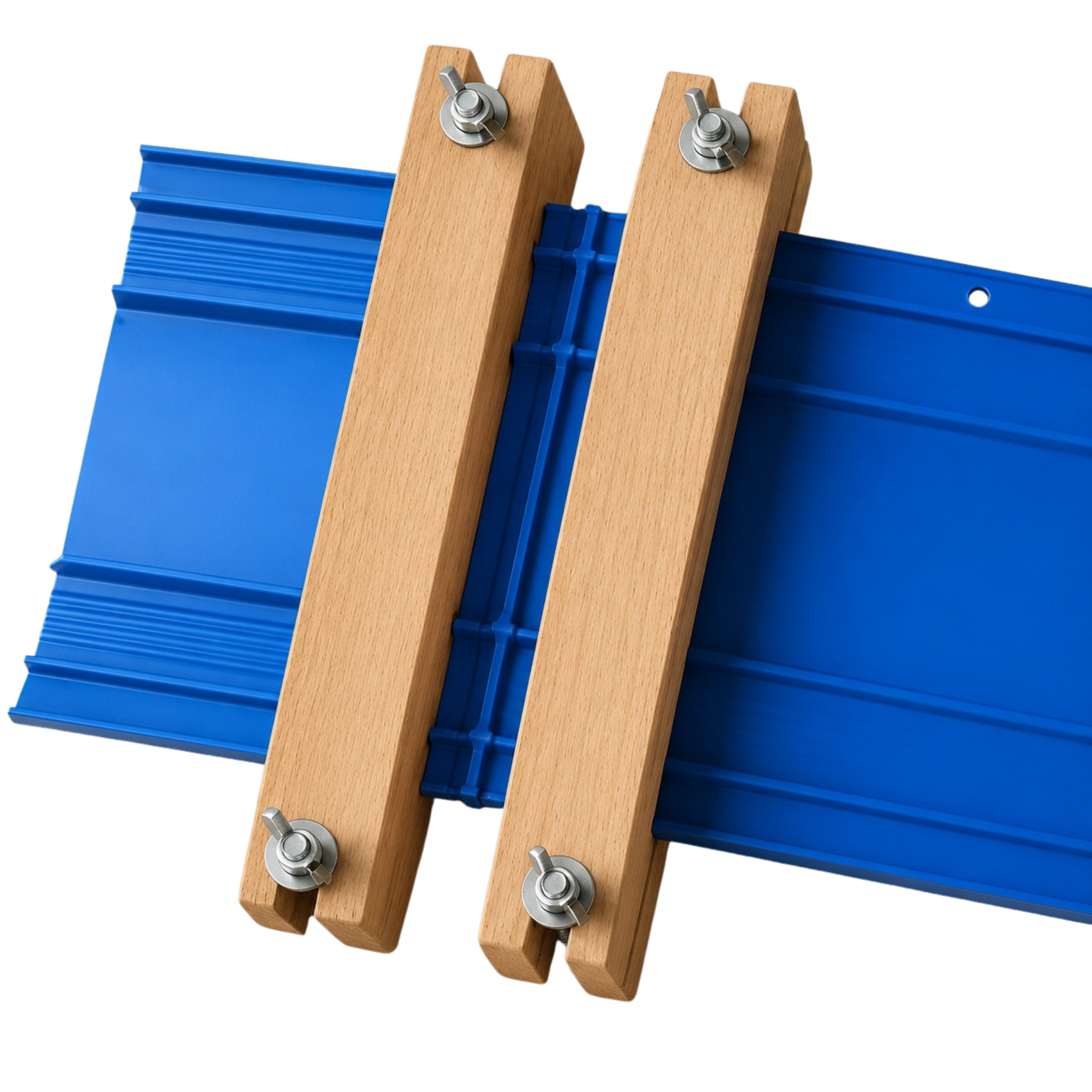

PREBAR Jig is a purpose-built clamping tool designed to securely hold PREBAR profiles in alignment during welding and installation procedures. It helps maintain accurate positioning of PREBAR sections, ensuring consistent, high-quality joints while improving installation efficiency.

Features & Benefits

Robust construction for reliable on-site performance.
Securely holds PREBAR profiles during welding.
Maintains accurate alignment for consistent joint quality.
Reduces movement during the welding process.
Improves installation efficiency and accuracy.
Reusable design for multiple project applications.
Simple and easy to operate on-site.
Compatible with PREBAR waterproofing and waterstop systems.

How to Use

Position the PREBAR profiles to be joined in the required alignment.
Place the PREBAR Jig over the joint area.
Secure the jig by tightening the clamping mechanism.
Verify that the PREBAR profiles are correctly aligned and firmly held in position.
Carry out the approved PREBAR welding procedure.
Once the joint has cooled and been inspected, remove the jig and continue installation.

Applications

Basements
Retaining walls
Lift pits
Water tanks
Tunnels
Podium slabs
Underground structures
Civil and infrastructure waterproofing projects

Available to suit various PREBAR profile sizes and installation requirements.
