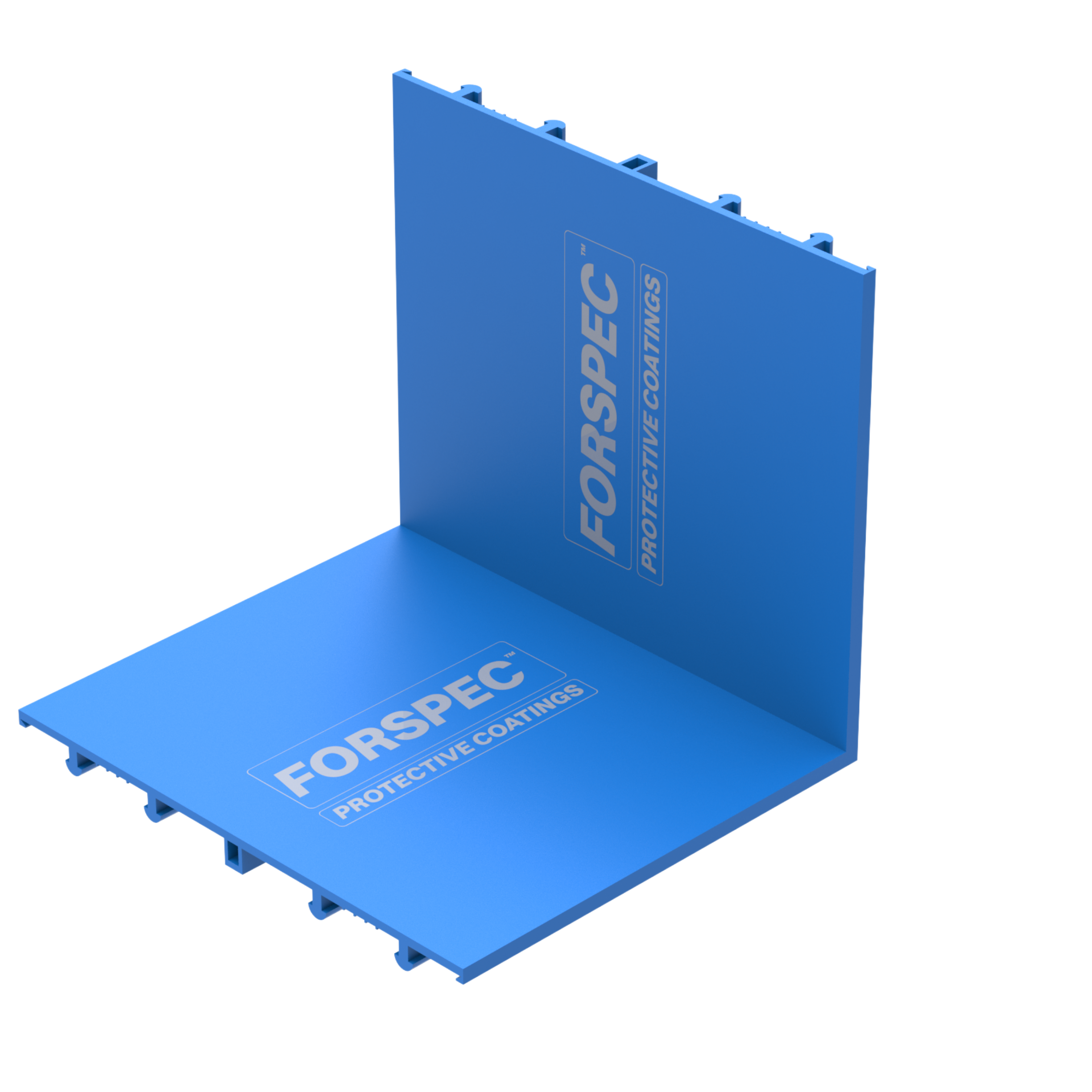

PREBAR PVC Waterstop Vertical L-Piece 250mm factory-fabricated corner fitting for creating watertight vertical concrete construction joints and waterproofing applications.

Be the first to review

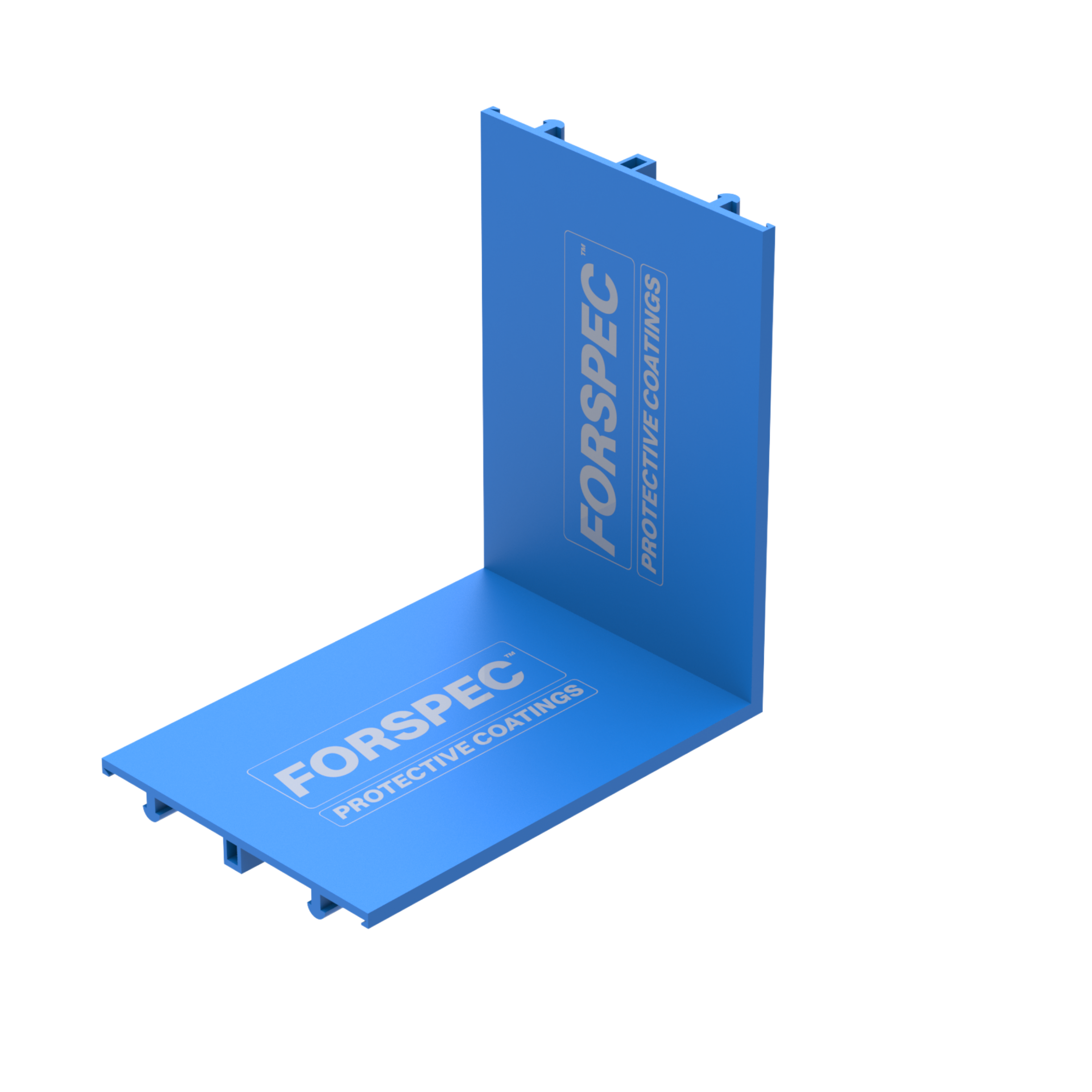

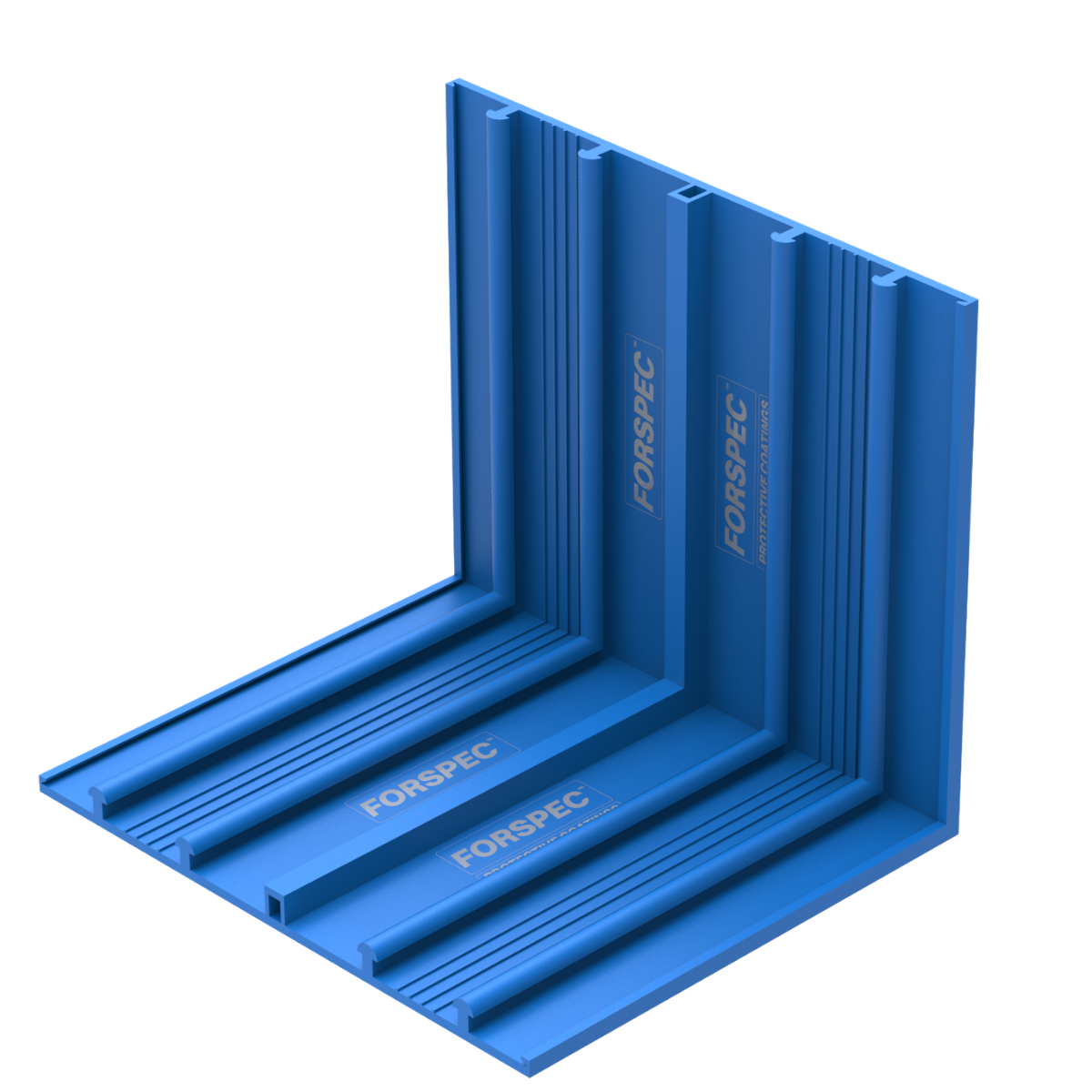

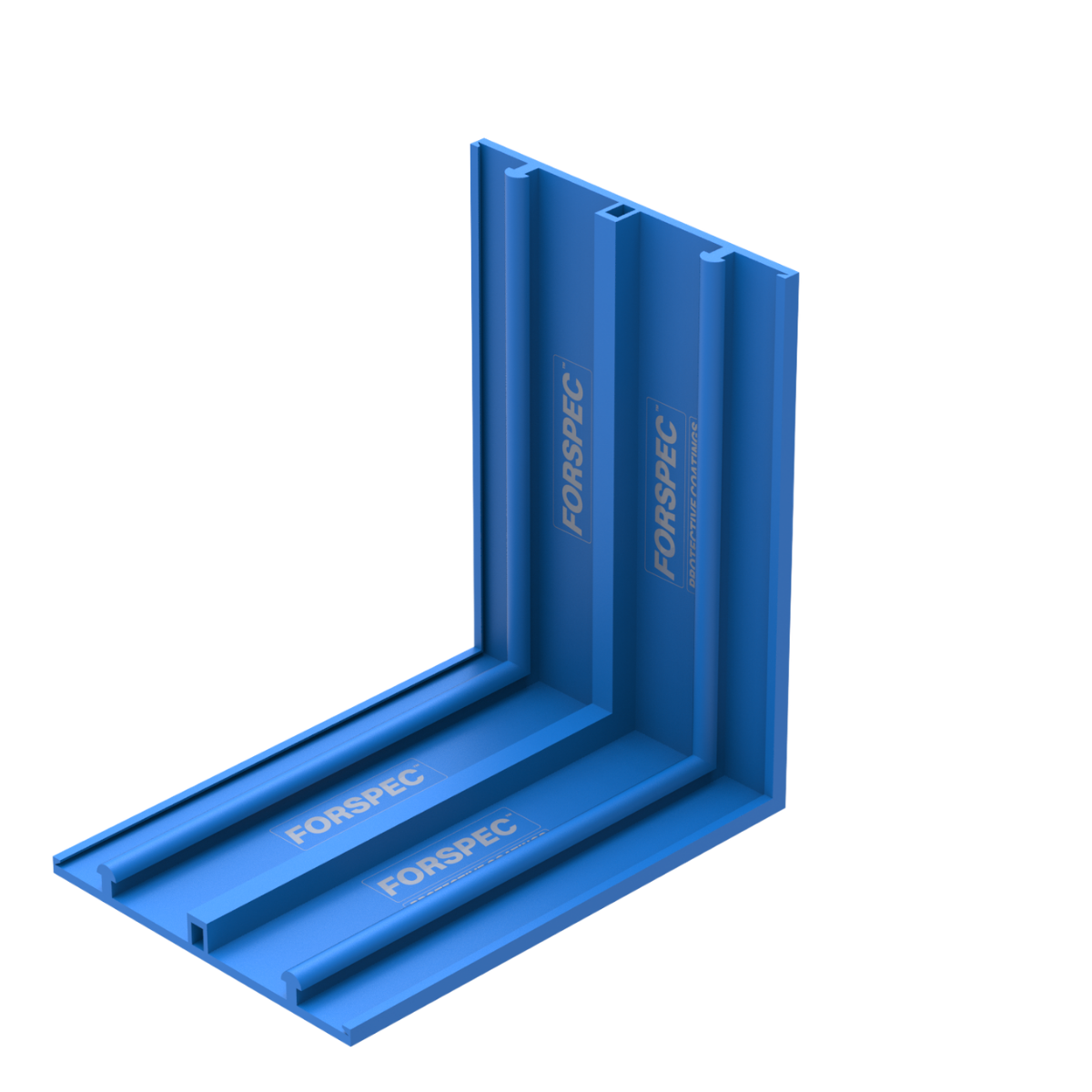

PREBAR L-Piece 90° & 270°

$53.00

or 4 interest-free payments with

PREBAR corner for wall-to-slab and wall-to-wall waterstop transitions. Factory formed, heat welded.

PREBAR L-Piece Vertical is a factory-fabricated PVC corner for where PREBAR PVC Waterstop changes direction between horizontal and vertical planes, such as wall-to-slab and wall-to-wall junctions. It heat welds directly to PREBAR PVC Waterstop rolls with hot-air welding equipment. External and internal versions, 150 mm and 250 mm.

What it's for

Wall-to-wall and wall-to-slab intersections that need a watertight transition
Direction changes between horizontal and vertical PREBAR runs
Basements, retaining walls, lift pits, water tanks and other concrete structures

Why waterproofers buy it

Factory fabricated, so you get a consistent watertight junction without difficult site fabrication
Heat weld ready, welds straight onto PREBAR rolls
Cuts installation time and labour
External and internal versions to suit the corner

Specs

Blue PVC. 150 mm or 250 mm. Vertical orientation, external or internal. One fitting per transition.

Not for

Use as a waterproofing membrane. Must be fully encased in concrete on both sides with the design cover. Taped, glued or overlapped joins are not acceptable, and do not overheat during welding.

Factory-fabricated to eliminate difficult on-site fabrication and welding

Heat weld ready - welds directly to PREBAR PVC Waterstop rolls

Precise factory manufacturing for consistent quality

Size: 90 Internal 150

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

PREBAR L-Piece 90° & 270°

90 Internal 150

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

FORSPEC PREBAR L-PIECE 270 is a prefabricated thermoplastic PVC waterstop corner component designed for watertight sealing at 90-degree joints in cast-in-situ concrete structures. It is engineered to integrate seamlessly with PREBAR PVC Waterstop systems, ensuring continuous waterproofing at critical junctions. Manufactured to meet industry standards, it delivers reliable performance in preventing water ingress through construction and expansion joint intersections.

Key Features & Benefits

Superior Joint Waterproofing: Ensures continuous water barrier at 90° junctions in concrete structures.

Prefabricated Precision: Factory-made L-shape eliminates on-site bending or cutting errors.

High Flexibility & Strength: Accommodates structural movement while maintaining sealing integrity.

Chemical & Corrosion Resistance: Suitable for harsh environments including wastewater and industrial applications.

Heat-Weldable System: Allows secure, seamless on-site welding with PREBAR PVC Waterstop profiles.

Easy Installation: Designed for quick and accurate integration into formwork systems.

Durable Performance: Long-lasting waterproofing protection for critical infrastructure.

How to Use

Heat weld directly to PREBAR PVC Waterstop rolls using hot air welding equipment.

Technical Specifications

Product Type: Factory-fabricated vertical PVC waterstop corner transition
Configuration: External or internal
Orientation: Vertical
Material: PVC
Colour: Blue
Sizes Available: 150mm and 250mm
Jointing: Heat weld directly to PREBAR PVC Waterstop rolls using hot air welding equipment
Take-off: One fitting per external vertical waterstop transition
Take-off: One fitting per horizontal-to-vertical waterstop transition
Note: Forspec publishes no product-specific Technical Data Sheet, test report or certificate for the prefabricated fittings. Every value above comes from the Forspec product pages and the PREBAR Prefabricated Fittings brochure

Product Files

PREBAR L-Piece 90° & 270°90 Internal 150

$53.00

Frequently bought together

This item

PREBAR L-Piece 90° & 270° $53.00
Add

125mm Arrow Cup Grinding Disc $100.00
Add

600mm True Blue Digital Level - Empire $175.00
Add

ACTFLEX 101 UV Stable Trafficable Membrane $250.00

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX HYDROPLUG
5 ACTFLEX AT MESH
6 ACTFLEX 988 CWP (2 Coats)
7 Tile Adhesive
8 Pool Finish

Retaining Wall System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX MS PRO
4 ACTFLEX AT MESH
5 ACTFLEX 988 CWP (2 Coats)
6 Protection Board (Optional)
7 Drainage System
8 Backfill

Tank System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX AT MESH
5 ACTFLEX 988 WMP (2 Coats)
6 Protective Coating (Optional)
7 Water

Technical overview

PREBAR L-Piece Vertical is a factory-fabricated vertical corner transition used where PREBAR PVC Waterstop changes direction between horizontal and vertical planes, and where vertical runs intersect at external or internal concrete corners. It is heat welded directly to PREBAR PVC Waterstop rolls and is available in 150mm and 250mm to match the profile width. Forspec publishes no product-specific Technical Data Sheet, test report or certificate for the PREBAR prefabricated fittings: the Technical Data Sheet link on the Forspec product page returns the 4-page PREBAR Prefabricated Fittings range brochure. No performance figure, standard or classification is claimed for this fitting. The BS 2782 test results published for PREBAR PVC WATERSTOP belong to the waterstop roll and have not been carried across.

Key applications

Basements
Retaining walls
Lift pits
Water tanks
All concrete structures
Wall-to-wall and wall-to-slab waterstop transitions
Direction changes between horizontal and vertical PREBAR PVC Waterstop runs

Forspec publishes no limitations, safety data or handling instructions for the prefabricated fittings themselves. Install as part of a PREBAR PVC Waterstop system and apply the limitations in the PREBAR PVC WATERSTOP Technical Data Sheet: the fitting must be fully encased in concrete on both sides with the design cover maintained, centred and correctly aligned in the joint, and must not be installed over dirty, wet or contaminated surfaces. Do not fold, kink or crease it. All joins must be fully heat welded; taped, glued or overlapped joins are not acceptable. Do not overheat during welding, as PVC degrades above the stated welding range. Do not store above 40C or in direct sunlight. Joint design, profile selection and hydrostatic duty are the design responsibility of the project engineer.

Technical Specifications

Product Type	Factory-fabricated vertical PVC waterstop corner transition
Configuration	External or internal
Orientation	Vertical
Material	PVC
Colour	Blue
Sizes Available	150mm and 250mm
Jointing	Heat weld directly to PREBAR PVC Waterstop rolls using hot air welding equipment
Take-off	One fitting per external vertical waterstop transition
Take-off	One fitting per horizontal-to-vertical waterstop transition
Note	Forspec publishes no product-specific Technical Data Sheet, test report or certificate for the prefabricated fittings. Every value above comes from the Forspec product pages and the PREBAR Prefabricated Fittings brochure
