FC Sheeting Puddle Flange Recessing Combo - was $934.20 now $840.78, save $93.42
Be the first to review

Puddle Flange Recess Combo

Sale price$769.50 Regular price$934.20
LIMITED TIME DEALSAVE $164.70
or 4 interest-free payments with

FC Sheeting Puddle Flange Recessing Combo – Complete Professional Recess Kit

The FC Sheeting Puddle Flange Recessing Combo is the fastest and easiest solution for recessing puddle flanges into FC sheeting flooring systems. Designed for professional waterproofers, plumbers, bathroom renovators, and flooring contractors, this complete combo helps achieve fast, clean, and compliant installations with minimal dust and maximum accuracy.

This professional recessing system is compatible with MOST 230mm (9”) angle grinders and is built for high-speed repetitive installation work on FC sheeting substrates.

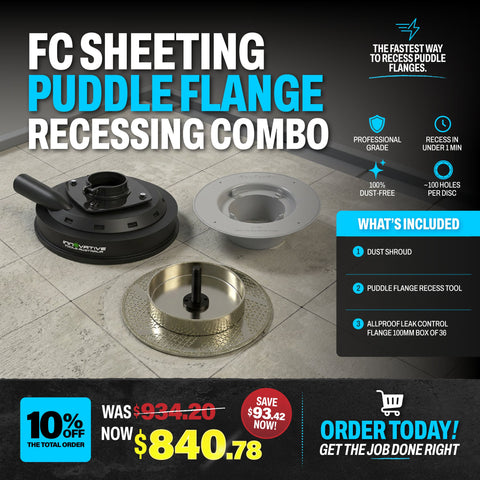

What’s Included in the FC Sheeting Puddle Flange Recessing Combo

• Dust Shroud (x1)
Professional dust control shroud designed to minimise airborne dust during cutting and recessing applications. Helps create cleaner and safer working conditions on-site.

• Puddle Flange Recess Tool (x1)
Heavy-duty precision recessing tool engineered specifically for FC sheeting applications. Designed for fast, accurate recessing of puddle flanges with consistent depth control and smooth finishes.

• Allproof Leak Control Flange 100mm – Box of 36
Professional 100mm leak control flanges supplied in a bulk box of 36 units. Designed for waterproofing systems and compliant drainage installations.

Original Total: $934.20

Promo Price: $840.78

You Save: $93.42

Recess puddle flanges in under 1 minute
Includes the recess tool, dust shroud and 36 Allproof 100mm leak control flanges
Approximately 100 holes per disc, for high volume bathroom work
7-Day Money Back 7-Day Money BackGuarantee
Fast Dispatch Fast DispatchNext Business Day
Expert Advice Expert Advice(02) 8021 3517
Secure Checkout Secure CheckoutSSL Encrypted
Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

FC Sheeting Puddle Flange Recessing Combo - was $934.20 now $840.78, save $93.42

Puddle Flange Recess Combo

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517
Puddle Flange Recess Combo
$769.50

Frequently bought together

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

  • 1 Concrete Substrate
  • 2 Crack Repair (if required)
  • 3 ACTFLEX FLEXPLUS
  • 4 ACTFLEX HYDROPLUG
  • 5 ACTFLEX AT MESH
  • 6 ACTFLEX 988 CWP (2 Coats)
  • 7 Tile Adhesive
  • 8 Pool Finish
Pool System Build-Up

Retaining Wall System Build-Up

  • 1 Concrete Substrate
  • 2 Crack Repair (if required)
  • 3 ACTFLEX MS PRO
  • 4 ACTFLEX AT MESH
  • 5 ACTFLEX 988 CWP (2 Coats)
  • 6 Protection Board (Optional)
  • 7 Drainage System
  • 8 Backfill
Retaining Wall System Build-Up

Tank System Build-Up

  • 1 Concrete Substrate
  • 2 Crack Repair (if required)
  • 3 ACTFLEX FLEXPLUS
  • 4 ACTFLEX AT MESH
  • 5 ACTFLEX 988 WMP (2 Coats)
  • 6 Protective Coating (Optional)
  • 7 Water
Tank System Build-Up

Key applications

  • FC sheeting bathroom floors
  • Waterproofing preparation
  • Leak control flange installations
  • Residential bathroom construction
  • Commercial wet area installations
  • Plumbing and drainage preparation
  • Renovation and new construction projects

Surface suitability

  • FC sheeting flooring systems (the combo is designed for FC sheeting substrates)
  • Most 230mm (9 inch) angle grinders
  • 100mm drainage outlets (Allproof Leak Control Flange 100mm supplied)

Always switch OFF and unplug the disc grinder before attaching any of the Recessing Kit components. Never use the Recess Disc without the Dust Collecting Guard. Inspect the dust collecting wheel guard thoroughly before use to ensure that it is not damaged, cracked and/or deformed. Be sure to use protective equipment such as protective goggles, dust mask, safety shoes and earplugs when using the grinder. Do not use the Recessing Kit for grinding stones or for any purpose other than mentioned. Never apply gasoline, benzene, thinner, alcohol or alike to the dust collecting wheel guard. The shroud setup is dust controlled, not dust free - PPE is still required and silica dust controls still apply.

Technical Specifications

Kit TypeFC sheeting puddle flange recessing combo
SubstrateFC sheeting flooring systems
Grinder FitMost 230mm (9 inch) angle grinders
Recess ToolPrecision recessing tool for FC sheeting, with consistent depth control
Dust ControlDust control shroud that minimises airborne dust during cutting and recessing
Disc LifeApproximately 100 holes per disc*
Recess TimeUnder 1 minute per flange*
Flange SuppliedAllproof Leak Control Flange 100mm, box of 36
Flange MaterialInjection moulded high-grade PVC
Flange FeaturesConstruction cap included, locating lugs for the floor waste grate
Flange BondingFlange area provides a bonding surface for waterproofing membrane
* Supplier stated. No manufacturer specification sheet is published for this combo.

What's Included

  • Dust Shroud (x1)
  • Puddle Flange Recess Tool (x1)
  • Allproof Leak Control Flange 100mm, box of 36
Puddle Flange Recess Combo

Real Projects. Real Results.

View All Projects
  • Pool Renovation Pool Renovation Before After

    Pool Renovation

    Gold Coast, QLD

  • Below Ground Retaining Wall Below Ground Retaining Wall Before After

    Below Ground Retaining Wall

    Sydney, NSW

  • Concrete Water Tank Concrete Water Tank Before After

    Concrete Water Tank

    Perth, WA

  • Commercial Podium Commercial Podium Before After

    Commercial Podium

    Melbourne, VIC

  • Before After

    Swimming Pool Construction

    Brisbane, QLD

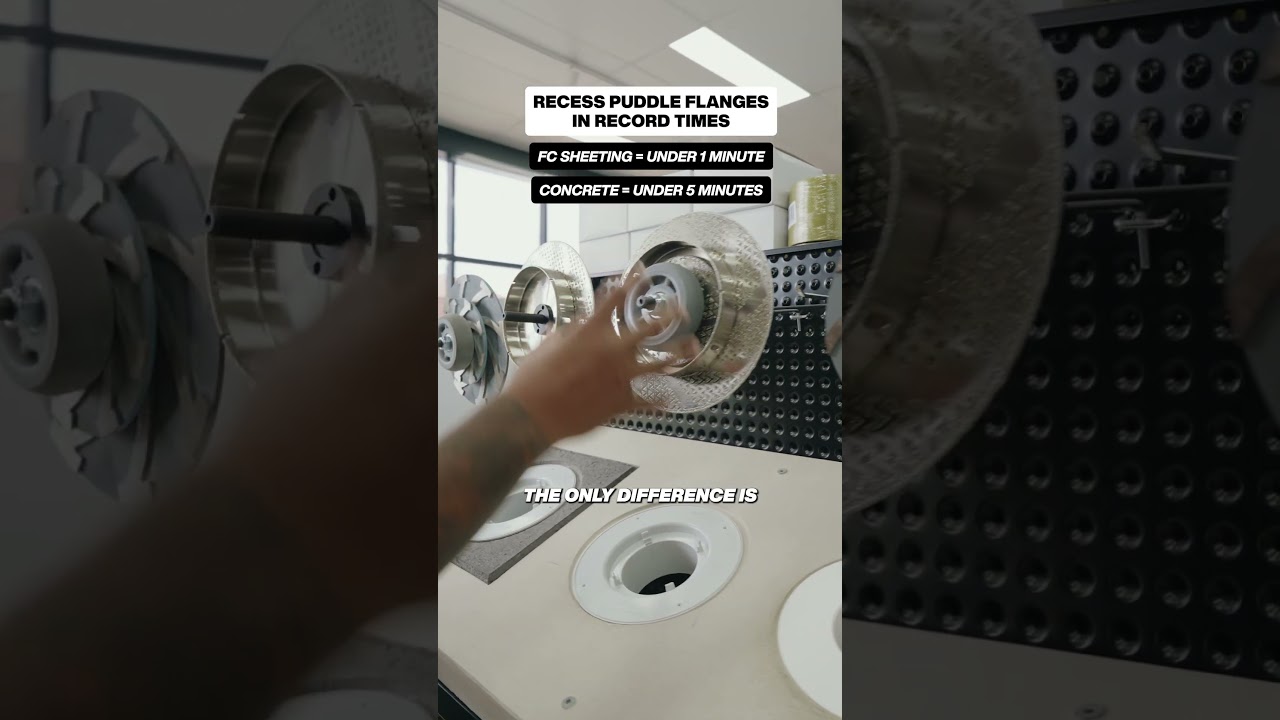

Watch the install

Step-by-step from prep to top coat. Filmed on the tools, not in a studio.

Watch the install poster

The Waterproofing Shop?

We supply premium waterproofing products backed by expert advice, fast service and real-world experience.

100% Australian Owned & Operated 100% Australian
Owned & Operated
30+ Years in the Waterproofing Industry 30+ Years in the
Waterproofing Industry
Thousands of Products in Stock Thousands of Products
in Stock
Fast Shipping Australia Wide Fast Shipping
Australia Wide
Expert Technical Support Expert Technical
Support

Frequently asked questions

View all FAQs
  • What's in the Puddle Flange Recess Combo?
    Compatibility

    The Puddle Flange Recess Combo bundles the tools and consumables needed to recess puddle flanges into bathroom and balcony substrates - typically including a diamond hole saw, depth-controlled cutter, and detailing membrane/sealant.

  • Why recess a puddle flange?
    Performance

    Recessing the puddle flange below the substrate surface ensures the waterproofing membrane lies flat over the flange edge with no high spot - critical for AS3740 compliance and reliable shower waterproofing.

  • How long does the recess process take with this kit?
    Installation

    The combo's purpose-built tooling reduces recess time to under a minute per flange compared to chisel-and-grinder methods. Mount the hole saw to your angle grinder, position over the flange, cut, lift out, install.

  • Which puddle flanges work with this?
    Compatibility

    Designed for standard Australian puddle flange dimensions. The diamond hole saw cuts ceramic tile, porcelain, natural stone, and concrete - any substrate the puddle flange might sit in.

  • Is recessing required by Australian standards?
    Compliance

    AS3740:2021 requires the waterproofing membrane to lie flat across penetrations without bridging gaps. Recessing the puddle flange is the standard professional approach to achieving this compliantly.
