What substrates does ACTFLEX 929 HV bond to?

929 HV bonds to concrete, render, fibre-cement sheet, masonry, and primed metal. Use ACTFLEX 600 Primer for porous substrates or 500 NP for non-porous; always confirm the primer pairing on the project's substrate.

What thickness should I apply?

Apply at 1.0mm DFT on walls, 1.2mm DFT on floors, and 1.5mm DFT in planter boxes - typically two coats at 90 degrees. Coverage is approximately 8-10 m² per 20kg pail at 1.2mm DFT.

How long until I can tile over it?

929 HV is tack-free in 6 hours at 25°C and reaches full cure in 48 hours. Wait for full cure before tiling. Service temperature range is -10°C to +60°C once cured.

Is 929 HV Australian standards certified?

Yes. 929 HV is certified to AS3740:2021 (internal wet areas) and AS4654.2:2012 (external above-ground waterproofing) - Class III, the dual-standard premium PU membrane in the Forspec range.

What is the elongation and is it root-resistant?

929 HV delivers greater than 600% elongation at break and the cured film is root-resistant - making it suitable for planter boxes, green roofs, and applications subject to thermal cycling.

ACTFLEX 929 HV polyurethane waterproofing membrane

Be the first to review

ACTFLEX 929 HV Moisture Cured Polyurethane

Name: ACTFLEX 929 HV Moisture Cured Polyurethane
Brand: Forspec Protective Coatings
SKU: AACF53
Price: 193.00 AUD
Availability: InStock

$193.00

or 4 interest-free payments with

ACTFLEX 929 HV non-sag membrane. Certified Class III under AS/NZS 4858 and AS 4654.1. 547% elongation. For internal and external under-tile applications.

ACTFLEX 929 HV is a moisture-cured polyurethane membrane engineered for internal and external under-tile and non-exposed applications where toughness, chemical resistance and root resistance matter. The viscous, thixotropic liquid applies evenly and will not sag on walls. It is independently certified Class III under both standards.

Where to use it

Bathrooms, showers and laundries under tiles or screed (AS 3740:2021 internal wet areas)
Protected balconies and decks under tiles or screed (AS 4654.1 external above-ground membranes, non-exposed)
Concrete, render, screed, fibro, metal and masonry substrates

Why waterproofers buy it

Class III certified under both AS/NZS 4858:2004 (Report 0242-5) and AS 4654.1-2012 (Report 0242-7)
547% certified elongation. Passes cyclic movement, water immersion, bleach, detergent and heat-ageing
Non-sag on vertical surfaces, no sagging or slump
Single pack. Open, stir, brush or roll. Tack-free in 6 hours, recoat 4 to 6 hours, full cure 48 hours
Root resistant, suitable for planters and green roofs (non-aggressive root systems)
Chemical resistant to acid, oil, petrol and detergents

Coverage

15 L pail (20 kg): approx 10.7 m² at 1.2 mm dry film, two coats at 0.7 mm wet film each.

Not for

Exposed external applications, pools, water ponds, permanent sun exposure, or spray application.

All times at 25°C and 50% RH, well ventilated.

Certified Class III under both AS/NZS 4858 and AS 4654.1, with NATA-accredited results

Non-sagging thixotropic body holds its profile on vertical surfaces without slumping

Root resistant for planter boxes and landscaped structures with non-aggressive root systems

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

ACTFLEX 929 HV Moisture Cured Polyurethane

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

 Meets the requirements of AS3740:2021 (Waterproofing of Wet areas within a Domestic building) by complying with AS/NZ 4858 (Wet Area Membranes as a Class III membrane).
 Meets the requirements of AS4654.2 2012 – “Waterproofing membranes for external above ground use”

ACTFLEX 929 HV is suitable for the following applications: .

 Root Resistant
 Internal and external wet areas.
 Roof terraces and roofs (non - exposed).
 Planter boxes, above ground pits. Retaining walls
 Bridges, walkways, sub stations, parking decks.
 Concrete and metal surfaces
 General maintenance and repairs

Advantages .

 Does not re-emulsify after proper curing.
 Immersion tolerant.
 Chemically resistant.
 Root resistant
 Moisture-cure technology
 Superior durability: Resistant to weathering, ageing, providing long-lasting results.
 Flexible: Exhibits good flexibility, accommodating for substrate movement and thermal expansion.
 Non-sagging: Holds its shape without slumping or dripping during vertical applications.
 Roller and brush grade for convenient and precise coating

 Suitable for both indoor and outdoor applications
 Once cured will accept light foot traffic.
 Outstanding barrier properties ensure protection against corrosive soil conditions.
 Excellent resistance to embrittlement.
 Reaches sufficient cure 48 hours after final coat (at 25°C 50% R.H.), allowing for fast placement of mortar beds and screeds

How to Use

Apply by roller or brush in a minimum of two coats at approx. 0.7 mm wet film each to a minimum 1.2 mm total DFT, each coat at right angles to the lastConfirm the substrate is structurally sound, clean, dry and free of laitance, dust, oils, grease, curing compounds, release agents, coatings, rust, efflorescence and loose material - application constitutes acceptance of the substrate
Confirm concrete is cured a minimum of 28 days with a wood-trowel finish, and renders and screeds a minimum of 7 days
Reinstate damaged concrete with FORBUILD 100 or FORCRETE 100, cured before priming
Remove high points and protrusions that could pierce the membrane
Confirm falls - minimum 1:80 and maximum 1:50 to the floor waste internally, minimum 1:100 externally
Prime with ACTFLEX EP250 on prepared concrete and porous cementitious substrates, ACTFLEX MB200 where elevated substrate moisture is identified, or ACTFLEX 700 PU PRIMER on porous substrates where no moisture barrier is required
Apply the membrane within the primer's overcoat window
Treat static cracks under 2 mm with the approved crack-repair method and centre ACTFLEX SA TAPE over the crack, ends overlapped a minimum of 50 mm
Fill static cracks 2 mm and over, and sealed junctions, with ACTFLEX MS PRO and the approved bond-breaker detail, cured to membrane-ready
Form a continuous ACTFLEX MS PRO fillet at wall and floor junctions, drains and penetrations - nominal 12 mm internally, 15 mm x 15 mm externally - tooled smooth and cured
Seal penetrations with the primer, sealant, reinforcement and membrane detail together, then probe and inspect every detail
Stir gently at low speed to a uniform consistency without whipping air in, keeping the pail sealed except when drawing material, and never dilute
Apply by roller or brush in a minimum of two uniform coats at approx. 0.7 mm wet film each to a minimum 1.2 mm total DFT, each coat at right angles to the last
Verify wet film with a gauge on every coat and never exceed 1.5 mm WFT in a single pass
Recoat after 4-6 hours at 25C, 50% RH once the preceding coat is tack-free, and within a maximum of 24 hours
Protect the membrane from water, contamination, sharp objects and traffic throughout curing, and cover or protect from UV immediately after full cure

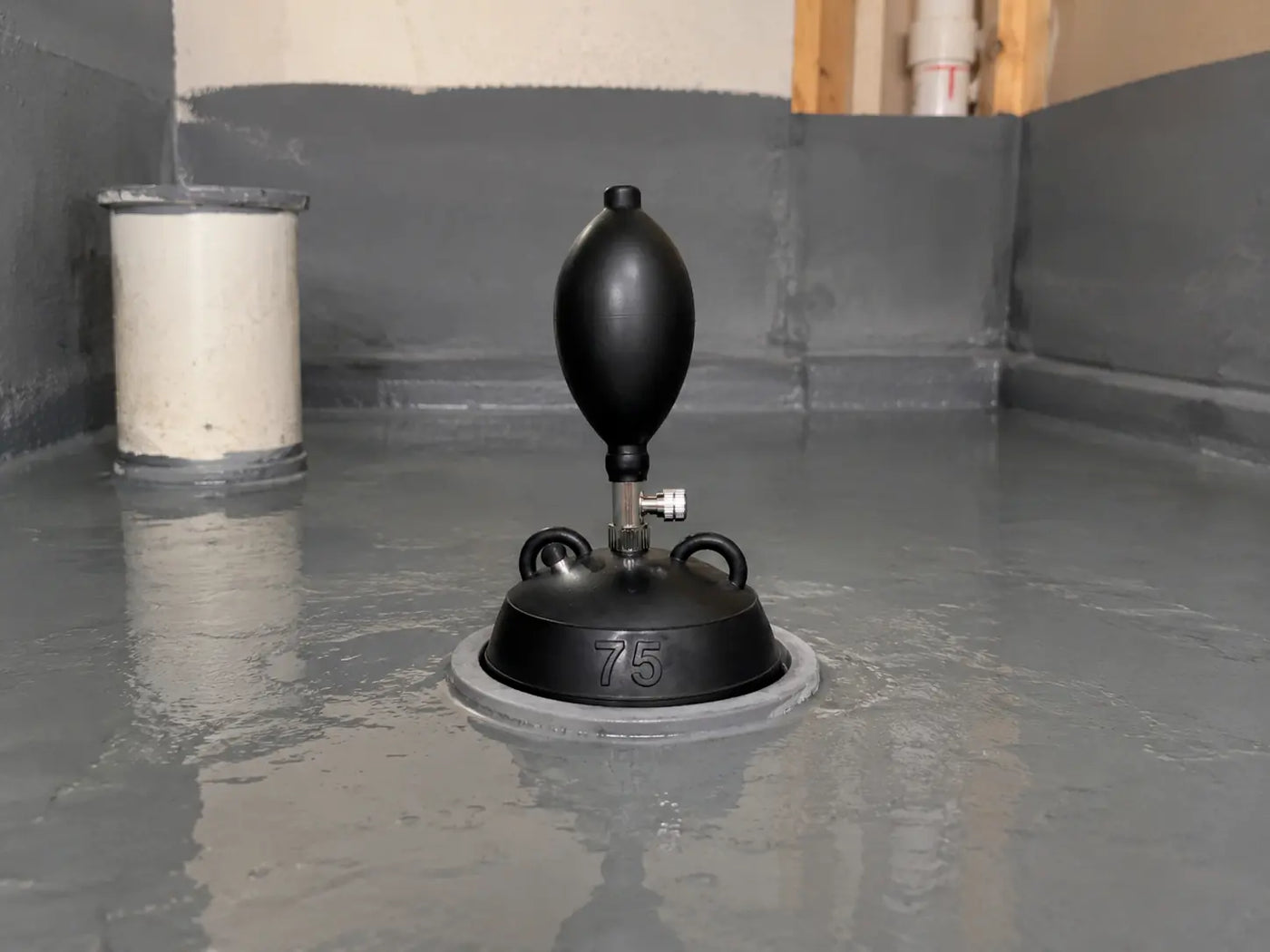

Allow 48 hours full cure after the final coat, then flood test to a minimum depth of 50 mm at the highest point for 24 hours
Install a 200 micron polyethylene slip sheet, then the screed at a minimum 40 mm per AS 3958.1, or 35 mm minimum using FORSPEC SCREEDX
Tile to the screed in accordance with AS 3958.1, never direct to the membrane

Technical Specifications

Membrane Classification: Class III under both standards (AS/NZS 4858:2004, XTecGen Report 0242-5; AS 4654.1-2012, XTecGen Report 0242-7)
Form: Viscous, thixotropic, non-sag liquid
Colour: Grey
Chemical Base and Cure: Single-component polyurethane, moisture-cured
Packaging: 15 L (20 kg) pail
Solids Content: 90% +/- 2%*
Density: 1.33 kg/L (20 kg divided by 15 L)
Control Elongation at Break: 547% (AS/NZS 4858, Report 0242-5); 511% (AS 4654.1, Report 0242-7)
Control Tensile Strength: 4.15 MPa (AS/NZS 4858, Report 0242-5); 3.17 MPa (AS 4654.1, Report 0242-7)
Cyclic Movement: Pass, 50 cycles at 4 mm, nil crazing, tears or rupture (Report 0242-5)
Water-Immersion Elongation: 474% pass (Report 0242-5); 744% pass (Report 0242-7)
Bleach-Immersion Elongation: 435% pass (Report 0242-5)
Detergent-Immersion Elongation: 601% pass (Report 0242-5); 781% pass (Report 0242-7)
Heat-Ageing Elongation: 341% pass (Report 0242-5); 504% pass (Report 0242-7)
Bond Strength: 30.76 N on EP250-primed concrete, predominantly substrate failure (ASTM C794, Report 0242-7)
Water Absorption: 0.79% (AS 3558.1 modified, Report 0242-5)
Water Vapour Transmission: 7.76 g/m2/24 h (ASTM E96, Reports 0242-5 and 0242-7)
Shore A Hardness: 55-60*
Root Resistance: Non-aggressive root systems only*
Tack-Free Time: 6 hours @ 25C, 50% RH well ventilated*
Recoat Time: 4-6 hours @ 25C, 50% RH well ventilated - maximum 24 hours
Full Cure: 48 hours at 1.2 mm DFT @ 25C, 50% RH well ventilated*
Screeds and Mortar Beds: From 48 hours after the final coat
Maximum Wet Film Per Coat: 1.5 mm
Total Dry Film Thickness: Minimum 1.2 mm over a minimum two coats at approx. 0.7 mm wet film each
Application Temperature: 10-26C ambient and substrate
Consumption: Approx. 1.4 L/m2 (approx. 1.9 kg/m2) for the certified two-coat 1.2 mm DFT system
Shelf Life: 12 months unopened, stored at 5-25C
Hazard Classification: Hazardous chemical; combustible liquid (storage-regulated); non-dangerous goods (SDS Chemwatch 7954-30)
* Typical Forspec R&D characteristic values on standard production material at 25C and 50% relative humidity

Product Files

ACTFLEX 929 HV Moisture Cured Polyurethane

$193.00

Frequently bought together

This item

ACTFLEX 929 HV Moisture Cured Polyurethane $193.00
Add

600mm True Blue Digital Level - Empire $175.00
Add

ACTFLEX 600 PRIMER Hybrid $88.00
Add

ACTFLEX 700 PU Primer $88.00
Add

ACTFLEX 906 WPU Water-Based Polyurethane $170.00

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX HYDROPLUG
5 ACTFLEX AT MESH
6 ACTFLEX 988 CWP (2 Coats)
7 Tile Adhesive
8 Pool Finish

Retaining Wall System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX MS PRO
4 ACTFLEX AT MESH
5 ACTFLEX 988 CWP (2 Coats)
6 Protection Board (Optional)
7 Drainage System
8 Backfill

Tank System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX AT MESH
5 ACTFLEX 988 WMP (2 Coats)
6 Protective Coating (Optional)
7 Water

Technical overview

ACTFLEX 929 HV is a Class III, non-sagging, moisture-cured polyurethane waterproofing membrane for internal and external under-tile and non-exposed applications where toughness, chemical resistance and root resistance govern selection. It is independently certified Class III under both AS/NZS 4858:2004 (XTecGen Report 0242-5) and AS 4654.1-2012 (XTecGen Report 0242-7), with 547% certified control elongation and cyclic movement, water, bleach and detergent immersion and heat-ageing passes. Testing was carried out by XTec Gen Pty Ltd, accredited for compliance with ISO/IEC 17025, on a two-coat 0.7 mm build to a 1.2 mm dry film. It complies as a Class III membrane within a compliant system to AS 3740:2021, and is limited to non-exposed applications within an approved system under AS 4654.2.

View full technical data sheet

Key applications

Internal and external wet areas beneath protected finishes, per AS 3740
Roof terraces and roofs, non-exposed, beneath approved coverings, per AS 4654.2
Planter boxes and above-ground pits with non-aggressive root systems only
Retaining walls and below-grade protected surfaces exposed to corrosive soils
Bridges, walkways, substations and parking decks beneath protection
Prepared concrete and metal surfaces
General waterproofing maintenance and repairs

Surface suitability

Concrete (cured a minimum of 28 days, wood-trowel finish)
Renders and screeds (cured a minimum of 7 days, wood-trowel finish)
Wet-area-grade fibre cement wall sheeting (minimum 6 mm)
Compressed fibre cement (minimum 15 mm)
Brickwork, blockwork and masonry
Metal surfaces (primed)

Not suitable for exposure to sunlight or UV - the membrane must be protected or covered immediately after full cure, and pedestal systems that leave it fully exposed require an ACTFLEX ATC or ACTFLEX ULTRA TC topcoat before pedestal installation. Direct adhesion of tiling to the cured membrane is not recommended - tiling is always to the screed per AS 3958.1, over a 200 micron polyethylene slip sheet. Allow full cure, a minimum of 48 hours at 25C and 50% RH, before tiling, backfilling, topping or immersion. Maintenance foot traffic only in uncovered internal areas such as plant rooms - not designed for daily traffic, piercing footwear or machinery. Root resistance is limited to non-aggressive root systems such as small garden trees, hedges and shrubs, not aggressive or invasive species. Not compatible with all silicone-based and bituminous surfaces and products. Not for constantly submerged applications such as pools and ponds, or chlorine environments. Not a vapour barrier and not designed to withstand negative-side hydrostatic pressure. Apply only to dry substrates, only between 10-26C, and never below 10C surface temperature. Do not dilute. Spray application is not approved.

Calculate your coverage

Enter area to cover (m²) m² Number of coats

You will need:

ACTFLEX 929 HV Moisture Cured Polyurethane

15Lr kit

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Membrane Classification	Class III under both standards (AS/NZS 4858:2004, XTecGen Report 0242-5; AS 4654.1-2012, XTecGen Report 0242-7)
Form	Viscous, thixotropic, non-sag liquid
Colour	Grey
Chemical Base and Cure	Single-component polyurethane, moisture-cured
Packaging	15 L (20 kg) pail
Solids Content	90% +/- 2%*
Density	1.33 kg/L (20 kg divided by 15 L)
Control Elongation at Break	547% (AS/NZS 4858, Report 0242-5); 511% (AS 4654.1, Report 0242-7)
Control Tensile Strength	4.15 MPa (AS/NZS 4858, Report 0242-5); 3.17 MPa (AS 4654.1, Report 0242-7)
Cyclic Movement	Pass, 50 cycles at 4 mm, nil crazing, tears or rupture (Report 0242-5)
Water-Immersion Elongation	474% pass (Report 0242-5); 744% pass (Report 0242-7)
Bleach-Immersion Elongation	435% pass (Report 0242-5)
Detergent-Immersion Elongation	601% pass (Report 0242-5); 781% pass (Report 0242-7)
Heat-Ageing Elongation	341% pass (Report 0242-5); 504% pass (Report 0242-7)
Bond Strength	30.76 N on EP250-primed concrete, predominantly substrate failure (ASTM C794, Report 0242-7)
Water Absorption	0.79% (AS 3558.1 modified, Report 0242-5)
Water Vapour Transmission	7.76 g/m2/24 h (ASTM E96, Reports 0242-5 and 0242-7)
Shore A Hardness	55-60*
Root Resistance	Non-aggressive root systems only*
Tack-Free Time	6 hours @ 25C, 50% RH well ventilated*
Recoat Time	4-6 hours @ 25C, 50% RH well ventilated - maximum 24 hours
Full Cure	48 hours at 1.2 mm DFT @ 25C, 50% RH well ventilated*
Screeds and Mortar Beds	From 48 hours after the final coat
Maximum Wet Film Per Coat	1.5 mm
Total Dry Film Thickness	Minimum 1.2 mm over a minimum two coats at approx. 0.7 mm wet film each
Application Temperature	10-26C ambient and substrate
Consumption	Approx. 1.4 L/m2 (approx. 1.9 kg/m2) for the certified two-coat 1.2 mm DFT system
Shelf Life	12 months unopened, stored at 5-25C
Hazard Classification	Hazardous chemical; combustible liquid (storage-regulated); non-dangerous goods (SDS Chemwatch 7954-30)
* Typical Forspec R&D characteristic values on standard production material at 25C and 50% relative humidity

Real Projects. Real Results.

View All Projects

Before After
Pool Renovation
Gold Coast, QLD
Before After
Below Ground Retaining Wall
Sydney, NSW
Before After
Concrete Water Tank
Perth, WA
Before After
Commercial Podium
Melbourne, VIC
Before After
Swimming Pool Construction
Brisbane, QLD

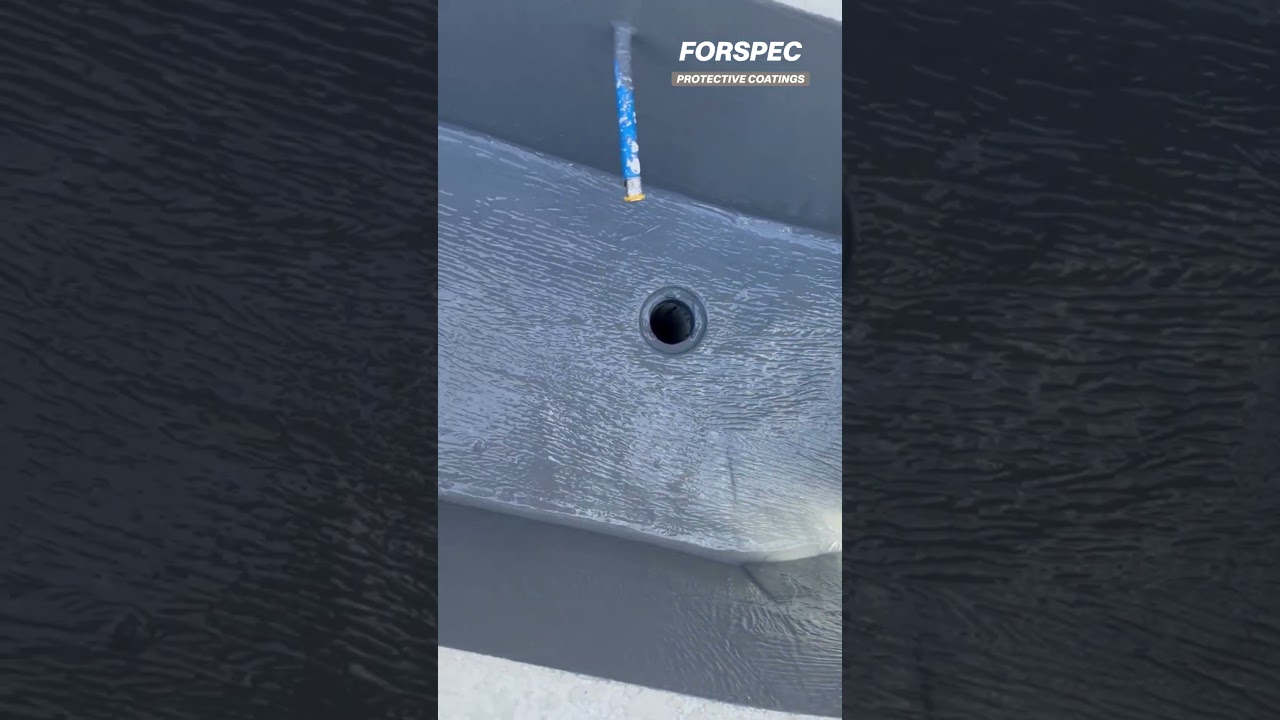

Watch the install

Step-by-step from prep to top coat. Filmed on the tools, not in a studio.

The Waterproofing Shop?

We supply premium waterproofing products backed by expert advice, fast service and real-world experience.

100% Australian
Owned & Operated

30+ Years in the
Waterproofing Industry

Thousands of Products
in Stock

Fast Shipping
Australia Wide

Expert Technical
Support

Frequently asked questions

View all FAQs

What substrates does ACTFLEX 929 HV bond to?

Compatibility
929 HV bonds to concrete, render, fibre-cement sheet, masonry, and primed metal. Use ACTFLEX 600 Primer for porous substrates or 500 NP for non-porous; always confirm the primer pairing on the project's substrate.
What thickness should I apply?

Performance
Apply at 1.0mm DFT on walls, 1.2mm DFT on floors, and 1.5mm DFT in planter boxes - typically two coats at 90 degrees. Coverage is approximately 8-10 m² per 20kg pail at 1.2mm DFT.
How long until I can tile over it?

Installation
929 HV is tack-free in 6 hours at 25°C and reaches full cure in 48 hours. Wait for full cure before tiling. Service temperature range is -10°C to +60°C once cured.
Is 929 HV Australian standards certified?

Compliance
Yes. 929 HV is certified to AS3740:2021 (internal wet areas) and AS4654.2:2012 (external above-ground waterproofing) - Class III, the dual-standard premium PU membrane in the Forspec range.
What is the elongation and is it root-resistant?

Performance
929 HV delivers greater than 600% elongation at break and the cured film is root-resistant - making it suitable for planter boxes, green roofs, and applications subject to thermal cycling.

ACTFLEX 929 HV Moisture Cured Polyurethane

Frequently bought together

Pool System Build-Up

Retaining Wall System Build-Up

Tank System Build-Up

Technical overview

Key applications

Surface suitability

Calculate your coverage

Technical Specifications

Pool Renovation

Below Ground Retaining Wall

Concrete Water Tank

Commercial Podium

Swimming Pool Construction

The Waterproofing Shop?

Frequently asked questions

You may also need
