Innovative Tools 150mm Concrete Puddle Flange Recess Disc
Recesses 0 to 8mm around the floor waste in under a minute, so the Actnow 100mm flange sits flush.

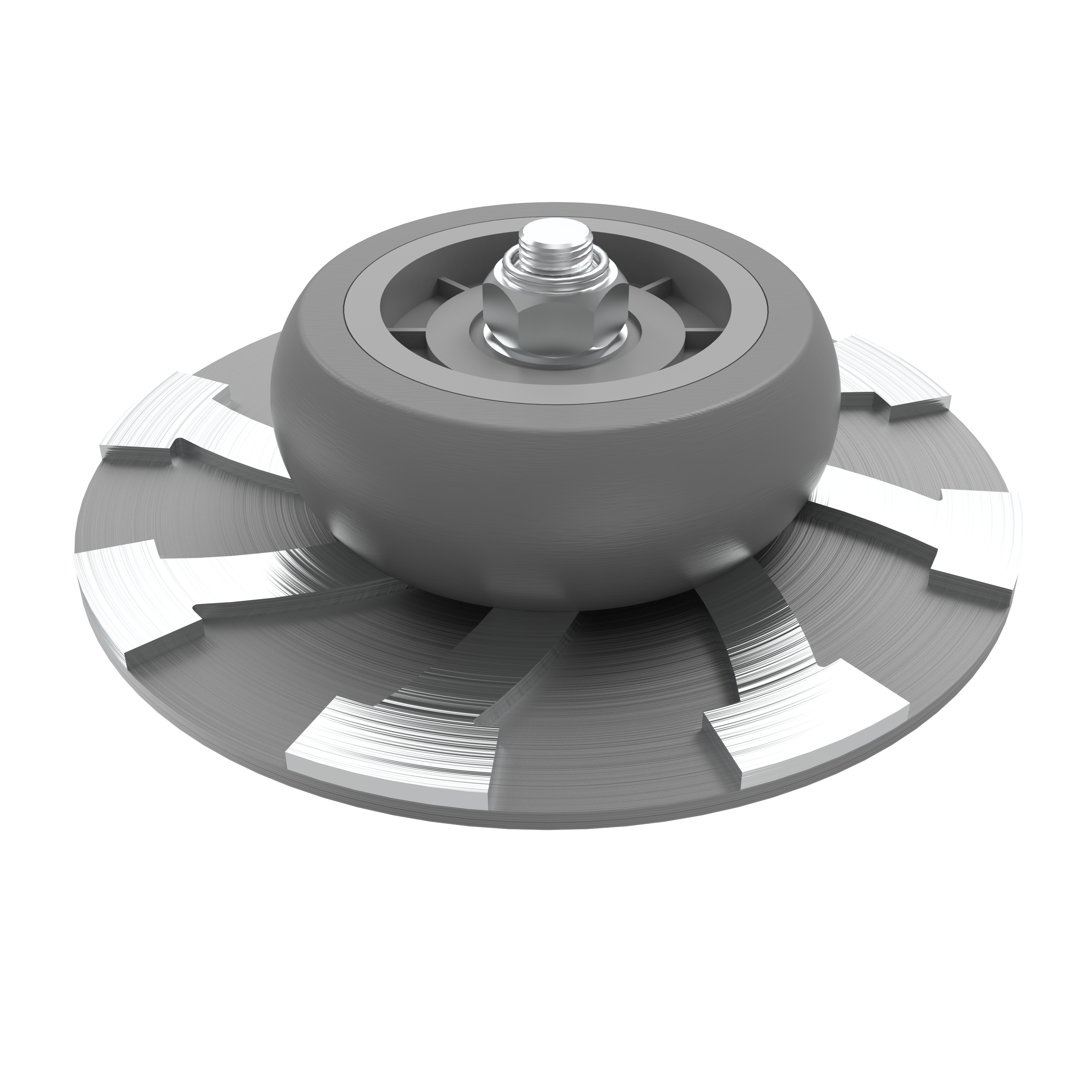

The Innovative Tools 150mm Concrete Puddle Flange Recess Disc is a turbo diamond disc that cuts the recess around a PVC floor waste pipe, so a 100mm rubber flange sits flush and water does not pond around it. Made for the Actnow 100mm Rubber Puddle Flange.
What it's for
- Recessing concrete around a 100mm PVC floor waste pipe
- Seating the Actnow 100mm flange flush with the slab
Why waterproofers buy it
- Recesses 0-8mm in under 1 minute
- Over 60 recess holes per disc
- Fits 5 inch (130 mm) or 9 inch (230 mm) grinders
- The wheel bearing drops into the 100mm PVC outlet and holds centre
Specs
Long lasting turbo diamond disc. Turns clockwise onto the grinder locking thread and comes off with a 22mm open-end wrench. Buy it alone or with the Innovative Tools 180mm Dust Shroud added.
Not for
Grinding stones or any job other than recessing. Never run it without the dust collecting guard. Professional use by qualified individuals only.
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL EncryptedPickup available at The Waterproofing Shop
Usually ready in 24 hours
Innovative Tools 150mm Concrete Puddle Flange Recess Disc
NO DUST SHROUD
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Product Details
Technical Specifications
Product Files
Technical Specifications
| Tool Type | Concrete puddle flange recessing kit |
| Kit Designation | 150mm Concrete Puddle Flange Recessing Kit |
| Disc Type | Long lasting turbo diamond disc |
| Recess Depth | 0-8mm |
| Recess Time | Under 1 minute per recess |
| Disc Life | Over 60 recess holes |
| Grinder Fit | 5 inch (130 mm) or 9 inch (230 mm) grinders |
| Mounting | Turns clockwise onto the grinder locking thread |
| Centring | Wheel bearing attached to the disc, placed into the 100mm PVC drainage outlet |
| Dust Control | Dust collecting wheel guard, with an auto-clean vacuum attached to the dust shroud |
| Dust Shroud | Makita 180mm Dust Shroud/Guard |
| Substrate | Concrete |
| Matched Flange | Actnow 100mm Rubber pipe flange |
| Disassembly Tool | 22mm open-end wrench |
| Intended Users | Professional use by qualified individuals |
