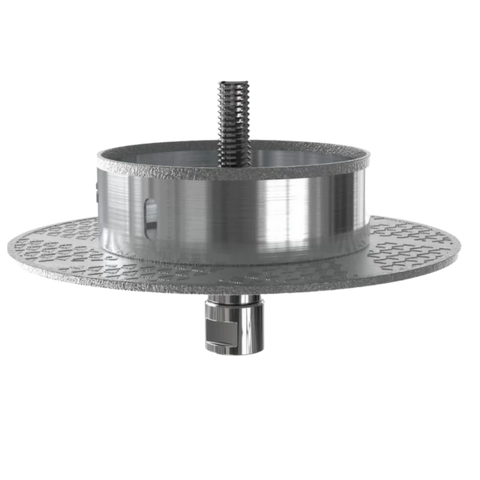

Innovative Tools 230mm FC Puddle Flange Recess Disc
Replacement 230mm FC recess disc with the 150mm hole saw built in. About 100 holes per disc.

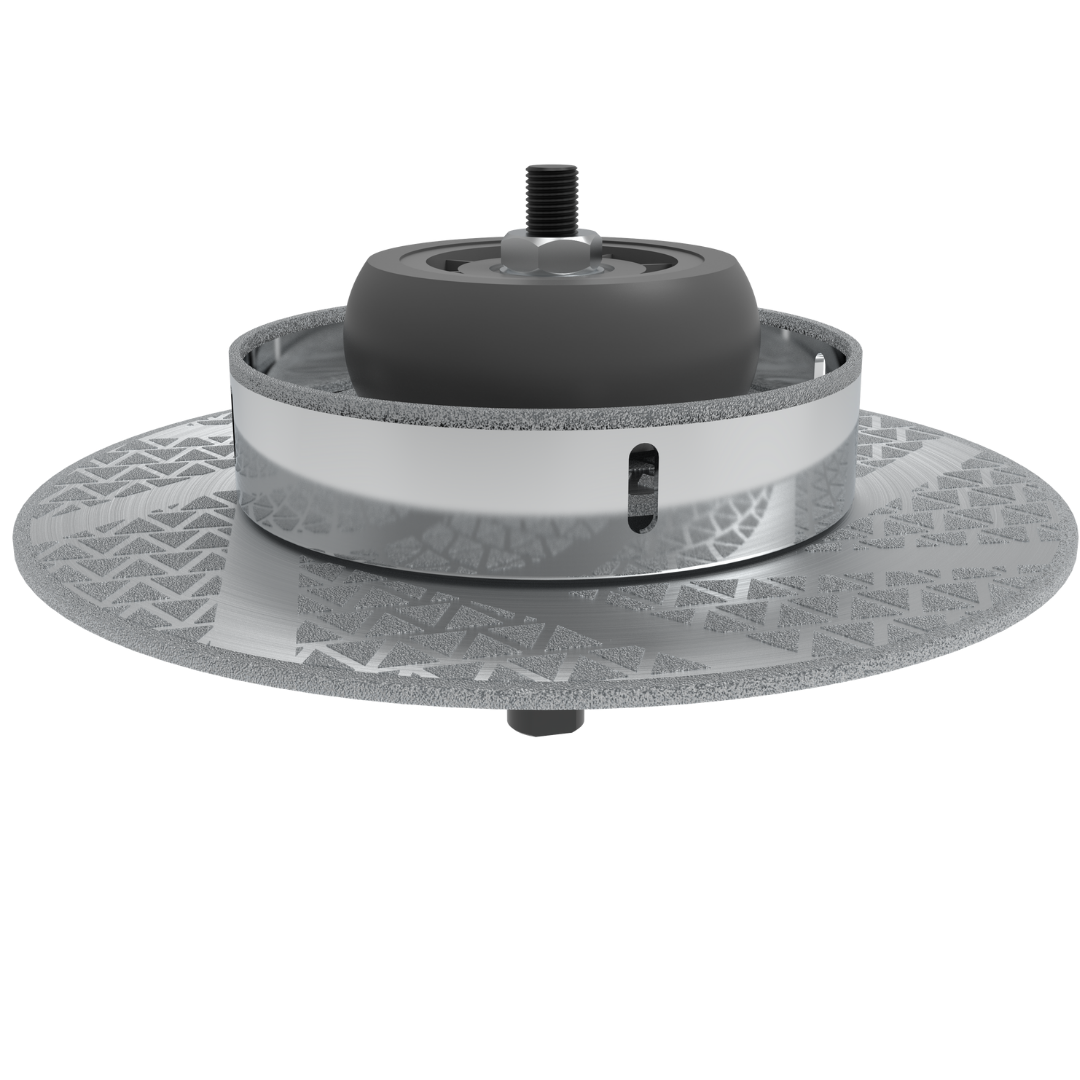

This is the replacement cutting disc for the Innovative Tools Australia FC Sheeting Puddle Flange Recessing Kit. It is a 230mm recess diamond turbo blade with the 150mm hole saw centre bit attached, so one disc cuts the drain hole and the flange recess in fibre cement sheeting.
What it's for
- Recessing puddle flanges in fibre cement sheeting floors
- Replacing a worn disc. The shroud and guard stay in service
Why waterproofers buy it
- Professional grade disc, capable of approximately 100 holes
- Precision shape grain design, sharp triangular grains
- Forward facing taper for longer life, with quick cooling zones
Specs
Pre-drill a 14mm pilot hole at the drain position, seat the threaded shaft in it and recess to depth. Removes with a 22mm open-end wrench. Disc only, no shroud, guard or grinder.
Not for
Grinding stones or any purpose other than recessing. Never run it without the dust collecting guard. Professional use by qualified individuals only.
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL EncryptedPickup currently unavailable at The Waterproofing Shop
Innovative Tools 230mm FC Puddle Flange Recess Disc
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Product Details
Technical Specifications
What's Included?
Product Files
Technical Specifications
| Tool Type | Replacement recess disc for FC sheeting puddle flange installation |
| Recess Disc Diameter | 230mm |
| Integrated Hole Saw | 150mm centre bit, attached to the disc |
| Blade Type | Recess diamond turbo blade |
| Grain Design | Precision shape grain design, grains shaped into sharp triangular structures |
| Wear Design | Forward facing taper for increased life, with quick cooling zones |
| Disc Life | Approximately 100 holes* |
| Substrate | FC sheeting |
| Pilot Hole | 14mm, pre-drilled in the centre of the designated drainage outlet position |
| Mounting | Turns clockwise onto the grinder locking thread |
| Guard | Must be run with the Dust Collecting Wheel Guard fitted |
| Removal | 22mm open-end wrench on the recesser shaft, anti-clockwise, with the spindle lock held |
| * Manufacturer stated figure. Innovative Tools Australia publishes no technical data sheet and no accredited test report for this disc. | |
