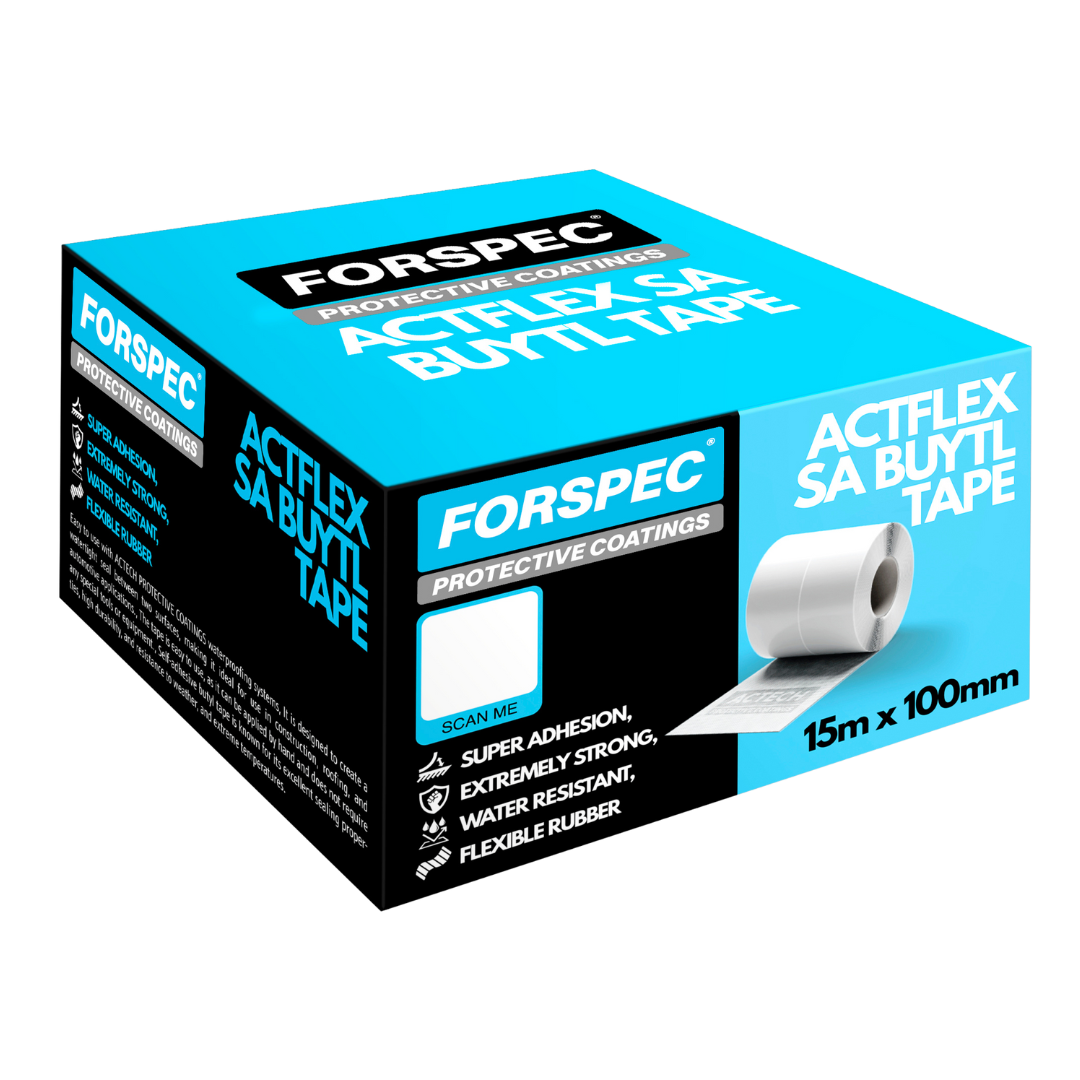

ACTFLEX SA Butyl Tape

Name: ACTFLEX SA Butyl Tape
Brand: Forspec Protective Coatings
SKU: ACT/SAB-15M
Price: 55.00 AUD
Availability: OutOfStock

$55.00

Sold out

or 4 interest-free payments with

Butyl detailing tape. Stick, roll, membrane straight over. No cure time.

ACTFLEX SA TAPE is a self-adhesive butyl sealing tape with a white polypropylene fleece face for FORSPEC liquid membranes. The butyl self-seals around fasteners and penetrations. The fleece gives the membrane a key.

What it's for

Wall to floor and wall to wall junctions before the membrane goes on
Pipe penetrations, taps, outlets and floor waste flanges
Shower recesses, balconies and planter boxes

Why waterproofers buy it

Bonds on pressure rolling. No cure period, no waiting to overcoat
Elongation over 300%, peel adhesion 22 N/cm
Vapour impermeable and weatherproof
10 year Forspec product warranty

Specs

Black butyl, 1.0 mm thick, white fleece face. Minimum overlap 50 mm. Install at 0°C to 40°C. Roll size: check current packaging.

Not for

Use on its own. It must be covered by the FORSPEC membrane, never left exposed. Not a substitute for a designed movement joint. Sheet membranes need written FORSPEC confirmation.

Bonds on contact with a pressure roller - no cure period before the membrane goes on

Fleece face gives FORSPEC liquid membranes a direct mechanical bond with no floating or debonding

Self-sealing butyl closes around fastener and penetration breaches

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup currently unavailable at The Waterproofing Shop

ACTFLEX SA Butyl Tape

The Waterproofing Shop

Pickup currently unavailable

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

How to Use

Peel the liner, apply to the prepared substrate without creases or stretching, embed with a pressure roller and lap ends and junctions a minimum 50 mmConfirm substrates are clean, dry, structurally sound and free of laitance, dust, oil, grease, paint, sealers, curing compounds and all other bond-inhibiting contaminants
Confirm concrete surfaces are smooth and free of surface ridges, sharp projections, fins and voids, any of which will bridge the tape and create a void beneath it
Confirm junction zones are smooth and continuous for a minimum of 200 mm in every direction from the corner, including the wall upturn
Confirm renders and screeds are fully cured, crack-free and solidly bonded; cut out and reinstate any weak, hollow or drummy area
Reinstate defects, voids and blowholes with a FORSPEC concrete repair system such as FORBUILD 100 or FORCRETE 100, finished flush and cured
Remove all loose fasteners, screws, nails and debris from wall and floor sheet surfaces
Mechanically prepare dense, burnished or coated surfaces by grinding or light abrasion, then vacuum the area thoroughly
Prime AAC blocks and porous concrete with the FORSPEC primer specified for the substrate and the membrane system, and allow it to dry fully
Confirm surface preparation is complete and that any required primer has been applied and is fully dry
Peel the release liner from the ACTFLEX SA TAPE
Apply the tape directly to the prepared substrate, aligned with the joint or junction, without creases or trapped air and without stretching it
Embed the tape with a pressure roller to achieve complete, uniform contact and expel all air bubbles and wrinkles
Overlap ends and junctions by a minimum of 50 mm, applying light heat to the butyl face before overlapping for additional security
Internal corners: cut the tape at 45 degrees and lap or mitre neatly, keeping the centre of the tape continuous around the corner
External corners: pre-form or cut the tape to the corner shape with continuous overlap, contacting the substrate on both planes
Floor wastes: make a star cut over the flange, press the tape around the flange edge with a roller, then extend the membrane over the fleece
Pipe penetrations: cut the tape to shape, wrap it around the pipe with a vertical overlap, seal the butyl around the pipe and reinforce with the compatible liquid membrane
Terminate the tape 10-20 mm below the tile or finish level in all cases
In cold conditions, pre-warm the tape and the substrate with a heat gun on a low setting to develop adhesion
Immediately cover the installed fleece face with the approved membrane system - do not leave the tape exposed

Technical Specifications

Product Type: Self-adhesive butyl sealing tape, black, with white polypropylene fleece face
Thickness: 1.0 mm*
Tensile Strength: 115 N longitudinal, 100 N transverse*
Elongation at Break: Greater than 300%*
Peel Adhesion: 22 N/cm*
Probe Tack: 7.2 N*
Water Vapour Transmission: Less than 0.1 g/m2/day*
UV Resistance: Moderate, must be covered
Durability, Accelerated Ageing: Passed 1000 hours exposure*
Application Temperature: 0C to +40C ambient and substrate
Service Temperature: -40C to +100C
Minimum Overlap: 50 mm
Adhesion Development: Immediate on pressure rolling, no cure period*
Shelf Life: 24 months, unopened, stored dry and shaded
AS/NZS 4858 Wet Area Membranes: Not applicable, the tape is a system component not a membrane; compliance is established by the membrane system
Membrane System Compatibility: Confirmed for FORSPEC liquid membrane systems; sheet membrane systems require written FORSPEC confirmation
* Typical Forspec R&D characteristic values, not subject to third-party certification

Product Files

Technical Data Sheet (TDS) PDF Download

Technical Specifications

Product Type	Self-adhesive butyl sealing tape, black, with white polypropylene fleece face
Thickness	1.0 mm*
Tensile Strength	115 N longitudinal, 100 N transverse*
Elongation at Break	Greater than 300%*
Peel Adhesion	22 N/cm*
Probe Tack	7.2 N*
Water Vapour Transmission	Less than 0.1 g/m2/day*
UV Resistance	Moderate, must be covered
Durability, Accelerated Ageing	Passed 1000 hours exposure*
Application Temperature	0C to +40C ambient and substrate
Service Temperature	-40C to +100C
Minimum Overlap	50 mm
Adhesion Development	Immediate on pressure rolling, no cure period*
Shelf Life	24 months, unopened, stored dry and shaded
AS/NZS 4858 Wet Area Membranes	Not applicable, the tape is a system component not a membrane; compliance is established by the membrane system
Membrane System Compatibility	Confirmed for FORSPEC liquid membrane systems; sheet membrane systems require written FORSPEC confirmation
* Typical Forspec R&D characteristic values, not subject to third-party certification
