What is ACTFLEX MESHTAPE used for?

MESHTAPE is a mesh-reinforced flexible joint tape for full embedment into thick-bodied liquid membranes. Used at wall-floor junctions, expansion joints, slab edges, and precast seams. The mesh provides reinforcement; the membrane provides waterproofing.

120mm width by 20m roll. Mesh approximately 0.5mm, total tape thickness approximately 0.7mm. Greater than 300% elongation. Longitudinal tensile strength 76 MPa.

Apply the first coat of membrane, lay the MESHTAPE into the wet membrane along the joint or junction, then run a silicon pressure roller along its length to expel air and fully wet out the mesh with membrane. Apply the second membrane coat over the top.

Which membranes work with it?

Compatible with cementitious membranes (988, 989 CWP), acrylic membranes, polyurethane membranes (929 HV/SL, 925 SFPU, 906 WPU), and polyurea systems. The mesh provides keying for any liquid waterproofing chemistry.

1 linear metre of tape per 1 linear metre of crack, joint, or junction. Plan project tape needs by summing all junction lengths plus penetration perimeters plus a 10-15% waste allowance.

Be the first to review

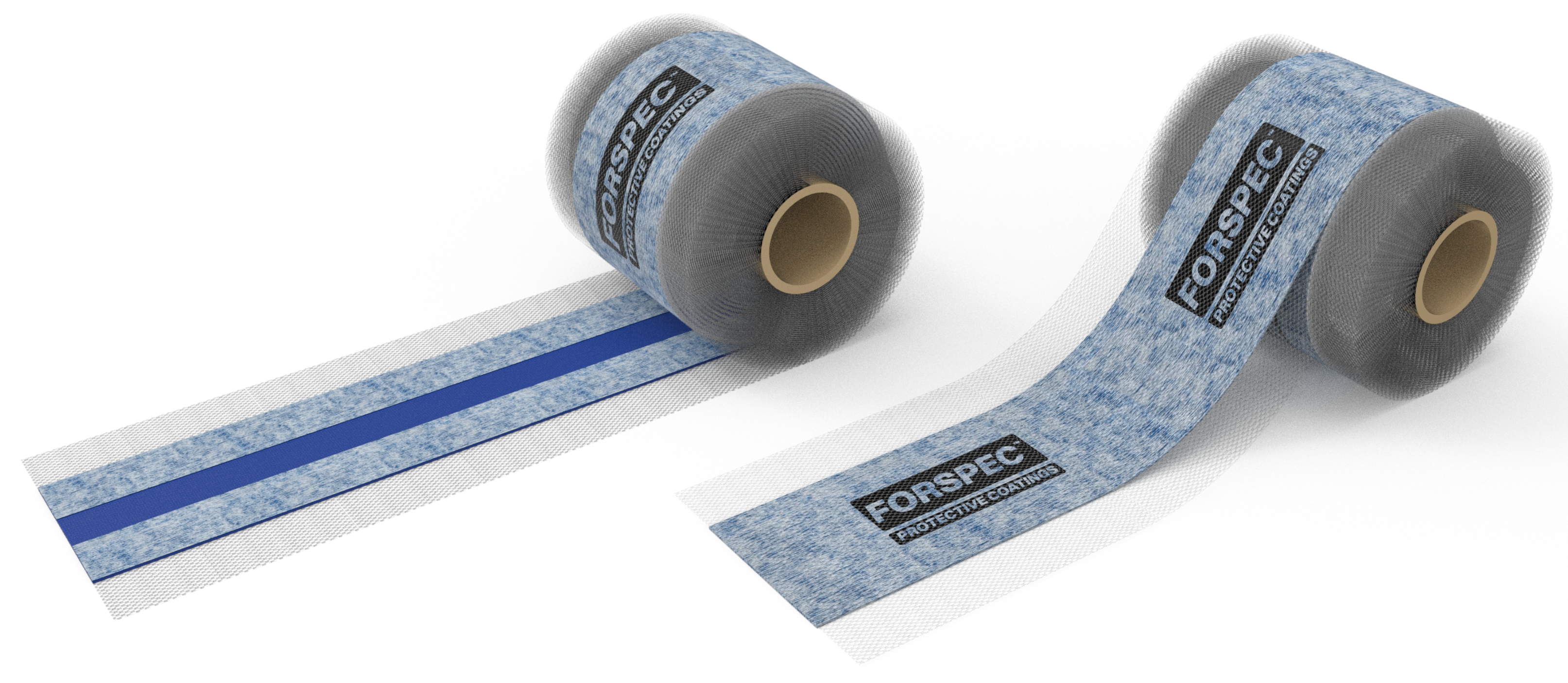

ACTFLEX MESHTAPE 120mm x 20m

Name: ACTFLEX MESHTAPE 120mm x 20m
Brand: Forspec Protective Coatings
SKU: AACF632
Price: 80.00 AUD
Availability: InStock

$80.00

or 4 interest-free payments with

Mesh-winged joint tape for thick-bodied membranes. The membrane pushes through the mesh and locks the tape down.

ACTFLEX MESH TAPE is an elastomeric joint tape with open mesh wings, made for thick, coarse membranes. The membrane filters right through the wings and grips the substrate, above and below the tape.

What it's for

Floor-to-wall junctions in internal and external wet areas, under-tile systems
Cement-based, acrylic, polyurethane, polyurea and bitumen-based membranes

Why waterproofers buy it

Mechanically locked to the substrate from above and below
Water pressure resistance 1.5 bar to EN 1928
Preformed corners available. 10 year Forspec product warranty

Specs

0.52 mm thick, 120 mm wide with a 70 mm elastomeric centre and 25 mm mesh each side. Press into wet membrane, then coat over.

Not for

Thin brush-grade membranes (use ACTFLEX FLEX TAPE), dry laying, use on its own, or cracks over 3 mm without pre-filling with ACTFLEX 75FC or MS PRO.

Mesh wings let thick-bodied membranes filter through and lock the tape to the substrate from above and below

Water pressure resistance of 1.5 bar to EN 1928

Cold flexible to -30C with no cracking, and serviceable to +90C

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

ACTFLEX MESHTAPE 120mm x 20m

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

How to Use

Bed the tape into a wet base coat of the specified FORSPEC membrane with a steel trowel or spatula, then apply a second coat over the entire tape length to fully encapsulate itConfirm substrates are clean, dry, structurally sound and free of laitance, dust, oil, grease, paint, sealers, curing compounds and all other bond-inhibiting contaminants
Mechanically prepare dense, burnished or coated surfaces by grinding or light abrasion to expose sound substrate, then vacuum the area thoroughly
Make concrete surfaces smooth and free of surface ridges, sharp projections, fins and voids
Ensure junction zones are smooth and continuous for a minimum of 200 mm in every direction from the corner, including the wall upturn
Cut out and reinstate any weak, hollow or drummy render or screed; renders and screeds must be fully cured, crack-free and solidly bonded
Reinstate defects, voids and blowholes with FORBUILD 100 or FORCRETE 100, finished flush and cured
Remove all loose fasteners, screws, nails and debris from wall and floor sheet surfaces
Confirm any required primer has been applied and is fully dry
Pre-fill cracks and static joints wider than 3 mm with ACTFLEX 75FC or ACTFLEX MS PRO and allow to cure
Apply a generous, continuous base coat of the specified FORSPEC membrane at the junction, wide enough to receive the full tape width plus margin on both sides
While the membrane is still wet, centre the tape over the junction so the elastomeric centre spans the joint and the mesh wings lie flat on both planes
Press the tape into the wet membrane with a steel trowel or spatula, working from the centre outwards to expel air, wrinkles and dry zones
Overlap tape ends by a minimum of 50 mm, fully embedded in membrane at the lap
Cut internal corners at 45 degrees and lap or mitre neatly, keeping the centre of the tape continuous and uninterrupted around the corner
Pre-form or cut external corners to the corner shape with continuous overlap, fully saturated on both planes
Allow the base coat to partially set, then apply the second coat of membrane over the entire tape length, fully embedding and encapsulating the tape
Inspect the installed detail for hollow zones, wrinkles, dry mesh or felt, and lifted edges; cut out and re-detail any defective length before continuing
Flood test after full cure of the membrane system, then tile or cover

Technical Specifications

Product Type: Elastomeric resin core with high-porosity mesh wings
Thickness: 0.52 mm*
Standard Widths: 120/70 mm and 150/100 mm (total width / elastomeric centre width)
Weight: 38 g/m*
Colour: RAL or Pantone as specified
Tensile Strength (longitudinal): 76 MPa (EN ISO 527-3)*
Tensile Strength (transverse): 30 MPa (EN ISO 527-3)*
Elongation at Maximum Load (longitudinal): 22% (EN ISO 527-3)*
Elongation at Maximum Load (transverse): 139% (EN ISO 527-3)*
Shore Hardness: 70 A (ISO 868)*
Water Pressure Resistance: 1.5 bar (EN 1928)*
Cold Flexibility: No cracking at -30C (SIA 280/3)*
Service Temperature: -30C to +90C (SIA V280/3+4)*
Minimum Overlap: 50 mm
Roll Length: 25 m
Rolls per Carton: 8
Membrane Compatibility: Cement-based, acrylic, polyurethane, polyurea and bitumen-based membranes
Shelf Life: 24 months, unopened, stored dry and shaded
Certification Status: Detailing component, not certified to a membrane standard; AS/NZS 4858 not applicable
* Typical Forspec R&D characteristic values, not for engineering design without written FORSPEC confirmation

Product Files

Technical Data Sheet (TDS) PDF Download

ACTFLEX MESHTAPE 120mm x 20m

$80.00

Frequently bought together

This item

ACTFLEX MESHTAPE 120mm x 20m $80.00
Add

ACTFLEX 989 CWP High-Performance Cementitious Membrane $220.00
Add

GSA Render Cloth Tape 48mm x 25m $10.00
Add

Gripset BRW PF Square Multipurpose Self-Adhesive Sealing Square $9.70

Waterproofing Systems Built for Australian Conditions

Engineered to perform in the most demanding environments.

Retaining Wall System

High performance negative pressure waterproofing for below ground structures.

ACTFLEX 989 CWP High-Performance Cementitious Membrane

ACTFLEX 989 CWP ACTFLEX SuperBond 007 PVC Universal Primer 1 Litre

ACTFLEX SUPERBOND ACTFLEX MESHTAPE 120mm x 20m

ACTFLEX MESHTAPE

1

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX HYDROPLUG
5 ACTFLEX AT MESH
6 ACTFLEX 988 CWP (2 Coats)
7 Tile Adhesive
8 Pool Finish

Retaining Wall System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX MS PRO
4 ACTFLEX AT MESH
5 ACTFLEX 988 CWP (2 Coats)
6 Protection Board (Optional)
7 Drainage System
8 Backfill

Tank System Build-Up

1 Concrete Substrate
2 Crack Repair (if required)
3 ACTFLEX FLEXPLUS
4 ACTFLEX AT MESH
5 ACTFLEX 988 WMP (2 Coats)
6 Protective Coating (Optional)
7 Water

Technical overview

ACTFLEX MESH TAPE is a high-performance elastomeric joint tape built around a continuous elastomeric resin core flanked by high-porosity mesh wings, engineered for thick-bodied and coarse-consistency waterproofing membranes such as rubber-modified acrylics, cementitious membranes and pasty polyurethanes. The open mesh geometry allows the membrane to filter completely through the wings and encapsulate the tape from both above and below, forming a mechanical lock to the substrate rather than relying on adhesion alone. It is a detailing component and is not itself certified to a membrane standard: compliance is established by the certified FORSPEC membrane system in which the tape is embedded. No accredited certificate is currently held on file for the tape properties, which are published as typical Forspec R&D characteristic values.

Key applications

Floor-to-wall junctions in internal and external wet areas
Under-tile waterproofing systems
Expansion joints and construction joints within membrane systems
Precast concrete panel seams
Slab edge terminations
Planter boxes, balconies, swimming pools and water tanks
Structural crack reinforcement beneath membranes

Surface suitability

Concrete (smooth and free of surface ridges, sharp projections, fins and voids)
Render (fully cured, crack-free and solidly bonded)
Screed (fully cured, crack-free and solidly bonded)
Precast concrete panel seams
Wall and floor sheet substrates (installed and fastened per the sheet manufacturer instructions and the applicable Australian Standard, all loose fasteners and debris removed)
Dense, burnished or coated surfaces (mechanically prepared by grinding or light abrasion to expose sound substrate, then vacuumed)
Junction zones (smooth and continuous for a minimum of 200 mm in every direction from the corner, including the wall upturn)

Not a stand-alone waterproofing product - the tape performs only as a reinforced detail within a complete FORSPEC waterproofing system and must not be left exposed. Never embed dry: a dry-laid tape will float, bridge and debond. Cracks and static joints wider than 3 mm must be pre-filled with ACTFLEX 75FC or ACTFLEX MS PRO before the tape is installed. Not a substitute for a designed movement joint - dynamic structural joints require the joint detail nominated in the project design. Do not install over frosted, damp or contaminated substrates, or where condensation is present. Do not stretch the tape during installation - an installed tape under tension will pull out of the junction as the membrane cures. Engineered for thick-bodied and coarse-consistency membranes; for thin-film brush-grade membranes specify ACTFLEX FLEX TAPE instead. Confirm compatibility between the tape and the specified membrane with a FORSPEC technical representative before use.

Technical Specifications

Product Type	Elastomeric resin core with high-porosity mesh wings
Thickness	0.52 mm*
Standard Widths	120/70 mm and 150/100 mm (total width / elastomeric centre width)
Weight	38 g/m*
Colour	RAL or Pantone as specified
Tensile Strength (longitudinal)	76 MPa (EN ISO 527-3)*
Tensile Strength (transverse)	30 MPa (EN ISO 527-3)*
Elongation at Maximum Load (longitudinal)	22% (EN ISO 527-3)*
Elongation at Maximum Load (transverse)	139% (EN ISO 527-3)*
Shore Hardness	70 A (ISO 868)*
Water Pressure Resistance	1.5 bar (EN 1928)*
Cold Flexibility	No cracking at -30C (SIA 280/3)*
Service Temperature	-30C to +90C (SIA V280/3+4)*
Minimum Overlap	50 mm
Roll Length	25 m
Rolls per Carton	8
Membrane Compatibility	Cement-based, acrylic, polyurethane, polyurea and bitumen-based membranes
Shelf Life	24 months, unopened, stored dry and shaded
Certification Status	Detailing component, not certified to a membrane standard; AS/NZS 4858 not applicable
* Typical Forspec R&D characteristic values, not for engineering design without written FORSPEC confirmation

Real Projects. Real Results.

View All Projects

Before After
Pool Renovation
Gold Coast, QLD
Before After
Below Ground Retaining Wall
Sydney, NSW
Before After
Concrete Water Tank
Perth, WA
Before After
Commercial Podium
Melbourne, VIC
Before After
Swimming Pool Construction
Brisbane, QLD

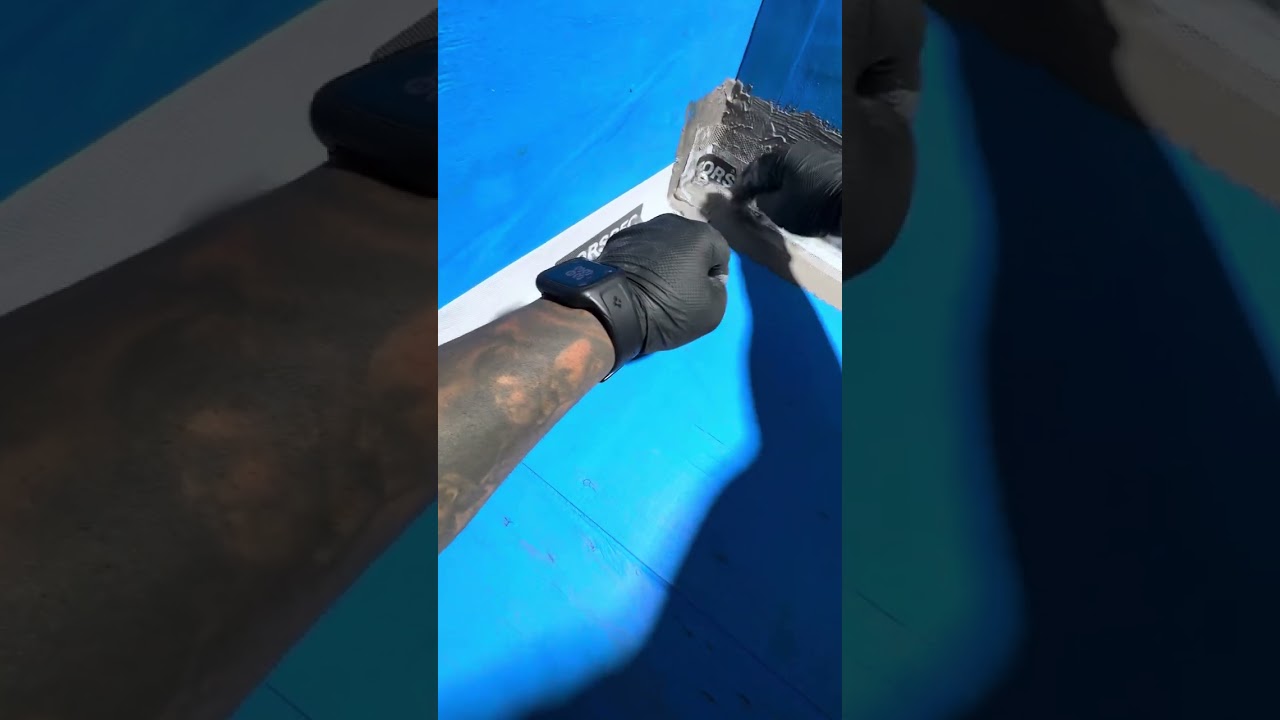

Watch the install
