Atlantis Drainage Cell modular drainage panel for waterproofing and subsurface drainage systems

Atlantis Drainage Cell 30mm

Name: Atlantis Drainage Cell 30mm
Brand: Atlantis
SKU: AATA14
Price: 22.00 AUD
Availability: OutOfStock

$22.00

Sold out

or 4 interest-free payments with

Atlantis Flo-Cell 30mm drainage panels. 575 x 575mm each, 90 percent void, rated 50 tonnes/m2.

Atlantis Flo-Cell 30mm panels create a subsurface drainage layer under waterproofing membranes. Each panel is 575 x 575mm and 30mm thick, with 90 percent volume void that holds 27 litres of drainage per square metre. Three panels make one square metre. The recycled polypropylene panels are unaffected by soil chemicals and bacteria, and flow at 1.41 litres per second per metre at 1 percent gradient.

What it's for

Planter boxes, basements and podiums over waterproofing membranes
Sub-slab and trench drainage
Flood mitigation and landscape void fill
Bio filtration under artificial turf and sports fields

Why waterproofers buy it

90 percent void creates high-capacity drainage
1.41 litres/sec/m flow rate at 1 percent gradient
50 tonnes/m2 strength rating (recycled polypropylene)
Recycled polypropylene, unaffected by soil chemicals, bacteria and bitumen
Service temperature -10C to 70C

Specs

Panel size 575 x 575mm x 30mm height. Three panels per square metre, 720 grams per panel. 85 percent recycled polypropylene with 15 percent proprietary selected materials. Colour black.

90% volume void, 27 litres of drainage void per square metre

Flow rate 1.41 litres/sec/m at 1% gradient

Ultimate strength 50 tonnes/m2 in recycled polypropylene

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup currently unavailable at The Waterproofing Shop

Atlantis Drainage Cell 30mm

The Waterproofing Shop

Pickup currently unavailable

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

With its unique design, the drainage cell provides excellent water storage capacity and efficient drainage performance. It offers numerous advantages, including superior load-bearing strength, easy installation, and exceptional durability. The Atlantis Drainage Cell is widely used in construction applications such as green roofs, podium gardens, retaining walls, and underground drainage systems. Its versatility and effectiveness make it an ideal choice for job site areas where efficient stormwater management is crucial.

Advantages:

Superior water storage capacity
Efficient drainage performance
High load-bearing strength
Easy installation
Exceptional durability
Used in construction and specific job site areas:
Green roofs
Podium gardens
Retaining walls
Underground drainage systems

Technical Specifications

Product Type: Subsurface drainage cell (Atlantis Flo-Cell 30mm)
Panel Size: 30mm (H) x 575mm (W) x 575mm (L)
Pieces Per Square Metre: 3
Panel Weight: 720 grams
Weight Per Square Metre: 2.16 kg
Ultimate Strength (recycled PP): 50 tonnes/m2 (100 PSI)
Ultimate Strength (virgin PP): 80 tonnes/m2 (114 PSI)
Flow Rate: 1.41 Litres/Sec/m at 1% gradient
Volume Void: 90% (27 L/m2)
Surface Void: 70%
Material: 85% recycled polypropylene, 15% proprietary selected materials
Colour: Black
Chemical and Biological Resistance: Unaffected by molds, algae, soil-bourne chemicals, bacteria and bitumen
Service Temperature: -10C to 70C
Approximate Material Lifespan: 100 years plus with no ultra violet exposure

Product Files

No documentation available for this product.

Frequently bought together

This item

Atlantis Drainage Cell 30mm $22.00
Add

Atlantis Geotech Fabric 1m x 50m $78.00

Key applications

Planter box
Basement
Podiums
Trench drainage
Landscape void fill
Rain gardens
Flood mitigation
Bio filtration
Artificial turf drainage
Concrete slab drainage (underdrain)

Service temperature range is -10C to 70C. The approximate material lifespan of 100 years plus applies with no ultra violet exposure, so the cell is not intended to be left exposed. Ultimate strength is 50 tonnes/m2 in recycled polypropylene and 80 tonnes/m2 in virgin polypropylene - confirm which material grade is supplied before designing above the recycled figure. Standard supply is 85% recycled polypropylene.

Technical Specifications

Product Type	Subsurface drainage cell (Atlantis Flo-Cell 30mm)
Panel Size	30mm (H) x 575mm (W) x 575mm (L)
Pieces Per Square Metre	3
Panel Weight	720 grams
Weight Per Square Metre	2.16 kg
Ultimate Strength (recycled PP)	50 tonnes/m2 (100 PSI)
Ultimate Strength (virgin PP)	80 tonnes/m2 (114 PSI)
Flow Rate	1.41 Litres/Sec/m at 1% gradient
Volume Void	90% (27 L/m2)
Surface Void	70%
Material	85% recycled polypropylene, 15% proprietary selected materials
Colour	Black
Chemical and Biological Resistance	Unaffected by molds, algae, soil-bourne chemicals, bacteria and bitumen
Service Temperature	-10C to 70C
Approximate Material Lifespan	100 years plus with no ultra violet exposure

Why trade professionals choose Atlantis

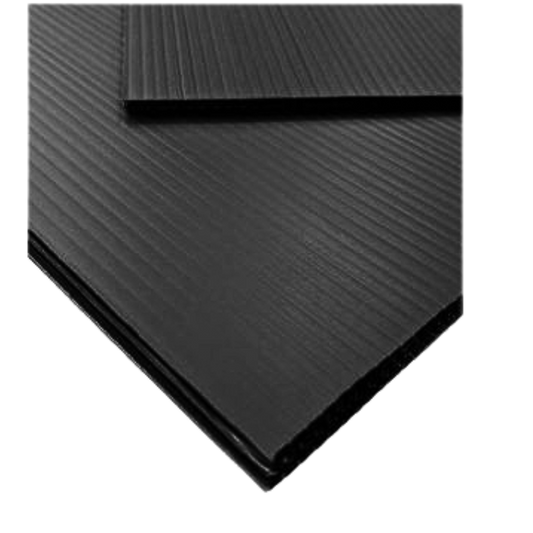

Atlantis covers the drainage side of a waterproofing build-up: the layers that sit between a cured membrane and the soil or paving above it. The range stocked here is the drainage cell, the Geotech filter fabric that goes over it and the extruded protection board that shields the membrane during backfill. Supplied to the Australian trade for planter boxes, podium decks, roof gardens and retaining walls, and usually bought together rather than one piece at a time.
