What is Max Grout used for?

Max Grout is a non-shrink fluid cementitious grout for filling voids, anchoring bolts and dowels, supporting machinery bases, repairing damaged concrete elements, and sealing cracks and voids in walls, floors, and ceilings.

What strength does it achieve?

Max Grout achieves high early-age and final compressive strength typical of structural grouts - exact MPa values per TDS. R4-rated to EN 1504-3 for structural repair.

How is it mixed and poured?

Mix 25kg powder with 3-3.5L clean water (12-14% by weight) to a fluid pourable consistency. Pour into pre-saturated formwork or anchor hole - the fluid grout flows around all features without needing vibration.

Approximately 2 kg/m² per mm of thickness, or 1.4 kg/m² per mm when sand is added for thicker applications. Calculate project needs based on the void volume to be filled.

Standards compliance?

EN 1504-3 Class R4 Structural. EN 1504-6 compliant for rebar anchoring applications. Chloride-free and non-corrosive to steel - safe for use around embedded reinforcement.

Be the first to review

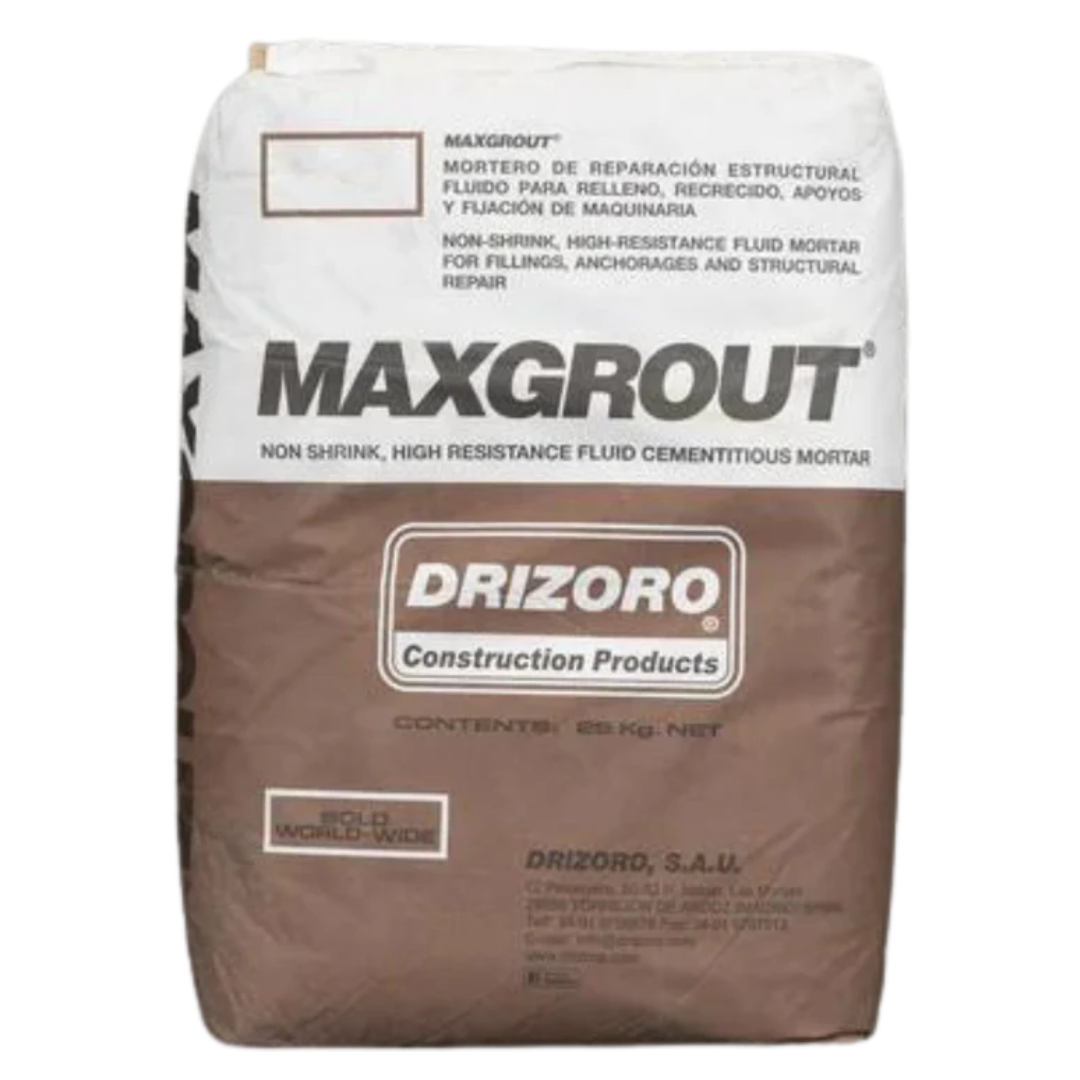

Drizoro Max Grout 25kg

Name: Drizoro Max Grout 25kg
Brand: Drizoro
SKU: DDRD125
Price: 154.95 AUD
Availability: OutOfStock

$154.95

Sold out

or 4 interest-free payments with

Drizoro MAXGROUT® is a cutting-edge, one-component non-shrink mortar that offers exceptional performance and ease of use. Formulated using premium cement and meticulously graded mineral products, this high-quality mortar boasts superior mechanical properties and excellent fluidity. With its chloride- and metal particle-free composition, MAXGROUT® ensures optimal durability and reliability. The powder form of MAXGROUT® is conveniently ready for use, requiring only the addition of water for mixing.

Key Advantages:

Exceptional mechanical properties for enhanced structural stability
High fluidity for effortless application and thorough penetration
Free from chlorides and metal particles, ensuring corrosion resistance
Simple mixing process with water for quick and efficient preparation

Ideal for Use in:

Grouting and filling of gaps in concrete structures
Anchoring and fastening of bolts, dowels, and machinery
Repair and rehabilitation of damaged concrete elements
Sealing cracks and voids in walls, floors, and ceilings
Industrial, commercial, and residential construction projects

MAXGROUT® by Drizoro guarantees outstanding performance and reliability, making it the top choice for a wide range of construction applications.

EN 1504-3 Class R4 non-shrink fluid grout, CE marked

High strength void filling and anchoring, 89.2 MPa at 28 days

Chloride-free, non-corrosive to steel

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup currently unavailable at The Waterproofing Shop

Drizoro Max Grout 25kg

The Waterproofing Shop

Pickup currently unavailable

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

How to Use

Pour by gravity continuously in one direction from one side to the other, 5mm to 40mm per layer, placed within 10 to 15 minutes of mixingRemove weak, damaged or deteriorated concrete down to the structurally sound substrate by mechanical, abrasive or percussion means, sandblasting or high-pressure water jetting
Roughen the edges of the repair perpendicular to the surface to a minimum depth of 1 cm
Remove concrete until the exposed reinforcement is not affected and clean the entire perimeter under the reinforcement
Cover the reinforcement with a minimum thickness of 1 cm of MAXGROUT
Remove rust from the reinforcement using a steel brush, sandblasting, shot blasting or a needle gun
Apply MAXREST PASSIVE rust converter and protector
Wash the surface with pressurised water so it is clean and free of dust, grease and loose particles
Dampen the surface of the substrate until saturated before pouring, but avoid forming puddles
Set small mould supplements around the placing area and provide air vents to let air escape from the space to be filled
Pour MAXGROUT into a clean drum containing part of the clean water, then start mixing to break up any lumps
Mix with a slow speed mixing drill at 400-600 rpm for 3 to 4 minutes, using 3 to 3.5 litres of water per 25kg bag and avoiding air bubbles
For volumes greater than about 0.1 m3 or thickness greater than 4 cm, add 8 kg of DRIZORO SILICA 3050 of 3 to 5 mm size per 25kg bag
Allow the mix to rest for 1 to 2 minutes so any introduced air bubbles can disappear
Place within the following 10 to 15 minutes, pouring by gravity continuously and in one direction from one side to the other
Use a manual vibration element only if needed, avoiding excessive vibration which causes bleeding and air entrapment
Begin curing immediately after placement
Above 25C, or in dry or windy conditions, provide moist curing by fogging or with wet burlap covered with plastic sheeting for the first 24 hours, or use MAXCURE curing compound
Clean all tools and equipment immediately with water after use

Technical Specifications

Product Classification: Structural repair mortar for concrete, type CC and Class R4, CE marked to EN 1504-3
Secondary Classification: Cementitious mortar for steel rebar anchoring and filling by pouring, CE marked to EN 1504-6
Chemical Base: One component non-shrink mortar of special cements and well-graded mineral products, mixed with water only
Colour and Appearance: Grey powder
Aggregate Size: 2.0 mm
Powder Apparent Density: 1.30 +/- 0.10 g/cm3
Dry Density (cured): 2.2 +/- 0.1 g/m3 as published
Mix Water: 13 +/- 1 % by weight, 3 to 3.5 litres per 25kg bag
Expansion: 0.05%
Segregation: None
Slump, Vibrating Table: 209 mm at 12% water; greater than 300 mm at 14% water
Setting Time: 5 to 6 hours at 20C, 50% RH
Compressive Strength at 28 Days: 89.2 MPa at 12% water, 78.5 MPa at 14% water (EN 12190)
Adhesion on Concrete: 2.0 MPa or greater (EN 1542)
Anchoring Resistance, Pull-Out Method: displacement 0.6 mm or less under a load of 75 kN (EN 1881)
Elastic Modulus: greater than 20 GPa (EN 13142)
Chloride Ion Content: 0.05% or less by weight (UNE-EN 1015-17:2001)
Carbonation Resistance: pass, control concrete 4 mm (EN 13295)
Thermal Compatibility, Freeze/Thaw: 2.0 MPa or greater (EN 13687-1)
Thermal Compatibility, Thunder Shower: 2.0 MPa or greater (EN 13687-2)
Thermal Compatibility, Dry Cycling: 2.0 MPa or greater (EN 13687-4)
Capillary Absorption: 0.5 kg/m2 h0.5 or less (EN 13057)
Reaction to Fire: Euroclass A1
Minimum Application Temperature: above 5C
Optimum Application Temperature: 10C to 25C
Minimum and Maximum Thickness Per Layer: 5 mm / 40 mm
Consumption as Pure Mortar: 2.0 +/- 0.1 kg/m2 per mm of thickness
Consumption with Aggregate: 1.5 +/- 0.1 kg/m2 per mm of thickness
Yield: 12.5 to 13.5 litres of filled volume per 25kg bag
Working Time: place within 10 to 15 minutes of mixing
Pack Size: 25 kg bags
Shelf Life: 12 months in the original unopened container, stored cool and dry above 5C
Hazard Classification: Danger. Causes severe skin burns and eye damage, may cause an allergic skin reaction, may cause respiratory irritation
CE Declaration of Performance: No. 028.01, System 2+, notified body AENOR 0099, factory production control certificate 0099/CPR/B15/0011

Product Files

Frequently bought together

This item

Drizoro Max Grout 25kg $154.95

Technical overview

MAXGROUT is a one-component, non-shrink, high-resistance fluid mortar of special cements and well-graded mineral products that is mixed with clean water only. It is poured by gravity to fill voids, bed steel column bases and machinery foundations, anchor bolts and rebar, and to restore structural concrete. It is CE marked and carries Declaration of Performance No. 028.01 as a type CC Class R4 structural repair mortar to EN 1504-3, and it meets the requirements for rebar anchoring to EN 1504-6. Assessment is System 2+, where notified body AENOR 0099 certifies factory production control only. That is a manufacturer declaration against harmonised European standards, not an accredited Australian test certificate. No NATA or CodeMark certificate is held for this product.

View full technical data sheet

Key applications

Restoration of concrete structural elements recovering its original shape and function
Concrete repairs affected by corrosion of reinforcements or defects by pouring concrete into formwork such as columns, beams, retaining walls and piles
Repair of structures damaged by frost, deicing salts and mechanical impacts
Repair of structures subject to dynamic loads
Anchoring of pillars in concrete prefabricated structures
Filling of steel column bases
Beam support in bridges
Anchoring of bolts, cables, etc.
Filling of machinery foundation between concrete and steel plates
Void-filling corrective process and consolidation under concrete slabs

Surface suitability

Concrete (structurally sound, weak or deteriorated material removed, edges roughened perpendicular to the surface to a minimum depth of 1 cm)
Concrete (washed with pressurised water and dampened until saturated before pouring, without puddles)
Cement mortar (minimum 28 days curing time for new concrete and mortar before application)

Do not apply MAXGROUT to structurally weak, painted or burnished surfaces without adhesion, and do not apply to water-repellent substrates, bituminous materials, metal, wood, plaster or paint. Do not use MAXGROUT for levelling and finishing of pavements. Allow at least 28 days curing time for new concrete and mortar before application. The optimum application temperature range is 10C to 25C; do not apply when ambient or application surface temperature is below 5C or if such temperatures are expected within 24 hours after placing, and never on frozen or frosted surfaces. Observe the recommended maximum application thicknesses and volumes, minimum 5mm and maximum 40mm per layer. Do not use more water than the recommended ratio, do not add cement or other unspecified compounds, and do not use remains from previous mixtures. Do not mix using violent mechanical means or high-speed mixers, or prolong mixing excessively. Setting times are measured at 20C; higher temperatures shorten these times and lower temperatures increase them. In the presence of water or soil containing sulphates, sea water or wastewater, use the MAXGROUT ANTISULFAT version, and do not use in contact with pure, acidic or carbonated water. Classified Danger: causes severe skin burns and eye damage, may cause an allergic skin reaction and may cause respiratory irritation. Protective rubber gloves and safety goggles must be used to prepare and apply the mixture.

Calculate your coverage

Enter area to cover (m²) m² Number of coats

You will need:

Drizoro Max Grout 25kg

25kg bag

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Product Classification	Structural repair mortar for concrete, type CC and Class R4, CE marked to EN 1504-3
Secondary Classification	Cementitious mortar for steel rebar anchoring and filling by pouring, CE marked to EN 1504-6
Chemical Base	One component non-shrink mortar of special cements and well-graded mineral products, mixed with water only
Colour and Appearance	Grey powder
Aggregate Size	2.0 mm
Powder Apparent Density	1.30 +/- 0.10 g/cm3
Dry Density (cured)	2.2 +/- 0.1 g/m3 as published
Mix Water	13 +/- 1 % by weight, 3 to 3.5 litres per 25kg bag
Expansion	0.05%
Segregation	None
Slump, Vibrating Table	209 mm at 12% water; greater than 300 mm at 14% water
Setting Time	5 to 6 hours at 20C, 50% RH
Compressive Strength at 28 Days	89.2 MPa at 12% water, 78.5 MPa at 14% water (EN 12190)
Adhesion on Concrete	2.0 MPa or greater (EN 1542)
Anchoring Resistance, Pull-Out Method	displacement 0.6 mm or less under a load of 75 kN (EN 1881)
Elastic Modulus	greater than 20 GPa (EN 13142)
Chloride Ion Content	0.05% or less by weight (UNE-EN 1015-17:2001)
Carbonation Resistance	pass, control concrete 4 mm (EN 13295)
Thermal Compatibility, Freeze/Thaw	2.0 MPa or greater (EN 13687-1)
Thermal Compatibility, Thunder Shower	2.0 MPa or greater (EN 13687-2)
Thermal Compatibility, Dry Cycling	2.0 MPa or greater (EN 13687-4)
Capillary Absorption	0.5 kg/m2 h0.5 or less (EN 13057)
Reaction to Fire	Euroclass A1
Minimum Application Temperature	above 5C
Optimum Application Temperature	10C to 25C
Minimum and Maximum Thickness Per Layer	5 mm / 40 mm
Consumption as Pure Mortar	2.0 +/- 0.1 kg/m2 per mm of thickness
Consumption with Aggregate	1.5 +/- 0.1 kg/m2 per mm of thickness
Yield	12.5 to 13.5 litres of filled volume per 25kg bag
Working Time	place within 10 to 15 minutes of mixing
Pack Size	25 kg bags
Shelf Life	12 months in the original unopened container, stored cool and dry above 5C
Hazard Classification	Danger. Causes severe skin burns and eye damage, may cause an allergic skin reaction, may cause respiratory irritation
CE Declaration of Performance	No. 028.01, System 2+, notified body AENOR 0099, factory production control certificate 0099/CPR/B15/0011

Frequently asked questions

View all FAQs

What is Max Grout used for?

Compatibility
Max Grout is a non-shrink fluid cementitious grout for filling voids, anchoring bolts and dowels, supporting machinery bases, repairing damaged concrete elements, and sealing cracks and voids in walls, floors, and ceilings.
What strength does it achieve?

Performance
Max Grout achieves high early-age and final compressive strength typical of structural grouts - exact MPa values per TDS. R4-rated to EN 1504-3 for structural repair.
How is it mixed and poured?

Installation
Mix 25kg powder with 3-3.5L clean water (12-14% by weight) to a fluid pourable consistency. Pour into pre-saturated formwork or anchor hole - the fluid grout flows around all features without needing vibration.
Coverage rate?

Compatibility
Approximately 2 kg/m² per mm of thickness, or 1.4 kg/m² per mm when sand is added for thicker applications. Calculate project needs based on the void volume to be filled.
Standards compliance?

Compliance
EN 1504-3 Class R4 Structural. EN 1504-6 compliant for rebar anchoring applications. Chloride-free and non-corrosive to steel - safe for use around embedded reinforcement.

Why trade professionals choose Drizoro

Drizoro is a Spanish manufacturer of cement based waterproofing and concrete repair products, supplied to the Australian trade through The Waterproofing Shop. The range on this site covers Maxseal Foundation and Maxseal Flex, along with repair mortars, grouts, joint products and mesh, used on concrete and masonry where water has to be held back rather than simply shed. Choosing between the rigid and the flexible grade is the key decision, and it comes down to the substrate, the direction of the water and how much movement the structure is likely to see.
