Forspec Welding Gun Kit - FS2300P
or 4 interest-free payments with
230V hot air welding kit for PVC, TPO and thermoplastic roofing membrane. Gun, nine nozzles, three rollers, cutting tools and 20 blades in one set.
The Forspec Welding Gun Kit FS2300P is a 230V hot air welder set for roof membrane seams: adjustable-temperature gun, spare heating element, and the nozzles, rollers, seam probe and cutting tools to weld, test and trim.

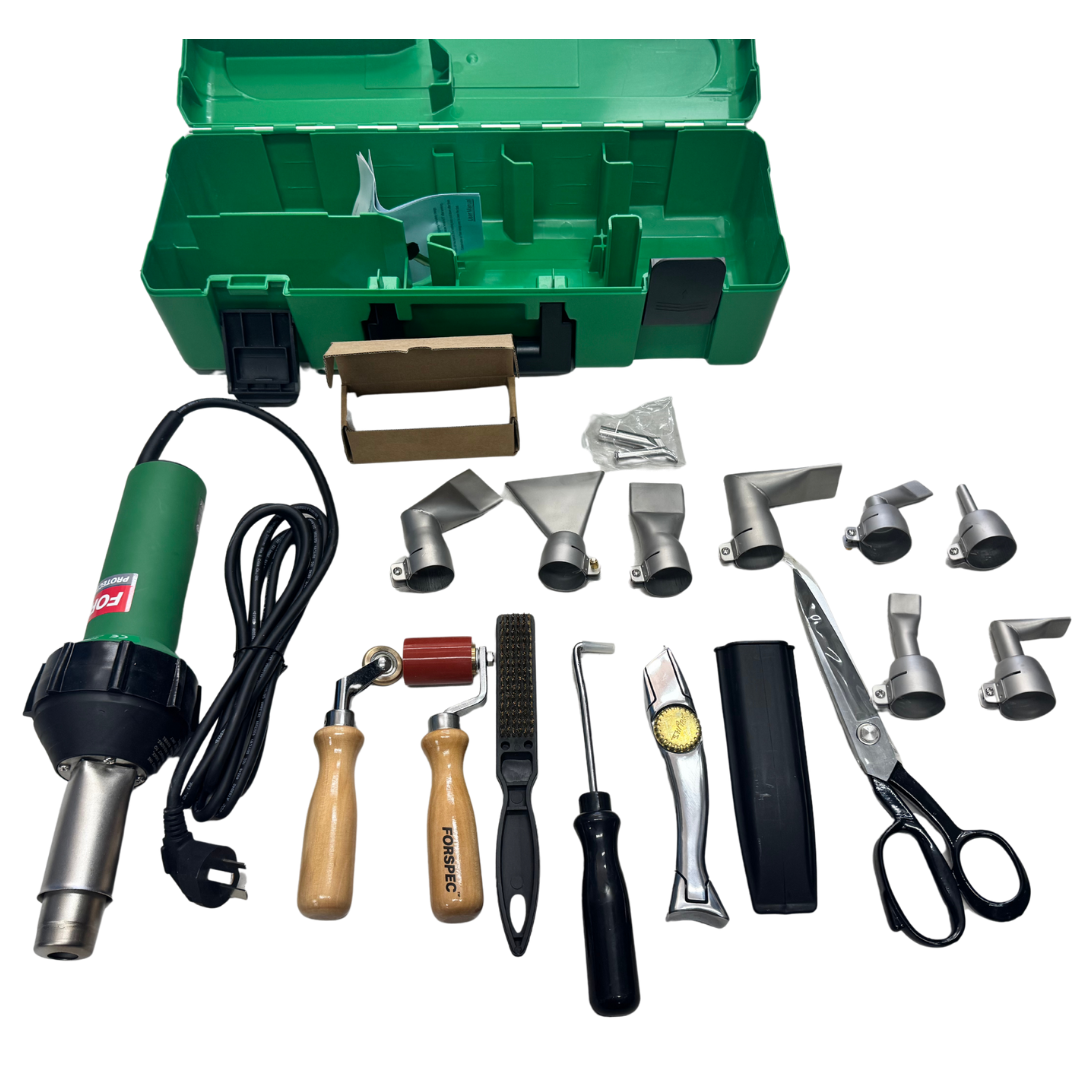

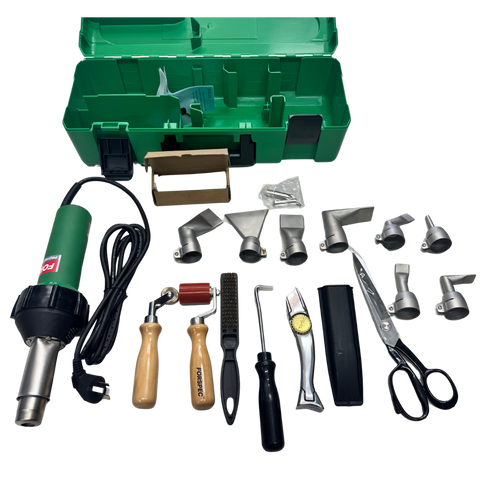

What's in the kit

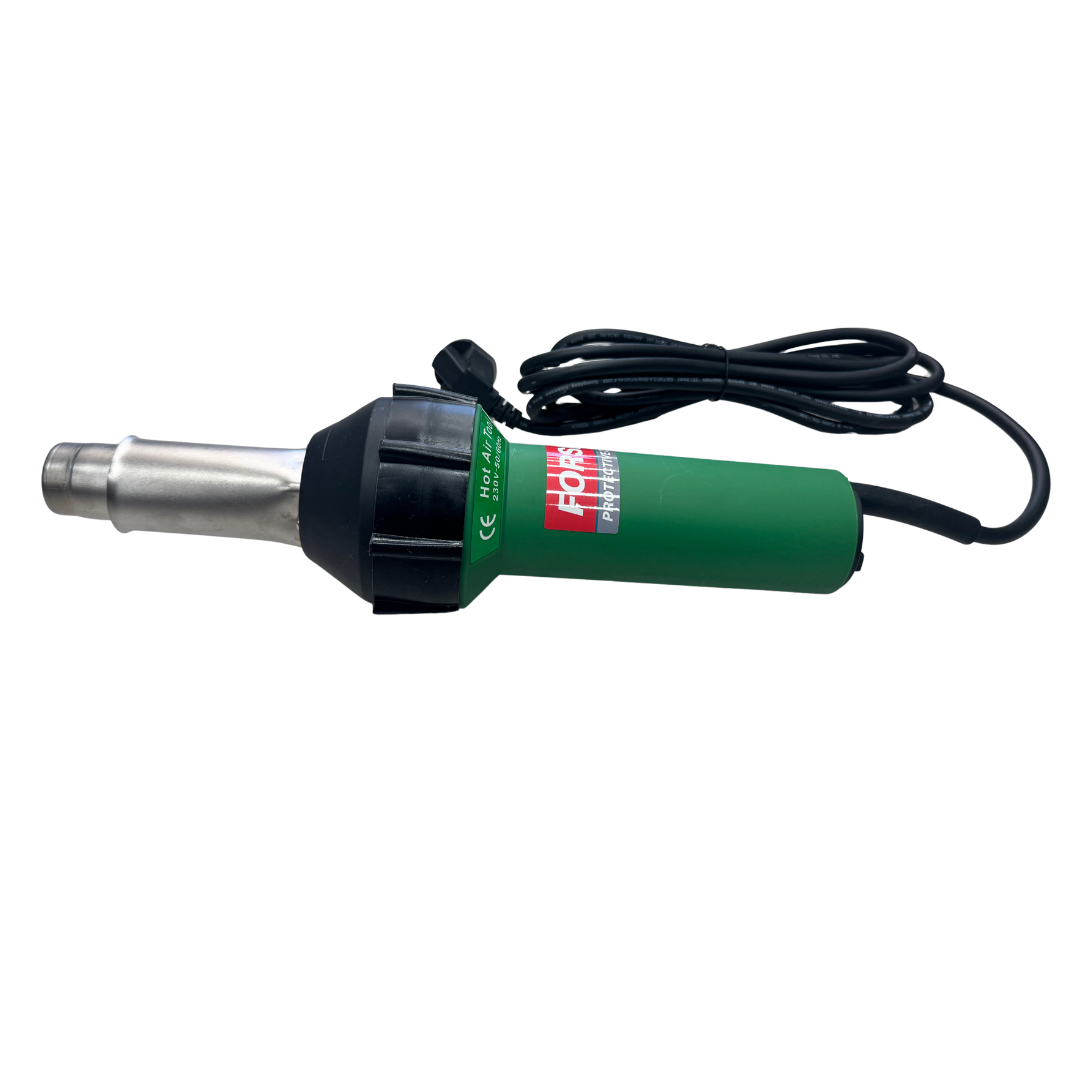

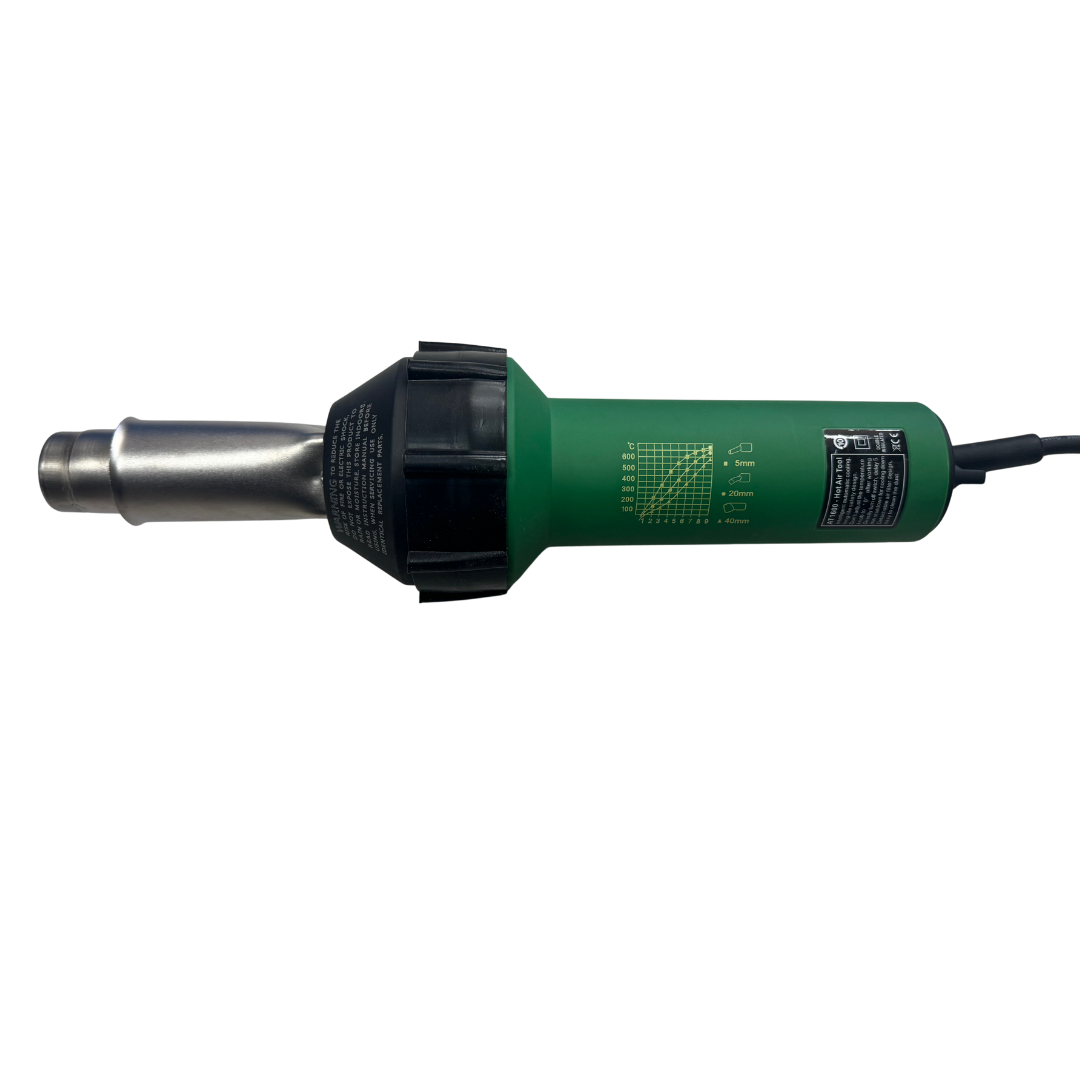

- 230V hot air welding gun, adjustable temperature, with a heating element and mica tube
- 45 mm and 28 mm silicone seam rollers, 6 mm brass penny roller
- Seam tester probe and wire brush, plastic handled
- 250 mm heavy duty roofing scissors, roofing shark knife with holster, 10 straight blades, 10 hook blades
- 9 nozzles: 80, 40 and 20 mm flat weld, 20 mm and 40 mm angled at 60 and 90 degrees, 5 mm round weld and 5 mm round speed weld
Where to use it
- Membrane welding on PVC, TPO and thermoplastic roofing systems
- Corners and detail with the penny and 28 mm rollers, large seams with the 45 mm
Why buy the kit
- Nine nozzles from 80 mm flat weld to 5 mm round speed weld
- Seam tester probe to check weld quality and penetration
- Scissors, shark knife and 20 spare blades for cutting membrane and fabric
230V hot air welding gun with adjustable temperature
Nine nozzles supplied, from 80mm flat weld down to 5mm round speed weld
Seam tester probe included to check weld quality and penetration
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
Forspec Welding Gun Kit - FS2300P
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Technical Specifications
What's Included?
Product Files
No documentation available for this product.
Forspec Welding Gun Kit - FS2300P
Sale price$850.00
Frequently bought together
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Key applications
- Membrane welding on roofing projects
- PVC membrane seam welding
- TPO membrane seam welding
- Thermoplastic roofing system seam welding
- Large-area seam finishing with the 45mm silicone roller
- Detail and tight-area seam finishing with the 28mm silicone roller
- Corner detailing with the 6mm brass penny roller
- Weld quality and penetration checking with the seam tester probe
- Cutting membrane and fabric with the roofing scissors and shark knife
Surface suitability
- PVC roofing membrane
- TPO roofing membrane
- Thermoplastic roofing systems
- Roofing membrane and fabric (cutting)
Technical Specifications
| Tool Type | Hot air welding gun kit |
| Model | FS2300P |
| Power Supply | 230V |

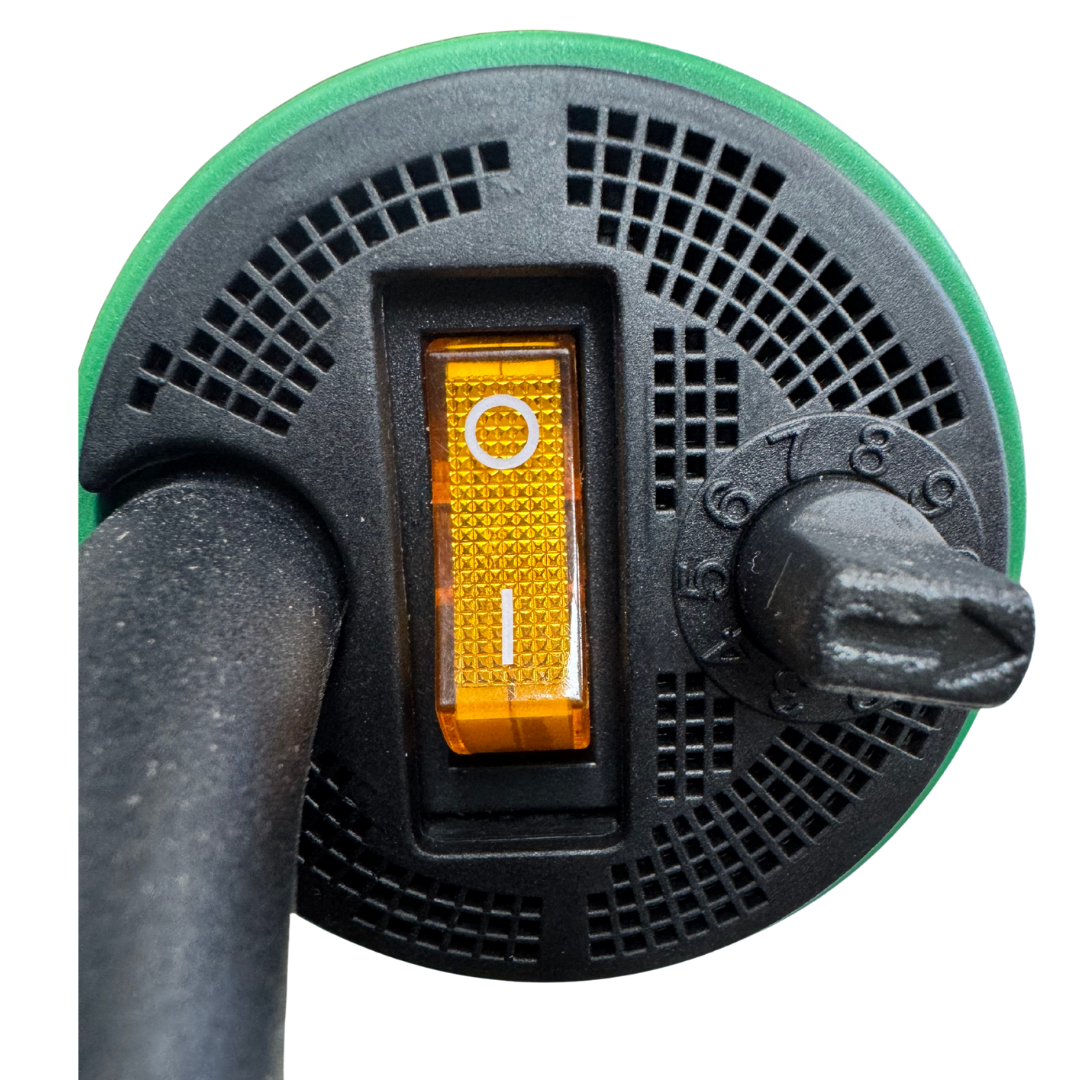

| Temperature Control | Adjustable |
| Heating Element | Heating element with mica tube |
| Flat Weld Nozzles | 80mm, 40mm and 20mm |
| Angled Nozzles | 20mm at 60 degrees, 20mm at 90 degrees, 40mm at 60 degrees, 40mm at 90 degrees |
| Round Nozzles | 5mm round weld and 5mm round speed weld |
| Seam Rollers | 45mm silicone, 28mm silicone and 6mm brass penny |
| Cutting Tools | 250mm heavy duty roofing scissors and a roofing shark knife with holster |
| Blades Supplied | 10 straight blades and 10 hook blades |
| Brand | Forspec Protective Coatings |
What's Included
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What is the FS2300P Welding Gun Kit for?
CompatibilityThe Forspec FS2300P Welding Gun Kit is a hot-air welding gun used to heat-weld thermoplastic sheet membranes (HDPE, TPO, PVC) at overlap seams, creating a continuous waterproof joint. Used with PREFLEX 3000 and similar membranes.
-
What temperature does it reach?
PerformanceThe FS2300P delivers temperatures up to ~650°C (1200°F), within the welding range for HDPE and TPO sheet membranes. Variable temperature control lets you match the exact spec of the membrane being welded.
-
How is it used?
InstallationPosition the overlap, run the welding gun nozzle into the seam at the correct distance and speed, follow immediately with a silicon pressure roller to fuse the layers. Practice on scrap to dial in temperature and speed for your specific membrane.
-
Which membranes can be welded?
CompatibilitySuitable for PREFLEX 3000 HDPE, ACTFLEX 715-style TPO, ACTFLEX 5000 (some seam types), and other thermoplastic sheet membranes. Not used for self-adhesive bituminous membranes.
-
Are there safety requirements?
ComplianceAlways wear heat-resistant gloves and eye protection. Keep flammable materials clear of the working zone. Allow the gun to cool fully before storage. Follow AS/NZS guidelines for hot work permits on commercial sites.
