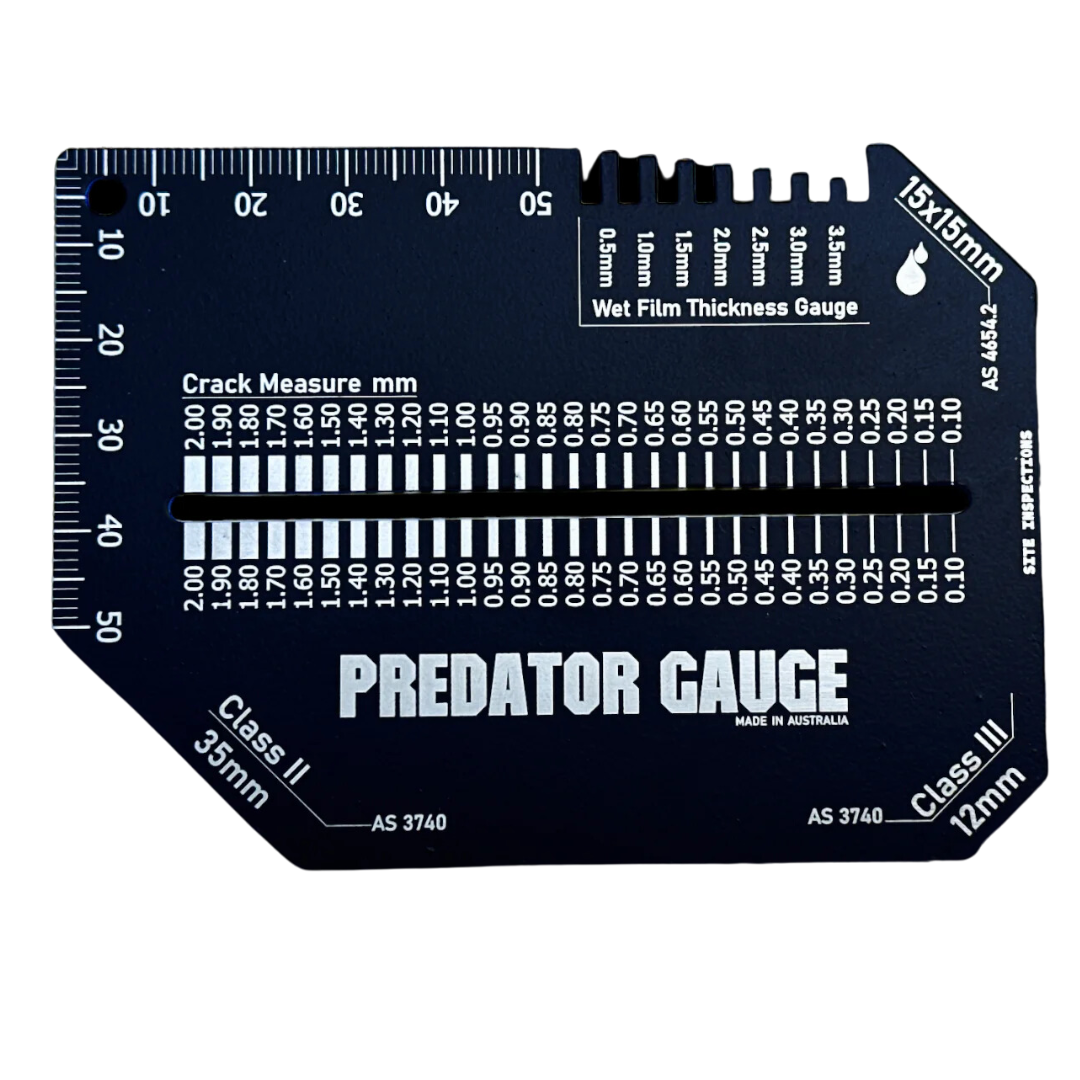

Predator Gauge 5-in-1 Tool
Five gauges in one blade. Wet film thickness, AS 3740 and AS 4654.2 fillets, corner ruler, and crack window. Hardened stainless steel, made in Australia.
The Predator Gauge is a multi-tool for inspections and waterproofing. It carries five critical measurement functions for checking compliance and capturing photographic proof of non-compliant workmanship or defects.
What it's for
- Checking wet film thickness of primers and coatings from 0.5mm to 3.5mm
- Checking fillet and bond breaker size against AS 3740 Table 4.10 (12mm class 3, 35mm class 2)
- Checking 15mm x 15mm fillet and bond breaker against AS 4654.2 for external above-ground membranes
- Measuring cracks from 0.1mm to 2mm with a centre cut-out window
- Measuring perimeter junctions and membrane terminations with a 50mm corner ruler (1mm graduations)
Why waterproofers buy it
- Five compliance gauges on one blade, no switching tools on site
- Hardened 420 stainless steel, resistant to wear and scratching
- Hangs on a belt lanyard or hook for quick access
- Made in Australia
Specs
Stainless steel. 75.4mm wide, 99mm long, 1.2mm thick. Wet film thickness reads 0.5mm to 3.5mm. Crack window reads 0.1mm to 2mm. Clean with isopropyl alcohol or turps.
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL EncryptedPickup available at The Waterproofing Shop
Usually ready in 24 hours
Predator Gauge 5-in-1 Tool
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Product Details
Technical Specifications
Product Files
No documentation available for this product.
Frequently bought together
-
Predator Gauge 5-in-1 Tool $65.00
-
Flood Test Balloon $28.00 -
-
Caulkmate - 3 Pack $18.00
Key applications
- Checking wet film thickness of primers through to thick coat liquid applications
- Checking fillet and bond breaker size against AS 3740 Table 4.10
- Checking 15mm x 15mm fillet and bond breaker against AS 4654.2 for external above-ground membranes
- Measuring cracks from 0.1mm to 2mm
- Measuring the horizontal run of the perimeter junction
- Checking the 25mm membrane termination above finished floor level
- Capturing photographic proof of non-compliant workmanship or defects
Measuring gauge only, not a test instrument and not a substitute for the membrane manufacturer's own requirements. Always cross-verify the fillet and bond breaker dimensions with the manufacturer's Technical Data Sheet and ensure the fillet and bond breaker sizes are in alignment with the membrane system and meet the minimum requirements of the Australian standards. Wet film thickness graduations read 0.5mm to 3.5mm and the crack window reads 0.1mm to 2mm, so readings outside those ranges cannot be taken with this tool. Scratching may expose the silver steel underneath through interaction with other tools or rough surfaces. Clean by wiping with isopropyl alcohol or turps.
Technical Specifications
| Tool Type | 5 in 1 inspection and compliance gauge |
| Series | Black Ops Series |
| Material | Hardened 420 stainless steel |
| Overall Width | 75.4mm |
| Overall Length | 99mm |
| Overall Thickness | 1.2mm |
| Wet Film Thickness Gauge | 0.5mm to 3.5mm graduations |
| Fillet/Bond Breaker Gauge (AS 3740) | 12mm for class 3 membranes and 35mm for class 2 membranes, Table 4.10 |
| Fillet/Bond Breaker Gauge (AS 4654.2) | 15mm x 15mm |
| Ruler | 50mm corner ruler, 1mm graduations |
| Crack Measure Gauge | 0.1mm to 2mm, centre cut-out window |
| Tool Holder | Hangs on a belt lanyard |
| Country of Manufacture | Australia |
| No technical data sheet is published for this tool. The figures above are the manufacturer's published specification. | |
Why trade professionals choose Site Inspector
Site Inspector gauges are pocket sized measurement tools for waterproofers, tilers and building inspectors who need to verify a detail rather than eyeball it. The range covers fillet and bond breaker sizing, taper and gap checking, and quick multi-tool measurement on site, supplied to the Australian trade. Small enough to carry every day, and just as useful whether you are installing the system or signing it off.
