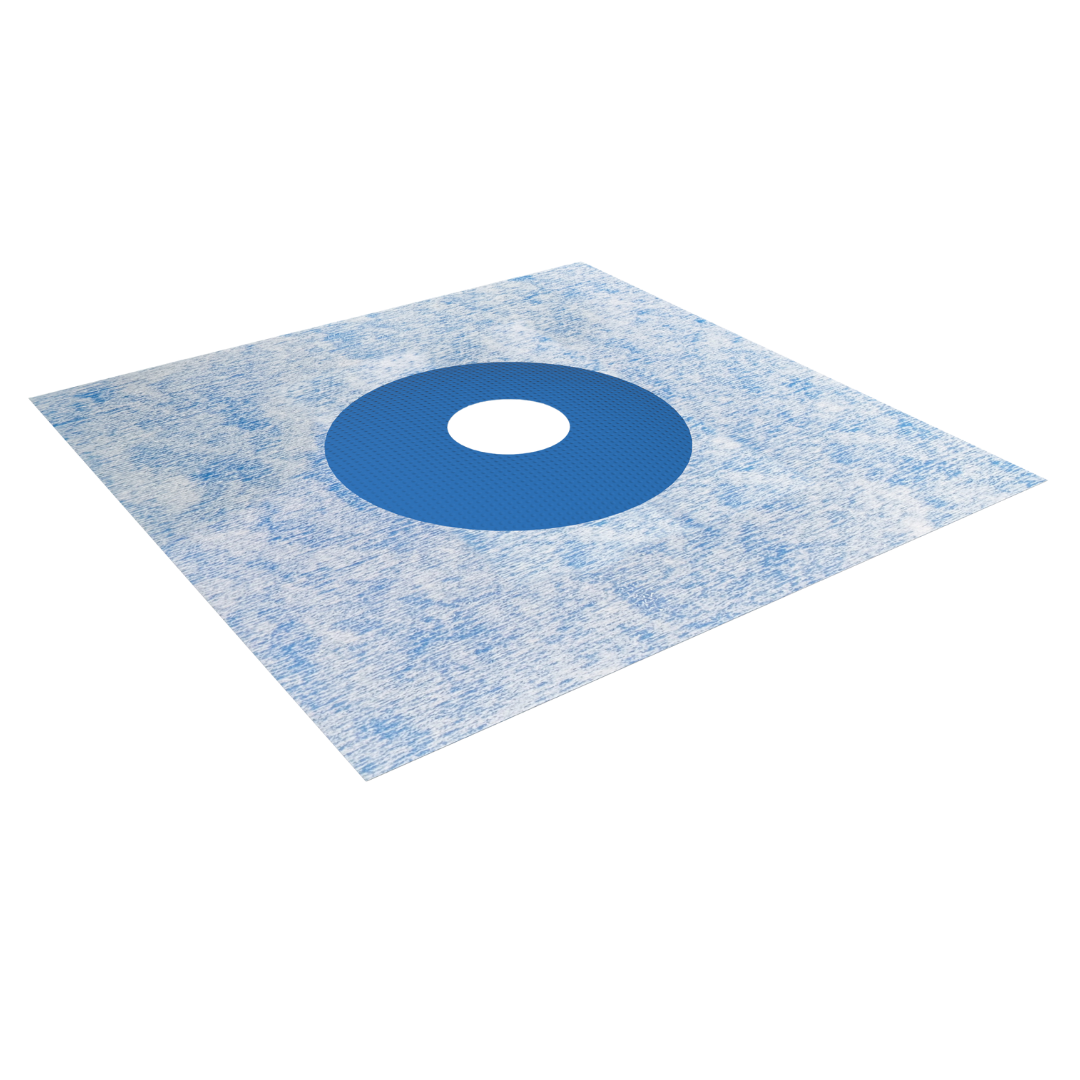

Forspec Superflex Tap Collar 120mm x 120mm waterproof pipe penetration collar for sealing tap outlets and pipe penetrations in internal and external waterproofing membrane systems.
Be the first to review

SUPERFLEX Tap Collars 12/12cm

Sale price$11.00
or 4 interest-free payments with

Pipe collars for waterproofing around penetrations. 12x12cm, flexible collar with band.

SUPERFLEX Collars are pre-formed flexible rubber collars designed to seal around pipes and penetrations passing through waterproofed surfaces. The 12x12cm collar compresses onto the pipe and bonds to the membrane.

What it's for

  • Sealing pipes, conduits and penetrations through waterproofed floors and walls
  • Works with all waterproofing membranes
  • Internal wet areas and external covered areas

Why waterproofers buy it

  • Pre-formed shape. No field fabrication needed
  • Flexible design seals various pipe diameters
  • Bonds to membrane and pipe without adhesive
  • Flexible band accommodates minor movement

Specs

12x12cm collar. Flexible rubber. For pipes 6 to 50mm diameter.

Not for

Large diameter pipes over 50mm, high-temperature applications, or areas subject to direct foot traffic.

Central elastic zone grips penetrations from 10 mm to 40 mm under its own recovery
Dual felt facings lock the collar inside the membrane from above and below
Pre-formed to a consistent size and shape, so the detail is repeatable rather than cut and dressed on site
7-Day Money Back 7-Day Money BackGuarantee
Fast Dispatch Fast DispatchNext Business Day
Expert Advice Expert Advice(02) 8021 3517
Secure Checkout Secure CheckoutSSL Encrypted
Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Forspec Superflex Tap Collar 120mm x 120mm waterproof pipe penetration collar for sealing tap outlets and pipe penetrations in internal and external waterproofing membrane systems.

SUPERFLEX Tap Collars 12/12cm

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517
SUPERFLEX Tap Collars 12/12cm
$11.00

Frequently bought together

Waterproofing Systems Built for Australian Conditions

Engineered to perform in the most demanding environments.

Bathroom Waterproofing System

For bathrooms, showers, ensuites, laundries and internal wet areas. Provides the primer, non-porous primer, detailing products and flexible waterproofing membrane required for waterproof and water-resistant floor and wall surfaces, junctions, penetrations and shower areas before tiling.

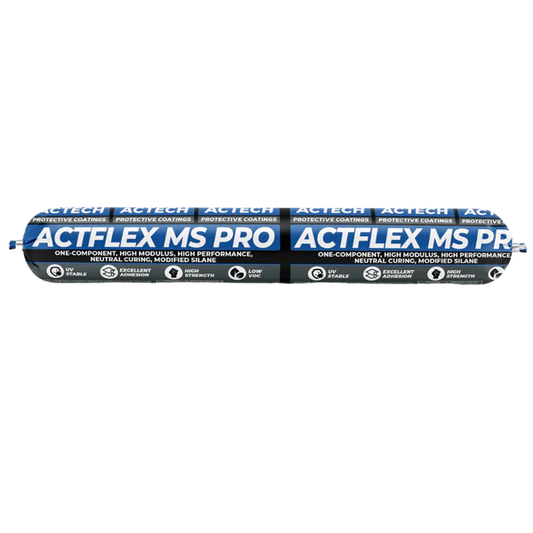

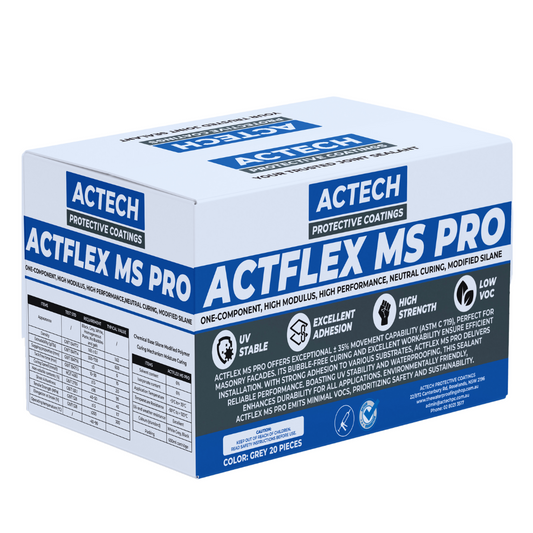

ACTFLEX 200 High-Adhesion Water-Based Primer ACTFLEX 200 ACTFLEX SuperPrime 008 ACTFLEX SUPERPRIME ACTFLEX 906 WPU Water-Based Polyurethane ACTFLEX 906 ACTFLEX MS Pro Joint Sealant Modified Polyurethane ACTFLEX MS PRO SUPERFLEX Joint Tape 150mm x 50m SUPERFLEX TAPE SUPERFLEX Tap Collars 12/12cm SUPERFLEX COLLARS Heavy Duty 230mm Roller Frame ROLLER FRAME

Optional add-onsACTFLEX BIOSET·ACTFLEX EP 250·FLOOD TEST BALLOON·LEAK DETECTION DYE

1

System Build-Up Guide

Correct application makes all the difference.

View All Details

Pool System Build-Up

  • 1 Concrete Substrate
  • 2 Crack Repair (if required)
  • 3 ACTFLEX FLEXPLUS
  • 4 ACTFLEX HYDROPLUG
  • 5 ACTFLEX AT MESH
  • 6 ACTFLEX 988 CWP (2 Coats)
  • 7 Tile Adhesive
  • 8 Pool Finish
Pool System Build-Up

Retaining Wall System Build-Up

  • 1 Concrete Substrate
  • 2 Crack Repair (if required)
  • 3 ACTFLEX MS PRO
  • 4 ACTFLEX AT MESH
  • 5 ACTFLEX 988 CWP (2 Coats)
  • 6 Protection Board (Optional)
  • 7 Drainage System
  • 8 Backfill
Retaining Wall System Build-Up

Tank System Build-Up

  • 1 Concrete Substrate
  • 2 Crack Repair (if required)
  • 3 ACTFLEX FLEXPLUS
  • 4 ACTFLEX AT MESH
  • 5 ACTFLEX 988 WMP (2 Coats)
  • 6 Protective Coating (Optional)
  • 7 Water
Tank System Build-Up

Technical overview

FORSPEC SUPERFLEX COLLAR is a pre-formed thermoplastic elastomer waterproofing collar laminated with a felt bonding layer on both faces, for pipe and tap penetrations. A central elastic zone stretches from a 10 mm penetration up to 40 mm, so the collar grips the pipe under its own recovery. It is a detailing component and not a waterproofing membrane, so it carries no AS/NZS 4858 or AS 4654.1 classification. Compliance is established by the membrane system in which it is embedded, installed in accordance with AS 3740:2021 and the National Construction Code, or AS 4654.2-2012 for external above-ground work. No accredited test report is held; the performance figures are indicative Forspec R&D characteristics.

Key applications

  • Tap penetrations in bathrooms, laundries and kitchens
  • Shower outlets and plumbing fixture penetrations
  • Pipe penetrations through walls and floors
  • External wall service penetrations
  • Commercial wet areas and plant rooms
  • Any liquid membrane system requiring a pre-formed penetration detail

The membrane must be wet during embedment. Do not install into tacky, semi-dry, skinned or cured membrane, as the felt will not saturate and the collar will not bond. Not a membrane: the collar must be embedded within a liquid membrane system and is not designed for stand-alone use. Not a substitute for proper sealing of large gaps or voids, which must be filled with ACTFLEX 75FC or ACTFLEX MS PRO before the collar is installed. The pipe or penetration must be rigid and securely fixed. Do not stretch beyond the 40 mm expansion limit. Deburr the pipe and remove sharp edges that may puncture the collar. Not suitable for UV-exposed applications without protection. Not suitable for negative pressure waterproofing. Do not tile or cover until the membrane has reached full cure per the membrane TDS.

Technical Specifications

Product TypePre-formed TPE waterproofing collar for pipe and tap penetrations
Material StructureThermoplastic elastomer elastic core with dual felt laminate
ColourBlue
Size120 mm x 120 mm
ThicknessApprox. 0.65 mm
Central Hole Size10 mm, expandable to 40 mm
Maximum Expansion40 mm, do not stretch beyond this limit
Elongation at BreakGreater than 320%*
Water Pressure ResistanceGreater than 1.5 bar*
Service Temperature Range-30C to +90C*
Membrane CompatibilityPolyurethane, cementitious and hybrid liquid membrane systems*
Installation RequirementEmbedded into wet membrane
PackagingSupplied as individual pre-formed collars
Shelf Life24 months, stored dry and shaded
Membrane ClassificationNot applicable, the collar is a detailing component and carries no AS/NZS 4858 or AS 4654.1 classification
Installation StandardsAS 3740:2021 and the National Construction Code for wet areas, AS 4654.2-2012 for external above-ground work
* Indicative design characteristics established by Forspec R&D on standard production material

Real Projects. Real Results.

View All Projects
  • Pool Renovation Pool Renovation Before After

    Pool Renovation

    Gold Coast, QLD

  • Below Ground Retaining Wall Below Ground Retaining Wall Before After

    Below Ground Retaining Wall

    Sydney, NSW

  • Concrete Water Tank Concrete Water Tank Before After

    Concrete Water Tank

    Perth, WA

  • Commercial Podium Commercial Podium Before After

    Commercial Podium

    Melbourne, VIC

  • Before After

    Swimming Pool Construction

    Brisbane, QLD

Watch the install

Step-by-step from prep to top coat. Filmed on the tools, not in a studio.

Watch the install poster

The Waterproofing Shop?

We supply premium waterproofing products backed by expert advice, fast service and real-world experience.

100% Australian Owned & Operated 100% Australian
Owned & Operated
30+ Years in the Waterproofing Industry 30+ Years in the
Waterproofing Industry
Thousands of Products in Stock Thousands of Products
in Stock
Fast Shipping Australia Wide Fast Shipping
Australia Wide
Expert Technical Support Expert Technical
Support

Frequently asked questions

View all FAQs
  • What are SUPERFLEX Tap Collars used for?
    Compatibility

    SUPERFLEX Tap Collars are pre-formed waterproofing collars that seal around taps, pipes, and wall penetrations in wet areas. The collar sits over the penetration and gets embedded into the liquid waterproofing membrane.

  • Specifications?
    Performance

    12cm x 12cm reinforced elastic membrane collar. Sized for 1/2 inch and 3/4 inch standard fixtures - covers the typical Australian residential plumbing penetration.

  • How are they installed?
    Installation

    Position the collar over the penetration, embed into the first coat of liquid membrane, smooth out any air pockets with a roller, then apply the second membrane coat over the collar flange. Tile or finish over the top.

  • Which membranes work with them?
    Compatibility

    Compatible with most liquid membranes and sheet systems including ACTFLEX 906 WPU, 929 HV/SL, 988 CWP, and 989 CWP. The collar reinforces the most leak-prone detail in any wet area.

  • Are they specified by Australian standards?
    Compliance

    AS3740:2021 requires penetrations to be sealed with a detailed waterproofing system. Pre-formed collars are the recommended professional method - more reliable than site-formed sealant collars.
