Pool System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX HYDROPLUG
- 5 ACTFLEX AT MESH
- 6 ACTFLEX 988 CWP (2 Coats)
- 7 Tile Adhesive
- 8 Pool Finish
PREFLEX 3000 Detailing Tape
or 4 interest-free payments with
The two detailing tapes for PREFLEX 3000. NS Tape for concealed laps, S Tape for exposed edges.
PREFLEX 3000 tapes close the laps and details on the PREFLEX 3000 pre-applied HDPE membrane. Unsanded NS Tape is double-sided and sits under the next sheet. Sanded S Tape has an adhesive underside and a sand-finished top for details that stay exposed to the fresh concrete.
What it's for

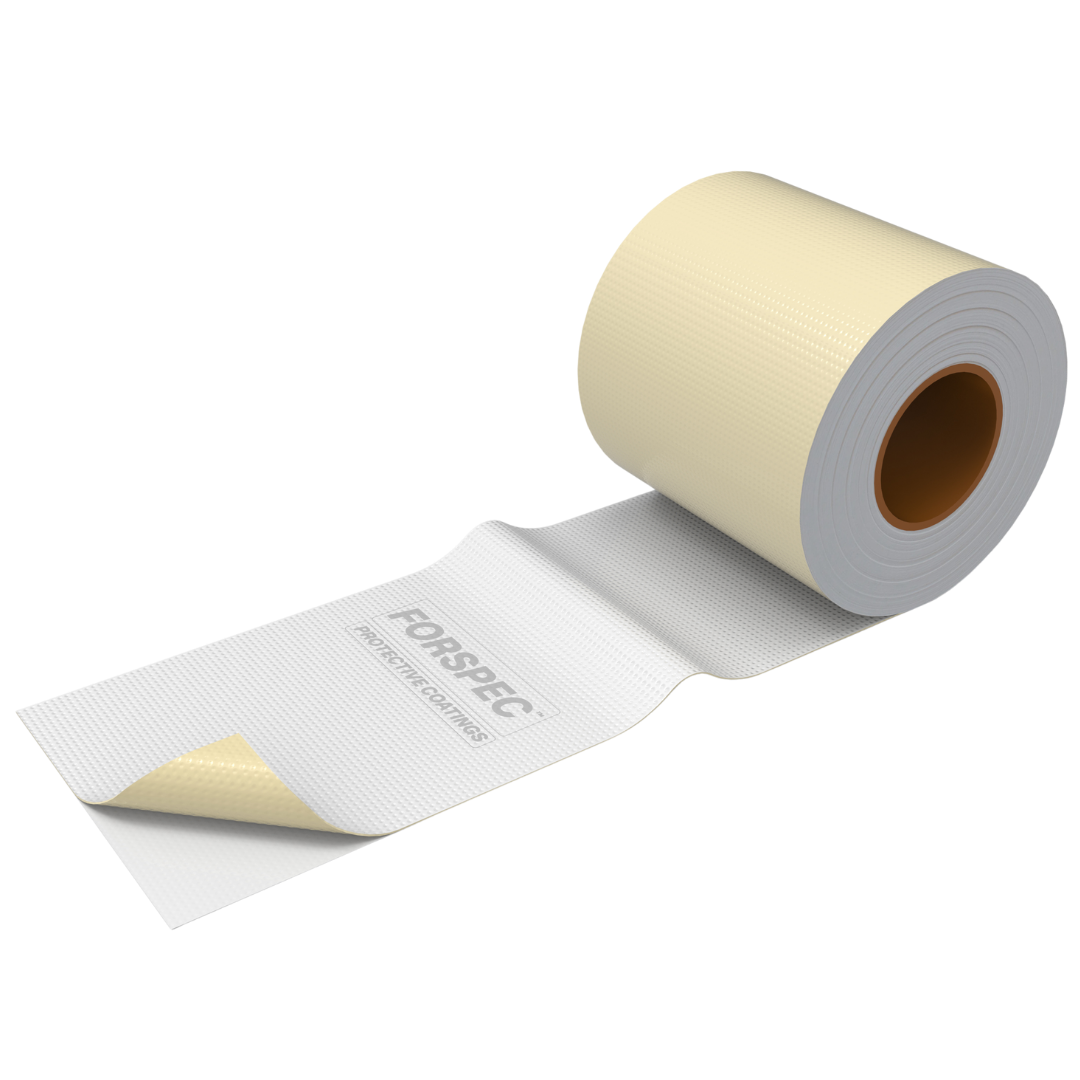

- NS Tape: concealed side and end laps, transitions and details where the next sheet bonds over it

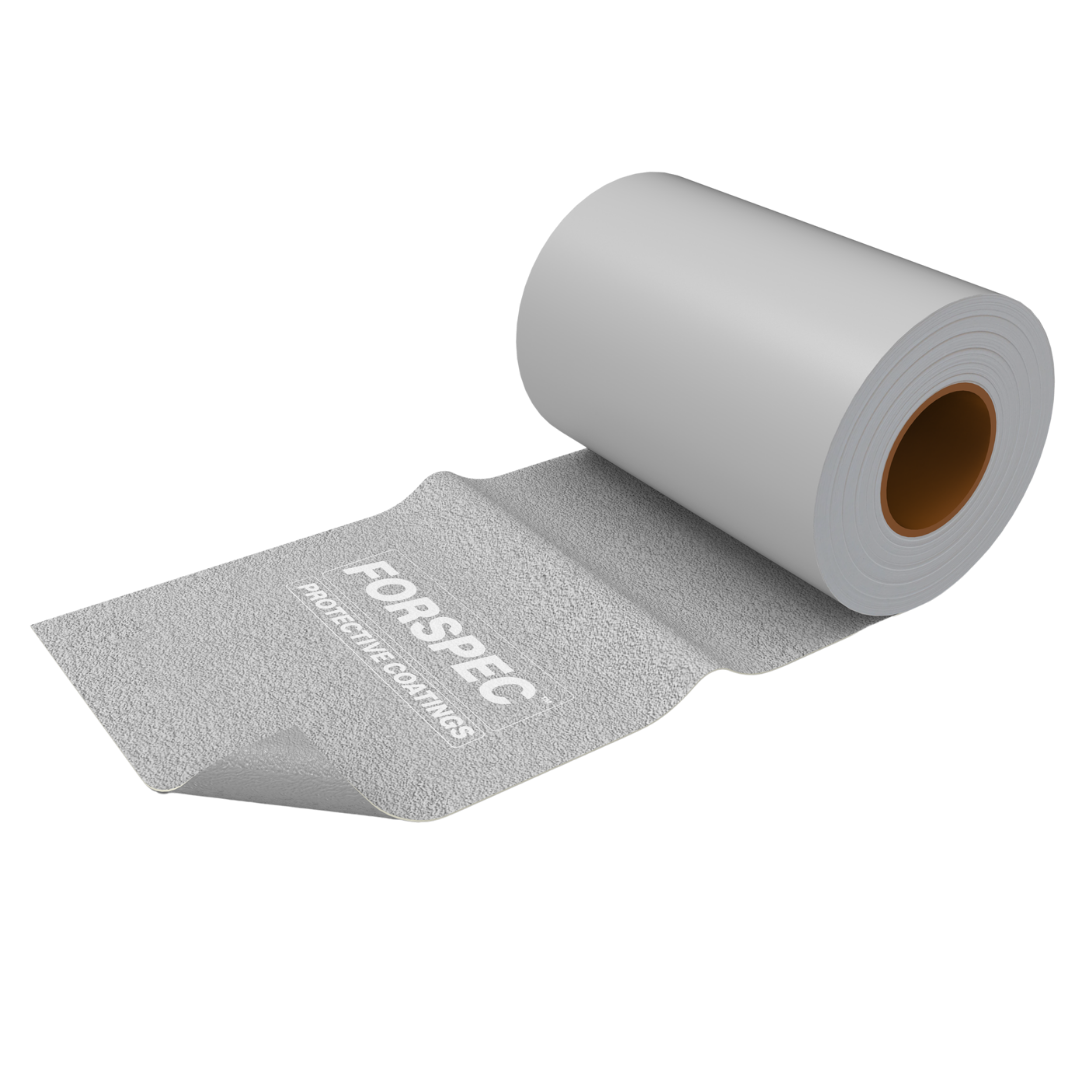

- S Tape: exposed terminations, edge sealing, circular corner pieces and repair sealing
Why waterproofers buy it
- Approved PREFLEX 3000 system components, so warranty eligibility holds
Specs
Variants: Unsanded (NS Tape, double-sided) and Sanded (S Tape, sand-finished top).
Not for
NS Tape must never stay exposed to fresh concrete or stand in for S Tape at an exposed detail. Surfaces clean and dry before closing. No screws or nails through any lap zone.
The double-sided concealed tape for PREFLEX 3000 side and end laps
Used beneath overlapping sheets at external corners and returns
Bonds PREFLEX 3000 repair patches for damage greater than 12 mm
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
PREFLEX 3000 Detailing Tape
Unsanded
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
How to Use
Technical Specifications
Product Files
PREFLEX 3000 Detailing Tape
Sale price$154.00
Frequently bought together
-
PREFLEX 3000 Detailing Tape $154.00
-
-
ACTFLEX 600 PRIMER Hybrid $88.00
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Technical overview
Key applications
- Concealed side and end laps between PREFLEX 3000 sheets
- Transitions and detailing where the next sheet bonds over the tape
- External corners and returns, beneath the overlapping sheets
- L-shaped wall-to-floor returns over the floor field
- Bonding PREFLEX 3000 patches where damage is greater than 12 mm
PREFLEX 3000 NS Tape must never remain exposed to fresh concrete - it is a concealed tape only, and must never be substituted for PREFLEX 3000 S Tape at an exposed detail. No NS Tape may be left exposed beyond a patch edge, and the pre-pour release cannot be signed off while any NS Tape is exposed. Selvedges and receiving surfaces must be clean and dry before closing, and standing water, mud and frost must not be trapped beneath laps. No screws, nails or washers through field sheets or any adhesive lap zone.
Technical Specifications
| Product Type | PREFLEX 3000 NS Tape, the double-sided seam and detail tape of the PREFLEX 3000 system |
| Function | Concealed side and end laps, transitions and detailing where the next sheet bonds over it |
| Face | Double-sided, no sand finish |
| Exposure Limit | Must never remain exposed to fresh concrete; it is a concealed tape only |
| Substitution | Must never be substituted for PREFLEX 3000 S Tape at an exposed detail |
| Companion Tape | PREFLEX 3000 S Tape, adhesive underside with a sand-finished top, for exposed terminations, edge sealing, circular corner pieces and repair sealing |
| Repair Use | Bonds PREFLEX 3000 patches for damage greater than 12 mm, with the patch extending at least 150 mm beyond the damage in every direction |
| Parent System | PREFLEX 3000 pre-applied fully bonded HDPE waterproofing membrane, 1.7 mm finished thickness |
| Installation Reference | PREFLEX 3000 Installation Manual and the applicable FORSPEC Waterproofing Specification |
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What is PREFLEX 3000 Detailing Tape used for?
CompatibilityPREFLEX 3000 Detailing Tape is a high-performance unsanded double-sided tape engineered specifically for the PREFLEX 3000 pre-applied HDPE sheet membrane system. Used at overlaps, terminations, and vertical-to-horizontal transitions.
-
Why no sand?
PerformanceThe standard PREFLEX 3000 membrane has a sand layer for mechanical interlock with concrete. The detailing tape omits the sand to allow direct bonding at lap edges and terminations - giving the cleanest possible weld at critical joins.
-
Where is it used?
InstallationApplied at PREFLEX 3000 sheet overlaps, around penetrations (pipe collars, drains), at the perimeter terminations of the membrane, and at vertical-to-horizontal transitions where two pieces of PREFLEX meet at right angles.
-
Is it compatible with other membranes?
CompatibilityPREFLEX 3000 Detailing Tape is engineered specifically for the PREFLEX 3000 system. For other membrane systems use the matched detailing tape from that system (FLEXTAPE for liquid membranes, SA TAPE for sheet detail work).
-
How thick is it?
PerformanceDouble-sided heat-reactive adhesive layer designed for sealed laps in tight areas. Refer to the PREFLEX 3000 installation manual for exact dimensions and roll specifications.
