What is BG 90 GP used for?

BG 90 GP is a high-strength non-shrink cementitious grout used for void filling, dry packings, column bases (steel and precast), and precast panel connections where structural performance is required.

Is BG 90 GP non-shrink?

Yes. BG 90 GP is formulated to be non-shrink in both the plastic and hardened states, ensuring full bearing contact for structural and precast applications.

What pourable consistency can BG 90 GP achieve?

BG 90 GP can be mixed at flowable, pourable, or dry-pack consistency depending on the application. Adjust water content within the specified range to suit the placement method.

What is the strength of BG 90 GP?

BG 90 GP achieves high compressive strength typical of structural grouts - refer to the TDS for specific 24-hour, 7-day, and 28-day strength values.

Can BG 90 GP be used outdoors?

Yes. BG 90 GP is suitable for both internal and external structural grouting applications, with good resistance to weathering once cured.

Be the first to review

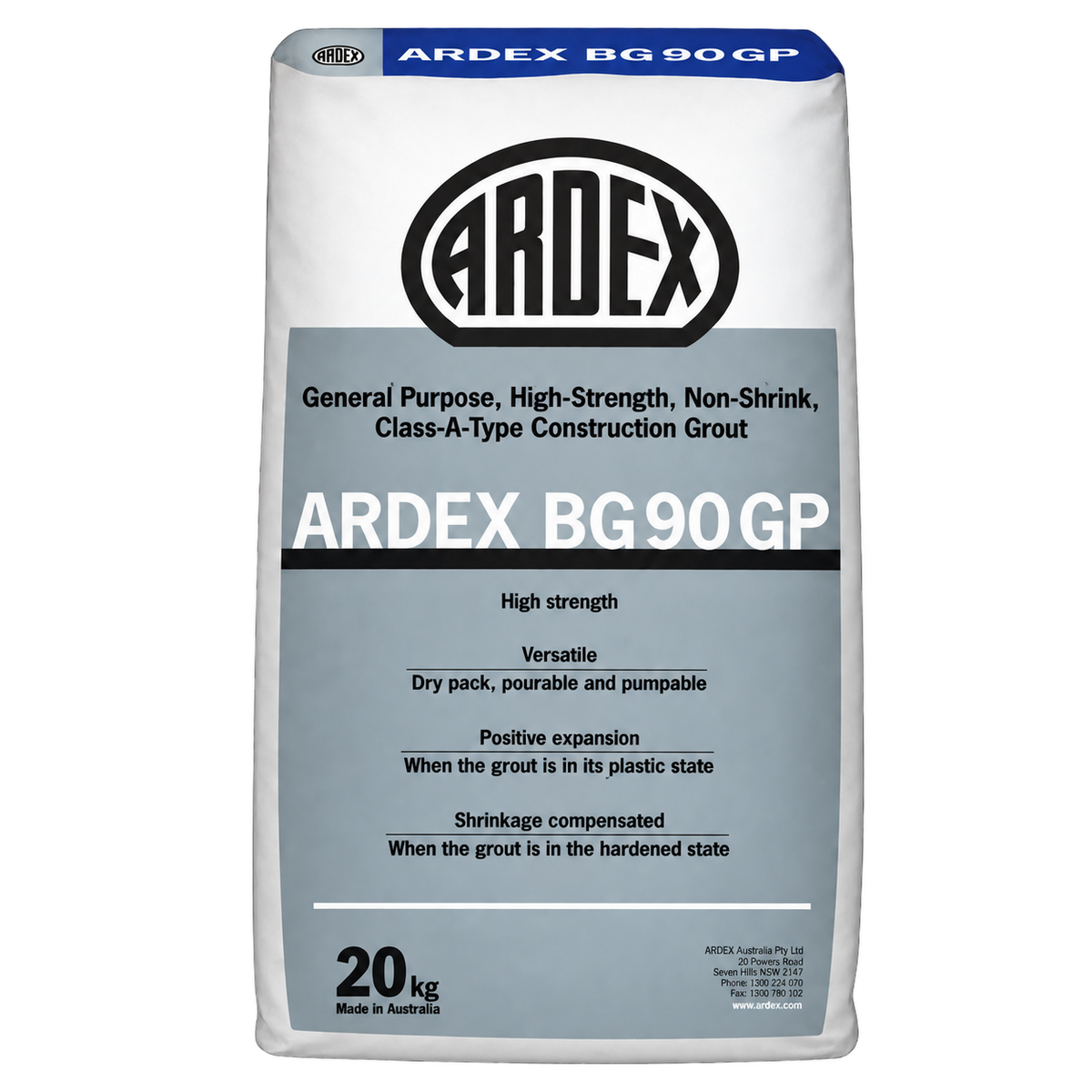

Ardex BG 90 GP

Name: Ardex BG 90 GP
Brand: Ardex
SKU: AARA128
Price: 22.95 AUD
Availability: InStock

$22.95

or 4 interest-free payments with

Class A construction grout. Dry pack, pour or pump from the one 20kg bag, 12mm to 100mm thick.

ARDEX BG 90 GP is a general purpose, high-strength, Class A cement-based construction grout. It expands while it is plastic and is shrinkage compensated once hardened. Change the water and the same bag mixes stiff, plastic or flowable.

Where to use it

Void filling and dry packing
Column bases, steel and precast concrete
Precast panel connections and between precast panels
Base plates, non-vibrating machine bases and equipment support

Why waterproofers buy it

Class A grout. Positive expansion in the plastic state, shrinkage compensated when hardened
Three consistencies from one bag: stiff at 2.2 to 2.8 L of water, plastic at 2.8 to 3.4 L, flowable at 3.4 to 4.0 L per 20kg
Designed for 12mm to 100mm thickness
28 day compressive strength of 75 MPa or more mixed stiff, 55 MPa plastic, 40 MPa flowable
20 minute pot life at 23°C. Initial set from 30 minutes mixed stiff
Tools wash up in water
ARDEX 10 year product guarantee

Coverage

Take off by the volume of the void. One 20kg bag yields about 9.5 litres of mixed grout stiff, 10.3 litres plastic or 10.9 litres flowable.

Not for

Structural repairs (use the ARDEX Concrete Repair Mortar range), vibrators, extra water beyond the stated amount, or substrate and ambient temperatures below 10°C or above 35°C. Keep the fresh grout from drying out for the first 7 days.

Pot life at 23°C.

Class A construction grout with positive expansion in the plastic state

Dry pack, pourable and pumpable from the one bag

Applications between 12mm and 100mm thickness

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Ardex BG 90 GP

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

Advantages:

High-strength formulation for superior compressive and flexural strength

Can be mixed to achieve a non-slump or pourable consistency, allowing flexibility in application

Positive expansion properties ensure optimal bonding and filling of voids

Shrinkage compensation minimizes the risk of cracking and ensures long-term stability

Where it can be used:

Ideal for construction and repair projects requiring high strength and stability

Suitable for grouting applications in both horizontal and vertical surfaces

Perfect for filling gaps, voids, and cavities in concrete structures

Versatile enough to be used in industrial, commercial, and residential settings

ARDEX BG 90 GP is the reliable and efficient choice for any project that demands exceptional performance and durability.

How to Use

Add the 20kg bag to the measured clean water, mix 3 to 5 minutes with a heavy duty mixer at 400 to 500 rpm, then dry pack, trowel or pour continuously from one side within the 20 minute working timeConfirm the grout thickness is between 12mm and 100mm
Remove all surface laitance and any damaged or contaminated concrete
Clean the substrate of grease, oil, dust and other contaminants such as coatings and scale
Abrade or roughen the substrate by mechanical methods such as grit blasting or scabbling to create maximum bond
Pre-soak the prepared substrate for preferably 24 hours and at least 2 hours
Build good quality rigid watertight formwork with sealable outlets so the pre-soak water can be removed
Keep any form release agent off the prepared concrete substrate
Remove excess freestanding water so the substrate is mat damp without standing water
Confirm ambient and substrate temperatures are between 10C and 35C
Measure the appropriate amount of clean water into a clean pail, then add the 20kg bag to the water while mixing
Mix for 3 to 5 minutes with a heavy duty mixer on low speed at 400 to 500 rpm until smooth and fully homogeneous
Place the mixed product immediately and within the 20 minute working time at 23C, discarding any material showing signs of stiffening
For trowel or dry pack baseplate work, finish the edging at a 45 degree slope from the underside of the baseplate and do not apply past the baseplate
For flowable work, pour from one side with a continuous flow to eliminate air pockets and residual pre-soak water
Never use vibrators with this product
Protect the freshly installed grout from excessive moisture loss for at least the first 7 days, using curing compounds or wet hessian covered by plastic sheeting
Clean all tools in water immediately after use

Technical Specifications

Product Type: General purpose, high-strength, Class A construction grout
Composition: Graded sand, portland cement and crystalline silica quartz
Expansion: Positive expansion in the plastic state, shrinkage compensated in the hardened state
Application Thickness: 12mm to 100mm
Consistencies: Stiff, plastic or flowable
Water per 20kg Bag: Stiff 2.2 - 2.8 L, plastic 2.8 - 3.4 L, flowable 3.4 - 4.0 L
Water Percentage per 20kg Bag: Stiff 12% - 14%, plastic 14% - 17%, flowable 17% - 20%
Yield (mixed) per 20kg Bag: Stiff 9.5, plastic 10.3, flowable 10.9
Mixed Mortar Density: Stiff 2.35kg/L, plastic 2.26kg/L, flowable 2.20kg/L
Pot Life: 20 minutes at 23C for all three consistencies
Initial Set: Stiff 30 minutes, plastic 2 - 4 hrs, flowable 4 - 6 hrs
Final Set: Stiff 30 mins - 1 hr, plastic 3 - 5 hrs, flowable 5 - 7 hrs
Compressive Strength, Stiff: 45 MPa or more at 1 day, 70 MPa or more at 7 days, 75 MPa or more at 28 days
Compressive Strength, Plastic: 30 MPa or more at 1 day, 50 MPa or more at 7 days, 55 MPa or more at 28 days
Compressive Strength, Flowable: 18 MPa or more at 1 day, 35 MPa or more at 7 days, 40 MPa or more at 28 days
Flexural Strength, Stiff: 5.5 MPa or more at 1 day, 9.5 MPa or more at 7 days, 11 MPa or more at 28 days
Flexural Strength, Plastic: 5.5 MPa or more at 1 day, 7 MPa or more at 7 days, 9 MPa or more at 28 days
Flexural Strength, Flowable: 3.5 MPa or more at 1 day, 6 MPa or more at 7 days, 7 MPa or more at 28 days
Application Ambient Temperature: 10C min to 35C max
Application Substrate Temperature: 10C min to 35C max
Mixing: Heavy duty mixer on low speed, 400 - 500 rpm, for 3 to 5 minutes until smooth and fully homogeneous
Substrate Pre-Soaking: Preferably 24 hours, at least 2 hours, left mat damp with no standing water
Curing: Protect from excessive moisture loss for the first 7 days minimum
Packaging: 20kg bag
Shelf Life: 12 months in the original unopened packaging in a dry place at 23C and 50% relative humidity
Hazard Classification: Hazardous chemical, non-dangerous goods; Poisons Schedule not applicable
* ARDEX publishes these as product characteristics with no test standard or accredited test report quoted

Product Files

Ardex BG 90 GP

$22.95

Frequently bought together

This item

Ardex BG 90 GP $22.95

Technical overview

ARDEX BG 90 GP is a general purpose, high-strength, Class A construction grout. The cement-based formulation contains additives that provide positive expansion while the grout is in its plastic state, and it is shrinkage compensated in the hardened state. It is designed for applications between 12mm and 100mm thickness and can be mixed stiff, plastic or flowable so the same bag can be dry packed, poured or pumped. It is used for void filling and dry packing, column bases, precast panel connections, base plates and equipment support. It is not designed for structural repair applications. ARDEX publishes the compressive and flexural strengths as product characteristics with no test standard, test report number or accredited certification quoted.

View full technical data sheet

Key applications

Void filling and dry packing
Column bases (steel and precast concrete)
Precast panel connections and between precast panels
Base plates and equipment support
Machine bases (non-vibrating)
General purpose grouting applications between 12mm and 100mm thickness

Surface suitability

Concrete (clean, sound and free from all grease, oil, dust and other contaminants such as coatings and scale)
Concrete (surface laitance, damaged or contaminated concrete totally removed)
Concrete (abraded or roughened by grit blasting or scabbling to create maximum bond)
Concrete (pre-soaked preferably 24 hours and at least 2 hours, left mat damp without standing water)
Precast concrete column bases and panel connections
Steel column bases and base plates

Do not add additional water to the suggested amount. Flowable applications must be completed in a continuous operation to greatly reduce air entrapment. Keep unrestrained areas to a minimum as this may reduce the final compressive strength and may cause cracking. Both setting and curing times will be affected by colder and warmer ambient and substrate temperatures. Substrate and ambient temperature must be a minimum of 10C and should not exceed 35C. Large or deep volumes of grout can generate excessive heat whilst hardening. This product is not designed for structural repair applications, refer to the ARDEX Concrete Repair Mortar range. Vibrators must never be used with this product. It is critical to protect the freshly installed grout from excessive moisture loss for the first 7 days minimum, or it may shrink and lose strength. Avoid applying past the baseplate as expansion and contraction of the baseplate may cause cracking. Hazardous chemical: may cause irritation and an allergic reaction to the skin, serious eye injury and irritation to the respiratory system. Wear protective gloves, clothing, eye and face protection and avoid inhaling dust.

Calculate your coverage

Enter area to cover (m²) m² Number of coats

You will need:

Ardex BG 90 GP

1kg

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Product Type	General purpose, high-strength, Class A construction grout
Composition	Graded sand, portland cement and crystalline silica quartz
Expansion	Positive expansion in the plastic state, shrinkage compensated in the hardened state
Application Thickness	12mm to 100mm
Consistencies	Stiff, plastic or flowable
Water per 20kg Bag	Stiff 2.2 - 2.8 L, plastic 2.8 - 3.4 L, flowable 3.4 - 4.0 L
Water Percentage per 20kg Bag	Stiff 12% - 14%, plastic 14% - 17%, flowable 17% - 20%
Yield (mixed) per 20kg Bag	Stiff 9.5, plastic 10.3, flowable 10.9
Mixed Mortar Density	Stiff 2.35kg/L, plastic 2.26kg/L, flowable 2.20kg/L
Pot Life	20 minutes at 23C for all three consistencies
Initial Set	Stiff 30 minutes, plastic 2 - 4 hrs, flowable 4 - 6 hrs
Final Set	Stiff 30 mins - 1 hr, plastic 3 - 5 hrs, flowable 5 - 7 hrs
Compressive Strength, Stiff	45 MPa or more at 1 day, 70 MPa or more at 7 days, 75 MPa or more at 28 days
Compressive Strength, Plastic	30 MPa or more at 1 day, 50 MPa or more at 7 days, 55 MPa or more at 28 days
Compressive Strength, Flowable	18 MPa or more at 1 day, 35 MPa or more at 7 days, 40 MPa or more at 28 days
Flexural Strength, Stiff	5.5 MPa or more at 1 day, 9.5 MPa or more at 7 days, 11 MPa or more at 28 days
Flexural Strength, Plastic	5.5 MPa or more at 1 day, 7 MPa or more at 7 days, 9 MPa or more at 28 days
Flexural Strength, Flowable	3.5 MPa or more at 1 day, 6 MPa or more at 7 days, 7 MPa or more at 28 days
Application Ambient Temperature	10C min to 35C max
Application Substrate Temperature	10C min to 35C max
Mixing	Heavy duty mixer on low speed, 400 - 500 rpm, for 3 to 5 minutes until smooth and fully homogeneous
Substrate Pre-Soaking	Preferably 24 hours, at least 2 hours, left mat damp with no standing water
Curing	Protect from excessive moisture loss for the first 7 days minimum
Packaging	20kg bag
Shelf Life	12 months in the original unopened packaging in a dry place at 23C and 50% relative humidity
Hazard Classification	Hazardous chemical, non-dangerous goods; Poisons Schedule not applicable
* ARDEX publishes these as product characteristics with no test standard or accredited test report quoted
