Marmox Prefabricated Shower Niches
or 4 interest-free payments with

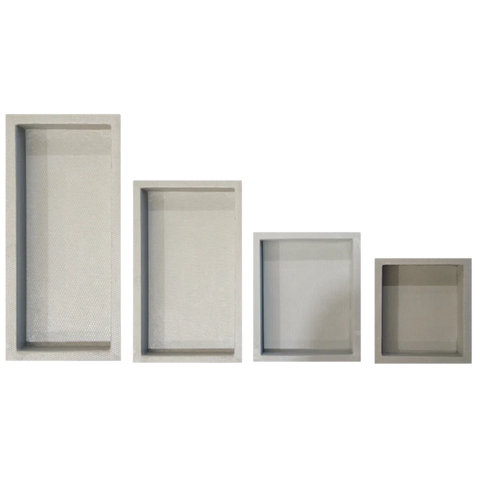

Prefabricated, waterproof, tile-ready shower niche. It comes already built, so the size is guaranteed.
Marmox Shower Niches are waterproof, tile-ready wall cavity units for recessed storage in wet walls. Each niche is an extruded polystyrene (XPS) core coated on both sides with fibreglass-reinforced polymer cement. They come already constructed and fit walls with cavities 86 mm or deeper.
What it's for
- A recess for toiletries in showers and other wet areas
- Bathroom walls, wet rooms, laundries and vanity walls
Why waterproofers buy it
- 100% waterproof and vapour resistant, negligible water absorption
- Reinforced cementitious faces take tile adhesive direct: mosaic, porcelain or ceramic
- Continuous flange around the niche ties into the wall sheeting
Specs
Internal sizes: Small 260 x 300 mm, Medium 380 x 300 mm, Large 550 x 300 mm, Extra Large 700 x 300 mm. Fits wall cavities 86 mm or deeper. Cut the opening to the niche external dimensions, nog all 4 sides, fix with approved Marmox adhesives, and seal every perimeter joint with Marmox Waterproofing Tape before tiling.
Not for
Wall cavities shallower than 86 mm.
Supplied fully constructed, so conformity and size are guaranteed
100% waterproof and vapour resistant, with cementitious faces ready to tile
Built-in falls to 2 sides allow gravity drainage
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
Marmox Prefabricated Shower Niches
260mm x 300mm
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Product Details
Technical Specifications
What's Included?
Product Files
No documentation available for this product.
Marmox Prefabricated Shower Niches
Sale price$66.00
Frequently bought together
-
-
FORSPEC Spike Shoes $100.00 -
Ardex SE Silicone $23.95 -
Predator Gauge 5-in-1 Tool $65.00
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Key applications
- Recessed storage areas in wet walls
- Shower recesses for toiletries
- Bathroom walls
- Wet rooms
- Laundries
- Vanity walls
- New wet room builds using Marmox construction board wall sheeting
Surface suitability
- Wall cavities 86mm deep or deeper
- Marmox construction board wall sheeting
- Wall substrates cut out to match the niche external dimensions, with nogging supporting all 4 sides
- Tiled finishes in mosaic, porcelain or ceramic, applied directly to the cementitious face
Fits walls with cavities 86mm or deeper only - confirm the cavity depth before ordering. Cut the wall opening to match the niche external dimensions and insert nogging to support all 4 sides; the niche is not designed to span an unsupported opening. Fix with approved Marmox adhesives and mechanical fixings where required. Waterproof performance depends on the installation: seal all perimeter joints with Marmox Waterproofing Tape, reinforce corners and edges where required to maintain waterproof continuity, and check that all joints and penetrations are sealed before tiling. Built-in falls run to 2 sides only, so drainage depends on installation orientation. Marmox publishes no depth, weight, load rating, fire rating or standards certification for these niches.
Technical Specifications
| Product Type | Prefabricated tile-ready shower niche, supplied already constructed |
| Core Material | Extruded polystyrene (XPS) |
| Facing | Polymer-modified cement coating reinforced with fibreglass mesh, both sides |
| Surface | Tile-ready cementitious coating |
| Waterproofing | 100% waterproof and vapour resistant |
| Water Absorption | Negligible |
| Vapour Resistance | High |
| Drainage | Built-in falls to 2 sides for gravity drainage, depending on installation orientation |
| Thermal Performance | Provides thermal insulation |
| Minimum Wall Cavity | 86mm |
| Internal Size, Small | 260mm x 300mm |
| Internal Size, Medium | 380mm x 300mm |
| Internal Size, Large | 550mm x 300mm |
| Internal Size, Extra Large | 700mm x 300mm |
| Tile Compatibility | Mosaic, porcelain and ceramic tiles |
| Edge Detail | Continuous flange around the niche for integration with the wall sheeting |
What's Included
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What are Marmox shower niches?
CompatibilityMarmox Prefabricated Shower Niches are factory-built, fully waterproofed XPS-cored niche boxes that fit into wall framing. They eliminate the need to site-build and waterproof niche cavities, saving hours of waterproofing detail work per shower.
-
How are they installed?
InstallationFix into the wall stud cavity at the desired height, screw the flange to the studs, then waterproof the niche-to-wall flange using ACTFLEX 906 WPU or similar liquid membrane. Tile the niche interior using standard tile adhesive.
-
Are they pre-waterproofed?
PerformanceYes. The XPS core is closed-cell and waterproof, and the polymer-modified cement coating bonds directly to waterproofing membranes. You still need to seal the perimeter flange to the surrounding wall membrane.
-
What sizes are available?
CompatibilityMarmox niches are available in multiple standard sizes including double-shelf options. Refer to the variant selector for current sizing and shelf configurations.
-
Are they compliant with AS3740?
ComplianceYes. When installed per the manufacturer's instructions and integrated with a compliant wet-area waterproofing membrane (ACTFLEX or equivalent), the niche assembly meets AS3740:2021 requirements for wet area waterproofing.
