Site Inspector Trinity Reach Blades Fillet/Bond Breaker Measurement

$65.00

or 4 interest-free payments with

Introducing THE TRINITY BLADES by Site Inspector - The Essential Tools for Hard-to-Reach Locations in the Building Industry. Reach Blade III is engineered with an eye for detail, designed to deliver a 12mm minimum fillet/bond breaker measurement. This adheres to the AS 3740 standards for Class III liquid membrane applications.

One blade per standard - 15mm x 15mm, 35mm and 12mm fillet and bond breaker checks

Reaches under sliding doors and into corners a standard gauge cannot

Hardened 420 stainless steel, 1.2mm thick

Style: Reach Blade I 15x15mm

Reach Blade I 15x15mm$65.00Reach Blade II 35mm$65.00REACH BLADE III – 12MM$70.00

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Site Inspector Trinity Reach Blades Fillet/Bond Breaker Measurement

Reach Blade I 15x15mm

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

The three blades in THE TRINITY BLADES set are as follows:

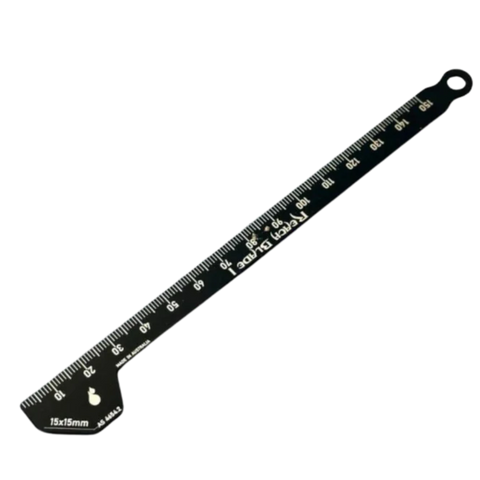

Designed to provide a 15mm x 15mm minimum fillet/bond breaker measurement, as required by AS 4654.2, for external liquid membrane applications.
Engineered to deliver a 35mm minimum fillet/bond breaker measurement, as per the AS 3740 requirements for class II liquid membrane applications.
Optimised for a 12mm minimum fillet/bond breaker measurement, conforming to AS 3740 standards for class III liquid membrane applications.

Each tool in THE TRINITY BLADES series integrates a 150mm ruler, facilitating easy measurement of the vertical membrane termination height from the structural floor or 25mm above the finished floor level, as required by AS 3740 + more!

The innovative design and tactical size of these gauges provide unrivalled access to challenging areas - be it under sliding doors leading to balconies or hard-to-reach corners. Being the only tools of their kind on the market, THE TRINITY BLADES are an indispensable addition to your professional toolkit.

Each gauge is manufactured from hardened 420 Stainless Steel and measures 1.2mm in thickness, ensuring durability and longevity.

THE TRINITY BLADES are more than just tools; they are an essential companion for various professionals, including:

Waterproofing Applicators
Builders
Site Managers
Building Consultants & Inspectors
Third Party Compliance Testers
Membrane Manufacturer Representatives

These professionals can attest to the significance of precision and efficiency in their roles. Always remember to verify the fillet/bond breaker dimensions with the product manufacturer's Technical Data Sheet to ensure alignment with the membrane system and compliance with the Australian standards.

Choose THE TRINITY BLADES - where precision meets accessibility and efficiency.

Technical Specifications

Tool Type: Fillet and bond breaker reach gauges, sold one blade per order
Reach Blade I: 15mm x 15mm minimum fillet/bond breaker, AS 4654.2, external liquid membrane applications
Reach Blade II: 35mm minimum fillet/bond breaker, AS 3740, Class II liquid membrane applications
Reach Blade III: 12mm minimum fillet/bond breaker, AS 3740, Class III liquid membrane applications
Integrated Ruler: 150mm on Reach Blade I and Reach Blade II
Material: Hardened 420 stainless steel
Thickness: 1.2mm
No technical data sheet is published for these tools. The figures above are the manufacturer's published specification.

What's Included?

1 x Reach Blade in the variant selected
Reach Blade I 15x15mm, Reach Blade II 35mm or Reach Blade III 12mm

Product Files

No documentation available for this product.

Site Inspector Trinity Reach Blades Fillet/Bond Breaker MeasurementReach Blade I 15x15mm

$65.00

Frequently bought together

This item

Site Inspector Trinity Reach Blades Fillet/Bond Breaker Measurement $65.00
Add

Flood Test Balloon $28.00
Add

3-in-1 Taper Gauge Inspection Tool $85.00
Add

Predator Gauge 5-in-1 Tool $65.00

Key applications

Measuring fillet and bond breaker size in challenging and hard-to-reach locations
Checking 15mm x 15mm fillets to AS 4654.2 on external liquid membrane applications
Checking 35mm bond breakers to AS 3740 for Class II liquid membranes
Checking 12mm bond breakers to AS 3740 for Class III liquid membranes
Measuring vertical membrane termination height from the structural floor
Checking membrane termination 25mm above finished floor level
Measuring side laps and end laps of sheet membranes
Access under sliding doors leading to balconies and into hard-to-reach corners

Measuring gauge only. Always verify the fillet and bond breaker dimensions with the product manufacturer's Technical Data Sheet to ensure alignment with the membrane system and compliance with the Australian standards. Each blade is calibrated to one dimension only: Reach Blade I to the 15mm x 15mm AS 4654.2 fillet for external liquid membranes, Reach Blade II to the 35mm AS 3740 Class II bond breaker and Reach Blade III to the 12mm AS 3740 Class III bond breaker. Blades are sold one per order, not as a three piece set, so order the blade that matches the membrane class you are inspecting.

Technical Specifications

Tool Type	Fillet and bond breaker reach gauges, sold one blade per order
Reach Blade I	15mm x 15mm minimum fillet/bond breaker, AS 4654.2, external liquid membrane applications
Reach Blade II	35mm minimum fillet/bond breaker, AS 3740, Class II liquid membrane applications
Reach Blade III	12mm minimum fillet/bond breaker, AS 3740, Class III liquid membrane applications
Integrated Ruler	150mm on Reach Blade I and Reach Blade II
Material	Hardened 420 stainless steel
Thickness	1.2mm
No technical data sheet is published for these tools. The figures above are the manufacturer's published specification.

What's Included

1 x Reach Blade in the variant selected
Reach Blade I 15x15mm, Reach Blade II 35mm or Reach Blade III 12mm

Site Inspector Trinity Reach Blades Fillet/Bond Breaker Measurement

Why trade professionals choose Site Inspector

Site Inspector gauges are pocket sized measurement tools for waterproofers, tilers and building inspectors who need to verify a detail rather than eyeball it. The range covers fillet and bond breaker sizing, taper and gap checking, and quick multi-tool measurement on site, supplied to the Australian trade. Small enough to carry every day, and just as useful whether you are installing the system or signing it off.
