How is Colphene 3000 installed?

Cold-applied — peel back the silicone release film and adhere the membrane to a primed substrate. Use a hand roller to remove air pockets as you go.

Which primer is required?

Substrate must be primed with Elastocol Stick or Elastocol Stick H2O before installation. Do not install on unprimed concrete.

What is the roll size?

Each roll is 1 m × 18.7 m, covering 18.7 m². Single-layer application for most below-grade waterproofing systems.

When can backfill occur?

Once the membrane is fully adhered and a protection or drainage board is installed, backfilling can proceed immediately. Always protect before backfill.

What conditions does it need?

Substrates must be clean, dry and solid. Apply over primer that is fully dry. Do not install in rain or onto frozen surfaces.

Where can it be used?

Below-grade foundation walls, retaining walls, planter boxes and tanking applications. Not suitable for UV-exposed roofing.

Be the first to review

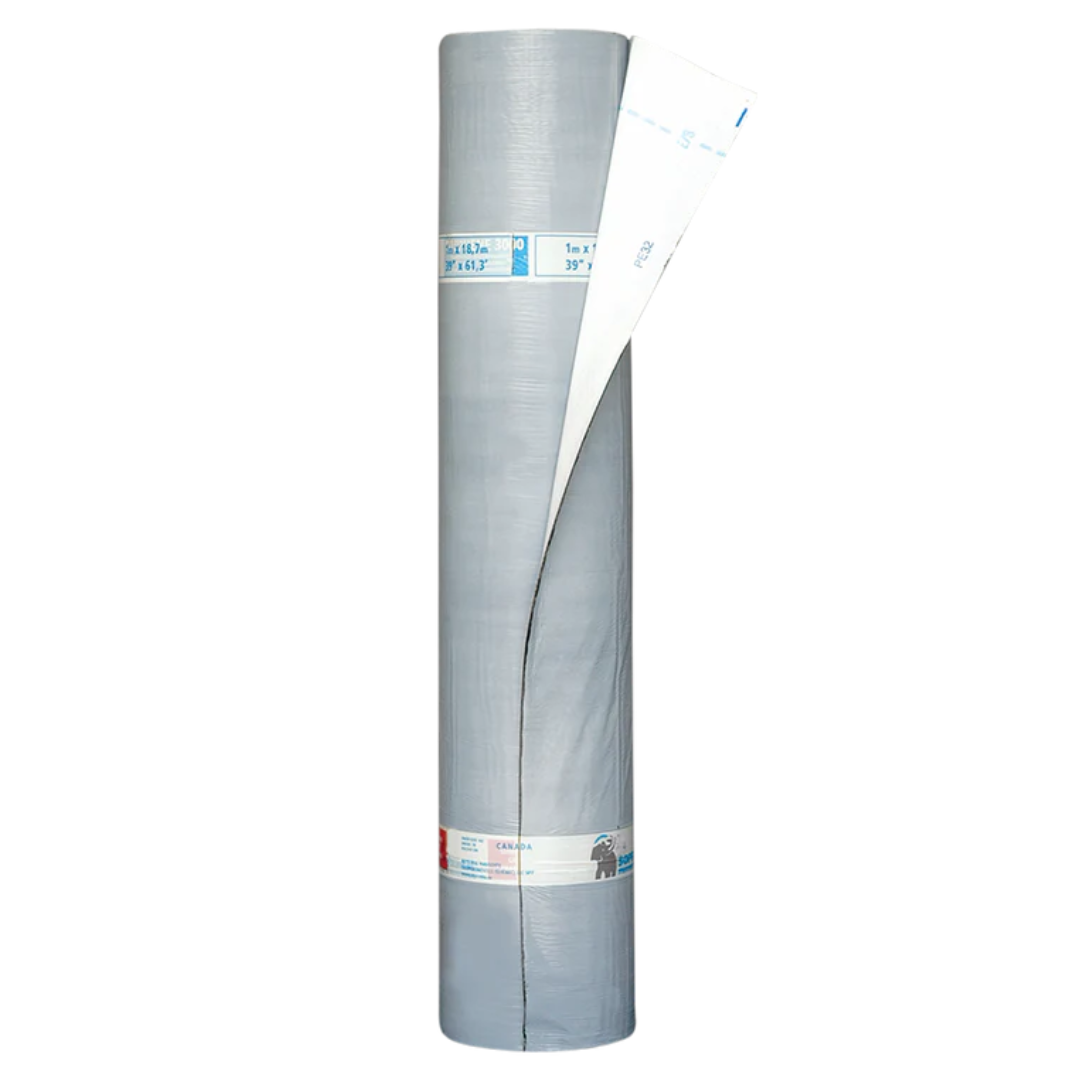

Soprema Colphene 3000

Name: Soprema Colphene 3000
Brand: Soprema
SKU: SSOS40
Price: 387.34 AUD
Availability: OutOfStock

$387.34

Sold out

or 4 interest-free payments with

Discover SOPREMA's high-performance self-adhesive waterproofing membrane, featuring a powerful combination of SBS modified bitumen and a tri-laminated woven polyethylene facer.

Self-adhered peel and stick, installed cold over a prepared substrate

Resistance to hydrostatic head of 114 m minimum (ASTM D5385)

High-density cross-laminated HDPE carrier film with superior mechanical properties

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup currently unavailable at The Waterproofing Shop

Soprema Colphene 3000

The Waterproofing Shop

Pickup currently unavailable

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

This advanced solution provides exceptional durability and protection against water infiltration, making it an ideal choice for your painting and waterproofing needs. Explore its advantages and various applications below.

Trust SOPREMA's self-adhesive waterproofing membrane to provide unmatched performance, reliability, and peace of mind for your painting and waterproofing needs.

How to Use

Peel off the silicone release film, adhere to the primed substrate, then apply pressure over the whole surface with a membrane rollerConfirm all surfaces are smooth, dry and free of ice, snow or any other substance that may prevent the membrane from adhering properly
Accept the substrate before starting - commencement of installation is taken as acceptance of the substrate by the applicator
Apply ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O to the prepared substrate
Peel off the silicone release film and adhere the membrane to the support
Lap side joints a minimum of 75 mm and end joints a minimum of 150 mm
Apply pressure over the whole surface with a membrane roller to ensure good contact
Seal details and critical areas with SOPRAMASTIC or SOPRAMASTIC ALU and ALSAN FLASHING or ALSAN FLASHING JARDIN
Protect the membrane with SOPRABOARD protection board or SOPRADRAIN drainage boards prior to backfilling

Technical Specifications

Membrane Classification: Self-adhering SBS modified bitumen sheet membrane
Chemical Base: Select blend of elastomeric SBS modified bitumen
Surface: High-density cross-laminated HDPE carrier film
Underface: Silicone release protection film, peeled at installation
Thickness: 1.5 mm
Roll Dimensions: 18.7 m x 1 m
Roll Weight: 29 kg
Rolls per Pallet: 30
Tensile Strength MD/XD: 11.3 / 15.4 kN/m (ASTM D5147)
Tensile Strength MD/XD: 11.2 / 13.1 MPa (ASTM D412)
Ultimate Elongation MD/XD: 88 / 55 % (ASTM D412)
Ultimate Elongation MD/XD: 40 / 25 % (ASTM D5147)
Elongation of Rubberised Asphalt: Greater than 1000 % (ASTM D5147)
Flexibility at Cold Temperature: -35C (ASTM D5147)
Static Puncture: 747 N (ASTM E154)
Static Puncture: 400 N (ASTM D5602)
Tear Resistance MD/XD: 375 / 400 N (ASTM D5601)
Lap Adhesion: 2000 N/m (ASTM D1876)
Water Absorption: 0.1 % max (ASTM D5147)
Peel Resistance: 3500 N/m (ASTM D903)
Water Vapour Permeance: 0.49 ng/Pa.s.m2, 0.0086 perm (ASTM E96 Method B)
Crack Cycling, 100 cycles: Unaffected (ASTM C836)
Resistance to Hydrostatic Head: 114 m min. (ASTM D5385)
Adhesion Strength to Concrete, Not Primed: 560 N/m (ASTM D1000)
Adhesion Strength to Concrete, Combined with Primer: 1650 N/m (ASTM D1000)
Minimum Side Lap: 75 mm
Minimum End Lap: 150 mm
Required Primer: ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O
Shelf Life: 24 months, properly stored
Third Party Marks on the TDS: CERTIFICATE 21/5915 and Appraisal No.1037 [2018]
Testing and Approvals: Tested to ASTM Standards, BBA certified and BRANZ appraised (COLPHENE self-adhesive membrane range)

Product Files

Frequently bought together

This item

Soprema Colphene 3000 $387.34

Technical overview

COLPHENE 3000 is a self-adhering sheet membrane manufactured from a select blend of elastomeric SBS modified bitumen. The surface is a high-density cross-laminated HDPE carrier film and the underface is covered with a release protection film. It is designed for buried foundation walls and other below grade surfaces, in single-ply or two-ply assemblies, on masonry, concrete and wood. Performance is published against ASTM test methods only. The technical data sheet claims no AS/NZS 4858 or AS 4654.1 classification. Soprema states that the COLPHENE self-adhesive membranes are BBA certified and BRANZ appraised, and the sheet carries CERTIFICATE 21/5915 and Appraisal No.1037 [2018].

View full technical data sheet

Key applications

Buried foundation walls and other below grade surfaces
Retaining walls
Foundations
Plaza decks
Vertical and horizontal application on masonry, concrete and wood
Single-ply or two-ply assemblies

Surface suitability

Concrete (primed with ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O)
Masonry (primed with ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O)
Timber (primed with ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O)

Primer is mandatory - ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O is required before installation. No work should be started until all surfaces are smooth, dry and free of ice, snow or any other substance that may prevent the membrane from adhering properly. Prior to backfilling, protect the membrane with SOPRABOARD protection board or SOPRADRAIN drainage boards. Rolls must be stored upright, and covered with an opaque protection cover if stored outdoors.

Calculate your coverage

Enter area to cover (m²) m²

You will need:

Soprema Colphene 3000

1 m × 18.7 m roll

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Membrane Classification	Self-adhering SBS modified bitumen sheet membrane
Chemical Base	Select blend of elastomeric SBS modified bitumen
Surface	High-density cross-laminated HDPE carrier film
Underface	Silicone release protection film, peeled at installation
Thickness	1.5 mm
Roll Dimensions	18.7 m x 1 m
Roll Weight	29 kg
Rolls per Pallet	30
Tensile Strength MD/XD	11.3 / 15.4 kN/m (ASTM D5147)
Tensile Strength MD/XD	11.2 / 13.1 MPa (ASTM D412)
Ultimate Elongation MD/XD	88 / 55 % (ASTM D412)
Ultimate Elongation MD/XD	40 / 25 % (ASTM D5147)
Elongation of Rubberised Asphalt	Greater than 1000 % (ASTM D5147)
Flexibility at Cold Temperature	-35C (ASTM D5147)
Static Puncture	747 N (ASTM E154)
Static Puncture	400 N (ASTM D5602)
Tear Resistance MD/XD	375 / 400 N (ASTM D5601)
Lap Adhesion	2000 N/m (ASTM D1876)
Water Absorption	0.1 % max (ASTM D5147)
Peel Resistance	3500 N/m (ASTM D903)
Water Vapour Permeance	0.49 ng/Pa.s.m2, 0.0086 perm (ASTM E96 Method B)
Crack Cycling, 100 cycles	Unaffected (ASTM C836)
Resistance to Hydrostatic Head	114 m min. (ASTM D5385)
Adhesion Strength to Concrete, Not Primed	560 N/m (ASTM D1000)
Adhesion Strength to Concrete, Combined with Primer	1650 N/m (ASTM D1000)
Minimum Side Lap	75 mm
Minimum End Lap	150 mm
Required Primer	ELASTOCOL STICK PRIMER or ALSAN EP 100 H2O
Shelf Life	24 months, properly stored
Third Party Marks on the TDS	CERTIFICATE 21/5915 and Appraisal No.1037 [2018]
Testing and Approvals	Tested to ASTM Standards, BBA certified and BRANZ appraised (COLPHENE self-adhesive membrane range)

Frequently asked questions

View all FAQs

How is Colphene 3000 installed?

Application
Cold-applied — peel back the silicone release film and adhere the membrane to a primed substrate. Use a hand roller to remove air pockets as you go.
Which primer is required?

Compatibility
Substrate must be primed with Elastocol Stick or Elastocol Stick H2O before installation. Do not install on unprimed concrete.
What is the roll size?

Coverage & Coats
Each roll is 1 m × 18.7 m, covering 18.7 m². Single-layer application for most below-grade waterproofing systems.
When can backfill occur?

Cure & Dry Time
Once the membrane is fully adhered and a protection or drainage board is installed, backfilling can proceed immediately. Always protect before backfill.
What conditions does it need?

Storage
Substrates must be clean, dry and solid. Apply over primer that is fully dry. Do not install in rain or onto frozen surfaces.
Where can it be used?

Performance
Below-grade foundation walls, retaining walls, planter boxes and tanking applications. Not suitable for UV-exposed roofing.

Why trade professionals choose Soprema

Soprema is a French waterproofing manufacturer whose torch applied and liquid applied systems are supplied to the Australian trade. The range stocked here covers Soprasun Plus sheet membranes for roof and balcony work, Colphene 3000 for below ground and retaining wall work, Alsan Flashing liquid detailers for junctions and penetrations, and the Elastocol Stick and AntiRock primers that go underneath them. It is a system led range, so most jobs pull a primer, a membrane and a detailing product from the same brand.
