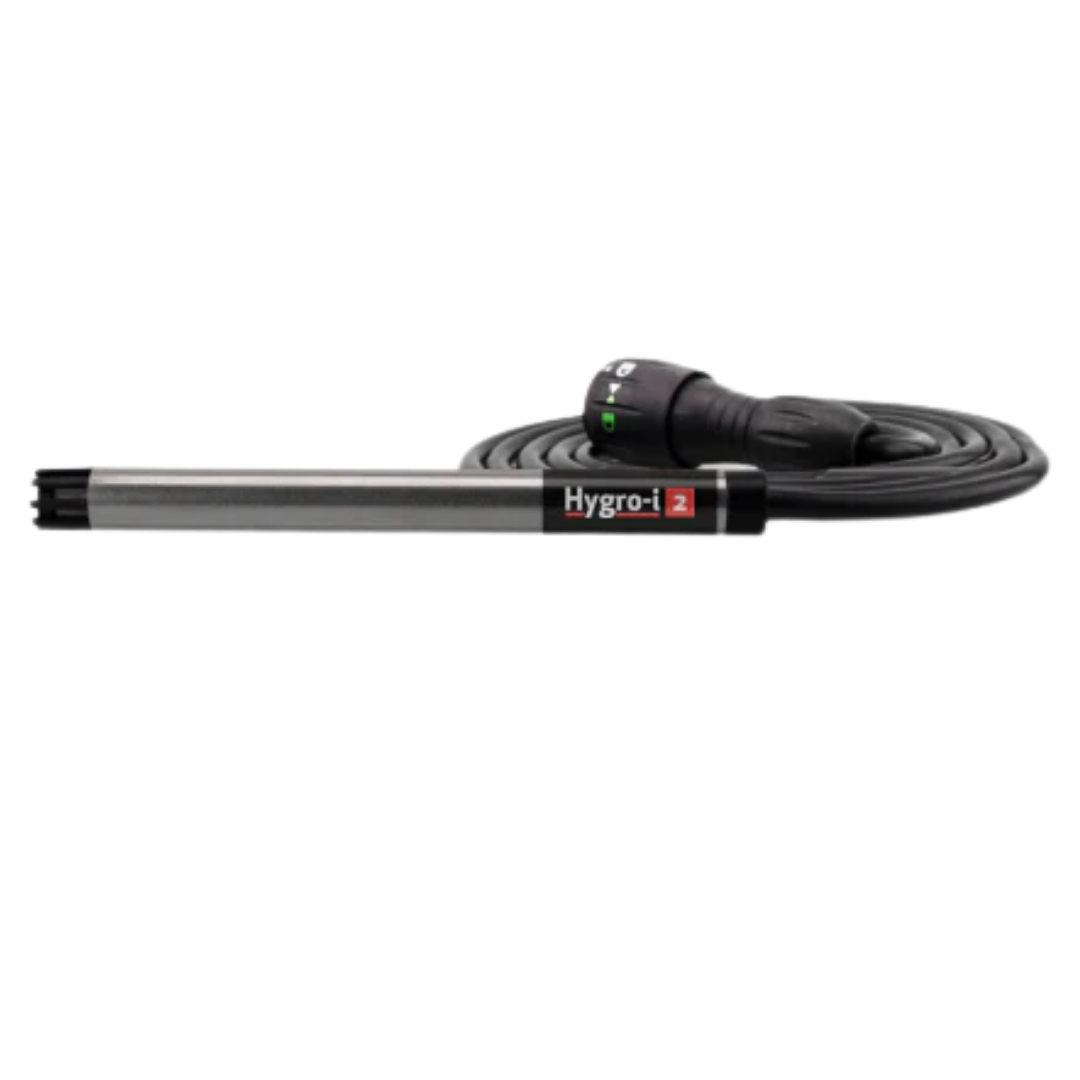

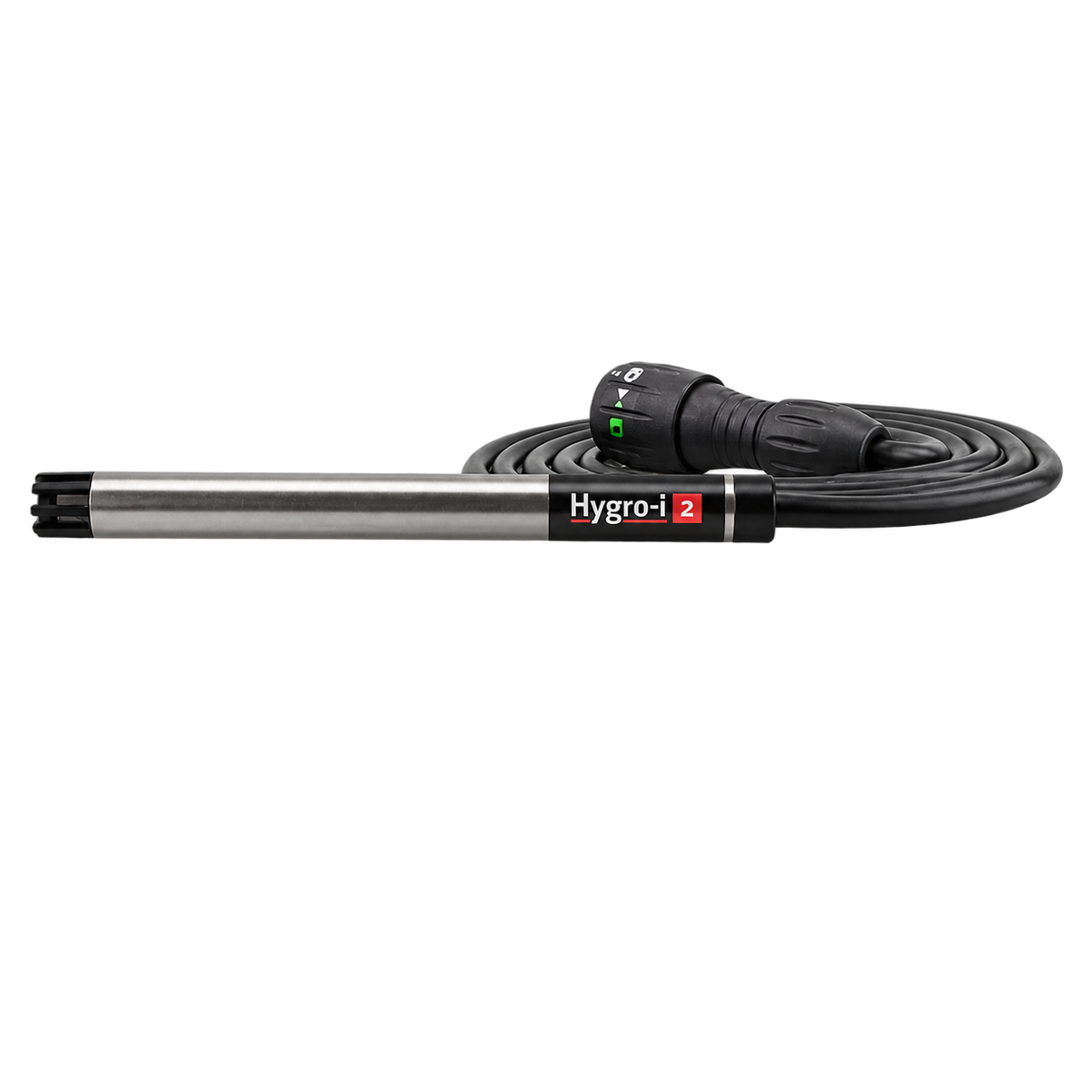

Tramex Hygro-i2 moisture probe for measuring relative humidity and moisture conditions within concrete slabs as part of in-situ RH moisture testing.

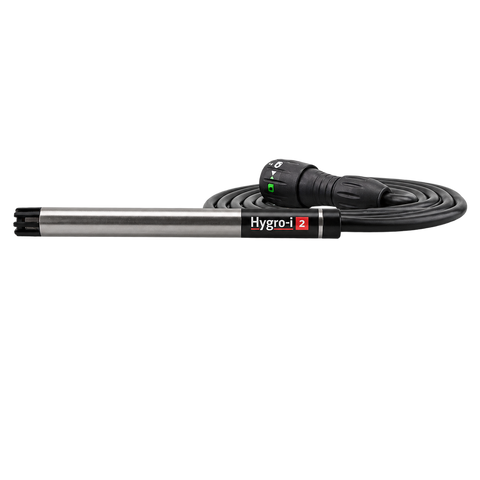

Tramex RH Short Probe for CMEX5

Name: Tramex RH Short Probe for CMEX5
Brand: Tramex
SKU: TTRT683
Price: 380.00 AUD
Availability: InStock

$380.00

or 4 interest-free payments with

The Short Ambient RH Probe is an advanced, resilient and re-usable RH probe allowing the user to evaluate moisture conditions within the building structure. It uses the latest Hygro-i2 technology, measure Relative Humidity, Temperature, Dewpoint temperature and grains per pound humidity ratio.

The probes can be used for the evaluation of moisture conditions of wall and cavity structures as well as ambient air conditions within the building envelope.

The speed and accuracy of the Tramex Hygro-i2 probes set them apart from all other RH probes on the market.

Used in conjunction with the Tramex CMEX II or the Tramex MRH III non-destructive moisture meters, it provides measurements of relative humidity, temperature, dew point and grains per pound in structural materials such as concrete ooring and walls, as well as the ambient conditions within the building envelope, all shown simultaneously on one clear display. The probes are reusable and calibration checks can be carried out using the calibration check salts.

Features:

- Fast Acclimation and Temperature response time.
- Proven robustness, Durable and Reusable.
- Best in class accuracy and reliable, even at high RH >90%.
- Measures giving in situ relative humidity and ambient RH, temperature, dew point temperature & grains per pound.
- Relative Humidity range: 0% to 100%
- Temperature Range: -40C to 80C
- Best temperature accuracy of +/-2 over 0C to 90 C

Reusable Hygro-i2 probe, calibration checked with the salt check

Reads RH, temperature, dew point and grains per pound on one display

NIST traceable, +/-2.0% RH accuracy from 0% to 99% RH at 25C

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Tramex RH Short Probe for CMEX5

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Technical Specifications

Accessory Type: Reusable in situ and ambient relative humidity probe
Product Order Code: RHP-SW-B
Sensor Technology: Tramex Hygro-i2
Probe Length: 110 mm (4.5 in)
Measures: Relative humidity, temperature, dew point temperature and grains per pound humidity ratio
Relative Humidity Range: 0 to 100% RH
Relative Humidity Accuracy: 0% to 99% RH +/-2.0% RH at 25C
Relative Humidity Resolution: 0.1% over the complete range
Relative Humidity Drift: Less than 0.25% RH per year
Temperature Range: -20C to 70C
Temperature Accuracy: +/-0.1C over -20C to 70C
Temperature Drift: Less than 0.03C per year
Sensor Protection: PTFE film protects the sensor opening from water and dust
Traceability: NIST traceable
Meter Compatibility: Tramex CMEX5, MEX5 and Feedback Datalogger RHTX
Calibration Check: Tramex calibration check salts
Figures above are the manufacturer's published specification. No technical data sheet in the chemical sense exists for an instrument.

What's Included?

Tramex RHP-SW-B relative humidity probe x 1

Product Files

Technical Data Sheet (TDS) PDF Download

Tramex RH Short Probe for CMEX5

$380.00

Frequently bought together

This item

Tramex RH Short Probe for CMEX5 $380.00
Add

Tramex Calibration Plate CME5 & CMEX5 $999.00

Key applications

In situ relative humidity readings in structural materials such as concrete flooring and walls
Ambient relative humidity readings within the building envelope
Evaluating moisture conditions of wall and cavity structures
Dew point temperature and grains per pound humidity ratio readings
Flood and water damage restoration surveys
Building survey work

Surface suitability

Concrete flooring and walls (in situ readings)
Wall and cavity structures
Ambient air within the building envelope

For use with the Tramex CMEX5, MEX5 and Feedback Datalogger RHTX. Relative humidity range is 0 to 100% RH and temperature range is -20C to 70C, so do not use the probe outside those limits. Accuracy is +/-2.0% RH from 0% to 99% RH at 25C, with drift of less than 0.25% RH per year, so check calibration regularly using the Tramex calibration check salts. The sensor opening is protected by a PTFE film against water and dust. The probe is sold on its own - the meter is not included.

Technical Specifications

Accessory Type	Reusable in situ and ambient relative humidity probe
Product Order Code	RHP-SW-B
Sensor Technology	Tramex Hygro-i2
Probe Length	110 mm (4.5 in)
Measures	Relative humidity, temperature, dew point temperature and grains per pound humidity ratio
Relative Humidity Range	0 to 100% RH
Relative Humidity Accuracy	0% to 99% RH +/-2.0% RH at 25C
Relative Humidity Resolution	0.1% over the complete range
Relative Humidity Drift	Less than 0.25% RH per year
Temperature Range	-20C to 70C
Temperature Accuracy	+/-0.1C over -20C to 70C
Temperature Drift	Less than 0.03C per year
Sensor Protection	PTFE film protects the sensor opening from water and dust
Traceability	NIST traceable
Meter Compatibility	Tramex CMEX5, MEX5 and Feedback Datalogger RHTX
Calibration Check	Tramex calibration check salts
Figures above are the manufacturer's published specification. No technical data sheet in the chemical sense exists for an instrument.

What's Included

Tramex RHP-SW-B relative humidity probe x 1

Why trade professionals choose Tramex

Tramex moisture meters are non-destructive instruments for checking whether a concrete slab is dry enough to coat, tile or cover. The range here runs to the CME5 and CMEX5 concrete meters, the RH short probe for readings taken inside the slab, and the calibration plates that let you verify the meter is reading true. Supplied to the Australian trade, with our team available if you need help picking the right meter for the work you do.
