Pool System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX HYDROPLUG
- 5 ACTFLEX AT MESH
- 6 ACTFLEX 988 CWP (2 Coats)
- 7 Tile Adhesive
- 8 Pool Finish

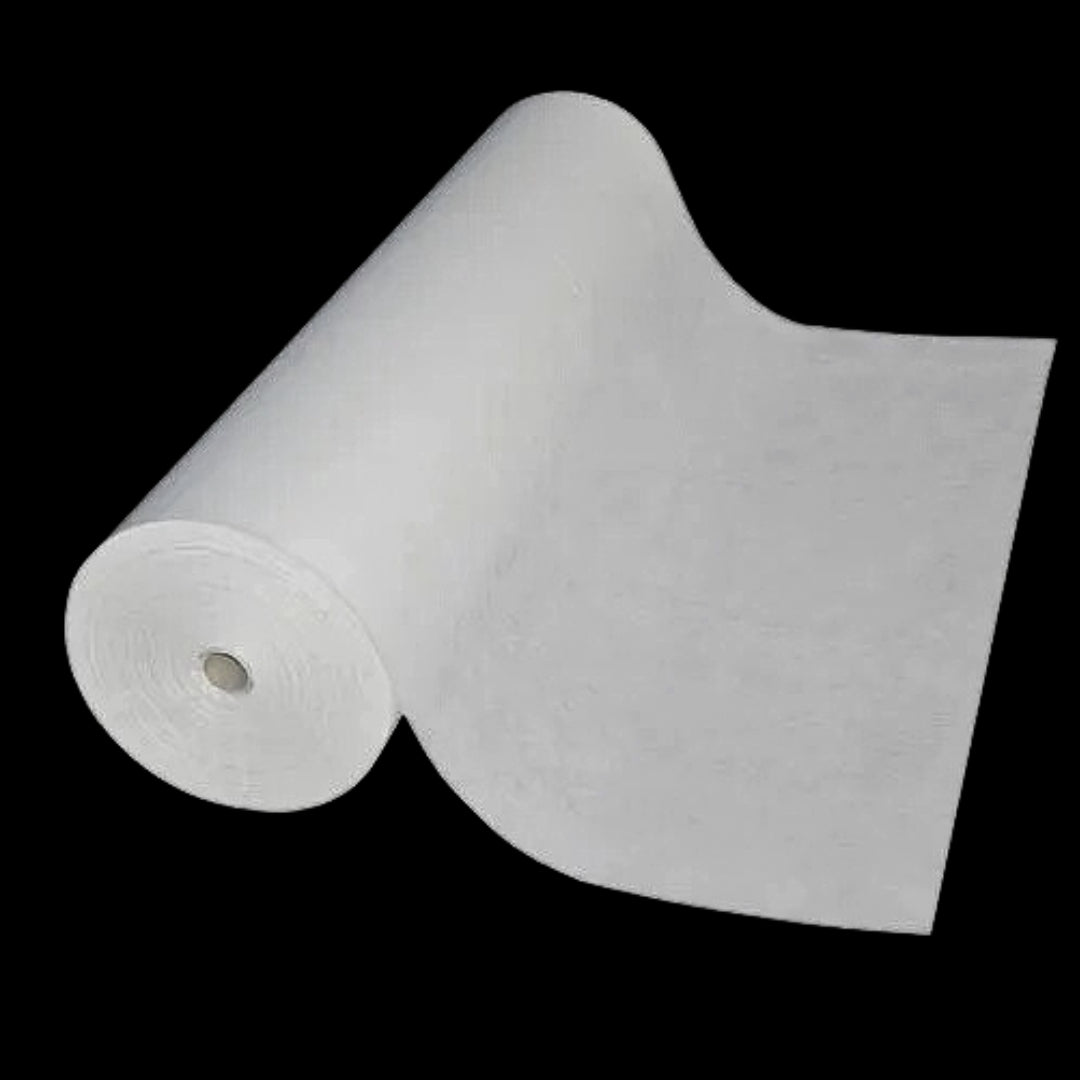

Woven Fabric AT-MESH 1m x 50m
or 4 interest-free payments with
Wide reinforcement mesh tape. 1m wide, 50m roll. Alkali-treated fibreglass for large area covering.
Woven Fabric AT-Mesh 1m is a 1 metre wide roll of alkali-treated fibreglass reinforcement. It covers large areas quickly and efficiently in waterproofing systems, particularly for floor and wall membranes.
What it's for
- Covering large floor and wall areas in wet area waterproofing
- Reinforcing entire membrane layers, not just details
- High-risk areas where crack potential is highest
Why waterproofers buy it
- 1m width covers more area per application
- Alkali-treated fibreglass. Stable in cement environments
- Open weave allows membrane to wet in completely
- Long 50m roll reduces waste and joints
Coverage
50m roll. At 1m width, covers 50 m² single-layer installation.
Not for
Permanent UV exposure, temperature extremes over 80°C, or applications requiring high load-bearing capacity.
Bedded into the wet first coat and fully encapsulated, with no mesh left exposed
Required reinforcement for the three-coat 1.5 mm DFT ACTFLEX 988 CWP build
Specified for below-ground work and permanent water contact in pools and tanks
7-Day Money BackGuarantee
Fast DispatchNext Business Day
Expert Advice(02) 8021 3517
Secure CheckoutSSL Encrypted
Get it
—
—
Pickup available at The Waterproofing Shop
Usually ready in 24 hours
Woven Fabric AT-MESH 1m x 50m
The Waterproofing Shop
22/872 Canterbury Road
Roselands NSW 2196
Australia
Product Details
How to Use
Technical Specifications
Product Files
No documentation available for this product.
Woven Fabric AT-MESH 1m x 50m
Sale price$132.00
Frequently bought together
-
Woven Fabric AT-MESH 1m x 50m $132.00
-
System Build-Up Guide
Correct application makes all the difference.
Retaining Wall System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX MS PRO
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 CWP (2 Coats)
- 6 Protection Board (Optional)
- 7 Drainage System
- 8 Backfill
Tank System Build-Up
- 1 Concrete Substrate
- 2 Crack Repair (if required)
- 3 ACTFLEX FLEXPLUS
- 4 ACTFLEX AT MESH
- 5 ACTFLEX 988 WMP (2 Coats)
- 6 Protective Coating (Optional)
- 7 Water
Technical overview
Key applications
- Floor-to-wall and wall-to-wall junctions, corners and penetrations
- Below-ground and underground waterproofing
- Permanent water contact, pools and tanks
- Water-retaining structures, three-coat system
- Negative-side waterproofing on cementitious substrates
- PVC panels, positive side, at junctions and transitions
- PVC panels, negative side, over interlocking joints
Fully encapsulate the mesh and complete the remaining coats to the specified DFT with no mesh left exposed. Press the mesh firmly to full saturation with no wrinkles or air pockets and overlap adjoining mesh by at least 50 mm. Below-ground and underground work, permanent water contact in pools and tanks, and water-retaining structures all require three coats to 1.5 mm DFT with AT-MESH. On the negative side of cementitious substrates cure the completed system before any exposure to water or hydrostatic pressure. On the negative side of PVC panels obtain project-specific approval from FORSPEC Technical Support before commencing. Check for a continuous, pinhole-free film over every cove, tape and mesh detail, and record AT-MESH placement and overlaps in the project quality records.
Technical Specifications
| Function | Reinforcement, fully encapsulated within the membrane |
| System | ACTFLEX 988 CWP cementitious waterproof membrane |
| Embedment | Into the first coat while wet, pressed firmly to full saturation with no wrinkles or air pockets |
| Minimum Overlap | 50 mm at adjoining mesh |
| Detail Coat Width | First coat applied at least 100 mm either side of the cove |
| Two-Coat System (1.2 mm DFT) | Reinforcement not required |
| Three-Coat System (1.5 mm DFT) | AT-MESH full encapsulation required |
| Below-Ground and Underground | 3 coats to 1.5 mm DFT with AT-MESH |
| Permanent Water Contact, Pools and Tanks | 3 coats to 1.5 mm DFT with AT-MESH |
| Membrane Classification | Not applicable, AT-MESH is a reinforcement component and not a membrane |
| Accredited Test Data | None held for the mesh, no Forspec Technical Data Sheet is published for AT-MESH |
Real Projects. Real Results.
-
Before
After
Pool Renovation
Gold Coast, QLD
-
Before
After
Below Ground Retaining Wall
Sydney, NSW
-
Before
After
Concrete Water Tank
Perth, WA
-
Before
After
Commercial Podium
Melbourne, VIC
-
Before After
Swimming Pool Construction
Brisbane, QLD
Watch the install
Step-by-step from prep to top coat. Filmed on the tools, not in a studio.
The Waterproofing Shop?
We supply premium waterproofing products backed by expert advice, fast service and real-world experience.
100% AustralianOwned & Operated
30+ Years in theWaterproofing Industry
Thousands of Productsin Stock
Fast ShippingAustralia Wide
Expert TechnicalSupport
Frequently asked questions
-
What is AT-MESH 1m x 50m used for?
CompatibilityAT-MESH (1m x 50m) is the wide-format woven scrim used for full-area membrane reinforcement and broad detailing. The 1m width covers large slab fields, balcony fields, and podium areas needing reinforcement under liquid membranes.
-
When is full-area reinforcement needed?
PerformanceSpecify wide-format AT-MESH when you need reinforcement across an entire deck or floor field - high-movement substrates, areas with multiple shrinkage cracks, or premium specs requiring belt-and-braces protection.
-
How is it laid?
InstallationRoll out across the substrate, lap edges 50-100mm, embed in the wet first coat of membrane. Use a silicon pressure roller across the full surface to expel air and fully wet out the scrim. Apply the second membrane coat over the top.
-
Compatible with which membranes?
CompatibilityCompatible with the full Forspec liquid membrane range. The wide format is most commonly used with high-build PU membranes (929 HV/SL, 925) and cementitious membranes (988, 989 CWP) on commercial decks.
-
Total coverage from one roll?
Performance50 m² per roll at full width. Plan project material needs by summing the total area requiring reinforcement and adding 10-15% for lap overlaps and waste.
