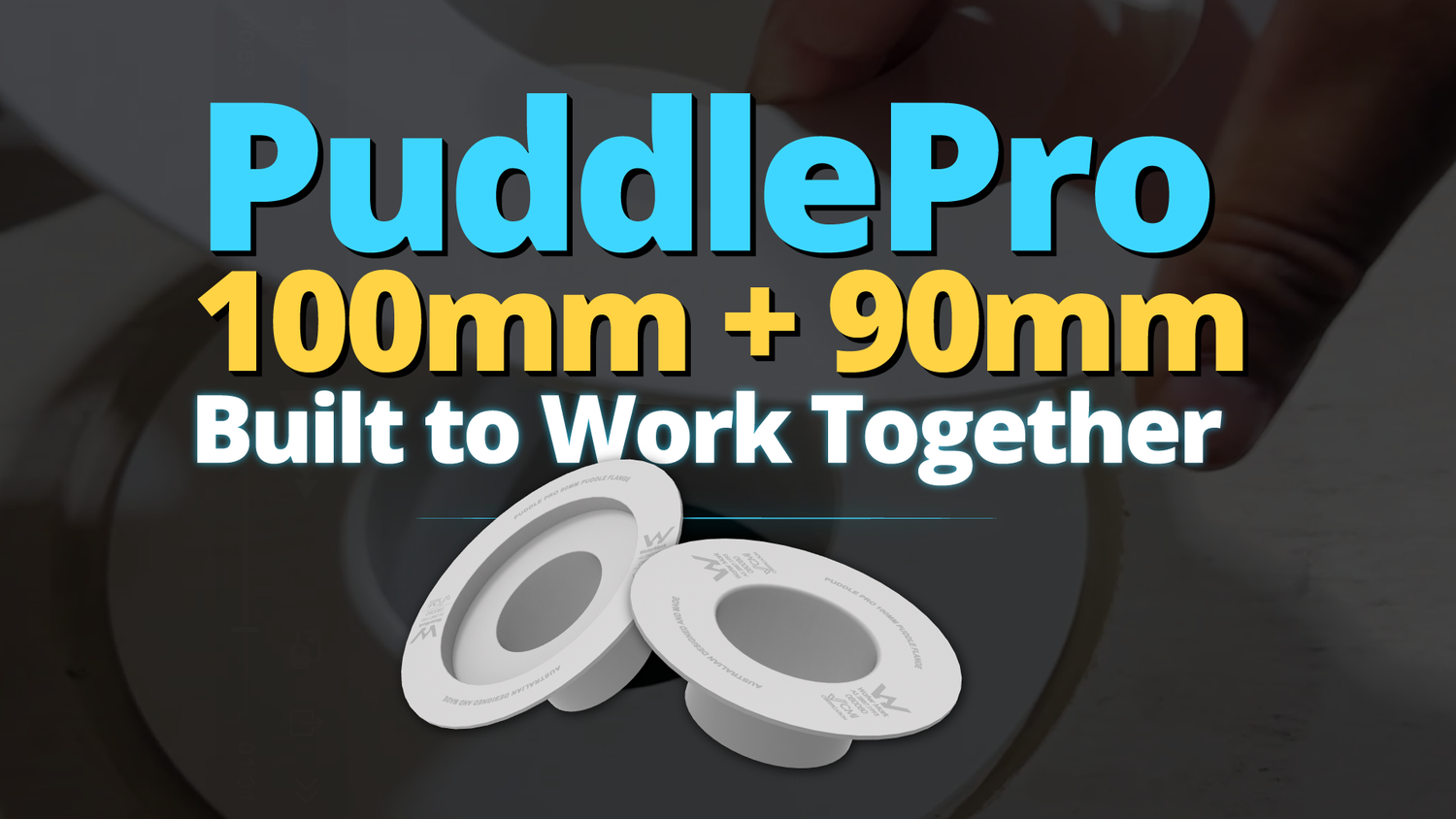

Smart Drainage Starts Here: 100mm + 90mm PuddlePro Flange System

When it comes to drainage, your waterproofing is only as good as your flange system. Enter the PuddlePro Dual Flange setup – a 100mm concrete set flange paired with a 90mm screed-installed flange that work together to eliminate waterproofing issues and give a clean flush finish.

The System Breakdown

100mm Flange – Set in Concrete

Installed using the Innovative Tools 200mm Recess Disc

Glued to 100mm pipe with primer + ACTFLEX sealants

Recessed 3–4mm below slab level

12% fall for proper drainage

Compatible with flood testing (detachable lid included)

90mm Flange – Set in Wet Screed

Installed while screed is wet

Creates its own recess in the screed—no cutting required

Funnels into 100mm flange beneath, forming a secondary seal

13mm deep centre cut-out for Smart Tile insert

Tile level remains completely flush

Key Benefits:

🔧 Simple install – no grinding, no fabrication

💦 Total seal – double waterproof barrier

🧱 Ideal for new builds & remedial works

🔥 Fire-rated ABS body, self-extinguishing (B2)

🧪 Resistant to corrosion, impact & chemicals

📏 Compliant with AS 2887:1993 + AS/NZS 3500.1

Ready to Install?

Pair the flanges with ACTFLEX 007/008 primers + 75FC/MS PRO sealants for a fully integrated system. This is the most effective, no-nonsense solution to drainage-related membrane failures.

📞 Call us for a demo or visit our Roselands showroom today.
