What substrates is WPM 002 suitable for?

WPM 002 bonds to concrete, render, fibre-cement sheet, plasterboard, masonry, and primed metal. Substrates should be sound, clean, and primed with the appropriate ARDEX primer (Multiprime or P51) before application.

Can I tile directly over WPM 002?

Yes. WPM 002 is fully compatible with ARDEX tile adhesives across the cementitious range. Allow the membrane to cure for at least 24 hours before tiling.

Is WPM 002 suitable for showers and wet areas?

Yes. WPM 002 is a Class III waterproofing membrane compliant with AS4858 and AS4654, making it suitable for internal wet areas including showers, bathrooms, laundries, and balconies under tiles.

How many coats are required?

Two coats minimum, applied at 90 degrees to each other to ensure full coverage. Total dry film thickness should be at least 0.6mm. Reinforce internal corners and penetrations with ARDEX reinforcing fabric.

Is WPM 002 Australian standard compliant?

Yes. WPM 002 is independently tested and certified to AS4858 (wet area membranes) and AS4654 (external above-ground membranes), with low VOC and solvent-free formulation.

Be the first to review

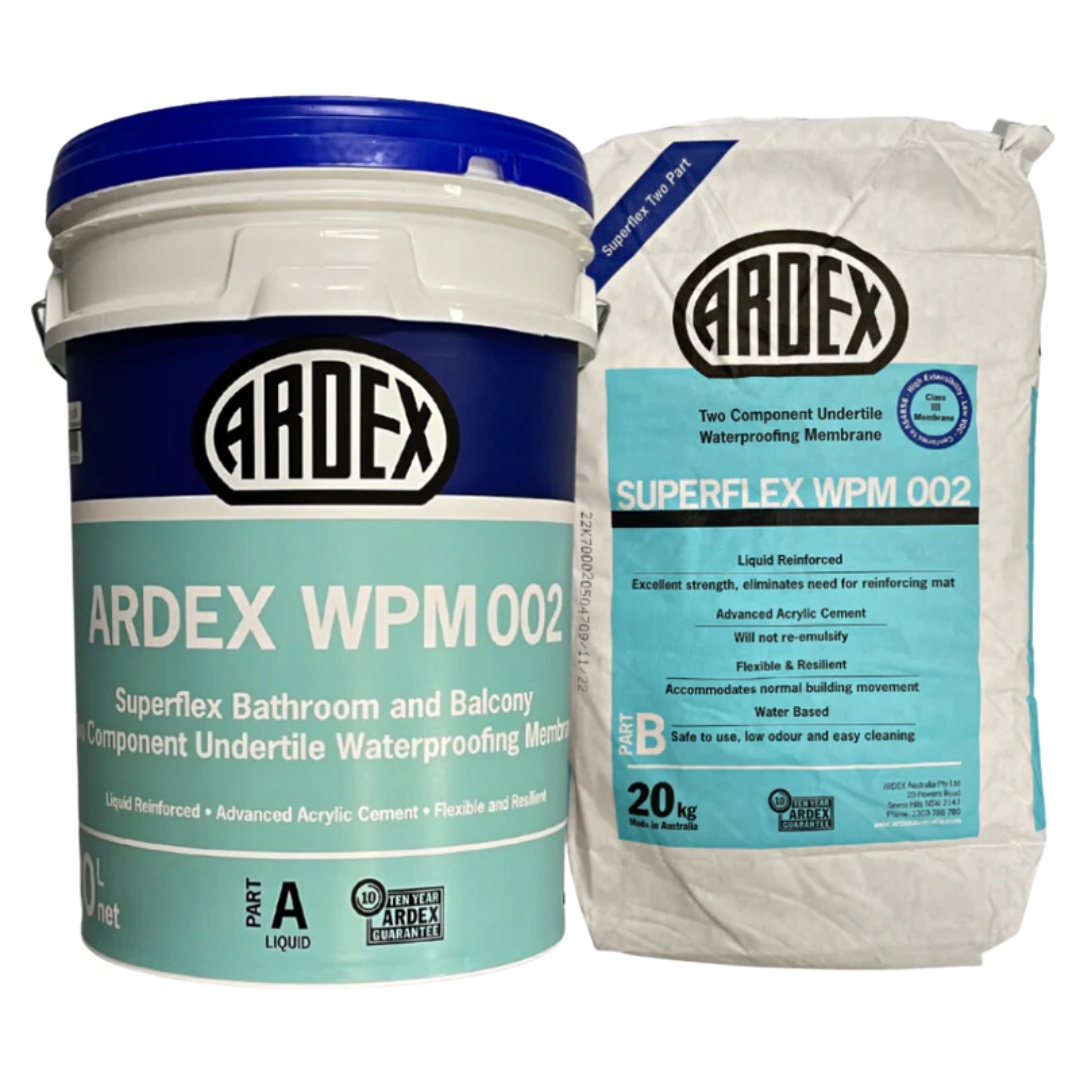

Ardex WPM 002

Name: Ardex WPM 002
Brand: Ardex
SKU: AARA0
Price: 331.45 AUD
Availability: InStock

$331.45

or 4 interest-free payments with

Two-component modified cementitious membrane. Class III to AS/NZS 4858 and AS 4654.1. Tile from 24 hours, fast drying.

ARDEX WPM 002 is a two-component, fast-drying, modified cementitious waterproofing membrane for internal and external applications. Tested Class III to both AS/NZS 4858 and AS 4654.1, it is designed to be applied under tiles, screed, and paver or decking systems. Light grey powder with liquid Part A, mixed at 1:1 by volume.

Where to use it

Internal and external wet areas under tiles (bathrooms, showers, laundries)
Balconies, decks and podiums under tiles, screed or paver systems
Concrete floors and walls requiring waterproofing before finishes
Screed and paver installations requiring moisture barrier

Why waterproofers buy it

Class III to both AS/NZS 4858 and AS 4654.1
Two-component modified cementitious for durability
Cyclic movement pass, durability tested, pass heat aging
1.02 MPa tensile strength
Tile from 24 hours, fast drying for schedule
Light grey colour works under most finishes

Coverage

40kg kit (20kg Part A pail, 20kg Part B bag): floors 32 m² at two coats for 1.2mm DFT, 16 m² per coat; walls 48 m² at two coats for 0.8mm DFT, 24 m² per coat. Coverage rate may vary with application technique.

Not for

Direct tiling or screeding must not commence until 24 hours after the final coat at 23°C and 50% RH. Service temperature range 0°C to 70°C.

All times at 23°C and 50% RH.

Class III to AS/NZS 4858 and AS 4654.1, tested by an ISO/IEC 17025 accredited laboratory

Tile or screed 24 hours after the final coat

Will not re-emulsify once cured, and is low VOC and solvent free

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

Ardex WPM 002

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

The product has been uniquely formulated with synthetic microfibres to increase its strength and eliminate the need for a separate reinforcement mat. ARDEX WPM 002 is based on the most advanced acrylic polymer technology, and is totally resistant to re-emulsification.

ARDEX WPM 002 is flexible, low in odour, and is fully compatible with polymer modified tile adhesives. ARDEX WPM 002 is one of the fastest drying acrylic membranes on the market – normally ready to tile in 16–24 hours @ 23°C. ARDEX WPM 002 meets the Green Building Council of Australia Green Star IEQ-13 requirements for Architectural Sealant when tested in accordance with SCAQMD Method 304-91 Determination of Volatile Organic Compounds (VOC) in Various Materials as referenced by South Coast Air Quality Management Division (SCAQMD) Rule 1168.

How to Use

Apply by brush or roller in a minimum two coat application at 0.9mm WFT per coat on floors and 0.6mm WFT per coat on walls, second coat at 90 degrees to the firstRemove all dirt, dust, curing compounds, oils, grease, surface sealers, existing coatings and other contaminants by mechanical methods and vacuum cleaning
Prepare the surface sound, clean, dry and free from sharp edges, loose or other materials which may damage the membrane
Treat damaged concrete between 2mm and 30mm with ARDEX A 46, and spalling concrete with the ARDEX Concrete Repair range such as ARDEX BR 345
Prepare cracks and joints, and pre-treat them with ARDEX STB/STA Tape or an ARDEX sealant, allowing them to fully cure
Prime the prepared substrate with ARDEX WPM 300, ARDEX WPM 265, ARDEX WPM 368 or ARDEX Multiprime and allow the primer to fully dry
Where masonry or concrete moisture exceeds 80% relative humidity to ASTM F2170 or 15g/m2/24hrs to ASTM F1869, prime with a minimum two coats of ARDEX WPM 300 HydrEpoxy
Detail drains, penetrations, floor and wall junctions, wall to wall junctions, joints and changes of substrate with ARDEX STB/STA Tape, ARDEX silicone with ARDEX Deckweb, or an ARDEX sealant
Overlap ARDEX STB/STA Tape end to end by a minimum of 50mm and roller it down with the ARDEX Brass Roller and Small Hand Roller
Mix Part A liquid separately to a uniform consistency, then add Part B powder in a 1:1 to 1:1.5 ratio by weight and mix to a smooth lump free consistency; never mix by hand
Allow the mixed material to stand 3 to 4 minutes, then lightly re-mix for 1 minute before application; pot life is approximately 1 hour at 23C, 50% RH
Apply the first coat by brush or roller at 0.9mm WFT on floors or 0.6mm WFT on walls
Recoat after 1 to 2 hours at 23C, 50% RH, applying the second coat at 90 degrees to the previous coat
Build a total dry film thickness of 1.2mm on floors and 0.8mm on walls
Allow 16 to 24 hours for the membrane to be totally dry, longer over tape, sealant and silicone details
Inspect the membrane for damage, imperfections or pinholes and apply an additional coat where required
Flood test from 48 hours after the final coat
Tile or screed from 24 hours after the final coat, and do not leave the membrane exposed longer than 5 days
Allow 72 hours full cure before immersed areas such as showers and pools are used
Clean all equipment with water and detergent before the product dries

Technical Specifications

Membrane Classification: Two component modified cementitious waterproofing membrane, low VOC and solvent free
Colour: Light Grey*
Specific Gravity (mixed): 1.35kg/L*
Solids Content: 74%*
Service Temperature: 0C to 70C*
Mix Ratio: Part A liquid to Part B powder, 1:1 to 1:1.5 by weight
Pot Life: Approximately 1 hour at 23C, 50% RH
Elongation: Class III (AS1145.3, XTec Gen Report 304-2 and Report 304-6)
Elongation at Break: 345% control (AS1145.3, XTec Gen Report 304-2)
Tensile Strength: 1.02 MPa (AS1145.3, AS/NZS 4858 assessment)
Tensile Strength: 0.93 MPa (AS1145.3, AS 4654.1 assessment)
Cyclic Movement: Pass (AS4858 Appendix B and AS4654.1 Appendix B)
Bond Strength: 56.34 N (ASTM C794)
Water Absorption: 4.78% (AS3558.1)
Moisture Vapour Transmission Rate: 2.17g/m2/24 hours (ASTM E96)
Abrasion Resistance: Pass, meets the requirement for pedestrian traffic only (AS1580.403.2, AS 4654.1)
UV Resistance: Pass (AS4654.1 Table A4 Appendix A)
Wet Film Thickness: 0.9mm per coat on floors, 0.6mm per coat on walls
Dry Film Thickness: 1.2mm total on floors, 0.8mm total on walls, over two coats
Number of Coats: Minimum two, second coat applied at 90 degrees to the first
Recoat Time: 1 to 2 hours at 23C, 50% RH
Totally Dry: 16 to 24 hours at 23C, 50% RH
Flood Testing: From 48 hours after the final coat at 23C, 50% RH
Tiling or Screeding: From 24 hours after the final coat at 23C, 50% RH
Full Cure Before Immersion: 72 hours at 23C, 50% RH from the final coat
Application Temperature: Do not apply below 10C or above 35C, ambient or substrate
Maximum Exposure Before Overcoating: 5 days
Coverage: 16m2 per 40kg kit at 1.2mm total DFT on floors; 24m2 per 40kg kit at 0.8mm total DFT on walls
Packaging: Part A liquid 20kg pail, Part B powder 20kg bag
Shelf Life: 12 months unopened, stored dry at 23C and 50% RH
Hazard Classification: Part A liquid non-hazardous, non-dangerous goods; Part B powder hazardous chemical, non-dangerous goods
* Nominal values published by ARDEX with no test method quoted

Product Files

Ardex WPM 002

$331.45

Frequently bought together

This item

Ardex WPM 002 $331.45
Add

Ardex WPM 300 $463.70
Add

Ardex STB Self-Adhesive Butynol 75mm x 15m $67.60
Add

Ardex ST Silicone $27.95

Technical overview

ARDEX WPM 002 is a two component, fast drying, modified cementitious waterproofing membrane for internal and external use, designed to be applied under tiles, screed and paver or decking systems. It is mixed 1:1 to 1:1.5 by weight, applied by brush or roller in a minimum two coat application at 1.2mm total dry film thickness on floors and 0.8mm on walls, and can be tiled or screeded 24 hours after the final coat. It has been evaluated by XTec Gen Laboratories, accredited for compliance with ISO/IEC 17025, as Class III under both AS/NZS 4858:2004 (Report 304-2) and AS 4654.1-2012 (Report 304-6). Abrasion testing under AS 4654.1 meets the requirement for pedestrian traffic only.

View full technical data sheet

Key applications

Podiums
Terraces
Balconies
Swimming pools and spas (tiled)
Wet areas (bathroom and shower)
Under paver / decking systems
Under tiles and screed

Surface suitability

Concrete (prepared sound, clean, dry and free from sharp edges, loose or other materials which may damage the membrane, and primed)
Masonry (primed; a minimum two coats of ARDEX WPM 300 HydrEpoxy where substrate moisture content exceeds 80% relative humidity to ASTM F2170 or 15g/m2/24hrs to ASTM F1869)
Damaged concrete between 2mm and 30mm treated with ARDEX A 46 before membrane installation
Spalling concrete treated with the ARDEX Concrete Repair range such as ARDEX BR 345

Do not apply if ambient or substrate temperature is below 10C or above 35C. Do not add solvent or water to the product. Do not apply if rain is imminent. Must not be left exposed for longer than 5 days before recoating, tiling, screed or paver and decking system applications, and may need cleaning with mild detergent and water and full drying before overcoating. Not designed as a stand alone UV exposed or permanently trafficable membrane. Immersed areas such as showers and pools must not be used until full cure at 72 hours. Never mix by hand. The Part B powder is a hazardous chemical: it causes skin irritation and serious eye damage, may cause an allergic skin reaction, may cause respiratory irritation, may cause cancer and causes damage to organs through prolonged and repeated exposure, so wear gloves, protective clothing, eye and face protection.

Calculate your coverage

Enter area to cover (m²) m² Number of coats

You will need:

Ardex WPM 002

20kg kit

0 Kits

Total coverage: 0 m²

This is an estimate only. Add 10% for wastage.

Technical Specifications

Membrane Classification	Two component modified cementitious waterproofing membrane, low VOC and solvent free
Colour	Light Grey*
Specific Gravity (mixed)	1.35kg/L*
Solids Content	74%*
Service Temperature	0C to 70C*
Mix Ratio	Part A liquid to Part B powder, 1:1 to 1:1.5 by weight
Pot Life	Approximately 1 hour at 23C, 50% RH
Elongation	Class III (AS1145.3, XTec Gen Report 304-2 and Report 304-6)
Elongation at Break	345% control (AS1145.3, XTec Gen Report 304-2)
Tensile Strength	1.02 MPa (AS1145.3, AS/NZS 4858 assessment)
Tensile Strength	0.93 MPa (AS1145.3, AS 4654.1 assessment)
Cyclic Movement	Pass (AS4858 Appendix B and AS4654.1 Appendix B)
Bond Strength	56.34 N (ASTM C794)
Water Absorption	4.78% (AS3558.1)
Moisture Vapour Transmission Rate	2.17g/m2/24 hours (ASTM E96)
Abrasion Resistance	Pass, meets the requirement for pedestrian traffic only (AS1580.403.2, AS 4654.1)
UV Resistance	Pass (AS4654.1 Table A4 Appendix A)
Wet Film Thickness	0.9mm per coat on floors, 0.6mm per coat on walls
Dry Film Thickness	1.2mm total on floors, 0.8mm total on walls, over two coats
Number of Coats	Minimum two, second coat applied at 90 degrees to the first
Recoat Time	1 to 2 hours at 23C, 50% RH
Totally Dry	16 to 24 hours at 23C, 50% RH
Flood Testing	From 48 hours after the final coat at 23C, 50% RH
Tiling or Screeding	From 24 hours after the final coat at 23C, 50% RH
Full Cure Before Immersion	72 hours at 23C, 50% RH from the final coat
Application Temperature	Do not apply below 10C or above 35C, ambient or substrate
Maximum Exposure Before Overcoating	5 days
Coverage	16m2 per 40kg kit at 1.2mm total DFT on floors; 24m2 per 40kg kit at 0.8mm total DFT on walls
Packaging	Part A liquid 20kg pail, Part B powder 20kg bag
Shelf Life	12 months unopened, stored dry at 23C and 50% RH
Hazard Classification	Part A liquid non-hazardous, non-dangerous goods; Part B powder hazardous chemical, non-dangerous goods
* Nominal values published by ARDEX with no test method quoted

Downloads

Frequently asked questions

View all FAQs

What substrates is WPM 002 suitable for?

Compatibility
WPM 002 bonds to concrete, render, fibre-cement sheet, plasterboard, masonry, and primed metal. Substrates should be sound, clean, and primed with the appropriate ARDEX primer (Multiprime or P51) before application.
Can I tile directly over WPM 002?

Compatibility
Yes. WPM 002 is fully compatible with ARDEX tile adhesives across the cementitious range. Allow the membrane to cure for at least 24 hours before tiling.
Is WPM 002 suitable for showers and wet areas?

Performance
Yes. WPM 002 is a Class III waterproofing membrane compliant with AS4858 and AS4654, making it suitable for internal wet areas including showers, bathrooms, laundries, and balconies under tiles.
How many coats are required?

Installation
Two coats minimum, applied at 90 degrees to each other to ensure full coverage. Total dry film thickness should be at least 0.6mm. Reinforce internal corners and penetrations with ARDEX reinforcing fabric.
Is WPM 002 Australian standard compliant?

Compliance
Yes. WPM 002 is independently tested and certified to AS4858 (wet area membranes) and AS4654 (external above-ground membranes), with low VOC and solvent-free formulation.
