ARDEX WPM 909 15L water-based acrylic trafficable waterproofing membrane with UV resistance, slip resistance, and excellent cleanability.

Be the first to review

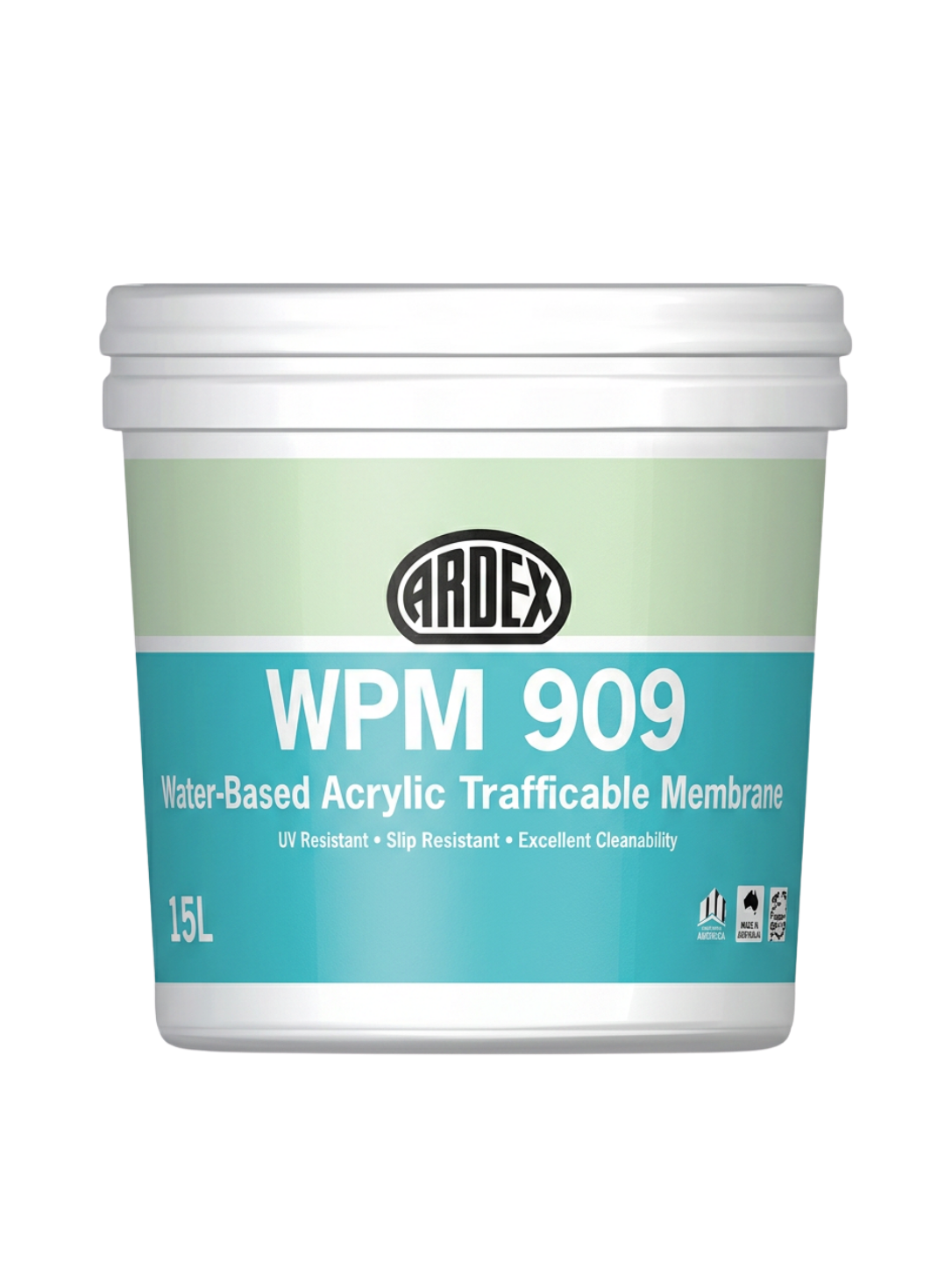

ARDEX WPM 909 Trafficable Waterproofing Membrane 15L

Name: ARDEX WPM 909 Trafficable Waterproofing Membrane 15L
Brand: Ardex
SKU: AArT170
Price: 440.80 AUD
Availability: InStock

$440.80

or 4 interest-free payments with

ARDEX WPM 909 is a premium water-based acrylic trafficable waterproofing membrane specifically designed for pedestrian traffic areas requiring long-term waterproof protection, UV resistance and slip-resistant performance. As a single-component ready-to-use membrane, it provides excellent abrasion resistance and ease of maintenance, making it ideal for exposed waterproofing applications. Compliant with AS4654, ARDEX WPM 909 delivers a durable waterproofing solution for rooftops, podiums and walkways exposed to the elements.

Key Features

Compliant with AS4654
Single-component ready-to-use membrane
Excellent UV resistance for exposed environments
Slip-resistant surface performance
Abrasion resistant finish
Low odour water-based formulation
Easy maintenance and cleanability
Suitable for pedestrian traffic areas
Suitable for exposed external applications
Brush and roller application

Suitable Applications

Rooftops
Podiums
Walkways
Exposed waterproofing areas
Residential waterproofing projects
Commercial waterproofing projects
Pedestrian trafficable surfaces

P5 wet pendulum slip rating with no additional aggregate required

Compliant to AS4654, Class II elongation on an accredited AS 4654.1 test report

Single component and ready to use, low odour and easy to clean

Quantity: 1

7-Day Money BackGuarantee

Fast DispatchNext Business Day

Expert Advice(02) 8021 3517

Secure CheckoutSSL Encrypted

Get it — —

Pickup available at The Waterproofing Shop

Usually ready in 24 hours

ARDEX WPM 909 Trafficable Waterproofing Membrane 15L

The Waterproofing Shop

Pickup available, usually ready in 24 hours

22/872 Canterbury Road
Roselands NSW 2196
Australia

+61280213517

Product Details

ARDEX WPM 909 is a water-based acrylic trafficable membrane designed for pedestrian-access waterproofing applications requiring UV resistance, slip resistance, abrasion resistance and long-term weather protection.

How to Use

Stir before use, then apply two coats minimum by brush or roller to the primed substrate at 0.9mm minimum wet film thickness per coat to achieve a total dry film thickness of 1.0mm.Remove all dirt, dust, curing compounds, oils, grease, surface sealers, existing coatings and any other contaminants by mechanical methods and vacuum cleaning
Leave the surface sound, clean, dry and free from sharp edges, loose or other materials which may damage the membrane
Treat damaged concrete between 2mm and 30mm with ARDEX A 46, and spalling concrete with the ARDEX Concrete Repair range such as ARDEX BR 345
Allow new concrete to cure a minimum of 28 days, and new render or screed a minimum of 7 days, before application commences
Grind out cracks to 6mm wide x 6mm depth minimum and remove all loose debris and contaminants
Fit backer rod or self-adhesive bond breaker tape in joints and cracks to avoid three sided adhesion and control sealant depth
Extrude ARDEX RA 050 or ARDEX CA 20 P PLUS into the prepared joint, ensuring complete adhesion to the joint sides and avoiding air entrapment
Tool the sealant flush with the finished surface, or 2mm to 3mm below the finished surface within trafficable areas
Allow 1 to 2 hours minimum drying of ARDEX CA 20 P PLUS before coating; ARDEX RA 050 can be overcoated immediately after tooling
Prime the prepared substrate with ARDEX WPM 300, ARDEX WPM 368, ARDEX WPM 265 or ARDEX Multiprime
Where substrate moisture is greater than 80% relative humidity or exceeds 15g/m2/24hrs, prime with a minimum two coats of ARDEX WPM 300
Detail all prepared joints, cracks, internal and external junctions and drainage outlets, and seal around penetrations, with ARDEX RA 050, ARDEX CA 20 P PLUS or ARDEX STB/STA Tape
Stir the product before use
Apply two coats minimum by brush and or roller at 0.9mm minimum wet film thickness per coat for a total 1.0mm dry film thickness
Allow 2 to 4 hours recoat time between coats at 23C/50% R.H.
Apply a total of three coats in areas expecting higher pedestrian traffic such as entry and exit points and servicing equipment
Allow 24 to 48 hours after final coat application before accepting pedestrian traffic at 23C/50% R.H.
Place DTA BOSS pedestal rubber matting under each tiling pedestal set on the cured membrane
Clean all equipment with water and detergent prior to the product drying

Technical Specifications

Membrane Classification: Water-based single component acrylic trafficable membrane
Colour: Light grey*
Form: Medium viscosity liquid*
Solids Content: 53%*
Shore Hardness A: 90*
Specific Gravity: 1.19g/cm3*
Service Temperature: 0C to 80C*
Tensile Strength (Min): 5.03 MPa (AS4654.1 Appendix A)
Elongation at Break: Class II, 164% (AS 4654.1 Appendix A, XTec Gen Report 215-4)
Bond Strength: 24.65 N (ASTM C794)
Abrasion Resistance, Trafficable: Pass, 0.105mm (AS1580.403.2)
Acceptance of Cyclic Movement: Pass, no failure (AS4654.1 Appendix B)
Durability: Pass (AS4654.1 Table A4)
Durability, UV exposure: Pass (AS4654.1)
Water Vapour Transmission: 1.41g/m2/24 hours (ASTM E96)
VOC Content: 70g/L*
Slip Resistance, Wet Pendulum Slider 96: P5 (AS4586-2013 Appendix A, Report R29586)
Slip Resistance, Wet Pendulum Slider 55: P5 (AS4586-2013 Appendix A)
Slip Resistance, Dry Floor Friction Slider 96: D1 (AS4586-2013 Appendix B)
Wet Film Thickness: 0.9mm minimum per coat
Dry Film Thickness: 1.0mm total after two coat application
Coats: Two minimum, three coats recommended for higher pedestrian traffic areas
Recoat Time: 2 to 4 hours at 23C/50% R.H.
Pedestrian Traffic: 24 to 48 hours after final coat at 23C/50% R.H.
Application Temperature: Above 10C and below 35C, ambient and substrate
Coverage: 8m2 to 9m2 per pail, two coat application
Packaging: 15L drum
Shelf Life: 12 months in original unopened packaging, dry, at 23C and 50% R.H.*
* Nominal ARDEX values, not accredited test results

What's Included?

15L pail of ARDEX WPM 909 ready-to-use water-based acrylic trafficable waterproofing membrane.

Product Files

ARDEX WPM 909 Trafficable Waterproofing Membrane 15L

$440.80

Frequently bought together

This item

ARDEX WPM 909 Trafficable Waterproofing Membrane 15L $440.80

Technical overview

ARDEX WPM 909 is a water-based single component acrylic membrane designed for pedestrian trafficable environments such as rooftops, podiums and walkways. It is stirred, then applied in two coats minimum by brush or roller over a primed substrate at 0.9mm minimum wet film thickness per coat, for a total 1.0mm dry film thickness. The TDS states it is compliant to AS4654, and that is backed by an ISO/IEC 17025 accredited XTec Gen test report (215-4 AS4654.1-2012) returning Class II elongation at break of 164%, plus a NATA accredited Safe Environments slip report (R29586) giving P5 wet pendulum. Colour, form, solids, hardness, specific gravity, service temperature and VOC are ARDEX nominal values with no test report quoted.

Key applications

Rooftops
Podiums
Walkways
Pedestrian trafficable environments
Exposed environments requiring UV resistance
Areas requiring anti-slip performance and abrasion resistance
Under DTA BOSS tiling pedestals (paver pads) on the cured membrane

Surface suitability

Concrete (new concrete cured a minimum of 28 days, prepared and primed)
Render (new render cured a minimum of 7 days, prepared and primed)
Screed (new screed cured a minimum of 7 days, prepared and primed)
Masonry (primed with a minimum two coats of ARDEX WPM 300 where moisture content exceeds 80% relative humidity)

Designed for light to medium pedestrian traffic only. Not suited for vehicle or heavy equipment type traffic. Do not apply if ambient or substrate temperature is below 10C or above 35C. Do not add solvent or water to the product. Do not apply if rain is imminent. New concrete must be cured a minimum of 28 days and new render or screed a minimum of 7 days before application commences. Where masonry or concrete substrate moisture content is greater than 80% relative humidity (ASTM F2170) or exceeds 15g/m2/24hrs (ASTM F1869), a minimum two coats of ARDEX WPM 300 (HydrEpoxy) must be the nominated primer. This is a hazardous chemical: it may cause cancer, is suspected of causing genetic defects, may cause an allergic skin reaction and causes serious eye irritation. Wear protective gloves, protective clothing, eye protection and face protection, and ensure adequate ventilation.

Technical Specifications

Membrane Classification	Water-based single component acrylic trafficable membrane
Colour	Light grey*
Form	Medium viscosity liquid*
Solids Content	53%*
Shore Hardness A	90*
Specific Gravity	1.19g/cm3*
Service Temperature	0C to 80C*
Tensile Strength (Min)	5.03 MPa (AS4654.1 Appendix A)
Elongation at Break	Class II, 164% (AS 4654.1 Appendix A, XTec Gen Report 215-4)
Bond Strength	24.65 N (ASTM C794)
Abrasion Resistance, Trafficable	Pass, 0.105mm (AS1580.403.2)
Acceptance of Cyclic Movement	Pass, no failure (AS4654.1 Appendix B)
Durability	Pass (AS4654.1 Table A4)
Durability, UV exposure	Pass (AS4654.1)
Water Vapour Transmission	1.41g/m2/24 hours (ASTM E96)
VOC Content	70g/L*
Slip Resistance, Wet Pendulum Slider 96	P5 (AS4586-2013 Appendix A, Report R29586)
Slip Resistance, Wet Pendulum Slider 55	P5 (AS4586-2013 Appendix A)
Slip Resistance, Dry Floor Friction Slider 96	D1 (AS4586-2013 Appendix B)
Wet Film Thickness	0.9mm minimum per coat
Dry Film Thickness	1.0mm total after two coat application
Coats	Two minimum, three coats recommended for higher pedestrian traffic areas
Recoat Time	2 to 4 hours at 23C/50% R.H.
Pedestrian Traffic	24 to 48 hours after final coat at 23C/50% R.H.
Application Temperature	Above 10C and below 35C, ambient and substrate
Coverage	8m2 to 9m2 per pail, two coat application
Packaging	15L drum
Shelf Life	12 months in original unopened packaging, dry, at 23C and 50% R.H.*
* Nominal ARDEX values, not accredited test results

What's Included

15L pail of ARDEX WPM 909 ready-to-use water-based acrylic trafficable waterproofing membrane.
