Let's get your project sorted - start with a system below.

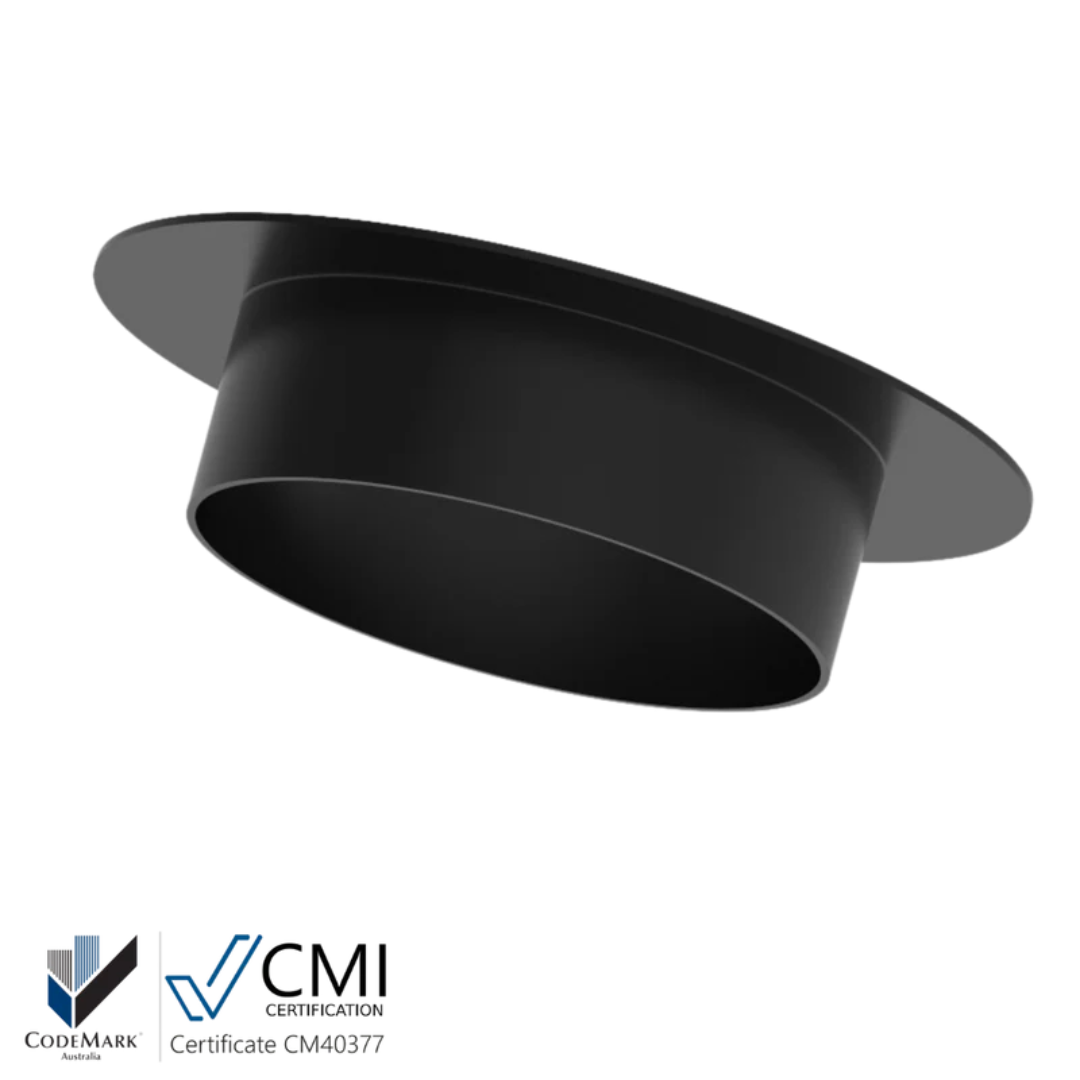

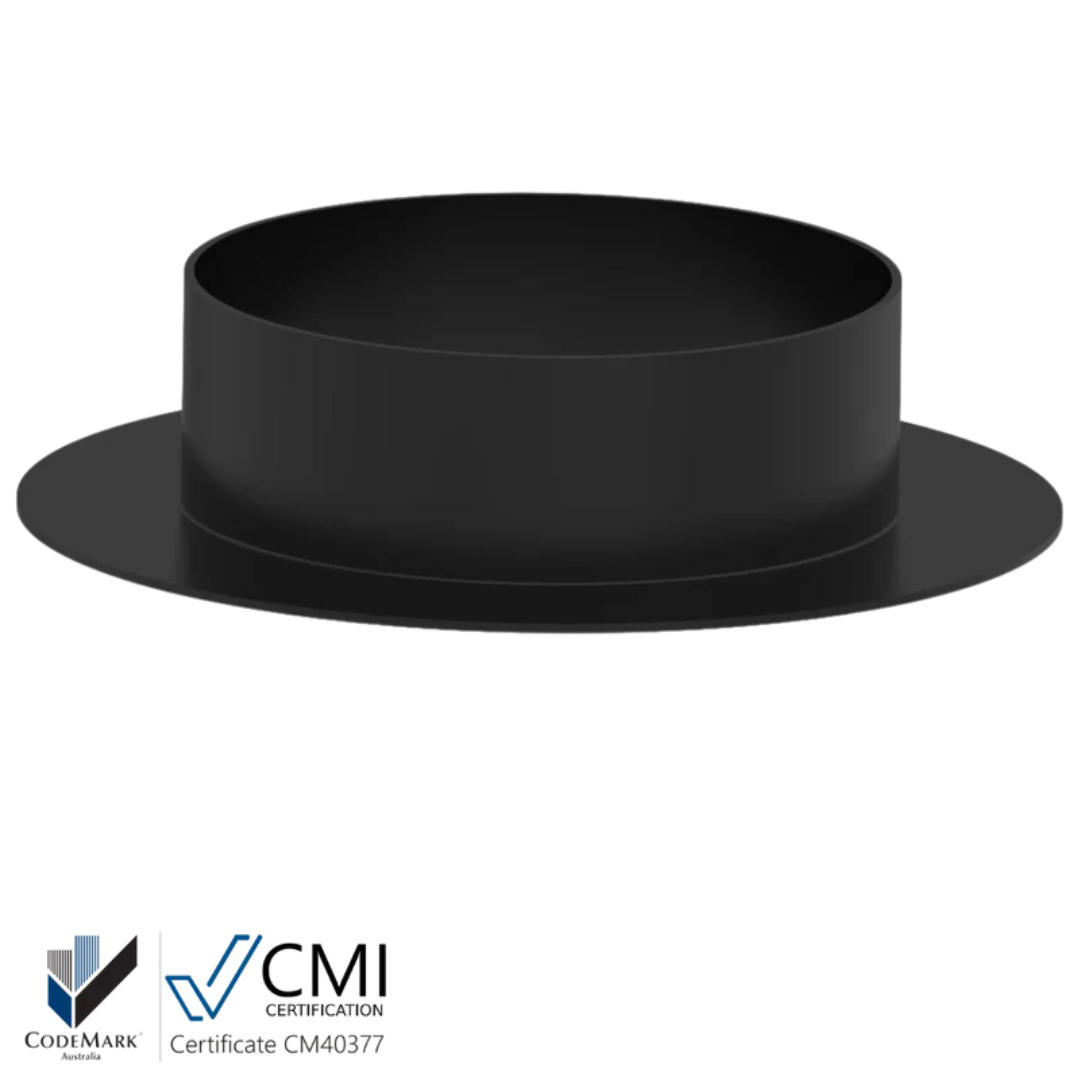

Neoprene flexible rubber flanges that create a watertight connection between 100mm PVC drainage outlets and your waterproofing membrane. Certified to CodeMark Australia CM40377 for internal and external wet areas on concrete, and backed for life.
Not sure? Compare standard vs flood test
or 4 interest-free payments of $225.00 with AfterPay ex GST $818.18
Prep and sealing gear that goes in alongside the flange.
CM40377 is a Certificate of Conformity from CMI Australia, issued after independent testing against the Australian standards. It is the strongest compliance evidence available for a building product, and it travels with every flange you install.
A $12 part sits under a bathroom for the life of the building. Actnow warrants it for that long, which tells you what they think of the rubber, and takes the cheapest possible failure point off your risk list.
The flexible rubber body forgives an out-of-square riser and moves with the slab instead of fighting it. Membrane bonds cleanly to the flat rubber collar, and there is no rigid lip to crack under screed.
The test version comes with the bottom blocked off from the factory. Fill the area, hold the test, then make a small incision to release the water. No balloon, no plug, no extra hire.
Designed specifically for 100mm drainage outlets and floor wastes in concrete substrates, and certified for both internal and external wet areas. Australian designed, Design Registration 201814766.
Same rubber, same certification, same install. The only difference is what happens at the bottom of the flange.

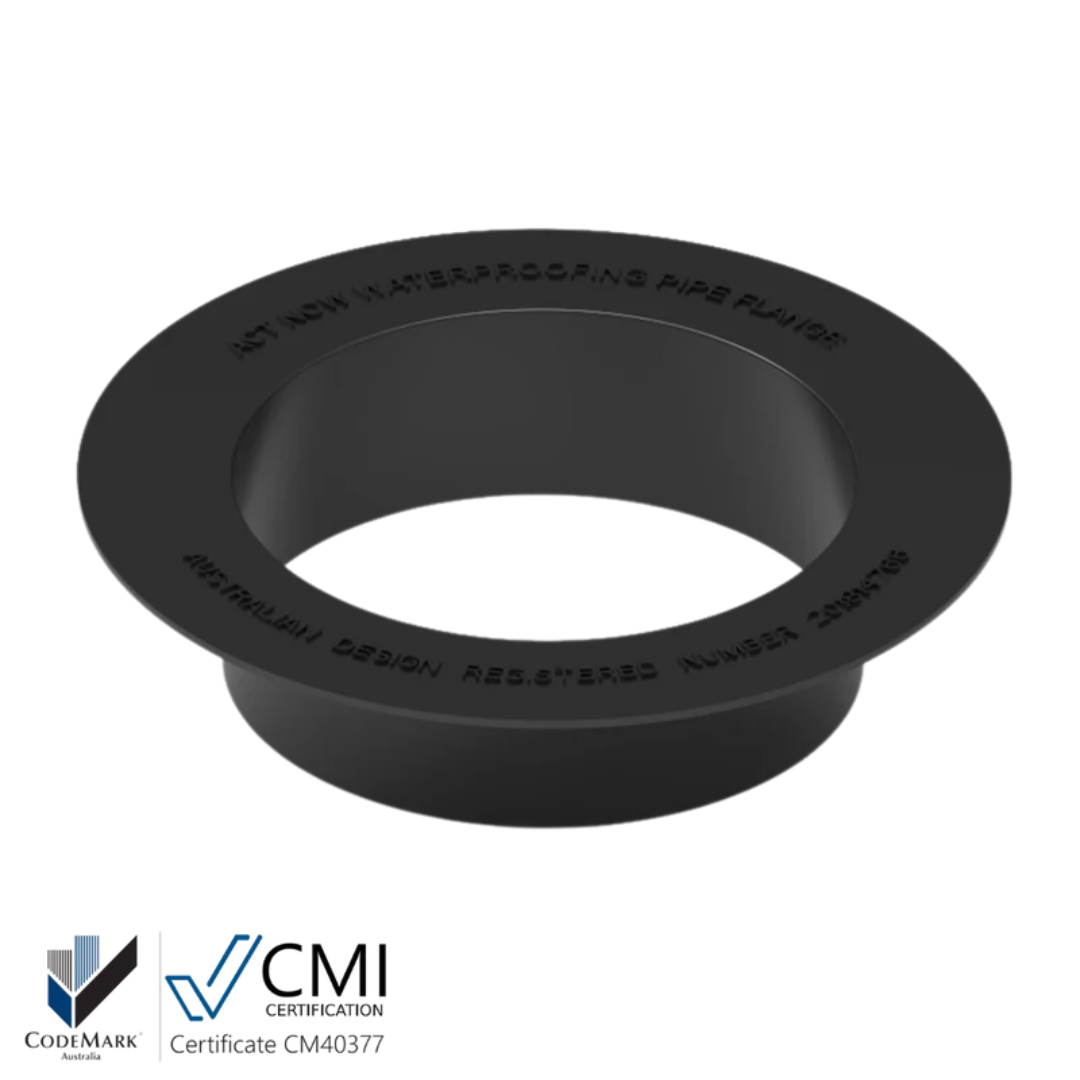

The everyday flange. Open outlet, straight through to the drain. Flood test with a balloon or plug when you need to.

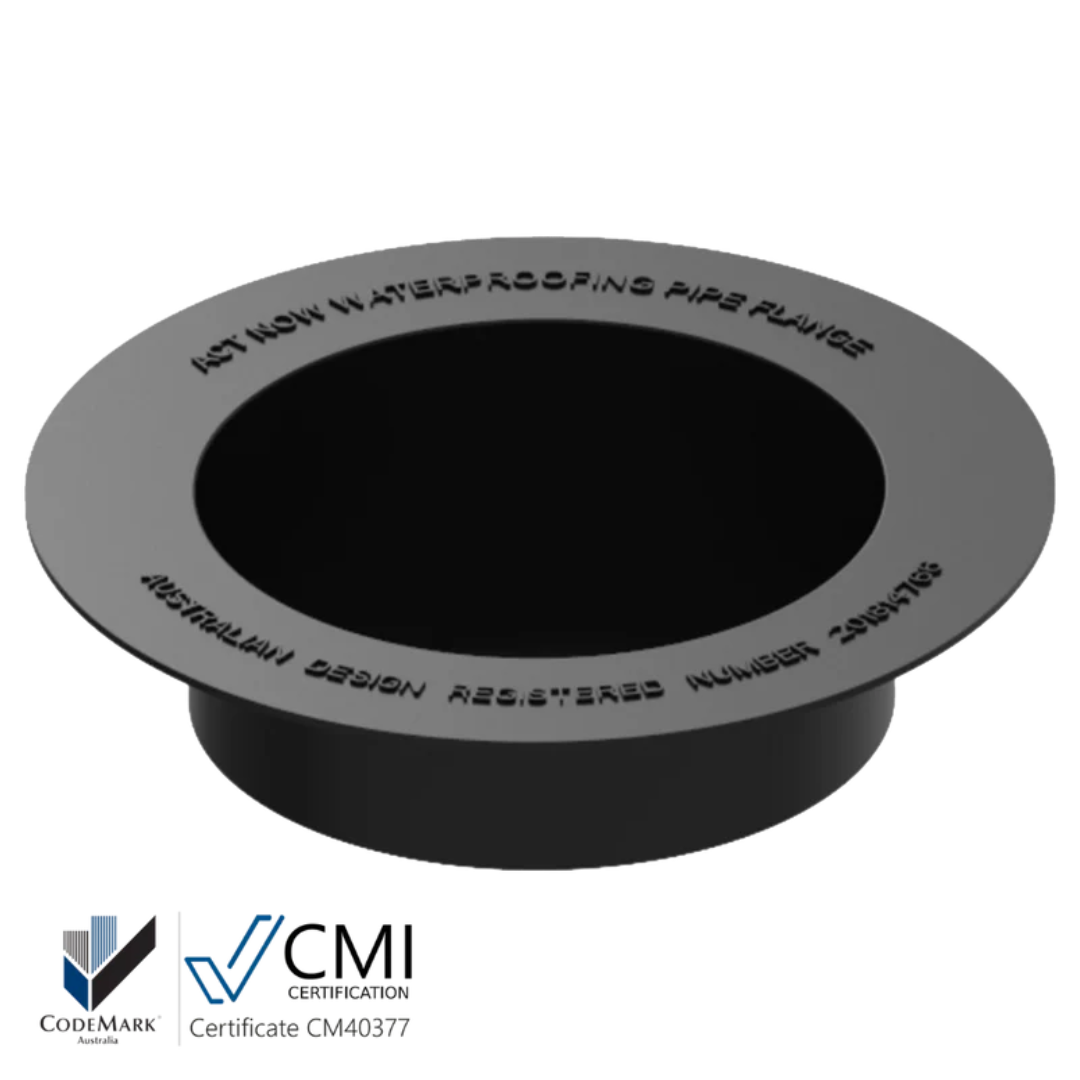

The bottom is blocked off from the factory. Fill the area, hold your test, then cut a small incision to release the water.
Running the standard flange? Add a flood test balloon so you can still test the area before handover.
Four steps, no extra equipment, no hiring a plug.
Seat the test flange on the 100mm outlet and bond the membrane to the rubber collar as normal.
The blocked bottom holds the water, no balloon, no plug, nothing to hire or inflate.
Leave the test to stand and check the area below for any sign of water tracking through.
A small incision in the blocked base releases the water, and the flange stays in as the permanent detail.

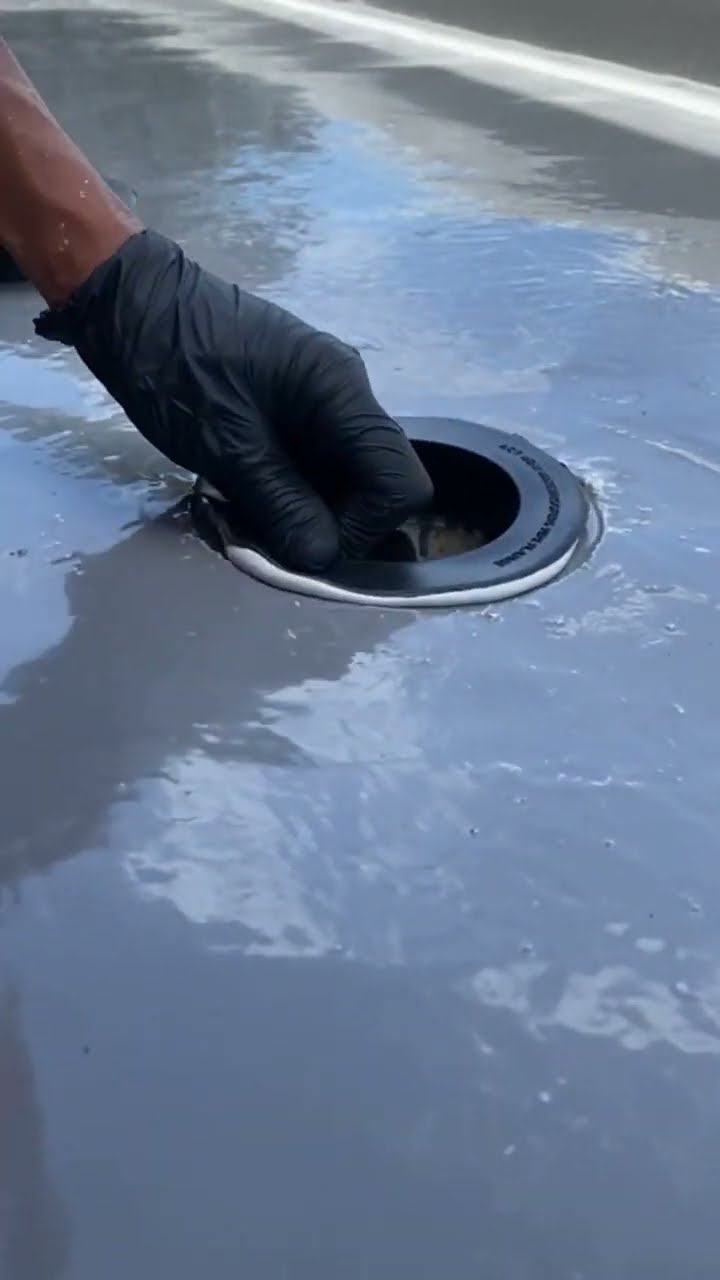

The full install on a concrete slab, start to finish.
CodeMark is the highest level of product certification in the Australian building system. It gives a certifier evidence of compliance they have to accept, which is exactly what you want when a waterproofing detail gets questioned.
Both versions side by side, so you can check the fit before you order.
Data sheets and certification for the ActNow rubber flange range.
They are the same rubber flange with the same certification and the same install. The flood test version has the bottom blocked off from the factory so it holds water for a flood test without a balloon. Once the test passes, you cut a small incision in the base to drain it and the flange stays in permanently.
Not with the flood test flange, that is the point of it. With the standard flange you will need a balloon or plug to hold water for the test. Plenty of trade customers keep balloons on hand anyway for other outlets and pipe sizes on the same job.
CodeMark is the highest level of product certification in the Australian building system. CM40377 is a Certificate of Conformity issued by CMI Australia after independent testing, and it gives a certifier evidence of compliance they are required to accept. It is worth having on record if a waterproofing detail is ever questioned.
The neoprene body flexes, so it forgives a riser that is slightly out of square and moves with the slab rather than fighting it. There is no rigid lip to crack under screed, and the membrane bonds cleanly to the flat rubber collar.
Yes. It is certified for both internal and external wet areas on concrete substrates, in residential and commercial work.
The flange is warranted for the life of the installation rather than a fixed term. Keep your receipt and the CodeMark certificate on file with the job documentation.
Both versions ship 100 per box. Pricing is shown live in the buy box above, so it always reflects any promotion running at the time.
It is designed and certified specifically for concrete substrates. For FC sheeting and timber floors, talk to us on (02) 8021 3517 about the right detail for your build-up.
CodeMark CM40377, lifetime warranty, dispatched next business day. Buy by the box and never hold up a job.
